Genuine Western Digital through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
1ES0380
Category
Drive Cabinets
Overview

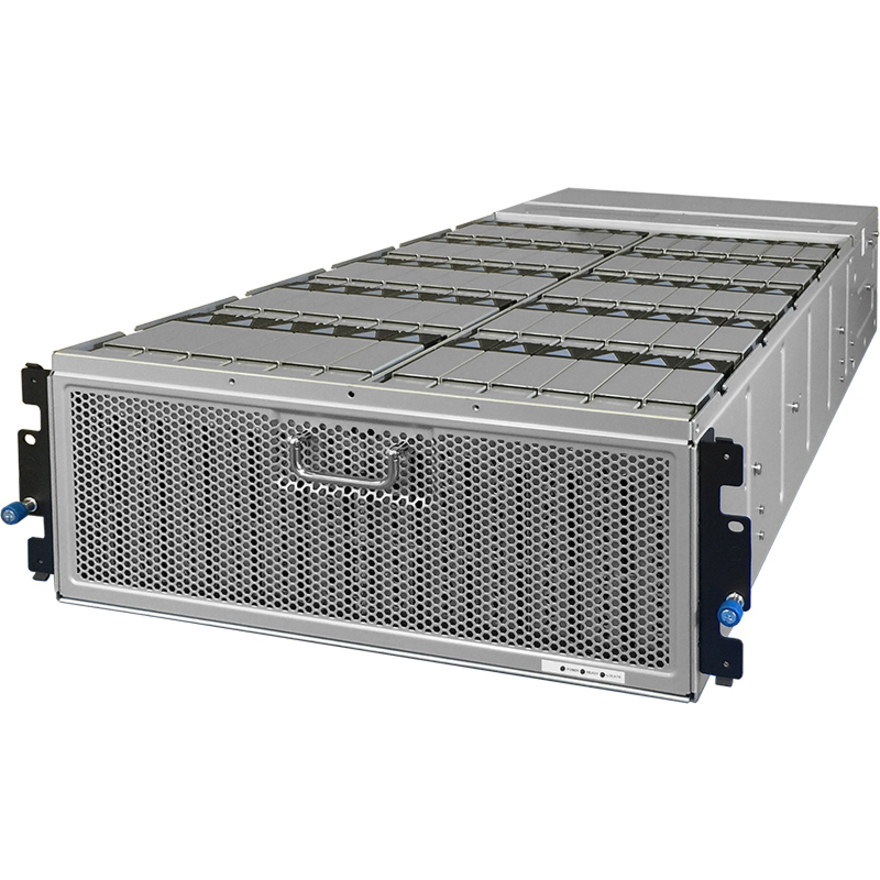

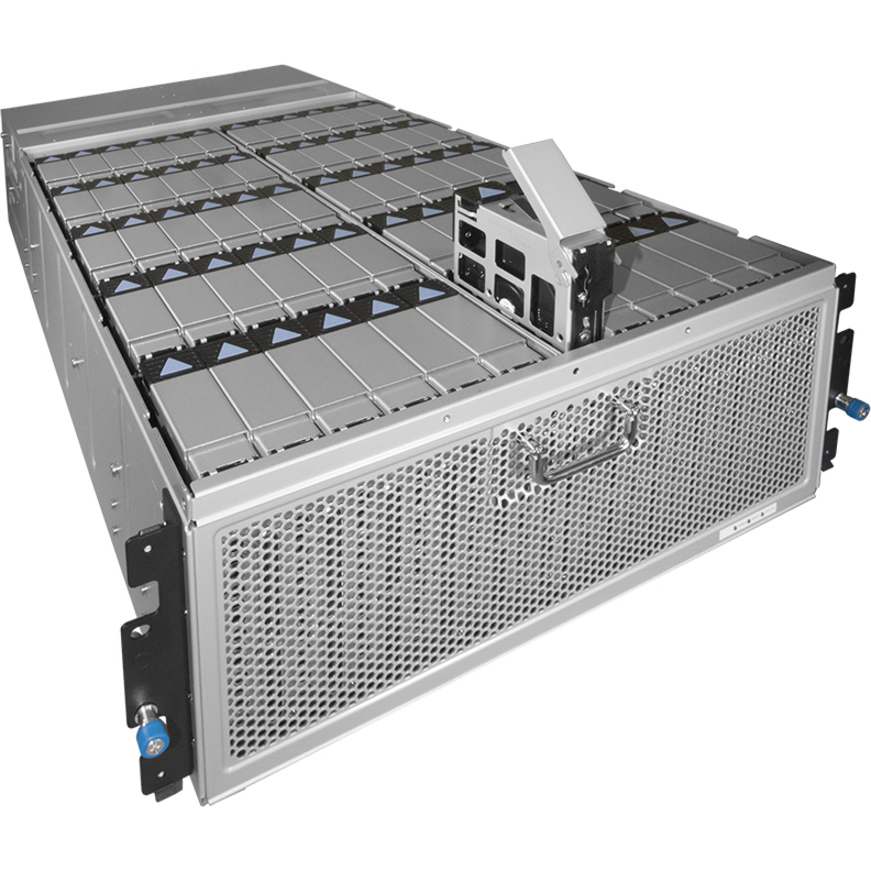

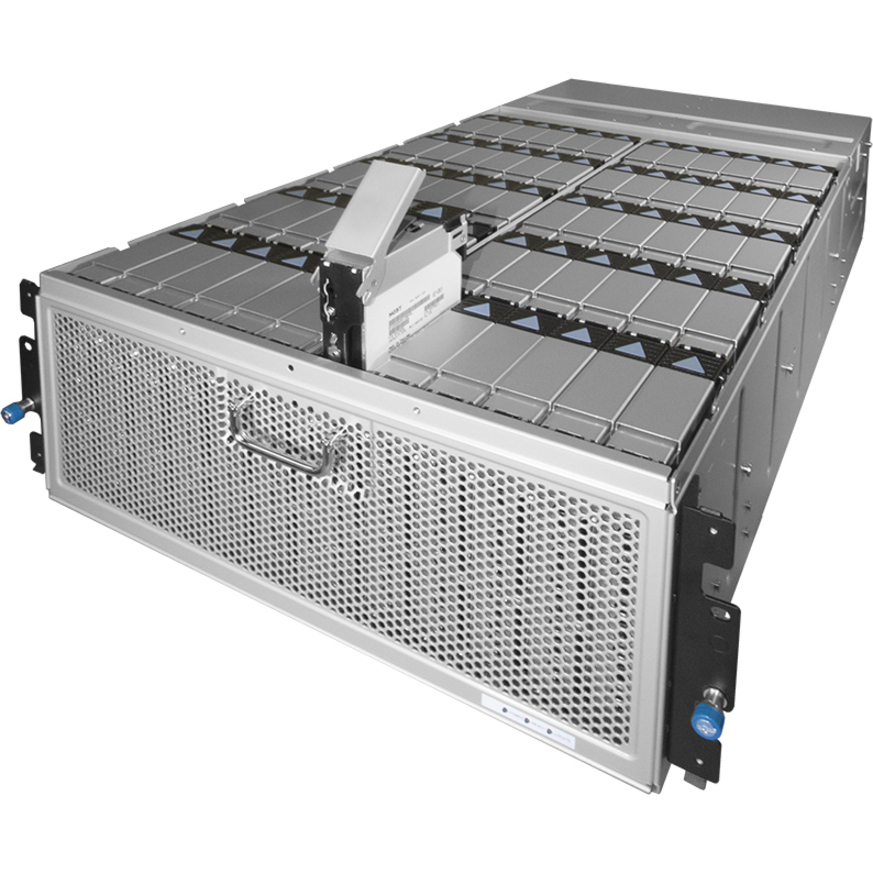

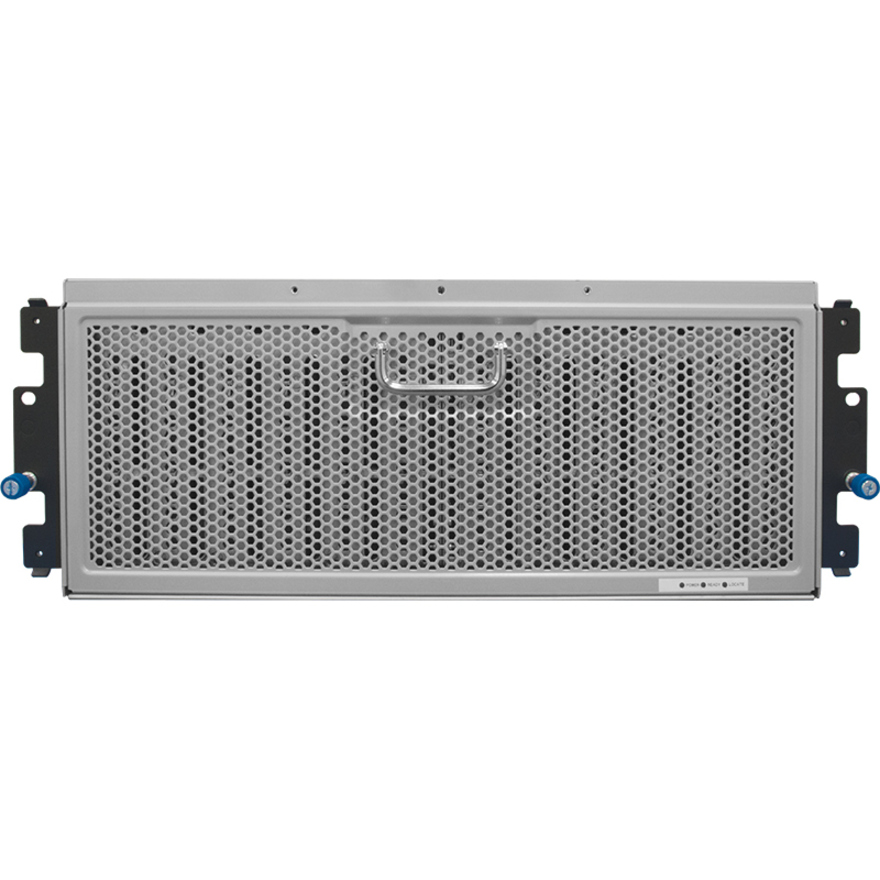

When data centers need storage expansion that delivers low power and high capacity with high-availability, they rely on the HGST 4U60G2 Storage Platform. This high density, scalable, and cost-effective design includes up to 60 Ultrastar® 3.5-inch drive modules in a 4U enclosure, supports up to 8 hosts with SAS 12Gb/s performance, and delivers enterprise-class serviceability with hot-swappable components.
This integrated platform is qualified, tested and certified to support a broad range of HGST HDDs. It's available with SAS drives for high-availability (HA) applications, with SATA drives for cost-optimized applications, and can be configured with up to twelve (12) 800GB SSDs to create separate performance tiers within the platform.
Warranty
Limited Warranty: 5 Year
Highlights
Hybrid capability: can be configured with SSDs to create separate performance tiers within the platform
Available with SAS drives for HA application or with SATA drives for cost-optimized applications
Available with 512e or 4Kn sector size (by part number)
Supports up to 4 storage enclosures for daisy-chaining
Fully compliant with 12Gb/s SAS 3 interconnect

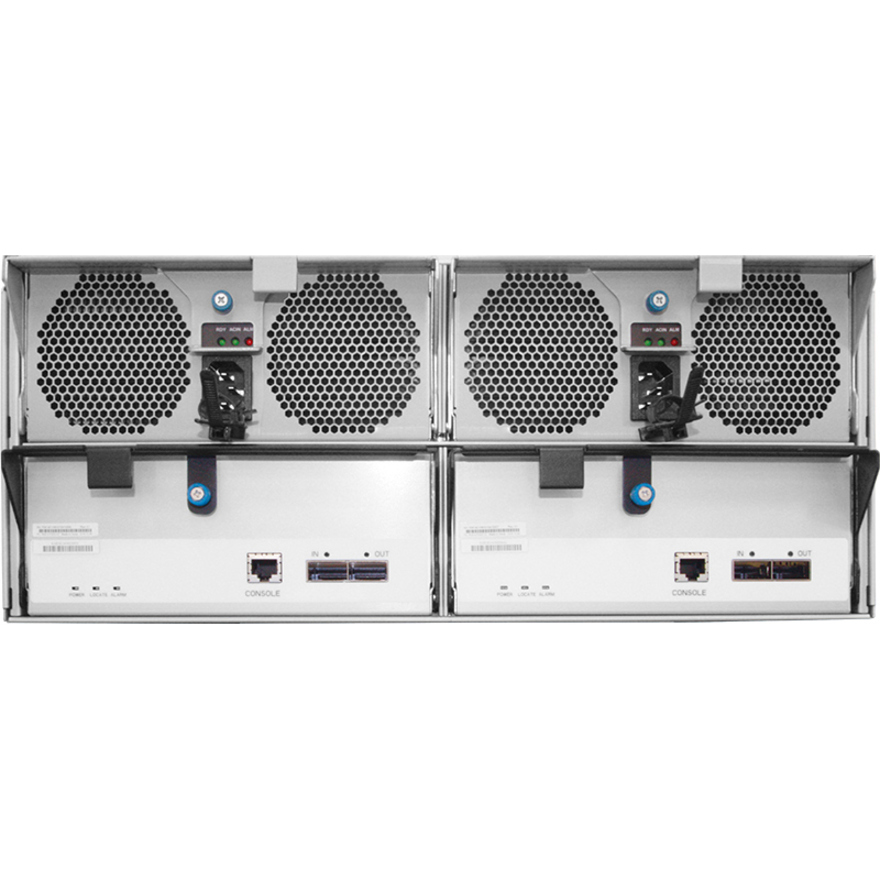

Hot-swappable components: two power supplies with integrated fans, drive modules, and IO Modules
Cable Management Arm (CMA) eliminates tangled cables during servicing of hot-swappable CRUs
SCSI Enclosure Services (SES-3)
Microsoft certified for Windows Server 2012, 2012R2
5-year limited warranty
Specifications
General Information
Manufacturer
Western Digital Corporation
Manufacturer Part Number
1ES0380
Brand Name
HGST
Product Model
4U60
Product Name
4U60 Drive Enclosure
Product Type
Drive Enclosure
Interfaces/Ports
Host Interface
12Gb/s SAS
Physical Characteristics
Cooling Fan
Yes
Form Factor
Rack-mountable
Rack Height
4U
Height
6.9"
Width
16.7"
Depth
34.7"
Technical Information
Number of Hard Drives Supported
60
Number of Hard Drives Installed
24
Total Hard Drive Capacity Installed
240 TB
Number of Solid State Drive Supported
12
Number of Solid State Drive Installed
No
I/O Expansions
Number of Total Expansion Bays
60
Number of 3.5" Bays
60
Warranty
Limited Warranty
5 Year
Miscellaneous
Environmentally Friendly
Yes
Environmental Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS) 2
