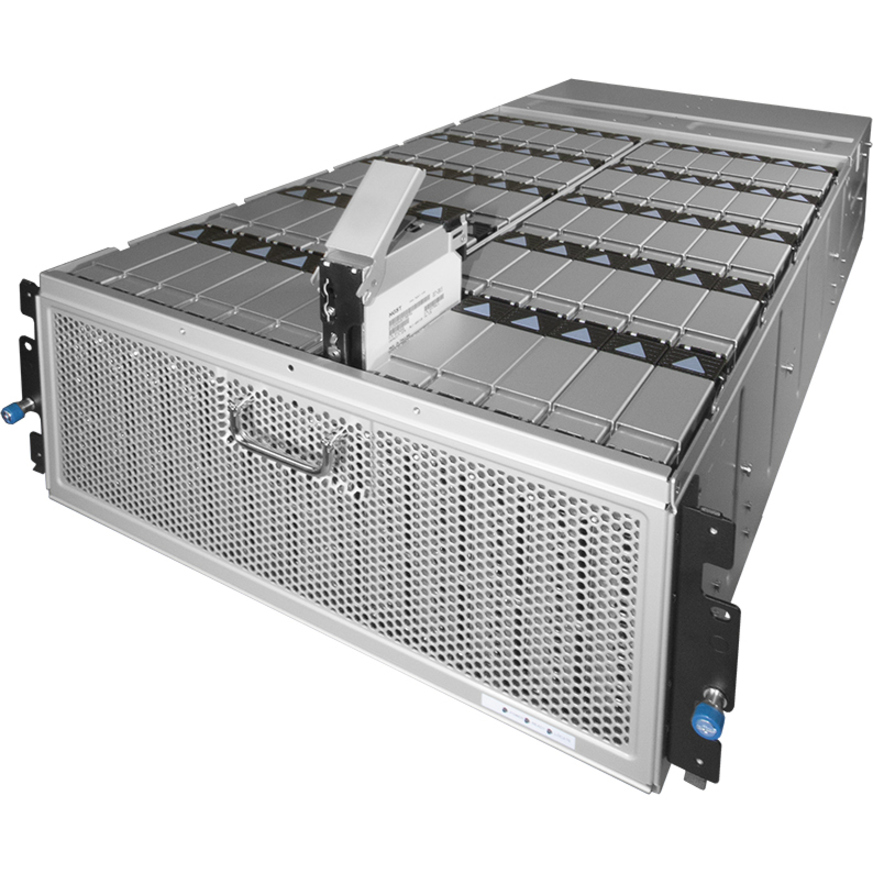

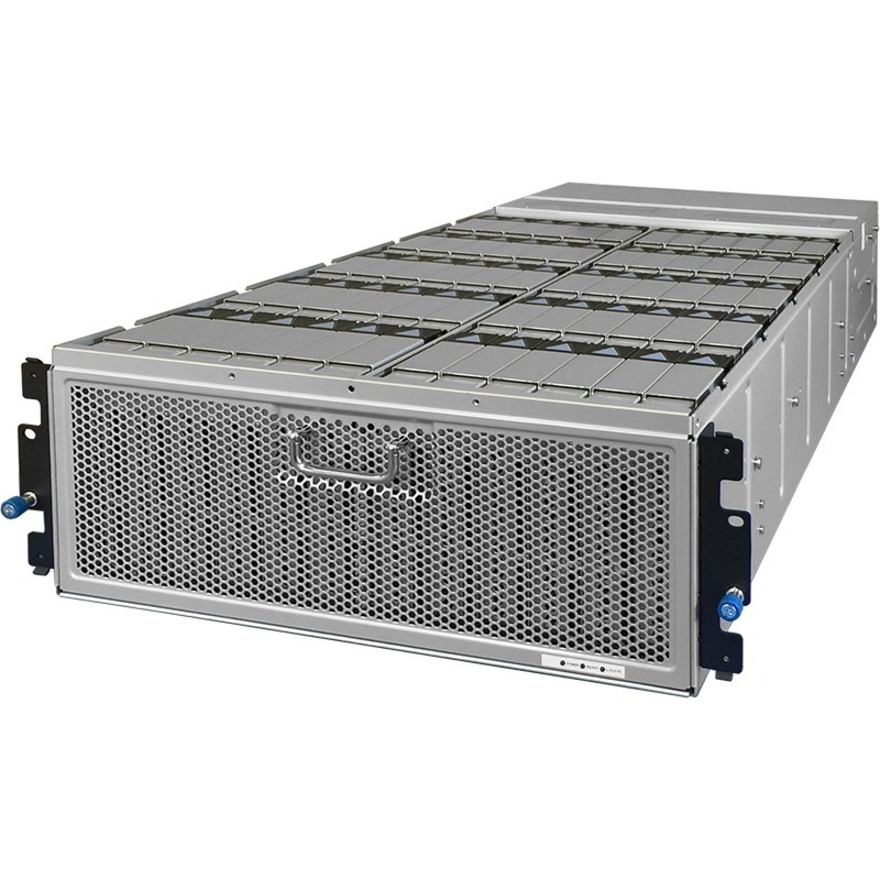

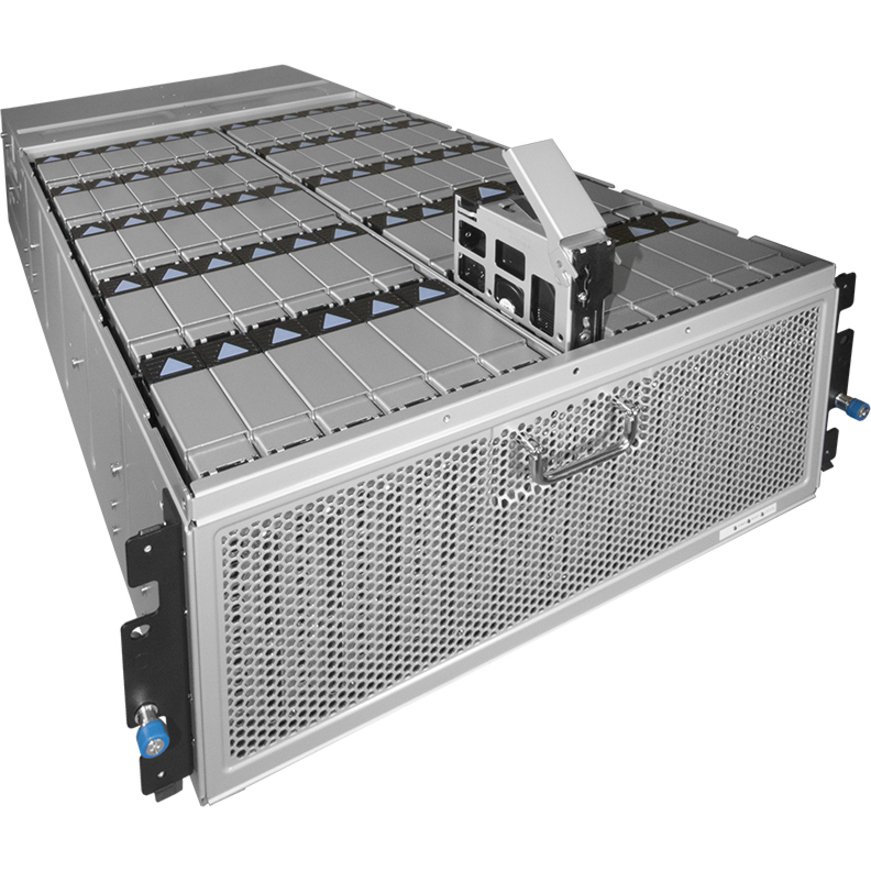

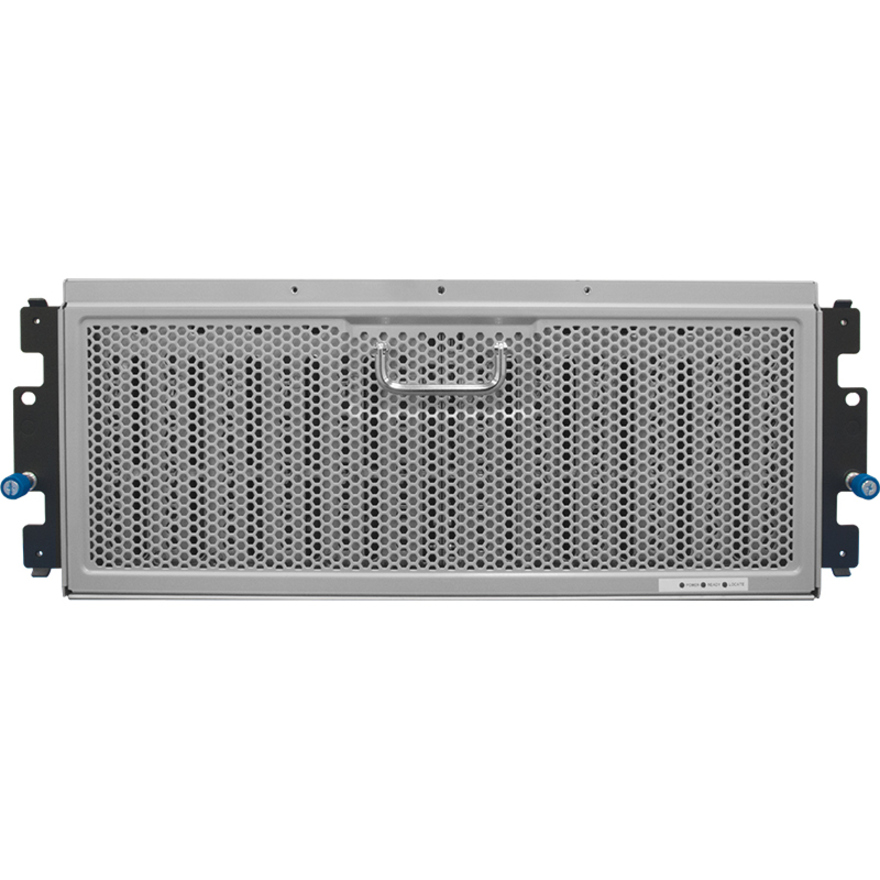

HGST 4U60 Drive Enclosure - 12Gb/s SAS Host Interface - 4U Rack-mountable
Western Digital

HGST 4U60 Drive Enclosure - 12Gb/s SAS Host Interface - 4U Rack-mountable

60 x HDD Supported - 12 x SSD Supported - 60 x Total Bay - 60 x 3.5" Bay

SKU
1ES0365
Category
Drive Cabinets

$29,816.76

Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Western Digital through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
1ES0365
Category
Drive Cabinets

Overview

When data centers need storage expansion that delivers low power and high capacity with high-availability, they rely on the HGST 4U60G2 Storage Platform. This high density, scalable, and cost-effective design includes up to 60 Ultrastar® 3.5-inch drive modules in a 4U enclosure, supports up to 8 hosts with SAS 12Gb/s performance, and delivers enterprise-class serviceability with hot-swappable components.

This integrated platform is qualified, tested and certified to support a broad range of HGST HDDs. It's available with SAS drives for high-availability (HA) applications, with SATA drives for cost-optimized applications, and can be configured with up to twelve (12) 800GB SSDs to create separate performance tiers within the platform.

Highlights

  • Hybrid capability: can be configured with SSDs to create separate performance tiers within the platform
  • Available with SAS drives for HA application or with SATA drives for cost-optimized applications
  • Available with 512e or 4Kn sector size (by part number)
  • Supports up to 4 storage enclosures for daisy-chaining
  • Fully compliant with 12Gb/s SAS 3 interconnect

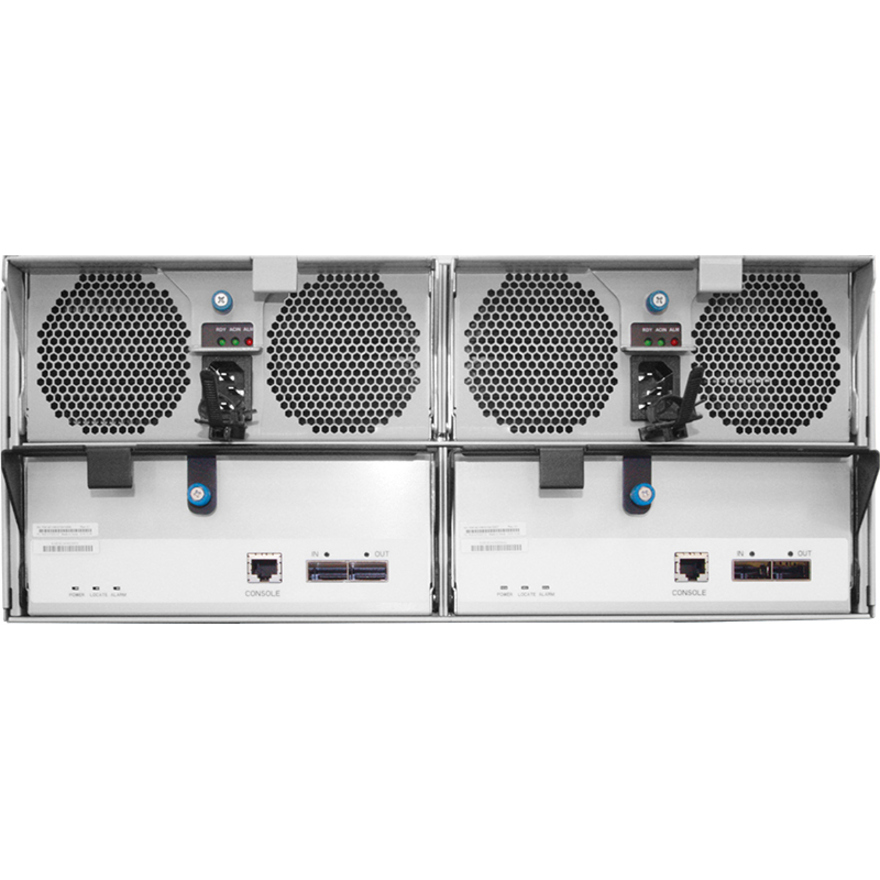

  • Hot-swappable components: two power supplies with integrated fans, drive modules, and IO Modules
  • Cable Management Arm (CMA) eliminates tangled cables during servicing of hot-swappable CRUs
  • SCSI Enclosure Services (SES-3)
  • Microsoft certified for Windows Server 2012, 2012R2
  • 5-year limited warranty

Specifications

Host Interface12Gb/s SAS
Product TypeDrive Enclosure
Manufacturer Part Number1ES0365
Limited Warranty5 Year
Weight (Approximate)198 lb
Form FactorRack-mountable
ManufacturerWestern Digital Corporation
Product Model4U60
Product Name4U60 Drive Enclosure
Rack Height4U
Brand NameHGST
Height6.9"
Width16.7"
Depth34.7"
Environmentally FriendlyYes
Number of Total Expansion Bays60
Number of 3.5" Bays60
Total Hard Drive Capacity Installed720 TB
Number of Hard Drives Supported60
Number of Hard Drives Installed60
Number of Solid State Drive Supported12
Number of Solid State Drive InstalledNo
Cooling FanYes
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS) 2
