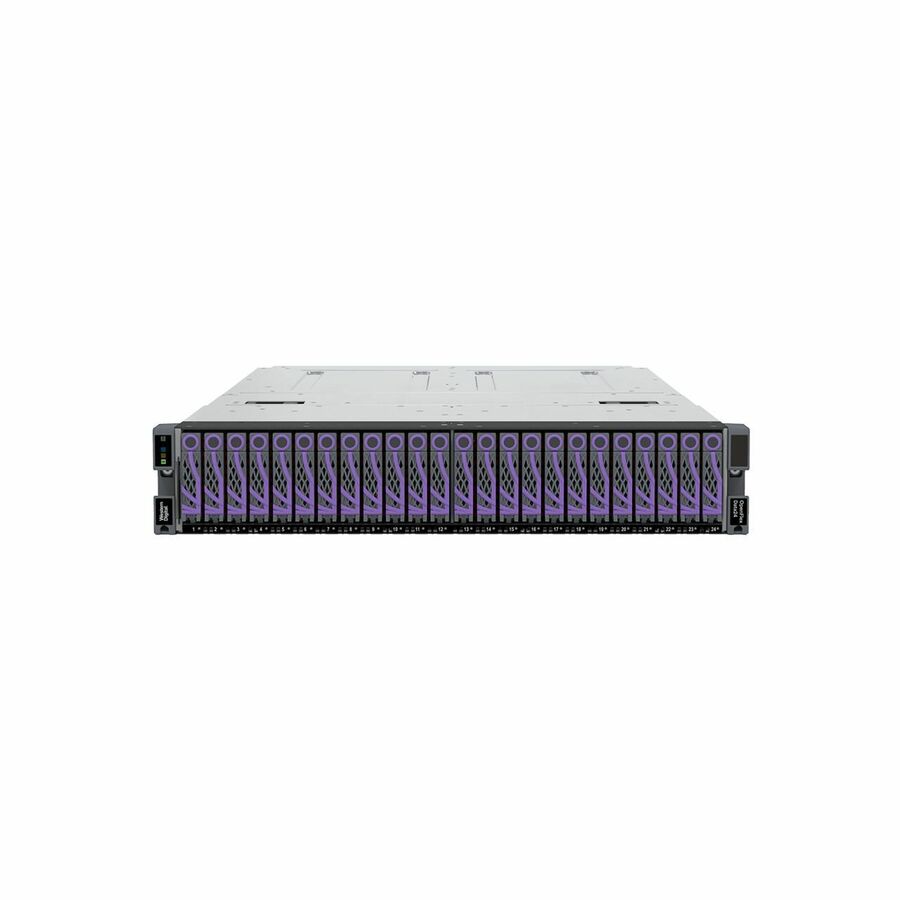

Western Digital OpenFlex Data24-24 Drive Enclosure PCI Express NVMe - 2U Rack-mountable - TAA Compliant
24 x SSD Supported - 24 x Total Bay - 100 Gbit/s Data Transfer Rate - 100 Gigabit Ethernet
- SKU
- 1ES2397
- Category
- Drive Cabinets
$60,910.32
Back ordered — ships when restocked.
Genuine Western Digital through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 1ES2397
- Category
- Drive Cabinets
Overview
The OpenFlex? Data24 is a 2U rack mounted data storage enclosure built on the OpenFlex platform. OpenFlex is Western Digital's architecture that supports Open Composable Infrastructure (OCI). The OpenFlex? Data24 is a Just-aBunch-Of-Flash (JBOF) platform that leverages this OCI approach in the form of disagreggated data storage using NVMe-over-Fabrics (NVMe-oF?). NVMe-oF is a networked storage protocol that allows storage to be disaggregated from compute to make that storage widely available to multiple applications and hosts. By enabling applications to share a common pool of storage capacity, data can be easily shared between applications, or needed capacity can be allocated to an application regardless of location. Utilizing NVMe? devicelevel performance, NVMe-oF promises to deliver the lowest end-to-end latency from application to shared storage. NVMeoF enables composable infrastructures to deliver the data locality benefits of NVMe (low latency, high performance) while providing the agility and flexibility of sharing storage and compute.
Highlights
- Provides amazing solution for expanding PC storage
- 100 Gigabit Ethernet Ethernet technology for increasing efficiency with the quicker transfer and sharing of information
- Organize wires & secure cables for professional installation with rack mounting facility
Specifications
| Product Type | Drive Enclosure |
|---|---|
| Manufacturer Part Number | 1ES2397 |
| Weight (Approximate) | 65.48 lb |
| Form Factor | Rack-mountable |
| Manufacturer | Western Digital Corporation |
| Product Model | Data24-24 |
| Product Name | OpenFlex Data24-24 Drive Enclosure |
| Product Line | OpenFlex |
| Rack Height | 2U |
| Brand Name | Western Digital |
| Height | 3.5" |
| Width | 17.7" |
| Depth | 28" |
| Maximum Data Transfer Rate | 100 Gbit/s |
| Ethernet Technology | 100 Gigabit Ethernet |
| Number of Total Expansion Bays | 24 |
| Total Solid State Drive Capacity Installed | 184.32 TB |
| Number of Solid State Drive Supported | 24 |
| Number of Solid State Drive Installed | 24 |
| Drive Interface | PCI Express NVMe |
| TAA Compliant | Yes |
