Genuine Promise Technology through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
J5320SDSS3
Category
Drive Cabinets
Overview
VTrak J5000 Series
VTrak JBOD expansion units for cloud and enterprise data centers
Affordable Enterprise-Level Storage
The VTrak J5000 Series delivers an affordable high performance SAS solution with advanced enterprise level reliability and functionality. The four external 12 Gb/s SAS ports per I/O module provide the connectivity for large capacity solutions requiring multiple cascaded JBODs, and high bandwidth solutions requiring speed. It features fully redundant I/O modules, power supplies and cooling units, combined with a cable-less system design, providing exceptional data availability even during component failures for the enterprise environment.
Supports Hybrid HDD/SSD Arrays
Fully backward compatible with 6 Gb/s SAS/SATA devices, users have the ability to deploy 3 Gb/s, 6 Gb/s, and 12 Gb/s SAS/SATA HDDs and SSDs in the J5000 Series. Efficient power supplies provide up to 90% power efficiency, which improves TCO by conserving power, reducing heat output, and improving cooling costs. The internal 12 Gb/s SAS expander-based architecture also allows for transparent access to each drive, enabling full utilization of the power management features built into modern hard drives.
Increased Performance To Optimize Datacenters
The VTrak J5000 Series moves data at incredible speeds, allowing you to optimize your datacenter. Administrators can deploy with the fastest SAS bus speed with 12 Gb/s HDDs or SSDs. These systems are fully backward compatible with 6 Gb/s SAS/SATA drives, yet are still able to optimize the full port bandwidth of 12 Gb/s to the host. Flash arrays allow you to optimize speed for key enterprise apps that require utmost performance. The internal 12 Gb/s SAS expander-based architecture allows for data to transfer faster with greater redundancy protection.
Warranty
Limited Warranty: 3 Year
Highlights
VTrak J5000 Series 12 Gb/s SAS subsystems deliver a high-performance SAS solution with advanced enterprise level reliability and functionality

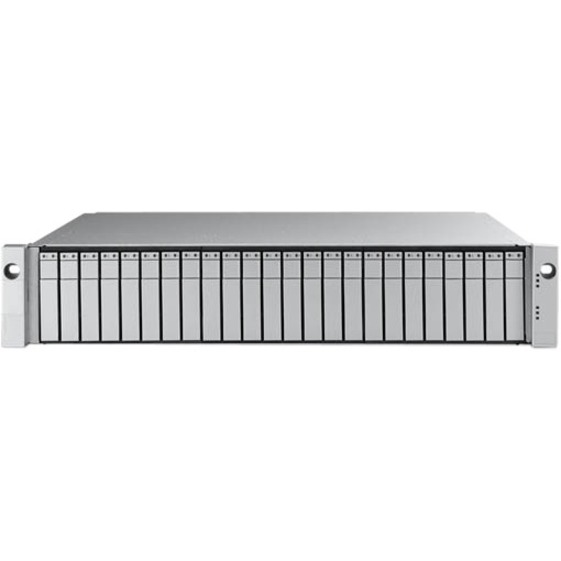

24 hot-swappable 2.5" (SFF) drive bays in a high-density 2U chassis
Supports SAS and SATA drives simultaneously and is compatible with leading SAS & SATA drives, HBAs, and RAID controllers
Dual active/active SAS JBOD I/O modules provide redundant data paths to ensure data availability and redundant hot-swappable Field Replaceable Units (FRUs)
Flexible wide-port configuration: Four x4 wide ports, two x8 wide ports or one x16 wide port per IOM and SES-2 compliant enclosure management
Specifications
Controllers
Non-RAID Mode
JBOD
General Information
Manufacturer
Promise Technology
Manufacturer Part Number
J5320SDSS3
Brand Name
Promise
Product Line
VTrak
Product Series
J5000
Product Model
J5320s
Product Name
VTrak J5320s Drive Enclosure
Product Type
Drive Enclosure
Interfaces/Ports
Host Interface
Mini-SAS HD
Physical Characteristics
Form Factor
Rack-mountable
Rack Height
2U
Height
3.5"
Width
17.6"
Depth
16.5"
Weight (Approximate)
42.33 lb
Technical Information
Number of Hard Drives Supported
24
Number of Solid State Drive Supported
24
Number of Solid State Drive Installed
24
Total Solid State Drive Capacity Installed
46.08 TB
I/O Expansions
Number of Total Expansion Bays
24
Number of 2.5" Bays
24
Warranty
Limited Warranty
3 Year
Miscellaneous
Environmentally Friendly
Yes
Environmental Compliance
Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS)
