Western Digital

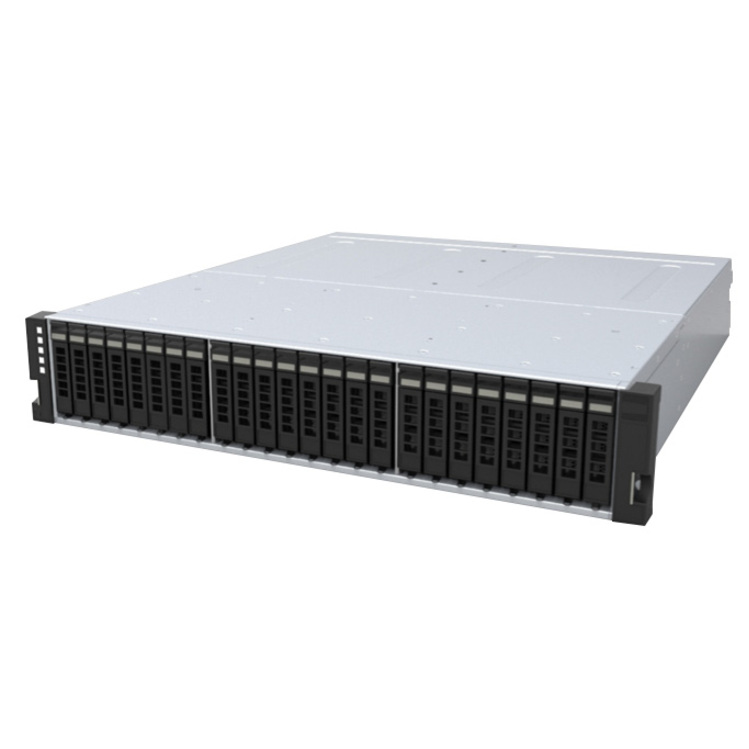

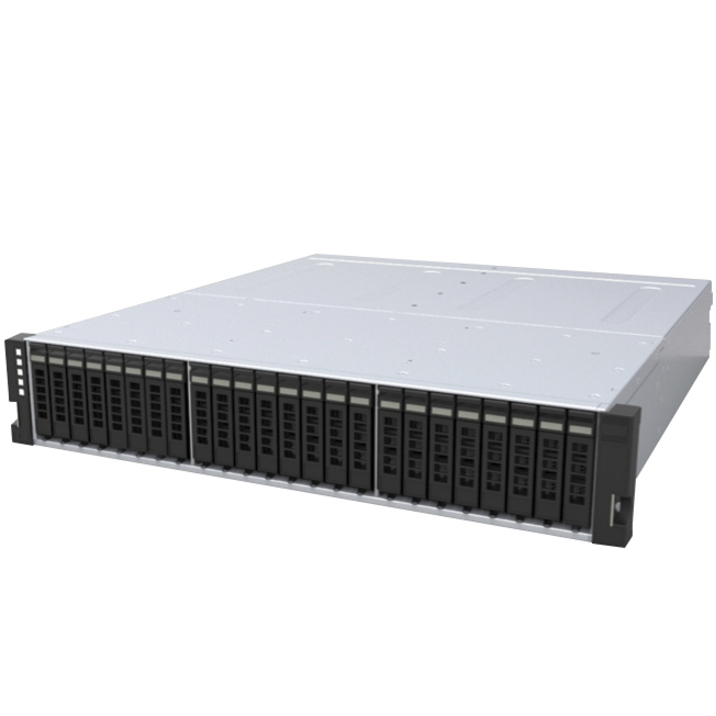

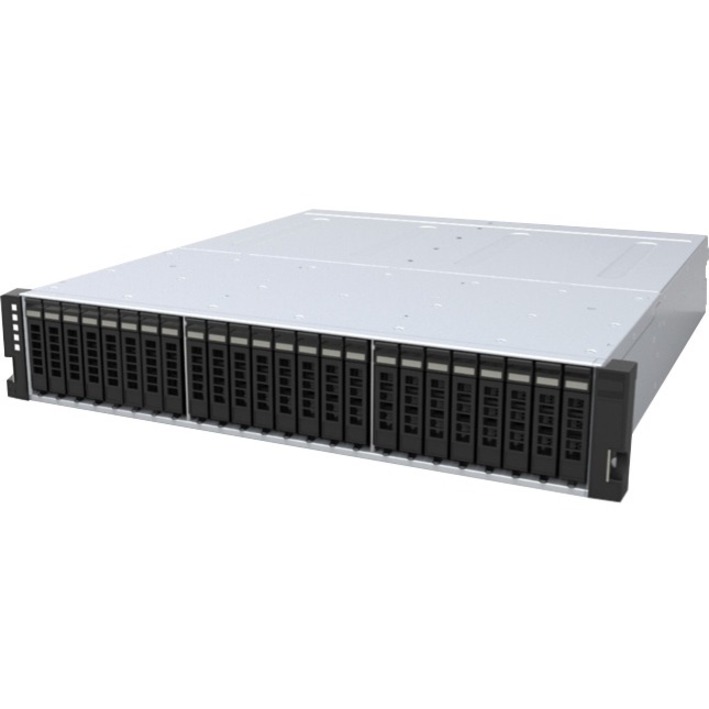

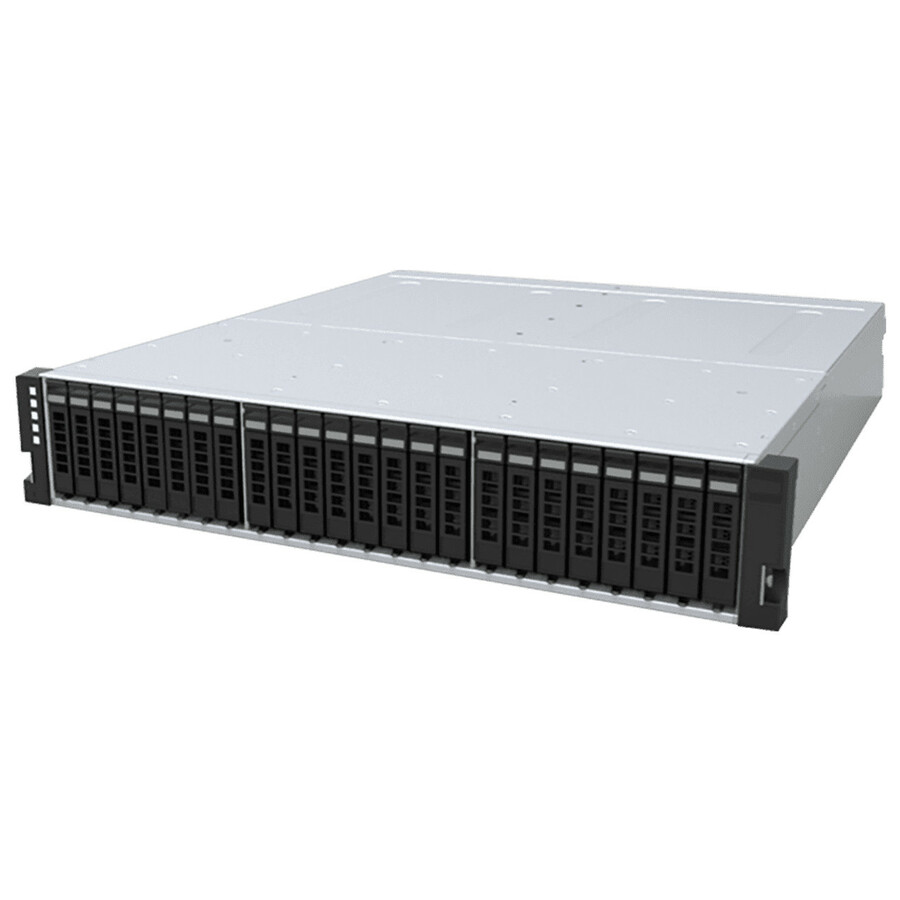

HGST 1ES0242 Drive Enclosure for 2.5" - Mini-SAS Host Interface - 2U Rack-mountable
24 x SSD Supported - 24 x Total Bay - 24 x 2.5" Bay
- SKU
- 1ES0242
- Category
- Drive Cabinets
$1,178,946.19
Back ordered
Back ordered — ships when restocked.
Genuine Western Digital through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 1ES0242
- Category
- Drive Cabinets
Overview
The 2U24 Flash Storage Platform is a key element of next generation Software-Defined Storage (SDS) systems. It offers performance advantages as well as flexibility to improve compute-to-capacity ratio by decoupling available storage from CPU resources.
Highlights
- High Density - Up to 24 2.5" SAS or SATA SSD modules in a 2U unit
- Scalable - Connect up to six hosts via the 12Gb/s SAS3 interface
- Performance - Up to 4.7M IOPS, 23 GB/s, less than 1ms latency
Specifications
| Host Interface | Mini-SAS |
|---|---|
| Product Type | Drive Enclosure |
| Manufacturer Part Number | 1ES0242 |
| Limited Warranty | 5 Year |
| Form Factor | Rack-mountable |
| Manufacturer | Western Digital Corporation |
| Product Model | 1ES0242 |
| Product Name | 2U24 Flash Storage Platform |
| Rack Height | 2U |
| Brand Name | HGST |
| Height | 3.4" |
| Width | 17.6" |
| Depth | 21.1" |
| Environmentally Friendly | Yes |
| Compatible Drive Bay Width | 2.5" |
| Number of Total Expansion Bays | 24 |
| Total Solid State Drive Capacity Installed | 23.04 TB |
| Number of Solid State Drive Supported | 24 |
| Number of Solid State Drive Installed | 12 |
| Number of 2.5" Bays | 24 |
| Cooling Fan | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS) 2 |
