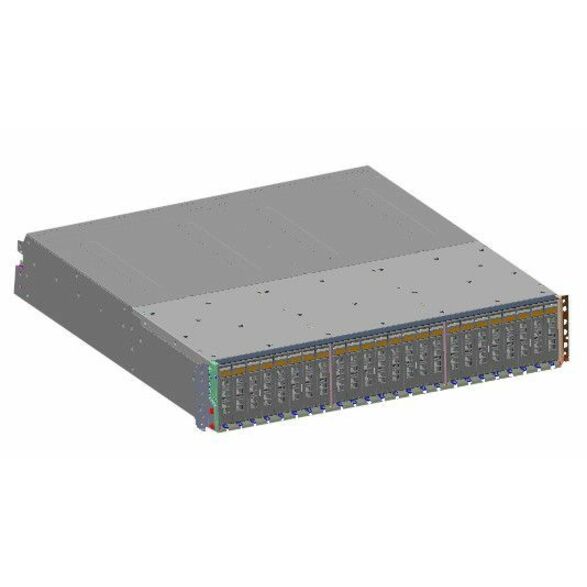

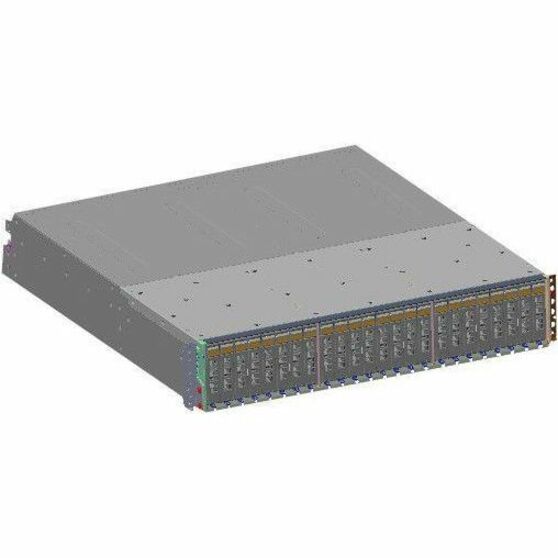

WD Ultrastar SE2U24-12 Drive Enclosure 12Gb/s SAS - Mini-SAS HD Host Interface - 2U Rack-mountable
Hot Swappable Bays - 24 x SSD Supported - 24 x Total Bay - 24 x 2.5" Bay
- SKU
- 1ES1613
- Category
- Drive Cabinets
$38,881.68
Back ordered — ships when restocked.
Genuine Western Digital through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 1ES1613
- Category
- Drive Cabinets
Overview
Flash Storage Platform for Software-Defined Storage
The Ultrastar 2U24 Flash Storage Platform is a key element of next generation software-defined storage (SDS) systems. This powerful system balances performance with capacity, delivering high IOPS, low latency at up to 368TB1 capacity. It also offers flexibility to improve compute-to-capacity ratio by decoupling available storage from CPU resources.
Designed for Enterprise and the Cloud
Ultrastar 2U24 Flash Storage Platform addresses the demanding storage needs of large enterprises and cloud service providers who require dense, shared flash storage. The Platform offers distinct features designed for today's data centers, such as:
• Enterprise-class high availability: hot swappable components including SSDs, I/O Modules, PSUs (integrated fans)
• Fully upgradeable: upgradeable firmware enables drive technology and capacity updates without impacting applications
• Supports enterprise workloads including database, virtualization and scale-out configurations
Highlights
- A 2U flash storage platform with up to 24 Ultrastar® 2.5" SAS SSD modules
- Available SSD capacities include 1.6TB, 1.92TB, 3.2TB, 3.84TB, 6.4TB, 7.68TB and 15.36TB
- Start with as little as 12 SSDs and add additional SSDs as needed to meet changing needs
- Up to six 12Gb/s SAS3 connections to host Up to 4.7M IOPS, 23 GB/s; <1ms latency
- Easy maintenance of SSD modules. Front accessible and hot swappable
- 5-year limited warranty
Specifications
| Host Interface | Mini-SAS HD |
|---|---|
| Product Type | Drive Enclosure |
| Manufacturer Part Number | 1ES1613 |
| Limited Warranty | 5 Year |
| Form Factor | Rack-mountable |
| Manufacturer | Western Digital Corporation |
| Product Model | SE2U24-12 |
| Product Name | Ultrastar 2U24 Flash Storage Platform |
| Product Line | Ultrastar |
| Rack Height | 2U |
| Brand Name | WD |
| Height | 3.4" |
| Width | 17.6" |
| Depth | 21.1" |
| Number of Total Expansion Bays | 24 |
| Total Solid State Drive Capacity Installed | 92.16 TB |
| Number of Solid State Drive Supported | 24 |
| Number of Solid State Drive Installed | 12 |
| Number of 2.5" Bays | 24 |
| Cooling Fan | Yes |
| Drive Interface | 12Gb/s SAS |
| TAA Compliant | No |
| Hot Swappable Bays | Yes |
