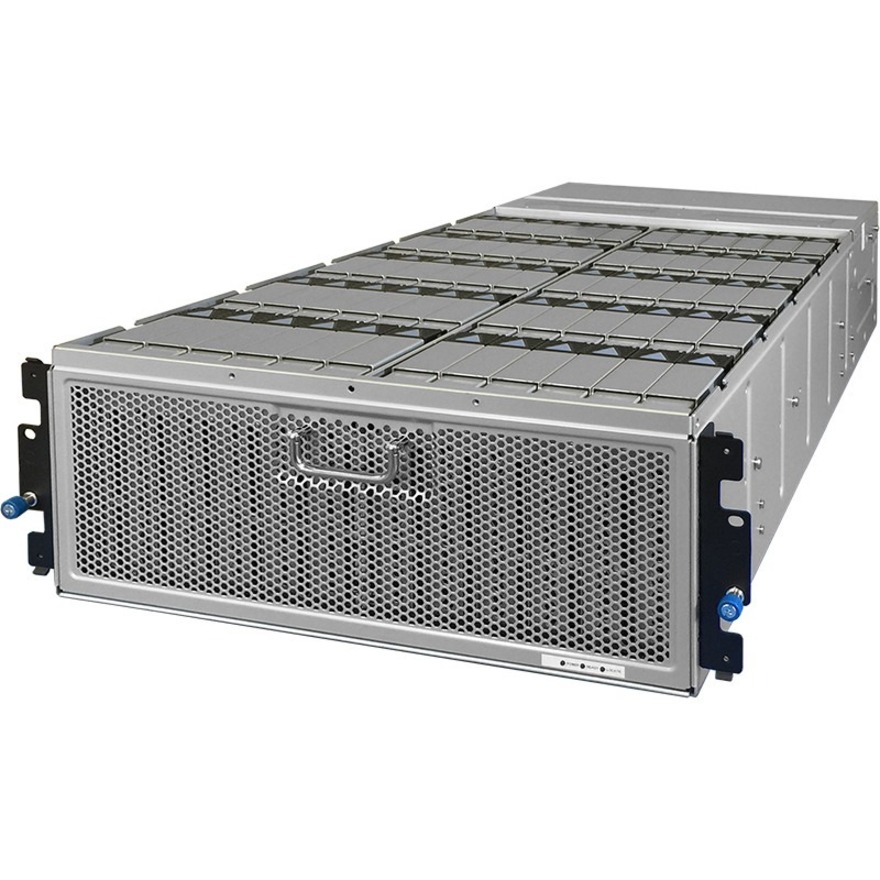

HGST 4U60G2 Drive Enclosure - 12Gb/s SAS Host Interface - 4U Rack-mountable
60 x HDD Supported - 60 x Total Bay - 60 x 3.5" Bay
- SKU
- 1ES0161
- Category
- Drive Cabinets
$30,027.79
Back ordered — ships when restocked.
Genuine Western Digital through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 1ES0161
- Category
- Drive Cabinets
Overview
When data centers need storage expansion that delivers low power and high capacity with high-availability, they rely on the HGST 4U60G2 Storage Platform. This high density, scalable, and cost-effective design includes up to 60 Ultrastar® 3.5-inch drive modules in a 4U enclosure, supports up to 8 hosts with SAS 12Gb/s performance, and delivers enterprise-class serviceability with hot-swappable components.
This integrated platform is qualified, tested and certified to support a broad range of HGST HDDs. It's available with SAS drives for high-availability (HA) applications, with SATA drives for cost-optimized applications, and can be configured with up to twelve (12) 800GB SSDs to create separate performance tiers within the platform.
Highlights
- Compact in size but massive in performance. Provides sufficient external data storage, with ultra-fast data transfer speeds and configurable modes.
- Featuring Non-RAID Mode - Data reliability, fault tolerance, and enhanced performance through jbod
- Rack-mountable form factor offers comfortable usage for a longer duration
Specifications
| Host Interface | 12Gb/s SAS |
|---|---|
| Product Type | Drive Enclosure |
| Manufacturer Part Number | 1ES0161 |
| Form Factor | Rack-mountable |
| Manufacturer | Western Digital Corporation |
| Product Model | 4U60G2 |
| Product Name | 4U60G2 Storage Platform |
| Rack Height | 4U |
| Brand Name | HGST |
| Height | 6.9" |
| Width | 16.7" |
| Depth | 34.7" |
| Number of Total Expansion Bays | 60 |
| Number of 3.5" Bays | 60 |
| Total Hard Drive Capacity Installed | 600 TB |
| Number of Hard Drives Supported | 60 |
| Number of Hard Drives Installed | 60 |
| Cooling Fan | Yes |
| Non-RAID Mode | JBOD |
