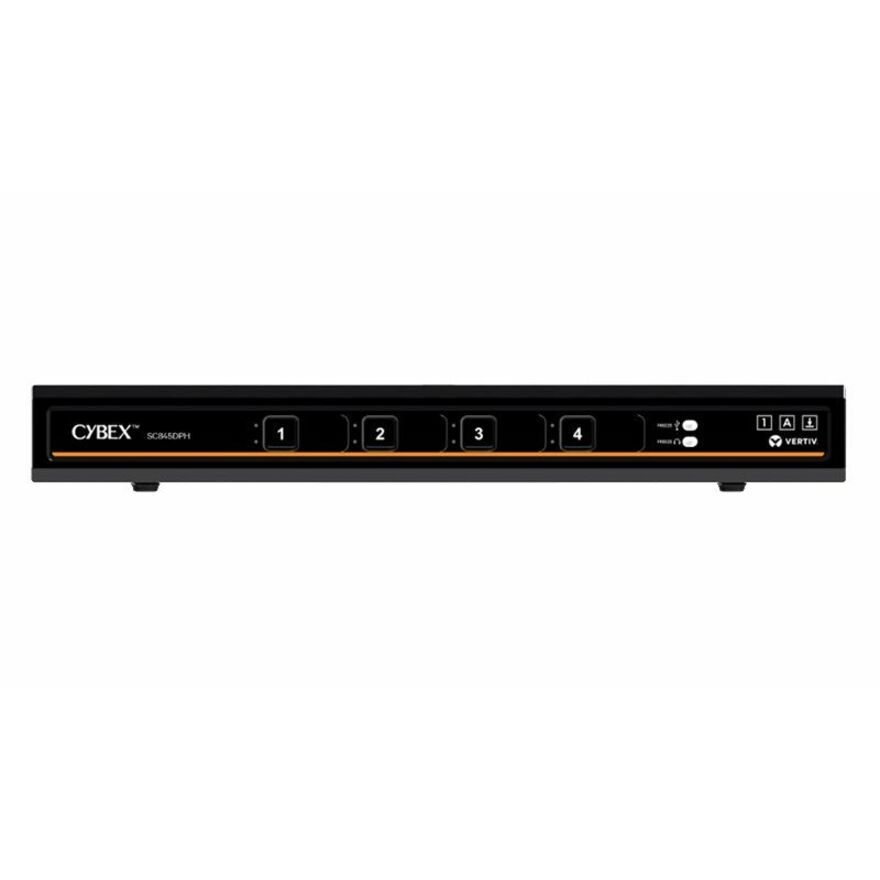

Vertiv Cybex SC800 Secure KVM| 4 Port Universal DP/H Single Display| CAC PP4.0
Secure Desktop KVM Switches | Secure KVM Switch | Single Head | NIAP Certified | Secure Keyboard | 2 to 8 Port, Secure Isolated Channels | Running up to UHD 4K at 60Hz | 3-Year Full Coverage Factory Warranty - Optional Extended Warranty Available
- SKU
- SC845DPH-400
- Category
- KVM Switchboxes
MSRP$1,656.00
$1,161.50
Save 30%In stock: 782
Genuine Vertiv through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SC845DPH-400
- Category
- KVM Switchboxes
Overview
The Vertiv Avocent Cybex SC845DPH-400 secure desktop KVM switch provides secure connectivity across multiple resources. It lets users switch between computers with different security levels while preventing data leaks. Designed for security-conscious organizations, the SC845DPH-400 isolates each connected system, enforcing unidirectional data flow to safeguard sensitive information. It supports a maximum resolution of 3840 x 2160 at 60 Hz on a single display, delivering crisp, clear visuals. The four universal video ports (DisplayPort and HDMI) allow easy connection of up to two systems, while a 3.5mm audio jack supports alerts and notifications. Certified to the latest NIAP Common Criteria Protection Profile for Peripheral Sharing Switch (version 4.0), the SC845DPH-400 also features active intrusion detection and tamper-evident labels to alert users of unauthorized access. With a universal power supply and 4K support, it offers both security and performance in a streamlined solution.
More from the Manufacturer
High Security for Peripheral Desktop Sharing
Vertiv Cybex SC800 Secure Desktop KVM Switches guard against cyber intrusion at the desktop. These switches provide advanced peripheral isolation among desktop computers with secure switching that isolates data and prevents data leakage, transfer and crosstalk to unauthorized devices. Vertiv Cybex SC800 switches transition smoothly between supported computers with instant Cursor Navigation Switching (CNS). Active intrusion-detection verifies the integrity of the hardware and an optional Dedicated Peripheral Port (DPP) provides secure connection to common access card readers plus additional types of authentication devices. The Vertiv Cybex SC800 KVM Switches provide advanced video support for dual monitors as well as customizable LEDs for enhanced channel identification.
Certified to National Information Assurance Partnership (NIAP) Protection Profile V4.0.
Isolated ports provide discrete processing paths, preventing data leakage between adjacent ports.
Provides unique, customizable indicators that improve situational awareness of active channels.
Tamper-evident holographic labels visibly indicate any compromised hardware.
Gain true image reproduction and display flexibility.
SECURE SWITCHING 24/7
Vertiv Cybex SC800 Secure Desktop KVM Switches provide business-critical security with a protection profile to prevent data leakage from one desktop computer to another, regardless of the security-level protocol. Always-on active anti-tampering system and compliance to NIAP Common Criteria Protection Profile for Peripheral Sharing Device (PSD) version 4.0 deliver peace-of-mind regarding data integrity.
SMALL SPACE, BIG CAPABILITIES
Vertiv Cybex SC800 Secure Desktop KVM Switches pack powerful capabilities in a small desktop footprint, consolidating peripherals while providing support for USB and USB-C authentication devices such as card readers, facial recognition devices, scanners and fingerprint readers.
VIDEO QUALITY AND FLEXIBILITY
Vertiv Cybex SC800 Secure Desktop KVM Switches present users with the widest array of video connections in the industry, including Universal Display, DVI-I, Display Port, and HDMI. Resolution up to UHD 4k at 60Hz delivers extremely high accuracy, with video playing at the highest possible definition.
FULL-SERVICE SUPPORT
Vertiv is a world leader in KVM switch technology and provides a wide range of service solutions to troubleshoot and resolve issues in the field. Vertiv stands behind every Cybex SC800 Secure Desktop KVM Switch with a three-year, full-coverage factory warranty and optional extended warranty.
GOVERNMENT & MILITARY
Vertiv Cybex SC800 Secure Desktop KVM Switches are ideal for protecting desktop computers from cyber intrusion regardless of the designated security level. The hardware provides NIAP-certified security both in everyday office settings and harsh and heavy-duty field applications, including in aircraft or armored vehicles.
BANKING & FINANCIAL
With full protection against data leakage, Vertiv Cybex SC800 Secure Desktop KVM Switches provide reliable and secure switching in office environments, operation centers and IT applications. Fast switching among desktops enhances productivity.
HEALTHCARE & LABORATORIES
Fast access to patient information and vital statistics or laboratory data is reliably achieved via secure switching by Vertiv Cybex SC800 Secure Desktop KVM Switches. Full USB device filtering assures support for keyboard and mouse only, keeping confidential data secure.
SC820DPH-400
System Connections: 2
Display Support: Universal
Monitor Support: Dual
Certification: NIAP v4.0
SC840DPH-400
System Connections: 4
Display Support: Universal DisplayPort
Monitor Support: Dual
Certification: NIAP v4.0
SC845DPH-400
System Connections: 4
Display Support: Universal and DPP
Monitor Support: Dual
Certification: NIAP v4.0
SC840DPHC-400
System Connections: 4
Display Support: Universal and DPP
Connection: USB-C
Monitor Support: Dual
Certification: NIAP v4.0
SC845DPHC-400
System Connections: 4
Display Support: Universal and DPP
Connection: USB-C
Monitor Support: Dual
Certification: NIAP v4.0
Warranty
Limited Warranty: 3 Year
About Vertiv
Digital Continuity Solutions Vertiv brings together hardware, software, analytics, and ongoing services to ensure a customer’s digital infrastructure and vital applications run continuously, perform optimally, and scale with business needs Vertiv is a U.S. based, publicly-traded (NYSE: VRT), global manufacturer of power, thermal and IT infrastructure products and services. By bringing together hardware, software and on-going services, Vertiv offers solutions that ensure uninterrupted, reliable, safe operations of vital data applications that run continuously and perform-optimally. Vertiv possesses a rare combination of expertise and solutions that ensures connectivity and availability across any and all network facilities, anywhere in the world. Our portfolio includes the most respected brands in the industry including Avocent (networking and remote management), Geist (rack PDUs, monitors, sensors), and Liebert (UPS, power and thermal). Visit Vertiv.com for more information. Our Brands Avocent The power of being there When you need to take control of multiple IT devices across a room or across geographies, you can rely on market-leading Avocent or Cybex keyboard, video, and mouse (KVM) switches and serial consoles to provide easy, single-point access to valuable system data. Since 1981 Avocent has been developing and manufacturing industry-leading KVM switches and serial consoles to deliver easy, single-point access to valuable system data in order to control and simplify management of multiple IT devices. Vertiv’s Avocent solutions have helped over 200,000 customers worldwide by providing faster provisioning, simplified management, reduced mean time to repair, enhanced security, and lower operating costs. Geist Reliable power management Ensuring data center availability and business continuity requires that the last link in the power chain, the rack power distribution unit (rPDU), operates as intended to support dynamic operations in the areas of power, cooling, monitoring, and overall data center infrastructure management (DCIM). Geist designs and manufactures industry-leading technology and software to power, cool, monitor and manage critical data center infrastructure. On-site engineering, reliability, conformance and compliance allow us to design, manufacture, and ship PDUs so they arrive when you need them. Customers have peace of mind knowing Geist’s dedicated compliance and reliability engineering team ensure conformance to global standards for reliability, safety, and accuracy. Liebert Protecting the power and environment of your mission critical electronic systems Your data center and edge computing sites are the core of your business. Intelligent, efficient power and thermal infrastructure are critical to ensuring continuous access to vital applications and data. Liebert power and thermal management systems are designed to protect your IT environment and adapt to your changing needs. Liebert provides global power and thermal management solutions with a portfolio of most efficient and reliable power and cooling technologies in the market. Liebert offers a complete line of energy-efficient and reliable technologies including UPS, racks, rack enclosures, rack cooling, and PDUs. These award-winning technologies offer unmatched efficiency and reliability for mission-critical applications, as well as controls to optimize uptime. Architects of Continuity As Architects of Continuity, Vertiv solutions help customers build future-ready digital infrastructures that deliver continuity across large infrastructure (AC power, DC power, energy storage, industrial solutions, thermal) and IT and edge infrastructure (edge systems, IT systems, rack, rack PDU, rack thermal, rack UPS) applications. Customers can choose to work with a trusted Vertiv advisor or order products online via their preferred IT distributors, resellers and marketplaces. To learn more, visit Vertiv.com today!
Highlights
- NIAP 4.0 Certified: Security: Secure 4-port KVM with always-on anti-tampering, NIAP 4.0 certified.
- Enhanced Situational Awareness: Equipped with customizable indicators that display active channels.
- Versatile Video Support: Supports DP, HDMI, and DVI-I up to 3840 x 2160 resolution for HD visuals.
- Zero Delay Switching: Instant mouse and keyboard switching with emulation for lag-free transitions.
- Peripheral Isolation: Combines keyboard, mouse, and display into one setup for a clutter-free space.
Specifications
| Package Contents |
|
|---|---|
| Product Type | KVM Switchbox |
| Manufacturer Part Number | SC845DPH-400 |
| Packaged Quantity | 1 |
| Limited Warranty | 3 Year |
| Weight (Approximate) | 3 lb |
| Connectivity Technology | Wired |
| Features | Tamper Resistant, Intrusion Detection |
| Form Factor | Desktop, Rack-mountable |
| Manufacturer | Vertiv |
| Product Model | SC845 |
| Product Name | Cybex SC800 Secure Desktop KVM, Single Head Monitor, 4 Port, Common Access Card (CAC), NIAP Version 4.0, TAA Compliant (SC845DPH-400) |
| Product Line | Cybex |
| Product Series | 800 |
| Rack Height | 1U |
| Brand Name | Vertiv AVOCENT |
| Input Voltage Range | 100VAC-240VAC |
| Country of Origin | United States |
| Height | 1.7" |
| Width | 13.7" |
| Depth | 5" |
| Maximum Video Resolution | 3840 x 2160 |
| Graphic Mode | 4K |
| Maximum Operating Distance | 10 ft |
| USB | Yes |
| HDMI | Yes |
| Number of HDMI Ports | 4 |
| DVI | No |
| VGA | No |
| Number of Network (RJ-45) Ports | 0 |
| Network (RJ-45) | No |
| Number of USB Ports | 3 |
| DisplayPort | Yes |
| Management Port | No |
| PS/2 Port | Yes |
| Number of PS/2 Ports | 4 |
| Number of VGA Ports | 0 |
| Number of DisplayPorts | 4 |
| Number of DVI Ports | 0 |
| KVM Technology | Digital & Analog |
| Number of Computers Supported | 4 |
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 0 |
| TAA Compliant | Yes |
| Energy Star | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
