USB KVM Extension Kit
$218.74
Special order — estimated available by September 10, 2026.
Genuine TRENDnet through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

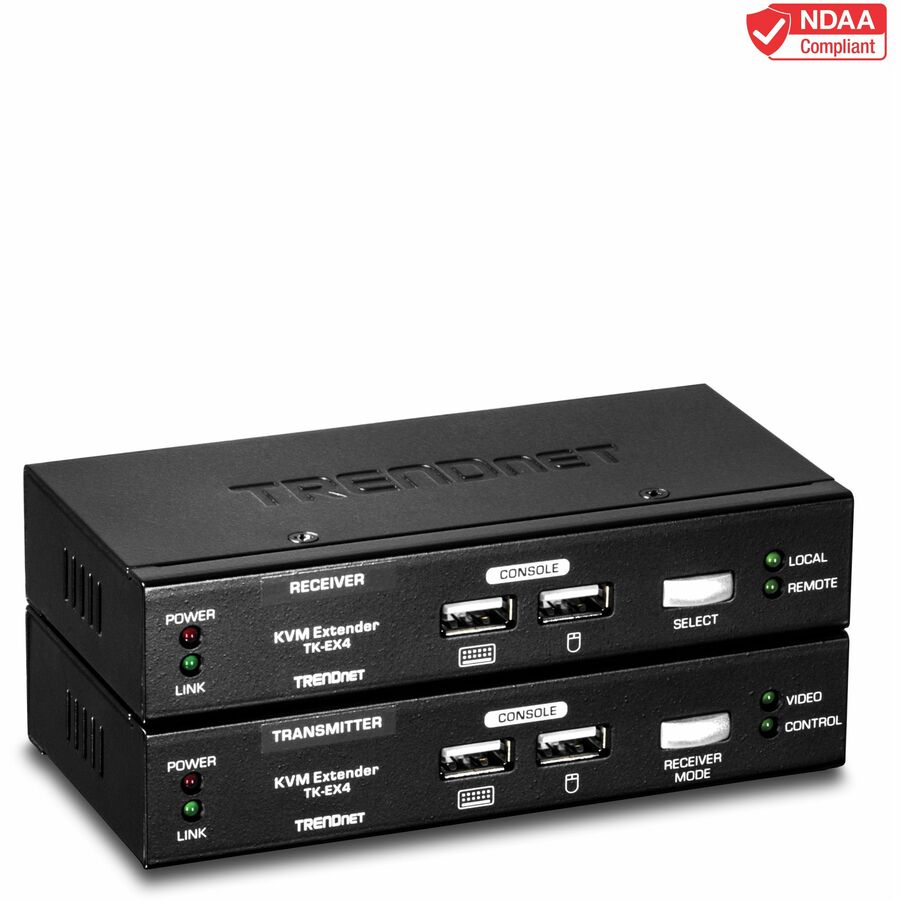

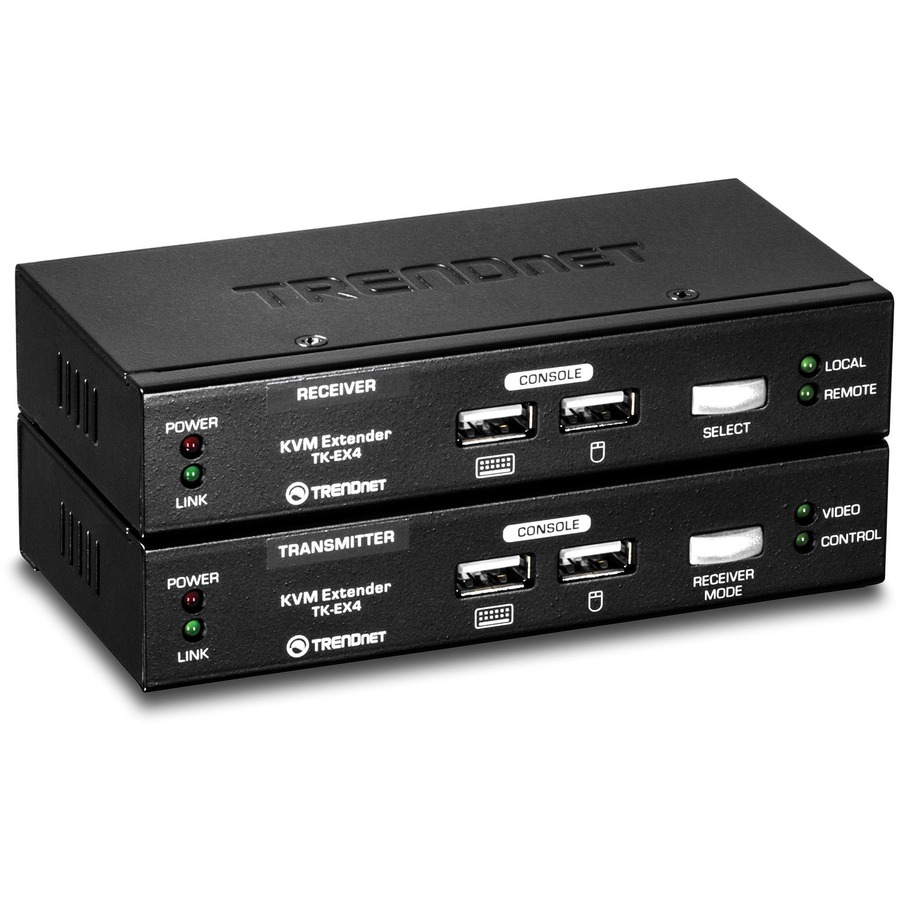

TRENDnet's USB VGA KVM Extension Kit, model TK-EX4, extends keyboard, video, and mouse controls for distances of up to 100m (328 ft.). Remotely access your server in the networking room by extending KVM controls to your office. Connect the KVM extender to a TRENDnet KVM switch to conveniently control multiple servers from a remote location. No software installation is required. Simply connect devices to the KVM extender with the included cables for full KVM controls. Input hot-key commands on the KVM extender control local and remote console stations. The remote console unit (receiver unit) supports PS/2 keyboard and mouse devices, and monitors with a VGA port. The local console unit (transmitter unit) supports USB mouse and keyboard, and VGA connections.
• Extend KVM controls for distances of up to 100m (328 ft.)
• Supports resolutions up to 1920 x 1200
• Connect to a TRENDnet KVM switch to manage multiple servers
• Convenient OSD management controls
• Features hot-key commands
• NDAA compliant
More from the Manufacturer
OVERVIEW
TRENDnet's USB VGA KVM Extension Kit, model TK-EX4, extends keyboard, video, and mouse controls for distances of up to 100m (328 ft.). Remotely access your server in the networking room by extending KVM controls to your office. Connect the KVM extender to a TRENDnet KVM switch to conveniently control multiple servers from a remote location.
No software installation is required. Simply connect devices to the KVM extender with the included cables for full KVM controls. Input hot-key commands on the KVM extender control local and remote console stations. The remote console unit (receiver unit) supports PS/2 keyboard and mouse devices, and monitors with a VGA port. The local console unit (transmitter unit) supports USB mouse and keyboard, and VGA connections.
OSD
Manage KVM switch access with the convenient on-screen display.
KVM Extension
Extend Keyboard, Video, and Mouse controls for distances of up to 100m (328 ft.).
No CD Installation
Simply connect the transmitter and receiver together over cat5e or better cabling for full KVM management.
No CD Installation
Simply connect the transmitter and receiver for full KVM management
Compact
The compact form factors reduce clutter
Hotkeys
Access the remote server or the OSD with hotkey controls
Console Override
Console override blocks KVM functionality at the other terminal when in use
EDID emulation
Adopt monitor resolution settings from the local or remote monitor
Access
Create password-protected OSD access
Automatic logout
For added security, create an OSD timeout after which it automatically logs out
View Only
Allow only long-distance viewing
Extend KVM controls for distances of up to 100m (328 ft.)
Supports resolutions up to 1920 x 1200
Connect to a TRENDnet KVM switch to manage multiple servers
Convenient OSD management controls
Features hot-key commands
NDAA compliant
OVERVIEW

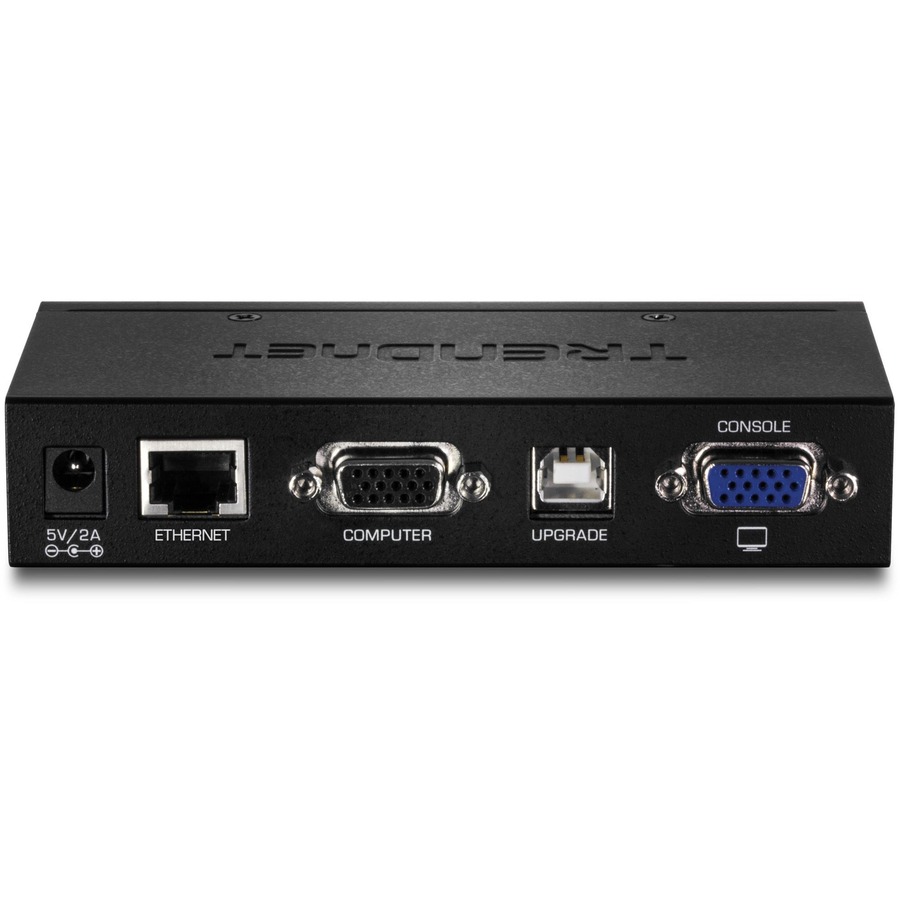

Transmitter Console interface
Keyboard: USB Type A
Mouse: USB Type A
Monitor: VGA
Firmware upgrade port: USB Type B
Extension: Ethernet port
LED indicators

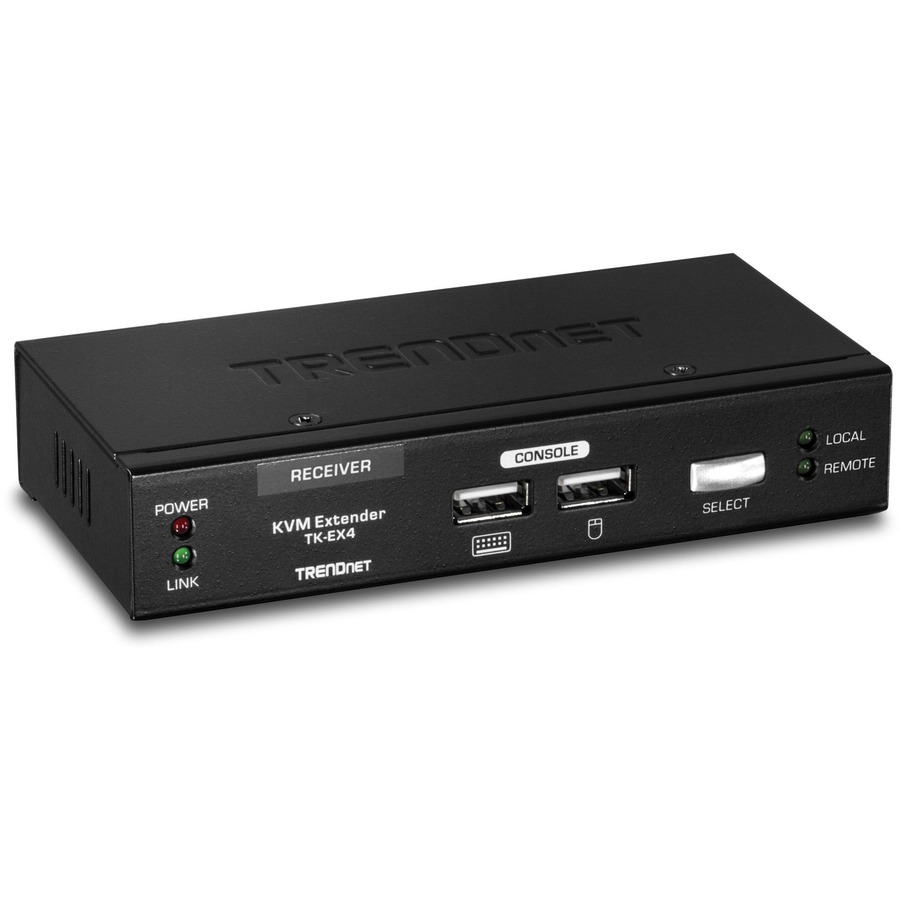

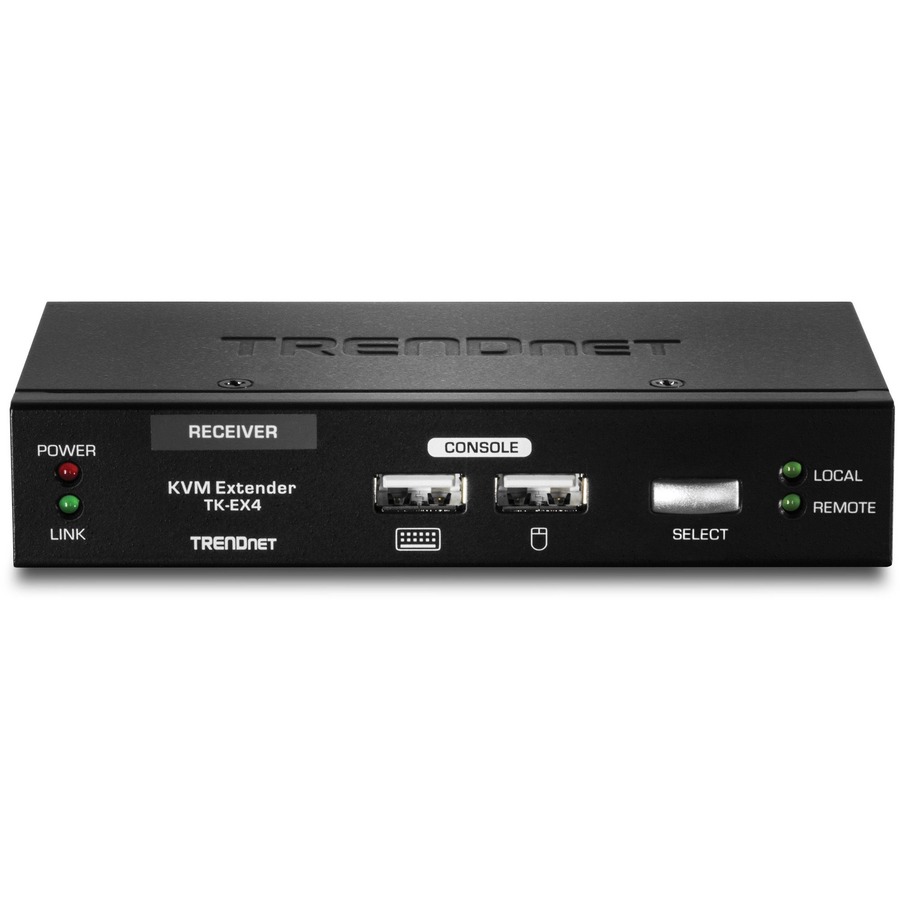

Receiver Console interface
Keyboard: USB Type A
Mouse: USB Type A
Monitor: VGA
Firmware upgrade port: USB Type B
Extension: Ethernet port
LED Indicators
Computer Connections
Transmitter: VGA and USB with PS/2
Receiver: VGA and USB with PS/2
Monitor Resolution
Up to 1920 x 1200
Switching Notification
Sound
Switching Controls
Transmitter: Block access, viewing access only and full control
Receiver: Local or remote view
OSD: Password protection, auto OSD logout, four hotkeys options, OSD timeout, console delay function and EDID emulation
Operating Temperature
0°– 40° C (32° – 104° F)
Operating Humidity
Max. 90% non-condensing
Power
Input: 100 – 240V AC, 50/60 Hz, 0.2A
Output: 5V DC, 2A
Max. consumption:
Transmitter: 2.7W
Receiver: 4.7W
Dimensions
Transmitter/ receiver: 130 x 65 x 25 mm (5.1 x 2.6 x 1.0 in.)
Weight
Transmitter: 285g (10.1 oz.)
Receiver: 290g (10.2 oz.)
Certifications
CE
FCC
Warranty
2-year
PACKAGE CONTENTS
Transmitter
Receiver
Quick Installation Guide
2 sets of 1.2 m (4 ft.) 3-in-1 VGA cables
1 set of 1.2 m (4 ft.) USB Type A to B cable
2 Power Adapters (5V DC, 2A)
2 USB to PS2 adapter
Limited Warranty: 2 Year
| General Information | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TK-EX4 |
| Brand Name | TRENDnet |
| Product Model | TK-EX4 |
| Product Name | USB KVM Extension Kit |
| Product Condition | New |
| Product Type | KVM Console/Extender |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| VGA | Yes |
| Number of VGA Ports | 4 |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 6 |
| Physical Characteristics | |
| Transmitter Height | 0.98" |
| Transmitter Width | 5.12" |
| Transmitter Depth | 2.56" |
| Receiver Height | 0.98" |
| Receiver Width | 5.12" |
| Receiver Depth | 2.56" |
| Transmitter Weight (Approximate) | 10.05 oz |
| Receiver Weight (Approximate) | 10.23 oz |
| Power Description | |
| Input Voltage | 110 V AC, 220 V AC |
| Power Consumption | 4.70 W |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Computers Supported | 2 |
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 1 |
| Maximum Operating Distance | 328.08 ft |
| Video | |
| Graphic Mode | WUXGA |
| Maximum Video Resolution | 1920 x 1200 |
| Warranty | |
| Limited Warranty | 2 Year |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
