Genuine Targus Group International through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
HDG2TB314-US
Category
Docking Stations
Overview

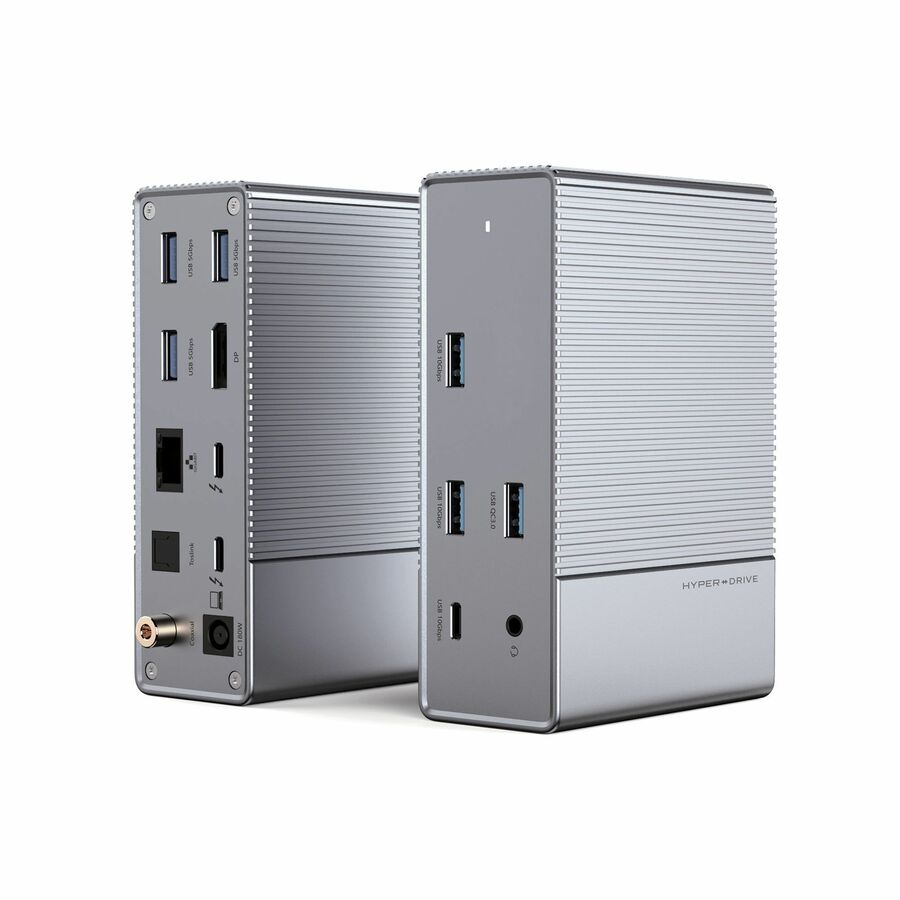

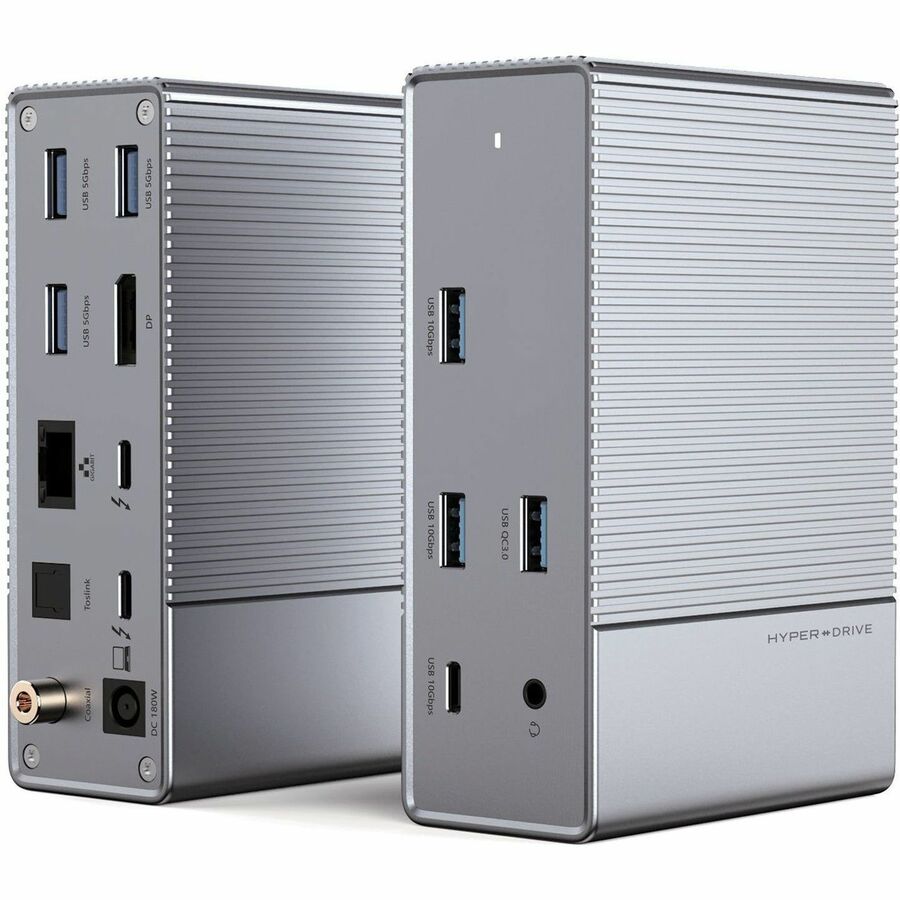

The HyperDrive GEN2 14 Port Thunderbolt?Dock is a powerful, enterprise-level Dock featuring 14 ports and boasts 2X faster refresh rate, 2X faster data transfer speeds and 2X faster power delivery charging. One TB3 downstream port provides 40Gbps data transfer and 15W of power for any TB3 peripherals while the one TB3 upstream port supplies 85W power delivery to the host computer.
It allows dual 4K 60Hz display support as well as the choice between 8K 30Hz or 4K 120Hz single display support. Also, enjoy Gigabit Ethernet, Digital Coaxial and Optical Toslink audio. Additionally, you can daisy chain six TB3 Docks or devices to HyperDrive. Includes a 180W power adapter.
Warranty
Limited Warranty: 2 Year
Highlights
1 x TB3 Upstream Port: The powerful Thunderbolt upstream port provides 40Gbps data transfer speed and 85W Power Delivery to the host computer.
1 x TB Downstream Port: The powerful Thunderbolt 3 downstream port provides 40Gbps data transfer, 15W of power for any peripherals, and DP 1.4 video.
Daisy Chain Six TB3 Devices: Maximize your workflow by daisy chaining up to 6 x Thunderbolt docks or devices to HyperDrive.
Dual 4K 60Hz Display Support: HyperDrive supports dual 4K 60Hz display support through TB and DP 1.4 connection.
Single 8K 30Hz or 4K 120Hz Display Support: HyperDrive also gives you the choice of 8K 30Hz or 4K 120Hz single display support through TB or DP 1.4 connection.
Fast & Reliable Gigabit Ethernet: Get the most reliable and fastest internet connection for work, play, and video conferencing.
High-Speed USB: Blazing-fast 2nd generation USB-A 3.2 10Gbps and USB-C 3.2 10Gbps with 2X faster transfer speed than our 1st generation hubs.
Pro-Grade Digital Audio: Capture and listen to the best sound quality possible with digital coaxial audio, optical Toslink audio, and a 3.5 mm Audio Combo Jack.
Specifications
General Information
Manufacturer
Targus Group International
Manufacturer Part Number
HDG2TB314-US
Brand Name
HyperDrive
Product Line
GEN2
Product Name
GEN2 Thunderbolt Docking Station
Product Type
Docking Station
Interfaces/Ports
Host Interface
Thunderbolt 3
Total Number of USB Ports
7
Number of USB Type-C Ports
1
USB Type-A
Yes
USB Type-C
Yes
Number of USB Type-A Ports
6
Number of RJ-45 Ports
1
Network (RJ-45)
Yes
Number of DisplayPorts
1
DisplayPort
Yes
DisplayPort Version
1.4
Headphone/Microphone Combo Port
Yes
Thunderbolt
Yes
Thunderbolt 3
Yes
Thunderbolt Ports Quantity
2
Number of Thunderbolt 3 Ports
2
USB Power Delivery
85W
Total Number of Ports
14
Network & Communication
Ethernet Technology
Gigabit Ethernet
Physical Characteristics
Height
5.13"
Width
3.50"
Depth
1.75"
Weight (Approximate)
1.30 lb
Power Description
Maximum Power Supply Wattage
85 W
Software
Operating System Supported
Windows 8, ChromeOS, Linux, iPadOS, macOS 10.16, Windows 7
Technical Information
Connectivity Technology
Wired
Charging Capability
Yes
Number of Displays Supported
2
Device Supported
MacBook, iPad, Notebook, Computer
Supported Resolutions
7680 x 4320, 3840 x 2160
Screen Mode Supported
8K, 4K, 8K @ 30Hz, 4K @ 120Hz
Warranty
Limited Warranty
2 Year
Miscellaneous
Package Contents
GEN2 Thunderbolt Docking Station
180W Power Adapter
Compatibility
Compatible Devices: MacBook Pro 2016 or Later MacBook Air 2018 or Later MacBook 2015, 2016 iPad Pro 2018 or later iPad Air 2020 or later Windows OS laptop with Thunderbolt 3/4, USB4, USB 3.0 or later Type C with DP Alt-Mode Chrome OS laptop with Thunderbolt 3/4, USB4, USB 3.0 or later Type C with DP Alt-Mode Any other device with USB-C
Environmental Compliance
Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
