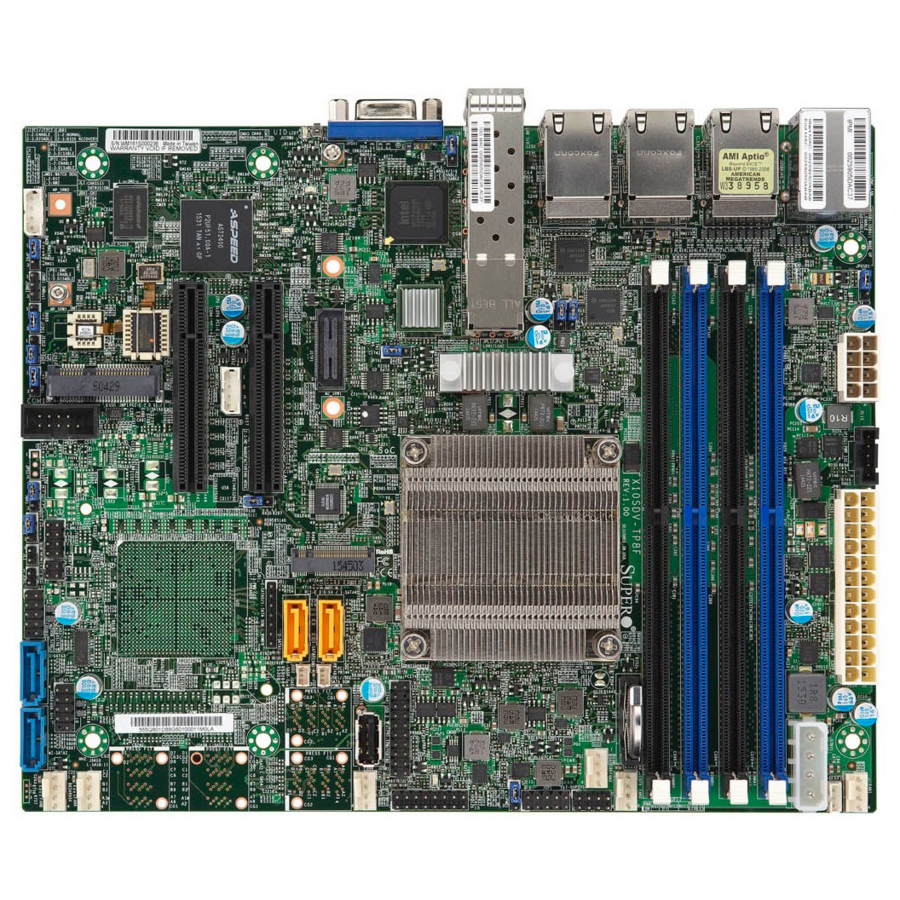

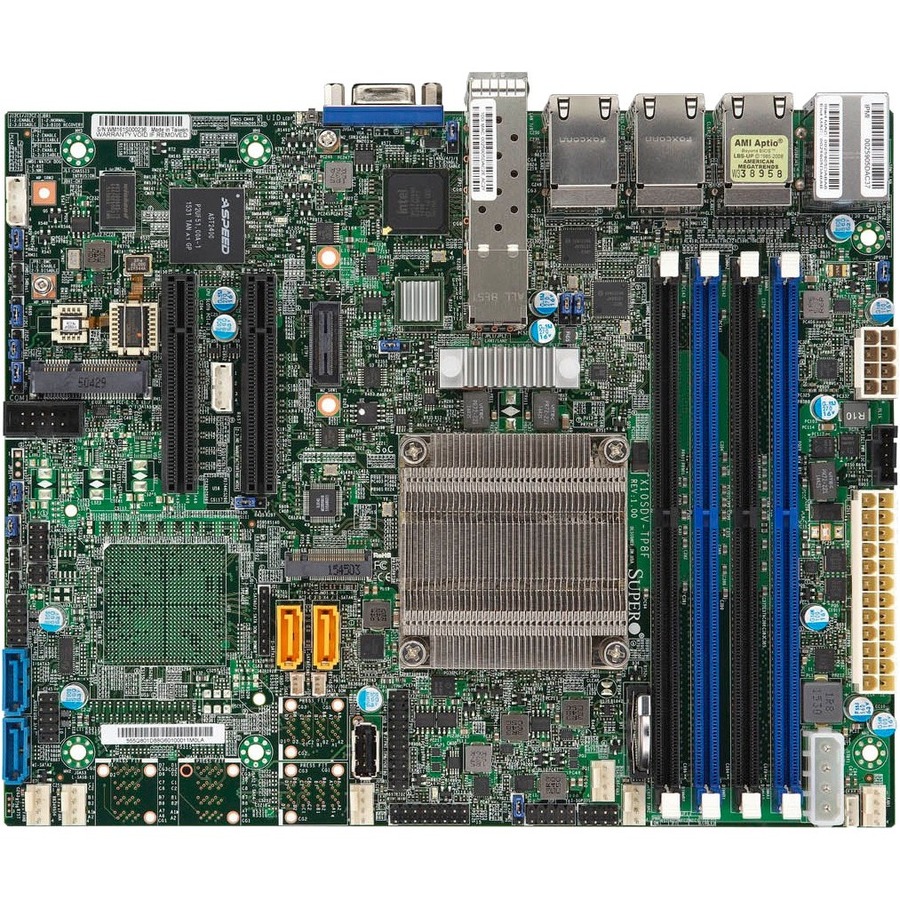

Supermicro X10SDV-2C-TP4F Server Motherboard - Intel Chipset - Socket BGA-1667 - Flex ATX
Pentium D1508 - 128 GB DDR4 SDRAM Maximum RAM - UDIMM, RDIMM, DIMM - 4 x Memory Slots - Gigabit Ethernet - 4 x SATA Interfaces
- SKU
- MBD-X10SDV-2C-TP4F-O
- Category
- Motherboards
MSRP$477.33
$443.73
Save 7%Back ordered — ships when restocked.
Genuine Supermicro through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- MBD-X10SDV-2C-TP4F-O
- Category
- Motherboards
Overview
X10SDV Embedded Boards / Xeon D SoC BGA
Supermicro leverages its deep expertise in server technology to bring customers the first Intel® Xeon®/Pentium® System-on a-Chip (SoC) D-1500 Family solutions. The X10SDV series offer infrastructure optimization, by combining the performance and advanced intelligence of Intel® Xeon® processors into a dense, lower-power system-on-a-chip. With server-class reliability, availability and serviceability (RAS) features now available in an ultra-dense, low-power device, the X10SDV will be able to deliver balanced compute, storage and intelligent edge networks and appliances. These advanced technology building blocks offer the best work load optimized solutions and long life availability with the Intel® Xeon®/Pentium® processor D family, with up to 128GB DDR4 ECC RDIMM operating at 2133MHz, USB 3.0 I/O, six SATA3.0 storage and dual 10 GbE LAN networking ports.
Warranty
Limited Warranty: 1 Year
Highlights
- 1. Intel® Pentium® processor D1508,
- Single socket FCBGA 1667; 2-Core, 4 Threads, 25W
- 2. Up to 128GB ECC RDIMM DDR4
- 1866MHz or 64GB ECC/non-ECC UDIMM in 4 sockets
- 3. 2 PCI-E 3.0 x8,
- Mini PCI-E (mSATA support),
- M.2 PCI-E 3.0 x4 (SATA support), M Key 2242/2280/22110
- 4. 2 10G SFP+ and 2 GbE LAN
- 5. 4 SATA3 (6Gbps) ports via SoC
- 6. 2 USB 3.0 ports (rear), 5 USB 2.0 ports (4 via headers, 1 Type A)
Specifications
| Product Type | Server Motherboard |
|---|---|
| Compatibility | Supermicro SuperServer: SYS-5018D-LN4T Supermicro SuperChassis(s): 1U Chassis: SC504-203B SC514-505 SC505-203B SC515-R407 SC813MTQ-350CB |
| Manufacturer Part Number | MBD-X10SDV-2C-TP4F-O |
| Maximum Memory Supported | 128 GB |
| Limited Warranty | 1 Year |
| Form Factor | Flex ATX |
| Manufacturer | Supermicro Computer, Inc |
| Product Model | X10SDV-2C-TP4F |
| Product Name | X10SDV-2C-TP4F Server Motherboard |
| Package Type | Retail |
| RAID Levels | 10, 5, 1, 0 |
| Controller Type | Serial ATA/600 |
| Processor Socket | Socket BGA-1667 |
| Brand Name | Supermicro |
| Memory Technology | DDR4 SDRAM |
| Width | 9" |
| Depth | 7.3" |
| Environmentally Friendly | Yes |
| Chipset Manufacturer | Intel |
| Number of Memory Slots | 4 |
| Graphics Controller Model | AST2400 |
| Gigabit Ethernet | Yes |
| Number of SATA Interfaces | 4 |
| Onboard Video | On-board Video Chipset |
| RAID Supported | Yes |
| Number of PCI Express x8 Slots | 2 |
| VGA | Yes |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Total Number of Onboard USB Ports | 5 |
| Total Number of PCI Express Slots | 2 |
| Integrated Processor Type | Pentium |
| Integrated Processor Model | D1508 |
| Integrated Processor Speed | 2.20 GHz |
| Integrated Processor Core | Dual-core (2 Core) |
| Memory Form Factor | UDIMM, RDIMM, DIMM |
| Total Number of Expansion Slots | 3 |
| 10Gigabit Ethernet | Yes |
| Number of M.2 Interfaces | 1 |
| Memory Speed Supported | 1866 MHz, 1600 MHz |
