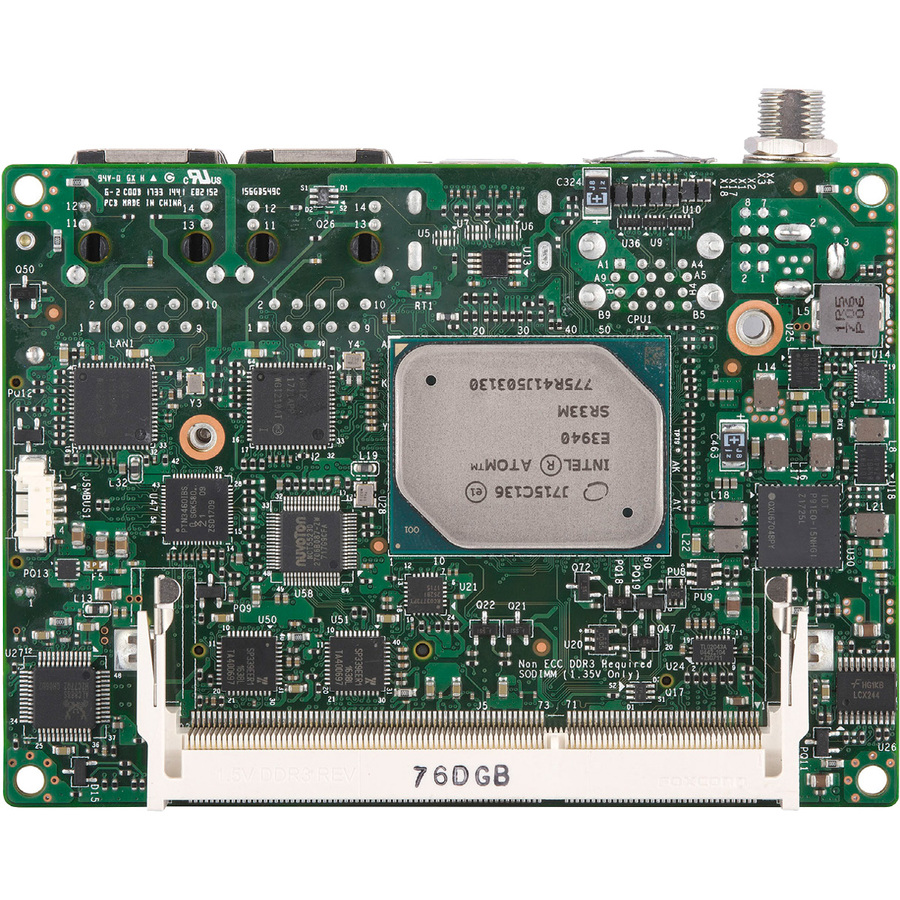

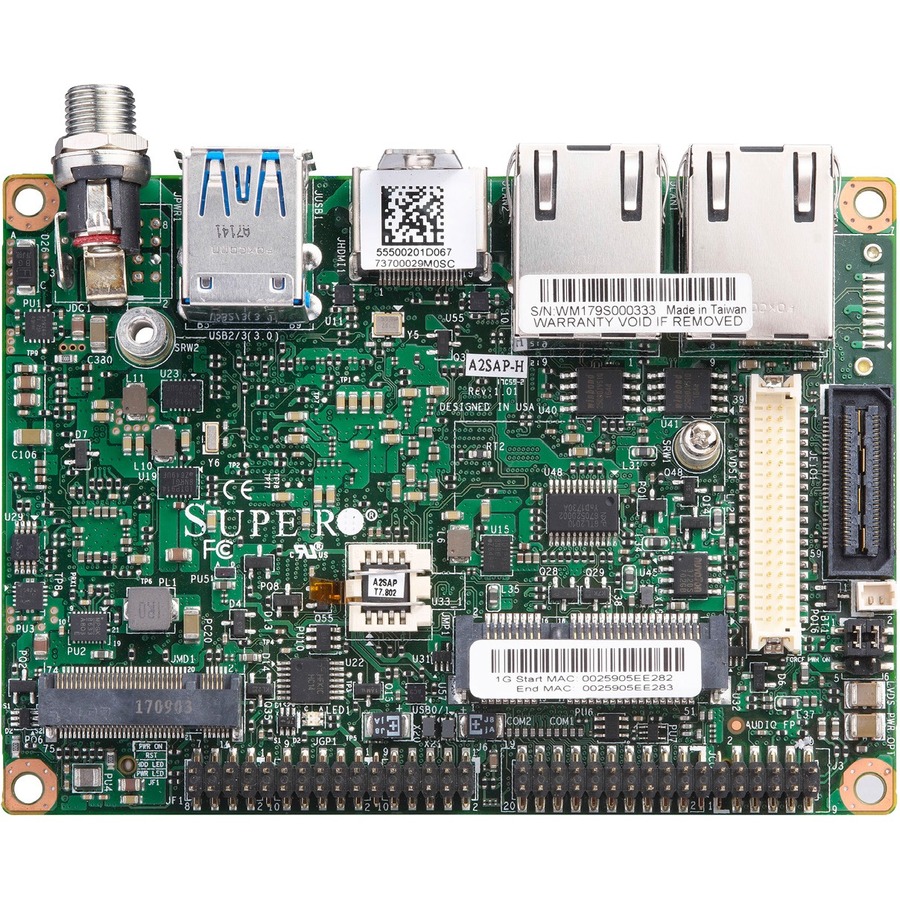

Supermicro A2SAP-H Server Motherboard - Intel Chipset - Socket BGA-1296 - Pico ITX

Atom x5-E3940 - 8 GB DDR3L SDRAM Maximum RAM - SODIMM - 1 x Memory Slots - Gigabit Ethernet - HDMI

SKU: MBD-A2SAP-H-O
Category: Motherboards

MSRP$236.00

$219.76

Save 7%

Back ordered

Back ordered — ships when restocked.

Genuine Supermicro through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU: MBD-A2SAP-H-O
Category: Motherboards

Overview

E3900 Series BOARDS (System-on-Chip)

Supermicro's motherboards based on Intel® Atom® processor E3900 series System-on-Chip are well-suited for entry-level server platforms and embedded IPC market.

Warranty

Limited Warranty: 1 Year

Highlights

DDR3L SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
With 2 USB 3.0 port(s), data can be moved from your workstation to your device in fragments of a second
HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the Pico ITX server motherboard

Specifications

Package Contents	A2SAP-H Server Motherboard 1 x Screw Bag 1 x Quick Reference Guide 1 x Passive Heatsink 1 x Audio Cable 1 x COM Cable
Product Type	Server Motherboard
Compatibility	Supermicro Servers: SYS-E50-9AP SYS-E50-9AP-Wifi SYS-E50-9AP-L SYS-E50-9AP-N5
Manufacturer Part Number	MBD-A2SAP-H-O
Maximum Memory Supported	8 GB
Packaged Quantity	1
Limited Warranty	1 Year
Form Factor	Pico ITX
Manufacturer	Supermicro Computer, Inc
Product Model	A2SAP-H
Product Name	A2SAP-H Server Motherboard
Package Type	Retail
Controller Type	Serial ATA/600
Processor Socket	Socket BGA-1296
Brand Name	Supermicro
Memory Technology	DDR3L SDRAM
Width	4"
Depth	2.8"
Environmentally Friendly	Yes
Chipset Manufacturer	Intel
Number of Memory Slots	1
Graphics Controller Model	HD Graphics
Gigabit Ethernet	Yes
Onboard Video	On-board Video Chipset
HDMI	Yes
Number of Network (RJ-45) Ports	2
Total Number of USB Ports	2
Number of USB 3.0 Ports	2
Total Number of Onboard USB Ports	2
Number of Onboard USB 2.0 Ports	2
Integrated Processor Type	Atom
Integrated Processor Model	x5-E3940
Integrated Processor Core	Quad-core (4 Core)
Memory Form Factor	SODIMM
Total Number of Expansion Slots	2
Number of M.2 Interfaces	1
Memory Speed Supported	1866 MHz
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
