StarTech 2 Port HDMI Splitter - 4K 60Hz - 1x2 Way HDMI 2.0 Splitter - HDR - ST122HD202
Displays the same image with sound on 2 screens - Splits an HDMI video signal up 4K 60Hz - 4:4:4 chroma; up to 18Gbps (HDMI 2.0b) - HDR; HDCP 2.2 to HDCP 1.4 conversion; 7.1 surround sound audio - Passes EDID between video source and display (port 1)
Genuine StarTech.com through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
ST122HD202
Category
Signal Splitters/Amplifiers
Overview
This 2-Port 4K HDMI splitter connects your HDMI video source to two HDMI displays at the same time, without distorting or degrading your video signal. For dependable performance, the splitter features a durable metal housing that provides passive cooling. True 4K at 60Hz and HDR With transmission bandwidth up to 18Gbps, this HDMI splitter is fully compatible with your HDMI 2.0 equipment, supporting UHD resolutions up to 4096x2160 (4K) at 60Hz. For smooth video and color transitions, the splitter offers 4:4:4 chroma subsampling, so every pixel gets its own unique color. The splitter also supports High Dynamic Range (HDR) imaging, offering a greater luminosity than standard digital imaging. Widely Compatible The 2-way HDMI splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays. This ensures that it will work with almost any HDMI source, or destination device such as computers, Blu-ray players, monitors, TVs and projectors. Perfect for digital signage applications, where equipment may vary throughout your site. Easy Installation For hassle-free setup, the 1x2 HDMI splitter offers easy plug-and-play installation. The splitter also saves you setup time by automatically passing EDID between your video source and the display attached to port 1, ensuring settings like native resolution and refresh rate are configured properly. ST122HD202 is backed by a 2-year StarTech.com warranty and free lifetime technical support. More from the Manufacturer More from the Manufacturer
Highlights
2-PORT HDMI SPLITTER: Displays the same image with sound on 2 screens; Splits an HDMI video signal up to Ultra HD 4K 60Hz & 7.1 CH audio; 4:4:4 chroma subsampling support with bandwidth up to 18Gbps (HDMI 2.0b); HDR; HDCP 2.2 to HDCP 1.4 conversion
EDID EMULATION: 1x2 HDMI splitter 4K automatically passes EDID between your video source and the display attached to port 1 ensuring native settings (such as resolution and refresh rate) are configured
AUDIO SUPPORT: Audio output is supported on all ports simultaneously; Support for 7.1 surround sound audio including Dolby® True HD and DTS HD Master Audio
LONG REACH: Reach up to 16.4ft (5m) with a passive HDMI cable; For longer distances, active HDMI cables or HDMI extenders are available (sold separately) to use with this HDMI splitter for dual TVs/projectors/monitors/displays
EASY SETUP: No drivers required for this 1-input 2-output UHD HDMI 2.0 splitter box; Simply connect cables and power with the EDID switch set to Auto to get started; Wide screen monitor formats supported; HDMI/DVI compatible
Specifications

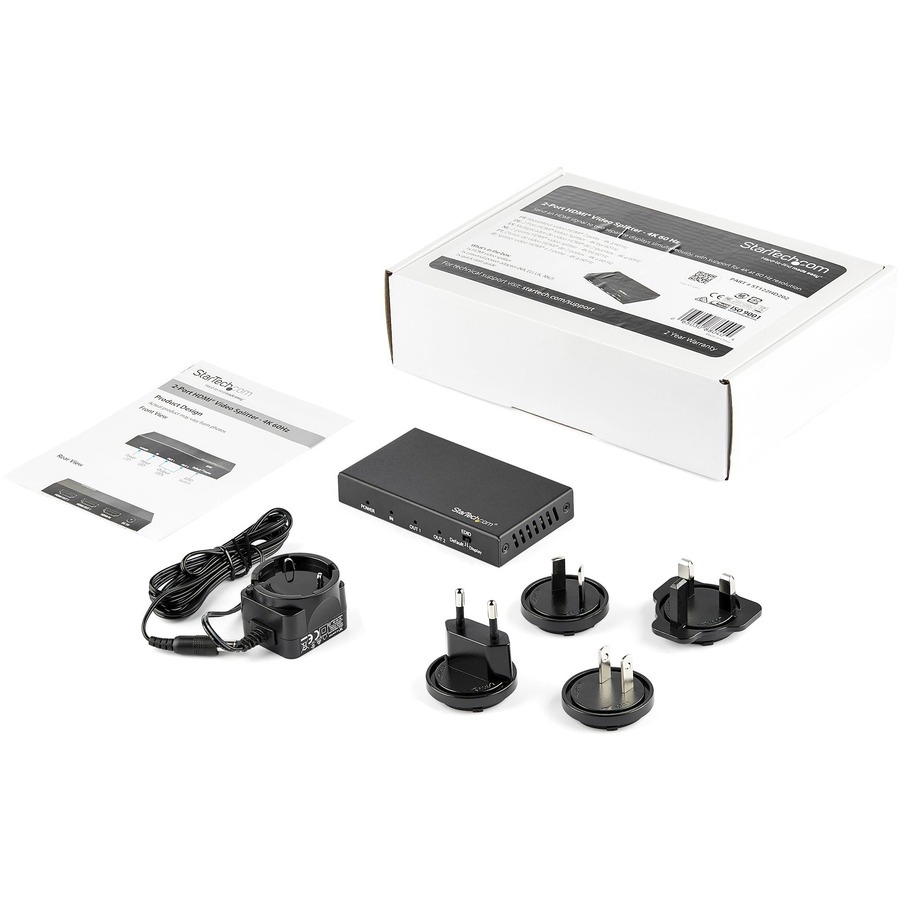

Package Contents
2-Port HDMI Splitter with HDR - 4K 60Hz
1 x Universal Power Adapter
1 x Quick-Start Guide
Product Type
Signal Splitter
Input Voltage
120 V AC, 230 V AC
Manufacturer Part Number
ST122HD202
Packaged Quantity
1 Each
Limited Warranty
2 Year
Weight (Approximate)
13.90 oz
Length
8.4"
Manufacturer
StarTech.com
Product Name
2-Port HDMI Splitter with HDR - 4K 60Hz
Brand Name
StarTech.com
Country of Origin
China
Height
2.2"
Width
5.8"
Environmentally Friendly
Yes
Environmental Certification
EU RoHS
Maximum Video Resolution
3840 × 2160
Number of HDMI Inputs
1
Number of HDMI Outputs
2
HDMI In
Yes
HDMI Out
Yes
Product Color
Black
Product Material
Metal
Environmental Compliance
Restriction of Hazardous Substances (RoHS) 2, Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE)
