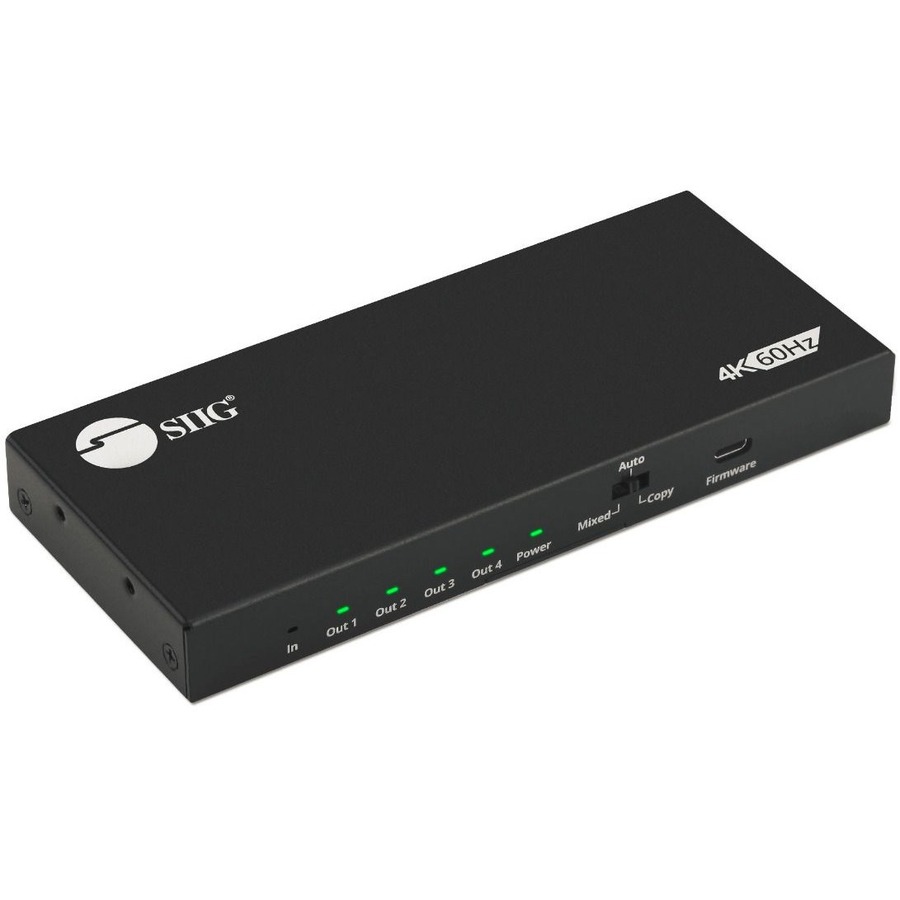

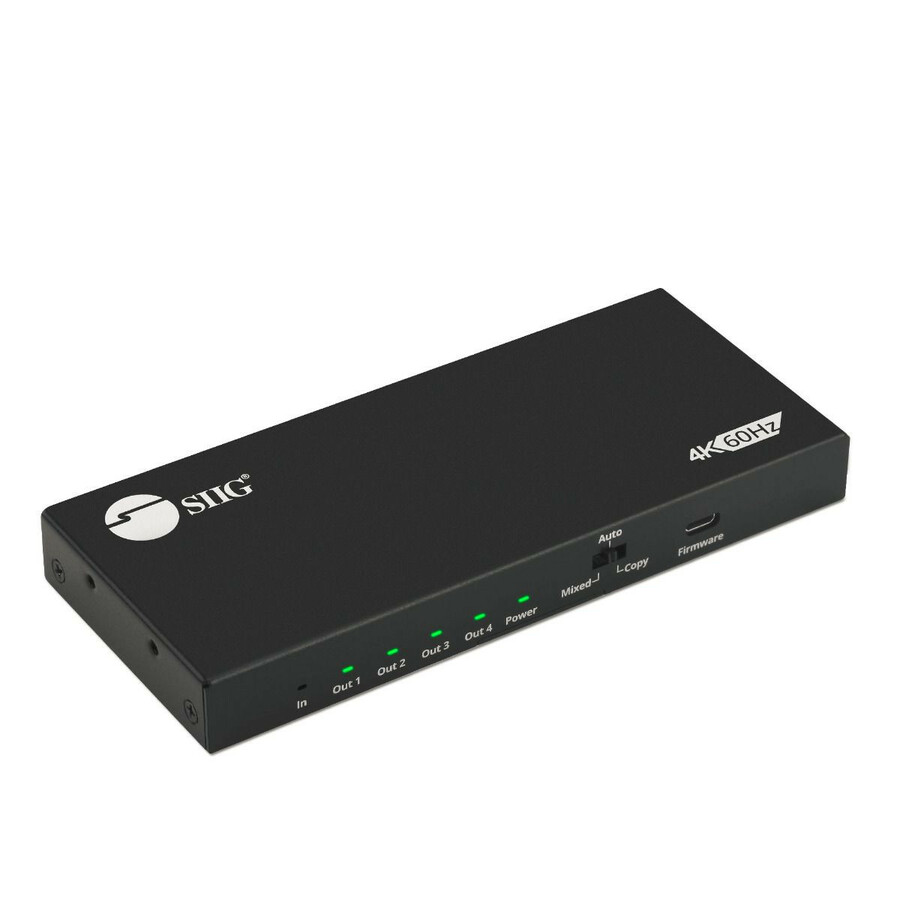

HDR- HDCP 2.2- HDMI 4K Splitter with EDID and Downscaling- 4-Port 4K HDMI Splitter 1 in 4 out Auto Video Scaling- 7.1-ch Audio- HDMI Splitter Metal Housing- Power LED Indicator - Distributes 4K HDMI video/audio signals from one HDMI source to four HDMI displays with EDID management and video downscaling while maintaining signal quality- High quality materials with metal housing extend the stability-2 years warranty
MSRP$119.99
$106.98
Save 11%In stock: 28
Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Distributes 4K HDMI video/audio signals from one HDMI source to four HDMI displays with EDID management and video downscaling while maintaining signal quality
• Distributes HDMI video and audio from a single source to 4 HDMI displays simultaneously while maintaining signal quality
• Compliant with HDMI 2.0a, HDCP 2.2/1.4 with 18Gbps bandwidth
• Supports resolutions up to 4K@60Hz (YUV 4:4:4 8-bit), 3D, HDR, 36-bits Deep Color, Dolby Vision, and LPCM 7.1, Dolby TrueHD, Dolby digital Plus, Dolby Atmos, and DTS-HD Master Audio

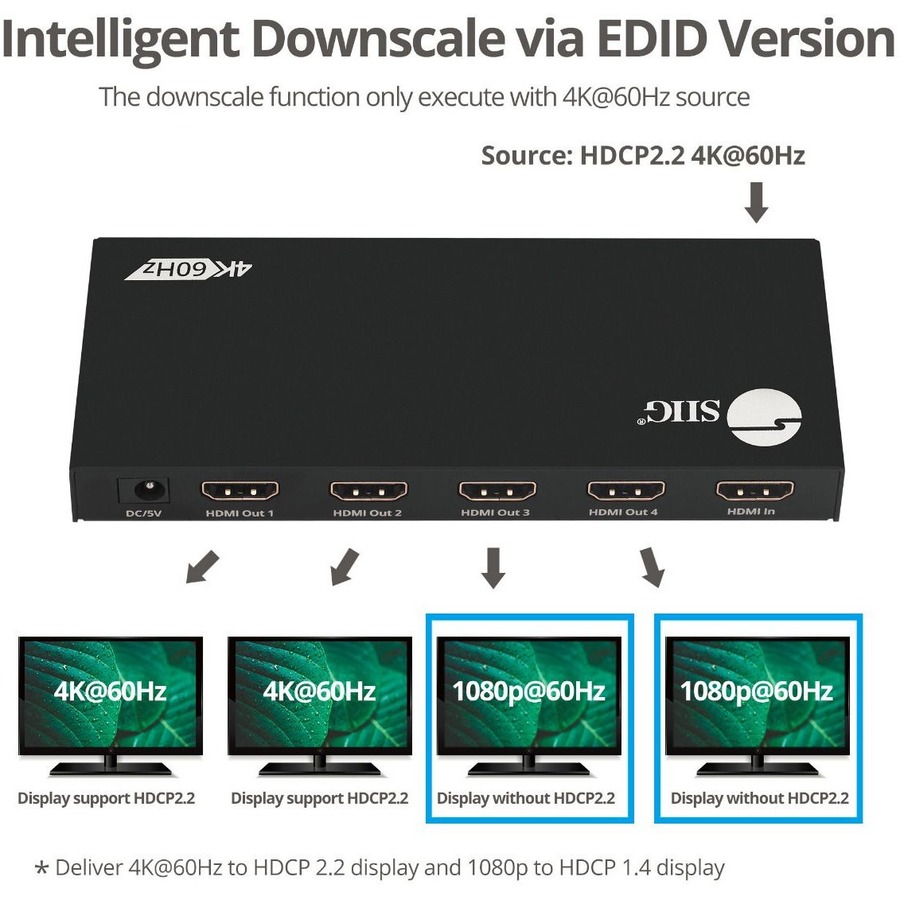

• Auto video scaling feature detects and configures the video resolution automatically according to the capabilities of each connected monitor. Note : 4K@30Hz monitors will display at 1080p@60Hz when the source content is 4K@60Hz
• Captures game play in 1080p while playing in 4K - use Elgato or other game capture devices to record game play in 1080p while simultaneously playing in 4K
• High quality materials with metal housing extend the stability and durability, allowing for long hours of operation
• Built-in EDID management and firmware update mechanisms offer wide range of monitor/display/TV support from either pre-programmed EDID or EDID learning from the connected displays and expands compatibility into the future. Firmware upgradeable via Mini USB port for expanded compatibility
• Low heat generation with durable metal housing provides excellent heat dissipation and minimizes EMI/RFI interference for stable performance and long life span

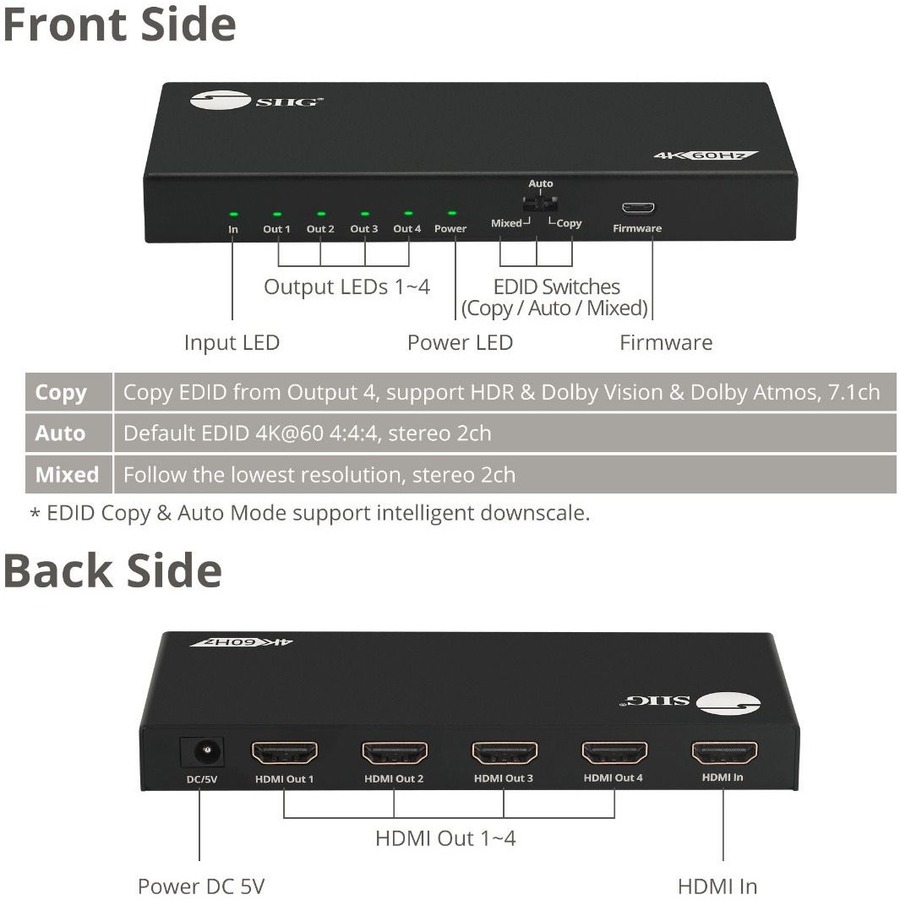

• Individual LED indicators for power and signal allow for easy and quick status recognition
Notes :
• 4K@30Hz monitors will display at 1080p@60Hz when the source content is 4K@60Hz
• EDID Copy and Auto mode supports 4K downscaling to 1080p
• For HDCP 2.2 protected 4K source signals, if the TV/Display supports HDCP 2.2 it will display at 4K resolution, otherwise, the TV will display at 1080p
• HDR, Dolby Vision, Dolby Atmos and 7.1ch supported via EDID Copy mode only
Limited Warranty: 2 Year
About Us Since 1985, SIIG Inc. lead the way in connectivity solution you can trust for IT and AV. Built on core values of professional integrity with customer satisfaction as the focus point, we are committed to providing excellent service, support, and solutions. We want to enhance your audiovisual and information technology experience with innovative product solutions. © 2020 SIIG Inc., All rights reserved.
| General Information | |
|---|---|
| Manufacturer | SIIG, Inc |
| Manufacturer Part Number | CE-H26C11-S1 |
| Brand Name | SIIG |
| Product Name | 4 Port HDMI 2.0 HDR Splitter with EDID and Downscaler |
| Product Type | Signal Splitter |
| Interfaces/Ports | |
| HDMI In | Yes |
| HDMI Out | Yes |
| USB | Yes |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 4 |
| Physical Characteristics | |
| Product Material | Metal |

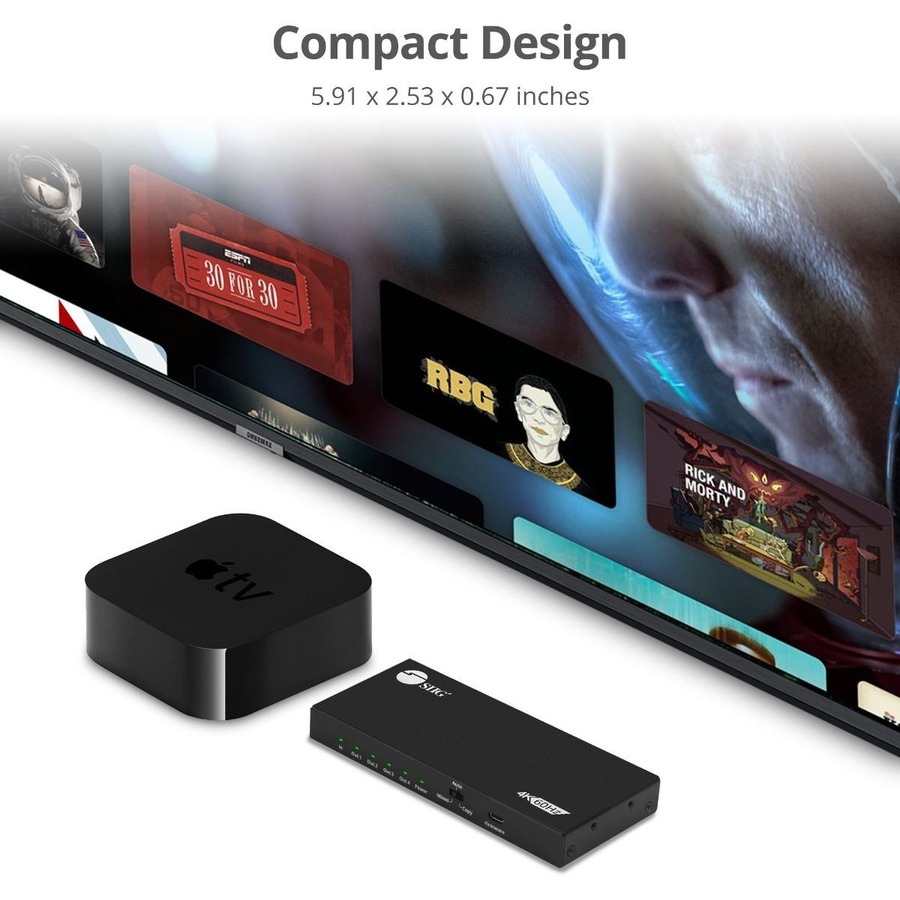

| Height | 0.7" |
| Width | 2.5" |
| Length | 5.9" |
| Weight (Approximate) | 8.64 oz |
| Power Description | |
| Input Voltage | 120 V AC, 230 V AC |
| Video | |
| Maximum Video Resolution | 3840 × 2160 |
| Warranty | |
| Limited Warranty | 2 Year |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
