SIIG 1x3 DisplayPort 1.4 to DisplayPort MST Splitter

DP 1.4 MST Video Splitter Hub, Triple DP outputs, Connect up to three DisplayPort displays to single DisplayPort 1.4 output with Multi-Stream Transport (MST), 32.4Gbps, no driver required, Dual 4K@60Hz or Triple 4K (4K@30Hz or 1x 4K@60Hz + 2x 4K@30Hz), supports DP 1.2 with limited performance, Full Windows compatibility, Mac OS supports mirror only, TAA Compliant

Features Splits a single DisplayPort 1.4 output source to three DisplayPort monitors with Mirror, Extended and Panoramic video wall display modes

High Performance

Offers a true 32.4Gbps (Max.) video bandwidth and supports 7.1-ch surround sound up to 192KHz sampling rate (can be used to transmit audio and video simultaneously)

Video Resolution

Supports HDCP 2.2 and Ultra HD video resolution up to a single 8K (7680x4320) @30Hz with HDR display or dual 4K (3840x2160) @60Hz with HDR displays or Triple 4K (3840x2160) @30Hz

Display Modes

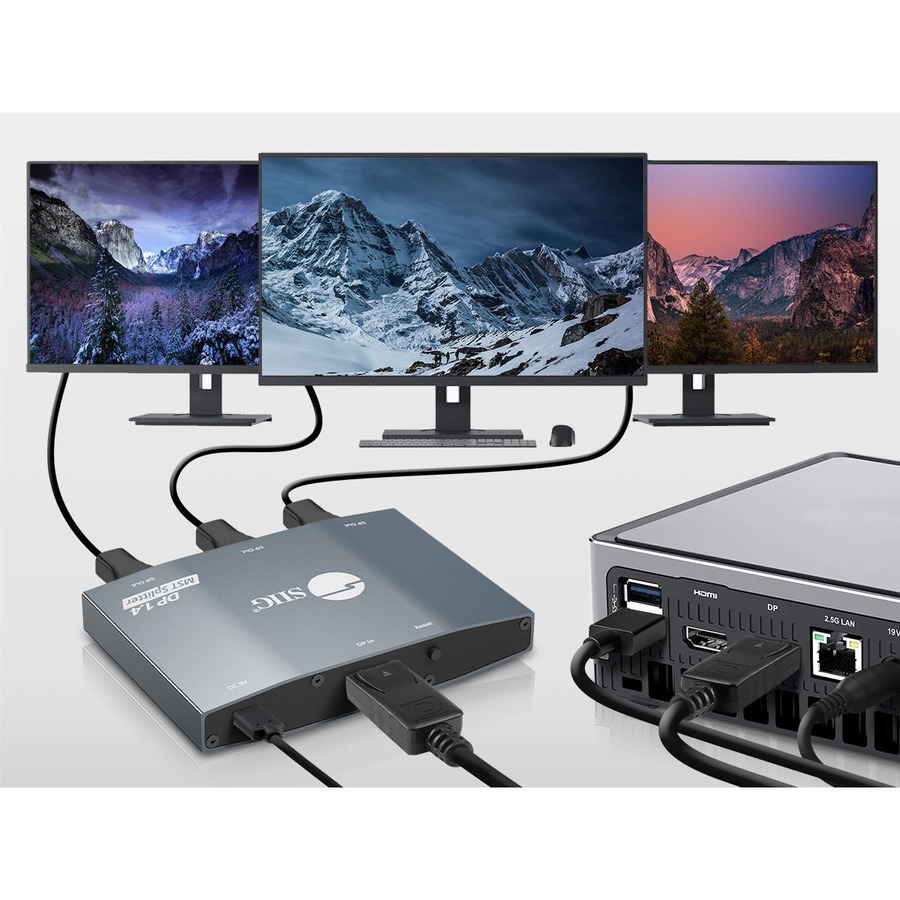

Supports various supplication such as Mirror, Extended, and Panoramic Video Wall modes. Mirror mode same content on each display, Extended mode with individual content on each display, and Panoramic Video Wall mode which combines multiple monitors to use as one large display

Multiple Connectivity Port

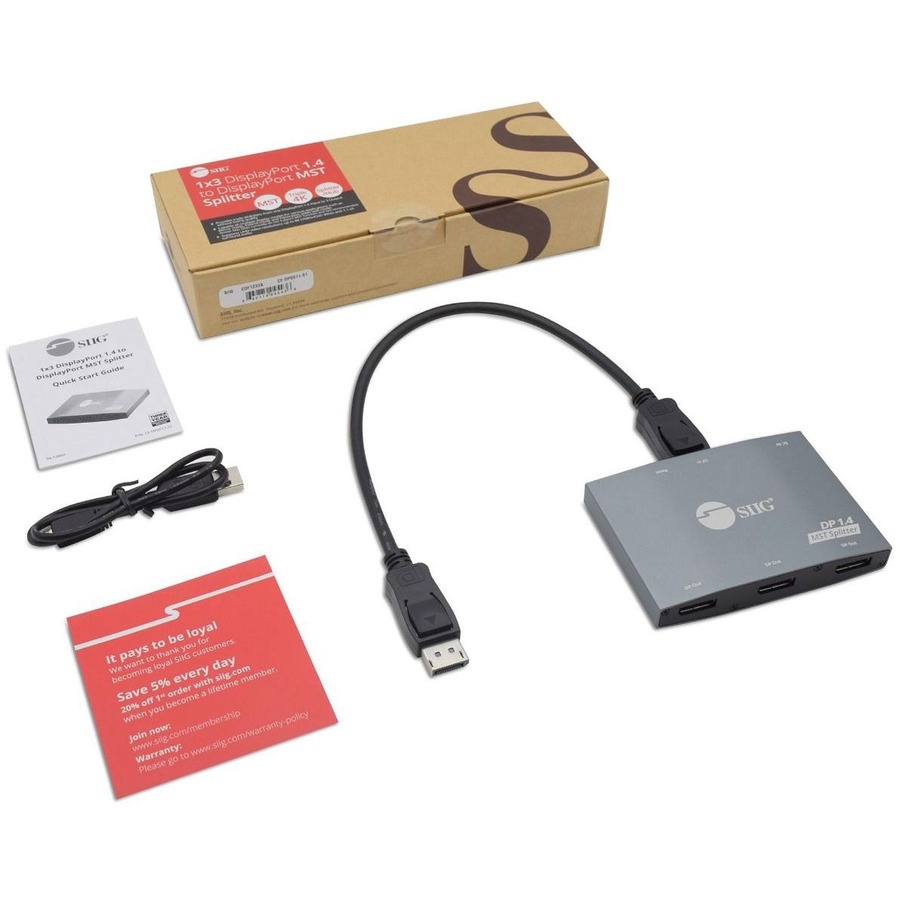

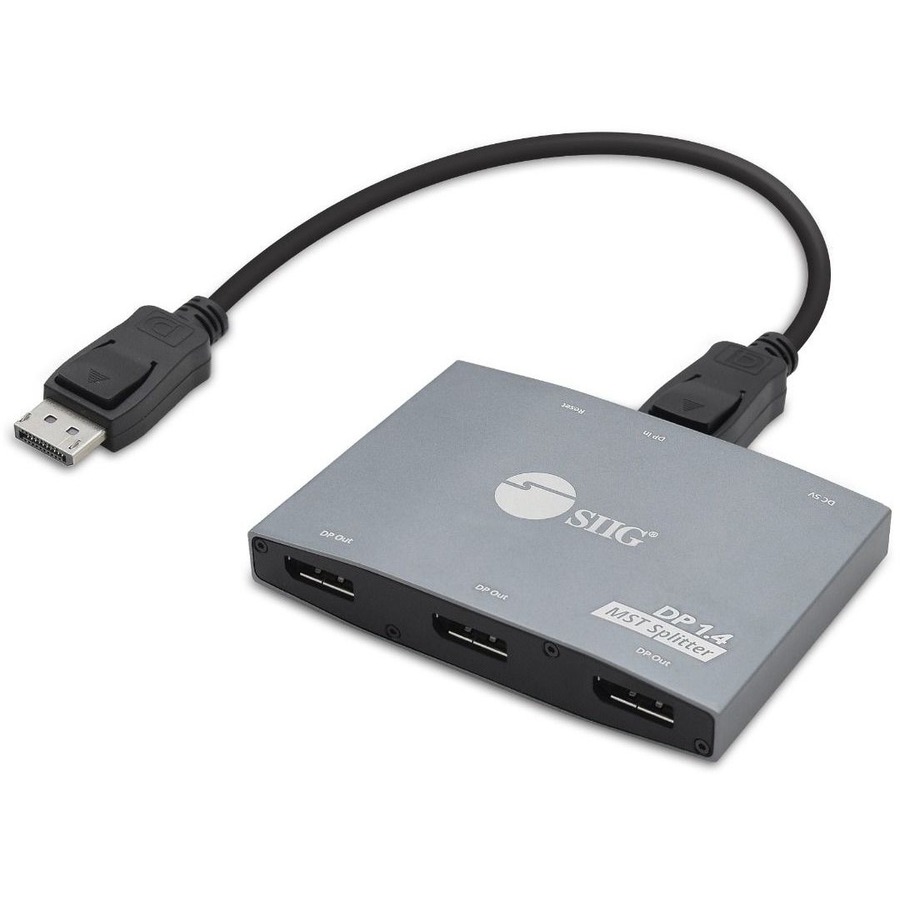

Comes with one 20-pin DisplayPort 1.4 input port (Host), three 20-pin DisplayPort 1.4 video output ports, one 5-pin Micro USB for power input (at least 5V/500mA), one reset button, and one DisplayPort 1.4 detachable cable

Maximum Compatibility

Compatible with DisplayPort 1.4 graphics card with AMD Eyefinity, Intel Collage or NVIDIA Surround technology

Aluminum Housing Design

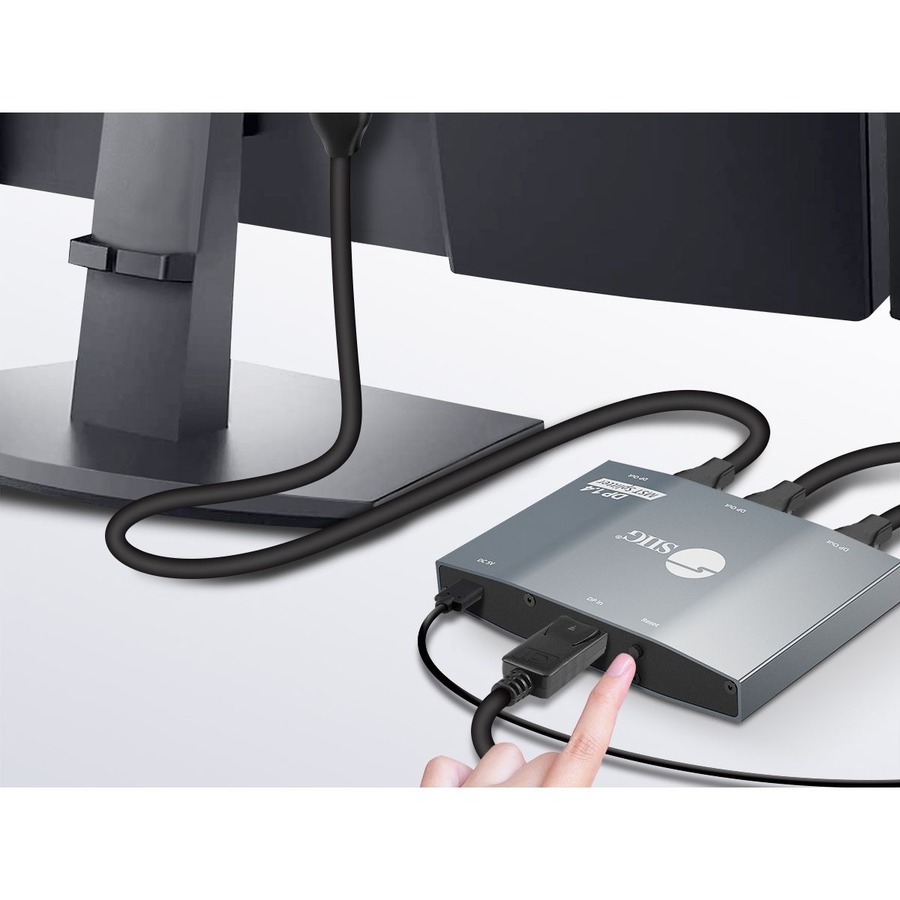

Premium aluminum housing decreases outer interference and provides optimal video quality. The reset button allows re-detection of all the displays if any of the displays are not detected

Applications

• Video editing

• Workstation

• Office

• Home office

• Conference room

• Educational facilities

• Small seminar

• Gaming

• Medical office

• Small seminar

• Medical office

• Hotel

• Testing lab

• Banking

• Service counter

Need to Know Before Buying 1. Make sure your system requirement has a DisplayPort video output specification 1.4 and supports Multi Stream Transport (MST). If you are not sure, please check with the video card or system manufacture
