32.4Gbps video bandwidth - Supports 4K HDR and HDCP 2.2 - Dual DisplayPort & One HDMI MST Hub Splitter - Dual 4K 60Hz or Triple 4K 30Hz DP/HDMI Monitors - Video Splitter for Extended Desktop Mode - DP 1.4 Multi-Stream Transport Hub / DSC / HBR3 / 7.1 ch audio - Reset button - 2 years warranty - MST for Windows PCs Only - Mac OS does not support MST function and only for Mirror mode
MSRP$119.99
$94.74
Save 21%Special order — estimated available by September 10, 2026.
Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

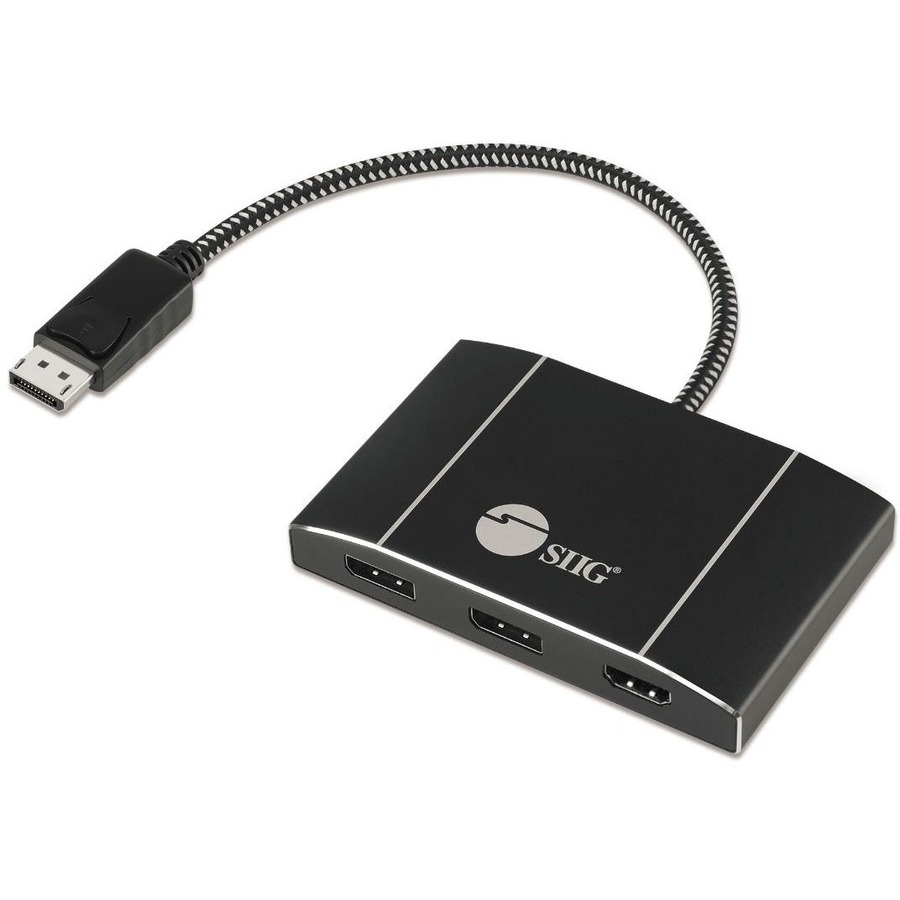

Easily connect up to 2 DisplayPort and 1 HDMI displays from a single DisplayPort 1.4 output
• Boost your productivity by connecting two DisplayPort and one HDMI displays to single DisplayPort output with Multi-Stream Transport (MST) technology
• Provides multiple display modes for various applications such as Mirror mode same content on each display, Extended mode with individual content on each display, and Panoramic Video Wall mode which combines multiple monitors to use as one large display
• Note : Mirror mode using a NVIDIA Surround technology graphics adapter is limited to 2 displays. Video Wall mode requires either a AMD Eyefinity, Intel, or NVIDIA Surround technology graphics adapter
• Total Bandwidth 32.4Gbps (Max): Supports one UHD 8K (7680 x 4320)@30Hz display, two 4K@60Hz displays, or three 4K (3840x2160)@30Hz or less display. Other resolution combinations which are less than or equal to 4K@30Hz will work also. For example, three 2K, three 1080p, 4K+2K+1080p etc.
• Note: The total combined bandwidth among all connected displays must NOT be exceeded the total bandwidth
• Compatible with DisplayPort 1.4 with MST graphics cards with AMD Eyefinity, Intel Collage or NVIDIA Surround technology
• Supports 4K HDR and HDCP 2.2
• Reset button allows re-detection of all the displays if any of the displays are not detected
• Plug-n-play, trouble-free set up without complicated hardware or driver installation
• Premium aluminum housing with embedded woven braided DisplayPort cable decreases surrounding interference and provides optimal video quality
Notes :
1) Mirror mode using Windows Display Utility and NVIDIA Utility is limited to 2 displays
2) Video Wall mode (e.g., Panoramic) requires either an AMD Eyefinity, Intel, or NVIDIA Surround technology graphics adapter
3) Currently, most Intel HD Graphics cards only support up to 3 external monitors altogether
4) macOS currently does not support MST function and will only mirror the displays
5) Requires USB power source of at least 5V/600mA
Limited Warranty: 2 Year
About Us Since 1985, SIIG Inc. lead the way in connectivity solution you can trust for IT and AV. Built on core values of professional integrity with customer satisfaction as the focus point, we are committed to providing excellent service, support, and solutions. We want to enhance your audiovisual and information technology experience with innovative product solutions. © 2020 SIIG Inc., All rights reserved.
| General Information | |
|---|---|
| Manufacturer | SIIG, Inc |
| Manufacturer Part Number | CE-DP0N11-S1 |
| Brand Name | SIIG |
| Product Name | Triple 4K DisplayPort 1.4 to 2 DP & HDMI MST Hub Splitter |
| Product Type | Signal Splitter |
| Interfaces/Ports | |
| DisplayPort | Yes |
| HDMI Out | Yes |
| USB | Yes |
| Number of DisplayPort Inputs | 1 |
| Number of DisplayPort Outputs | 1 |
| Number of HDMI Outputs | 1 |

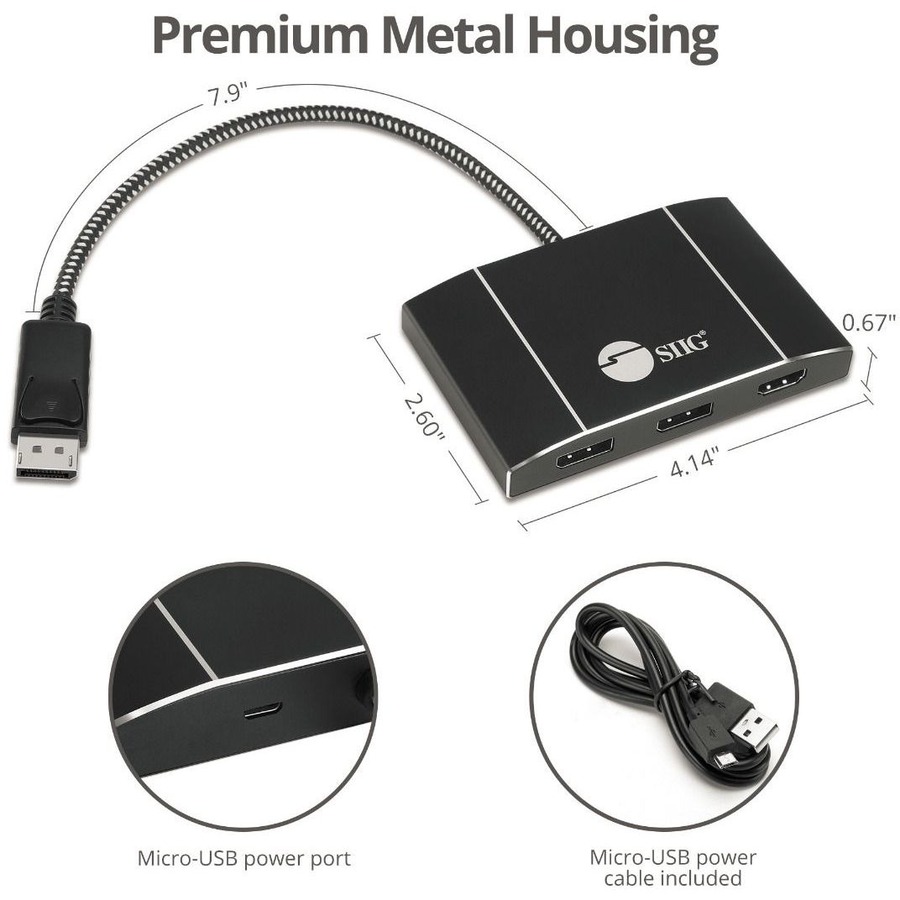

| Physical Characteristics | |
| Product Material | Aluminum |
| Height | 0.7" |
| Width | 2.6" |
| Length | 4.1" |
| Weight (Approximate) | 4.48 oz |
| Video | |
| Maximum Video Resolution | 7680 x 4320 |
| Warranty | |
| Limited Warranty | 2 Year |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
