Compact USB-powered VGA splitter allows you to split a video source to two separate displays - vga video splitter - vga monitor splitter - 2 port vga splitter - computer video splitter - vga distribution system
Genuine StarTech.com through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
ST122LE
Category
Signal Splitters/Amplifiers
Overview

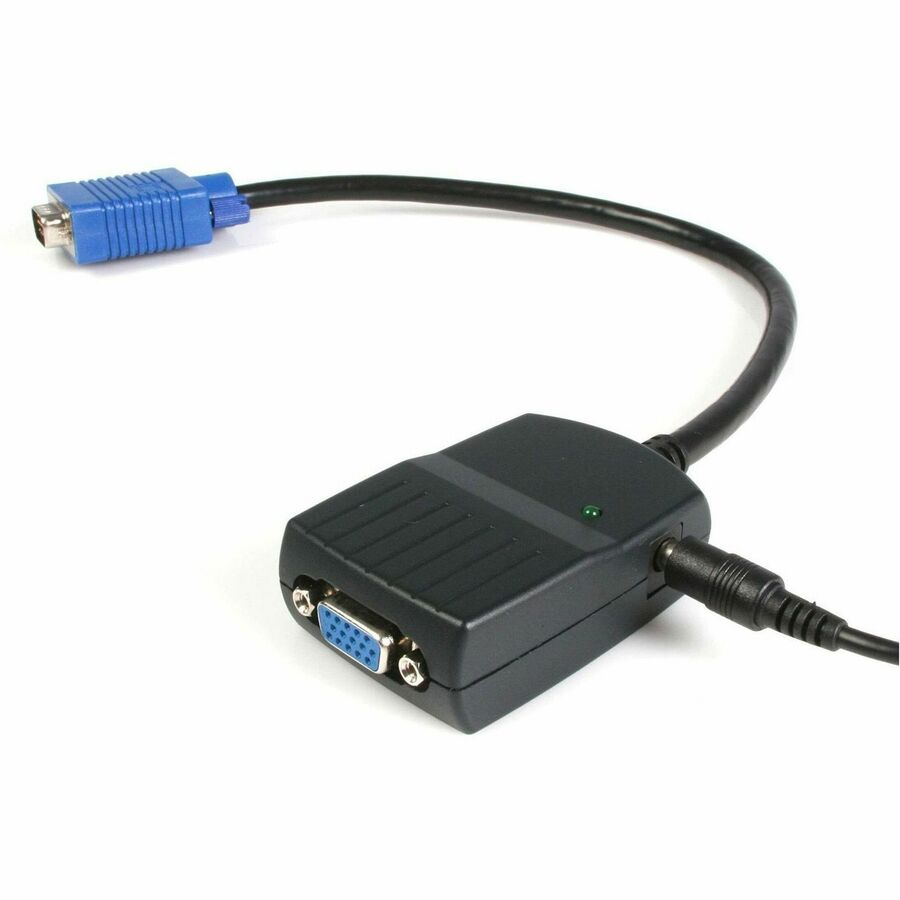

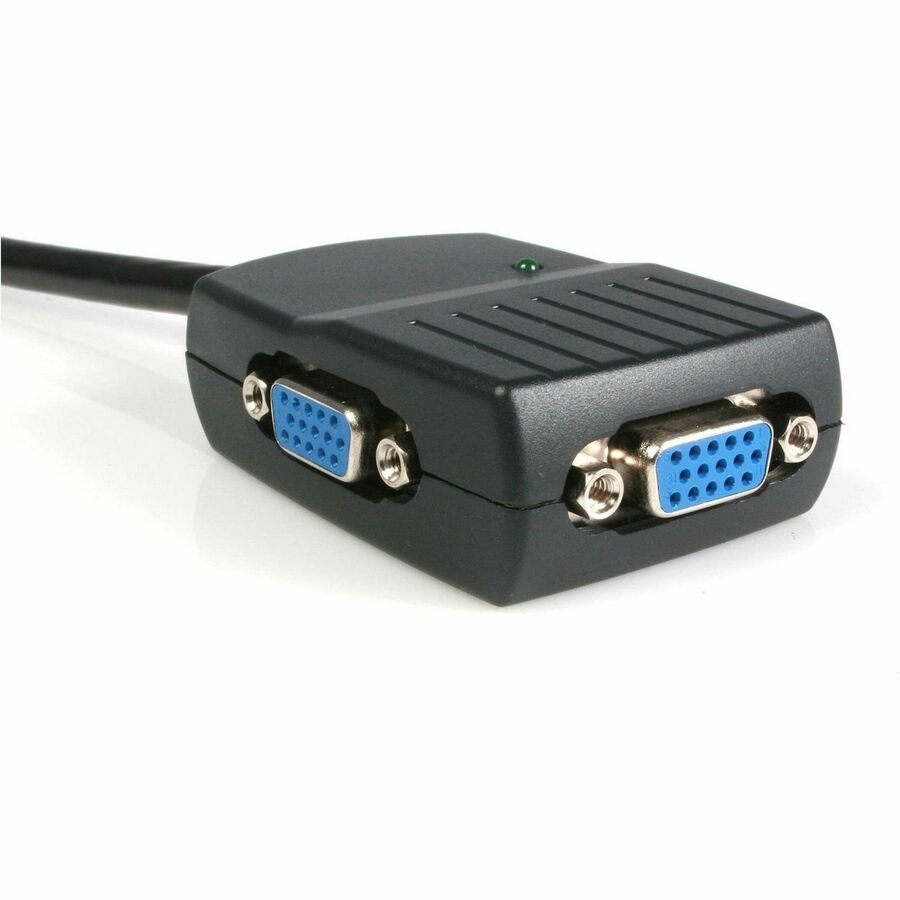

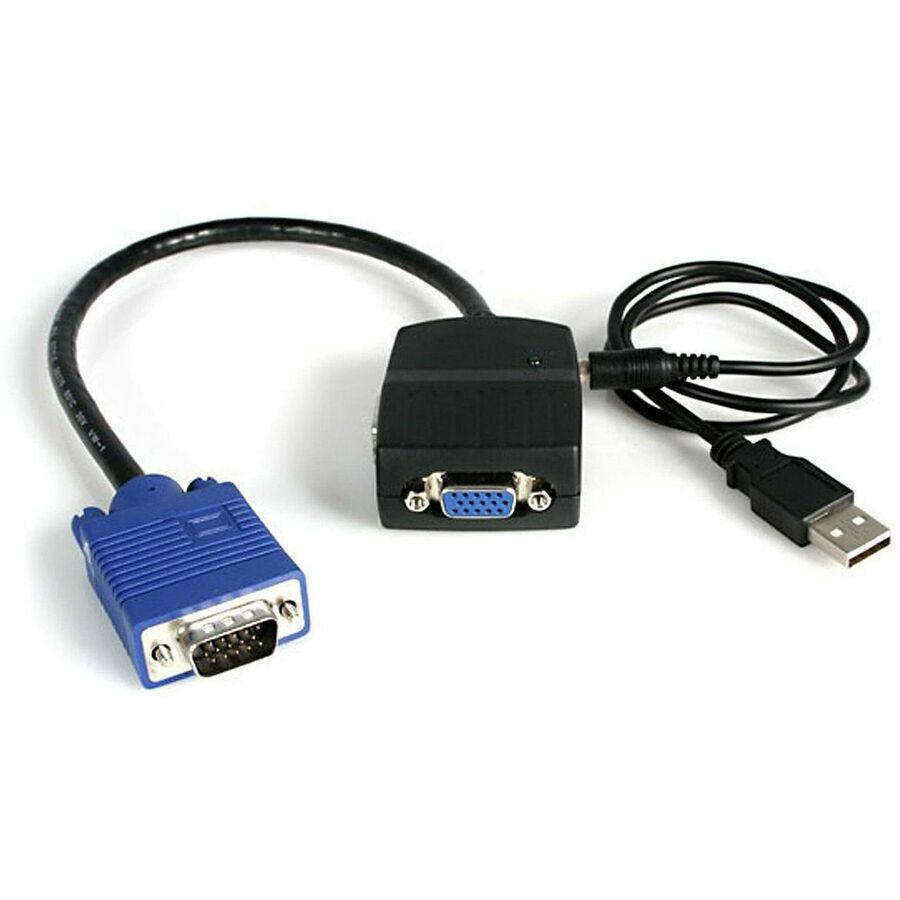

This 2-Port VGA Video Splitter allows a computer to display VGA video on two monitors simultaneously. Perfect for classrooms, tradeshows, or any environment requiring high quality video on several monitors, the ST122LE VGA splitter supports displays with up to 300 MHz of bandwidth and up to 2048x1536 resolution. Plus, to simplify placement of your VGA displays, the splitter features a built-in booster circuit that allows you to locate VGA monitors up to 200 ft away from your system, and can be powered through a USB connection to the host computer, eliminating the need to find an available power outlet. Application Diagram The ST122LE VGA Splitter supports easy plug and play installation, and is backed by StarTech.com's 2-year warranty and FREE lifetime tech support. More from the Manufacturer More from the Manufacturer
Highlights
Supports resolutions up to 2048 x 1536 @60Hz
USB-Powered
Our most compact VGA splitter
300 MHz video bandwidth
Integrated signal amplifier boosts your connection range to 200 feet (60 meters)
Supports DDC, DDC2, DDC2B (For video out port 1)
Specifications
Package Contents
2 Port VGA Video Splitter - USB Powered
1 x USB to DC Power Adapter
1 x User Manual
Product Type
Signal Splitter
Manufacturer Part Number
ST122LE
Packaged Quantity
1 Each
Limited Warranty
2 Year
Weight (Approximate)
3.53 oz
Length
15.7"
Manufacturer
StarTech.com
Product Name
2 Port VGA Video Splitter - USB Powered
Brand Name
StarTech.com
Country of Origin
Taiwan
Height
0.9"
Width
1.8"
Environmentally Friendly
Yes
Environmental Certification
EU RoHS
Maximum Video Resolution
2048 x 1536
Maximum Operating Distance
196.85 ft
Number of VGA Outputs
2
VGA In
Yes
VGA Out
Yes
Number of VGA Inputs
1
Maximum Video Bandwidth
300 MHz
TAA Compliant
Yes
Product Color
Black
Product Material
Plastic
Environmental Compliance
Restriction of Hazardous Substances (RoHS) 2, Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE)
