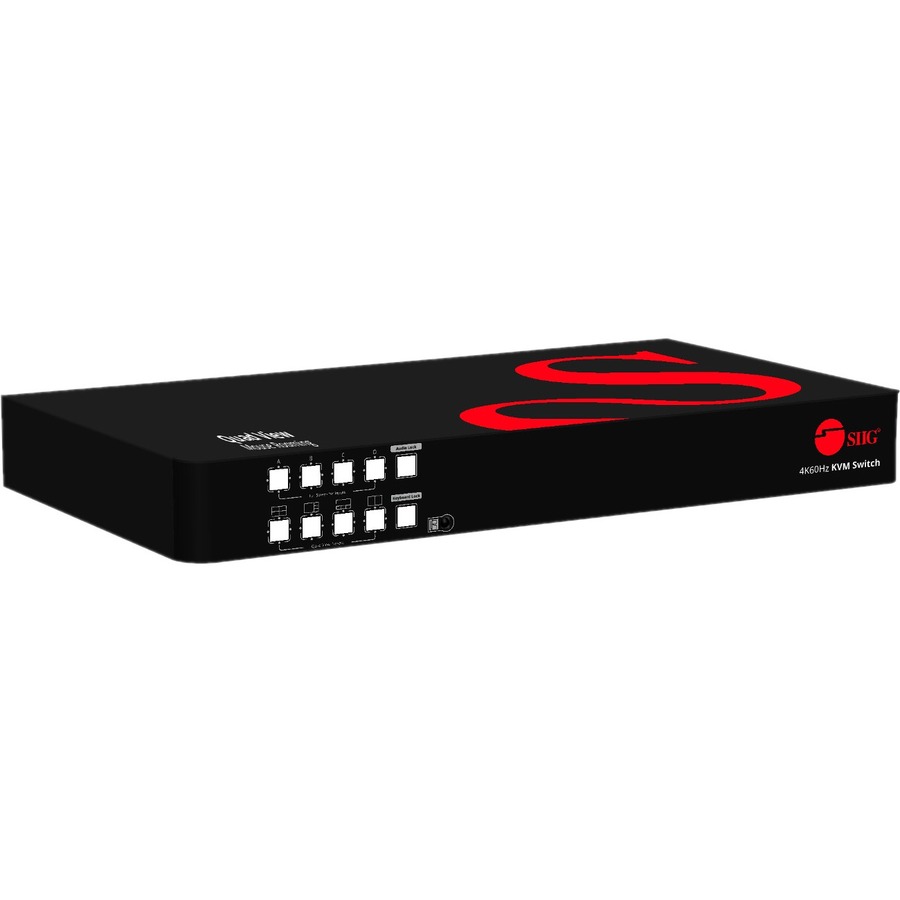

SIIG 4K60Hz Quad-View HDMI Mouse Roaming KVM Processor

Allows you to control 4 HDMI computers using one keyboard and mouse, 2 HDMI 4K@60, 2 USB-A 3.2 Gen 1 ports, 2 USB 1.1 ports, Microphone input, Stereo audio output, RS-232, RCA L/R stereo audio, DIP switch, Switch button, Hotkeys, IR remote control, Mouse roaming, Full screen, Quad view, and TAA compliant

Features Easily control/switch 4 HDMI computers or devices to 2 HDMI displays/monitors with one set of keyboard & mouse in Full screen or Quad view screen mode for increased productivity

Effortlessly Switch

Easily switching between four computers/devices via the front panel push button, USB keyboard hotkeys, IR remote control, web GUI control, and RS-232 command make this 4K60Hz Quad-View HDMI Mouse Roaming KVM Processor user-friendly to operate

Supports USB lock and audio lock function, easily lock the USB or stereo audio to the selected source device, which can avoid switching to USB or stereo audio when switching to another source devices

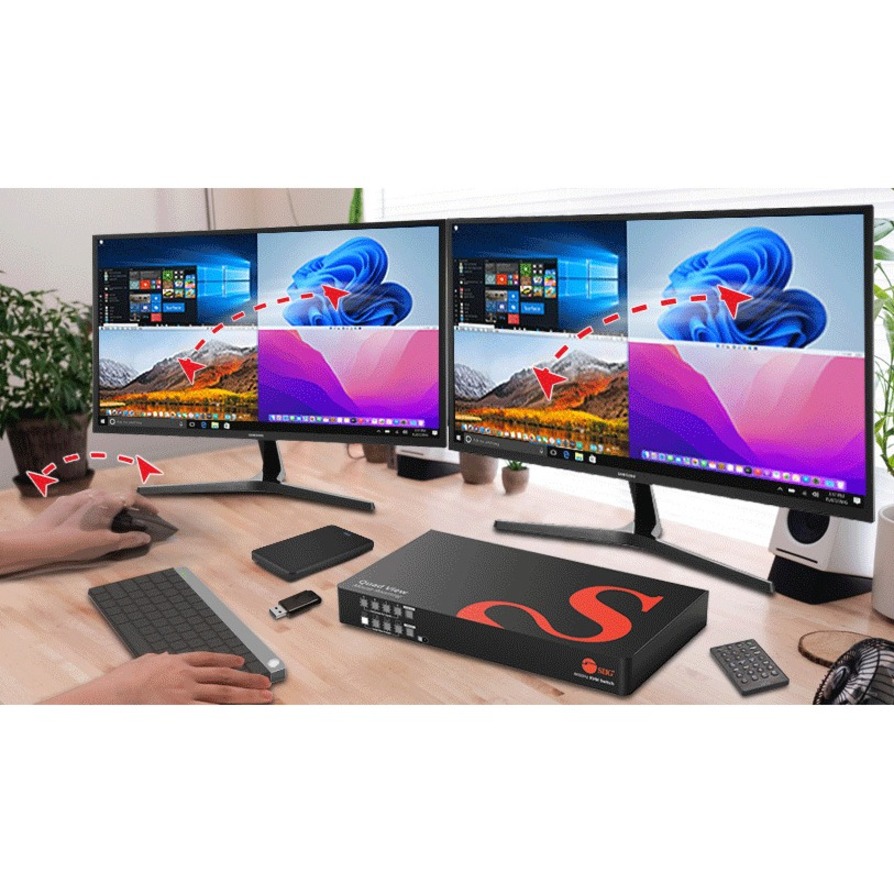

Mouse Roaming Function

Simple move the mouse to roam between the four Windows or Mac Systems make perfect operation experience

4K Ultra HD Resolution

Supports video resolution up to two UHD 4K (3840x2160) @60Hz, 4:4:4 8-bit through a HDMI port to display the crystal-clear video quality and 3D, deep color. Supports pure unaltered uncompressed 7.1-ch. surround sound

5 Display Modes

Video screen layout includes Full screen (original), Dual mode (left/right), Quad mode (average of 4), Quad Cycled mode 1 (1 big/ 3 small), and Quad Cycled mode 2 (1 big/ 3 small) with resizing, position, zoom, pan and blend functions

High Performance

Offers a true 18Gbps video bandwidth and supports pure unaltered uncompressed 7.1-ch. surround sound on HDMI

Multiple Connectivity Port

Comes with four HDMI video input ports, four USB 3.2 Gen 1 Type-B ports (Host), ten 3.5mm phone jacks to connect stereo speakers/earphones and microphones, two HDMI video output ports, two USB 3.2 Gen 1 Type-A, two USB 1.1 HID for keyboard & mouse connection, one 3.5mm Infrared jack to extend the IR signal, one IR sensor, one RJ45 Ethernet network port, two RCA L/R stereo audio ports, one Micro USB port for KVM F/W update, one Micro USB port for Quad-Viewer F/W update, one RS-232 control port, one audio lock button, one USB lock button, four display buttons for full screen, one DIP switch for KVM F/W update, four switch buttons for sources, one power on/off switch button, and one DC power jack (12V/3.33A)

USB-A Data Transfer

Delivers two SuperSpeed USB 3.2 Gen 1 Type-A ports up to 5Gbps data transfer rate for Flash drive, Printer, and other USB peripheral devices. And two High Speed USB 1.1 Type-A ports up to 12Mbps data transfer rate for independent HID keyboard and mouse

Maximum Compatibility

Compatible with Windows® 11 / 10 and macOS® 12.x to 10.13

EDID mode design maximizes the compatibility frm OS to display. Supports Plug-n-play, Firmware upgrade, and no driver installation required

ESD Protection

An ESD protection device protects a circuit frm an Electrostatic discharge (ESD), in order to prevent a malfunction or breakdown of an electronic device.

TAA Compliant

Completely manufactured in a TAA designated country

Metal Housing Design

Protects the inside PCBA, also enhance the heat dissipation for better performance. Military-grade component and ESD protection for long service life
