SIIG 4-Port DisplayPort 1.4 8K MST Dual Head KVM Console Switch
4-Port DisplayPort 1.4 8K MST Dual Head KVM Console Switch allows you to control 4 DP 8K computers using one keyboard and mouse and support to separate for dual head 4K60Hz DisplayPort via MST feature output to extend differnt content or mirror use the same contenct- 4 Computers input & 1 or 2 local output - DP 1.4 up to 8K@30Hz/32.4Gbps - 4 USB-A 5Gbps - 3.5mm Phone & Mic Jacks - Switch Button - Hotkeys- KVM Cable included- Metal Housing- ESD protection- 3 Years Warranty- TAA Compliant
- SKU
- CE-KV0H11-S1
- Category
- KVM Switchboxes
MSRP$559.99
$529.68
Save 5%Back ordered — ships when restocked.
Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- CE-KV0H11-S1
- Category
- KVM Switchboxes
Overview
4 port DisplayPort 8K MST Dual-Head KVM Switch, allows you to control 4 DisplayPort 8K computers using one keyboard and mouse and support to separate for dual head 4K60Hz DisplayPort via MST feature output, DP 1.4/8K@30, 32.4Gbps, 4 USB 3.2 Gen-1 ports, 3.5mm Phone & Mic Jacks, Switch Button, Hotkeys, Metal Housing, TAA Compliant
Features
Easily control/switch four DisplayPort 1.4 and USB computers with one set of keyboard & mouse to one 8K DisplayPort monitor or two 4K DisplayPort monitors and supports Multi-Stream Transport (MST) technology to enhance your productivity and efficiency
8K/4K Video Resolution
Supports Ultra HD video resolution up to a single 8K (7680x4320) @30Hz display and dual 4K (4096x2160) @60Hz displays YUV 4:4:4 8-bit, Deep color, and 3D
High Performance
Offers a true 32.4Gbps video bandwidth and supports 7.1ch surround sound
Effortlessly Switch
Switch freely between 4 computers/devices in different ways, such as front panel selection buttons and USB keyboard hotkeys
Multiple Connectivity Port

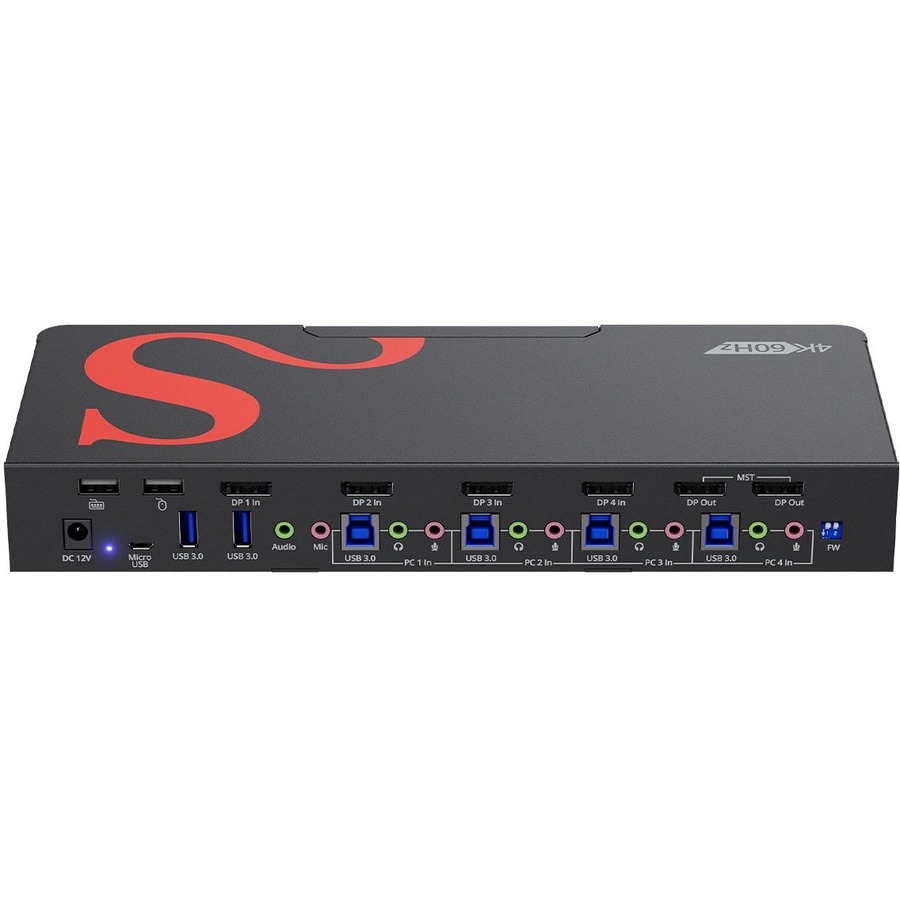

Comes with four DisplayPort 1.4 video input ports, four USB-B 3.2 Gen 1 ports (Host), two DisplayPort 1.4 MST output ports, four USB-A 3.2 Gen 1 ports, two USB-A 1.1 HID ports for connecting keyboard and mouse, five 3.5mm phone jack for stereo audio, five 3.5mm phone jack for microphone, one DIP Switch for Firmware control, one Micro USB for Firmware update, four PC1/PC2/PC3/PC4 switch buttons, and one DC power jack (12V/2A)
USB-A Data Transfer
Easily connect four USB-A 3.2 Gen 1 ports on the front or back with data transfer rate up to 5Gbps for Flash drive, Printer, Enclosure, and other USB peripheral devices, and two USB-A 1.1 HID ports with data transfer rate up to 12Mbps for independent HID keyboard and mouse
3.5mm Audio/Mic
Supports ten 3.5mm phone jacks for stereo audio and Microphone
Maximum Compatibility
Compatible with Windows® 11 (64-bit) / 10 (32-/64-bit) / 8.x (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit)
Supports Plug-n-play and no driver installation required. Auto-EDID detection to ensure visual workspaces and resolutions are easy to connect to a new system every time and auto-scan feature for quick browsing and system monitoring
ESD Protection
An ESD protection device protects a circuit used to an Electrostatic discharge (ESD), in order to prevent a malfunction or breakdown of an electronic device
Metal Housing Design
Drop resistant and Anti-collision design enhances heat dissipation, providing better performance, stability, and safety
TAA Compliant
Completely manufactured in a TAA designated country
Highlights
- Console four PC systems with DisplayPort 8K video via Keyboard-Mouse function and support to separate for dual head 4K60Hz DisplayPort via MST feature output
- The DisplayPort KVM switch on the market to offer 32.4Gbps, Ultra-HD 8@30Hz, it features Auto-EDID detection which ensures visual workspaces and screen resolutions are easy to connect to a new system every time.
- Easily to control via simple select buttons on the front panel or using programmable hot keys on USB keyboard
- Comes with 2 USB 1.1 ports for keyboard and mouse connection, and 4 USB 3.2 Gen-1 ports, Connect multiple USB peripherals such as flash drives, printers and more devices simultaneously
- Supports Dolby Digital, DTS-HD and Dolby True-HD audio; Includes 3.5mm jack for microphone input and stereo speakers/headphones
- Supports screen auto scan between each display; Micro-USB firmware update for expanding compatibility
- Plug-n-play, no driver installation
Specifications

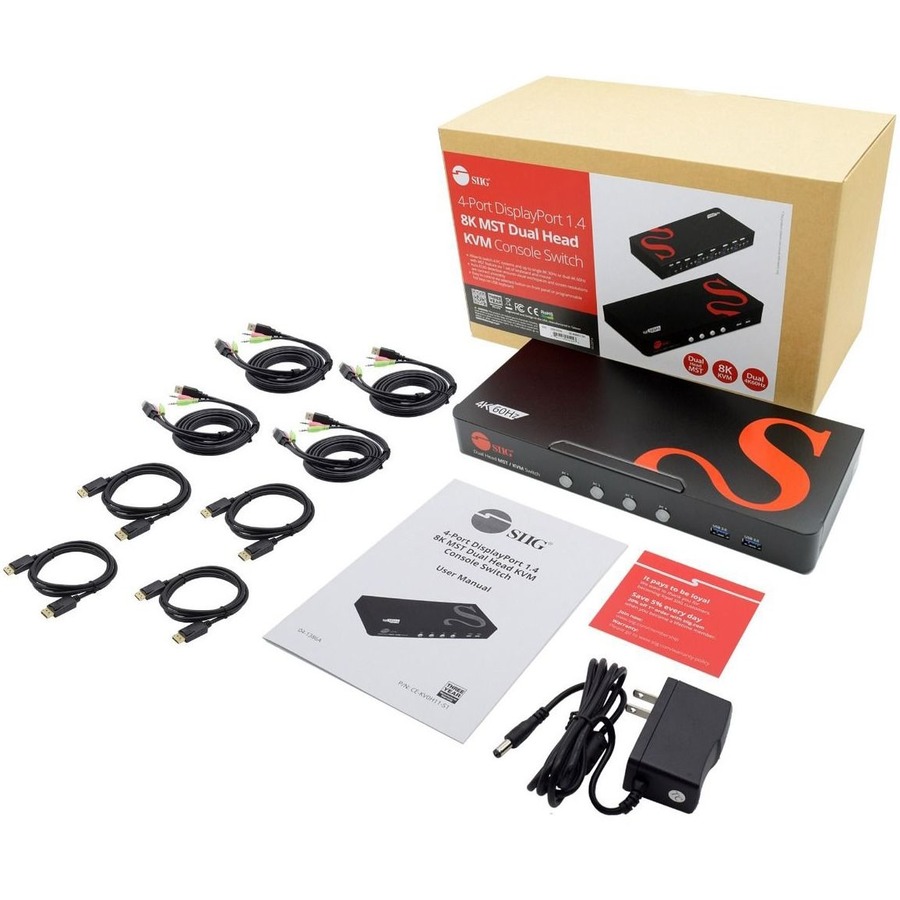

| Package Contents |
|
|---|---|
| Product Type | KVM Switchbox |
| Manufacturer Part Number | CE-KV0H11-S1 |
| Packaged Quantity | 1 |
| Limited Warranty | 3 Year |
| Weight (Approximate) | 2.15 lb |
| Features | Plug and Play |
| Frequency | 50 Hz, 60 Hz |
| Manufacturer | SIIG, Inc |
| Product Name | 4-Port DisplayPort 1.4 8K MST Dual Head KVM Console Switch |
| Brand Name | SIIG |
| Input Voltage Range | AC 100-240V |
| Country of Origin | Taiwan |
| Height | 1.4" |
| Width | 4.4" |
| Depth | 11.1" |
| Environmentally Friendly | Yes |
| Maximum Video Resolution | 7680 x 4320 |
| USB | Yes |
| Number of USB Ports | 10 |
| DisplayPort | Yes |
| Number of DisplayPorts | 6 |
| Number of Computers Supported | 4 |
| Number of Local Users Supported | 2 |
| TAA Compliant | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS) |
