Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
CE-H26F11-S1
Category
Digital Signage Systems
Overview

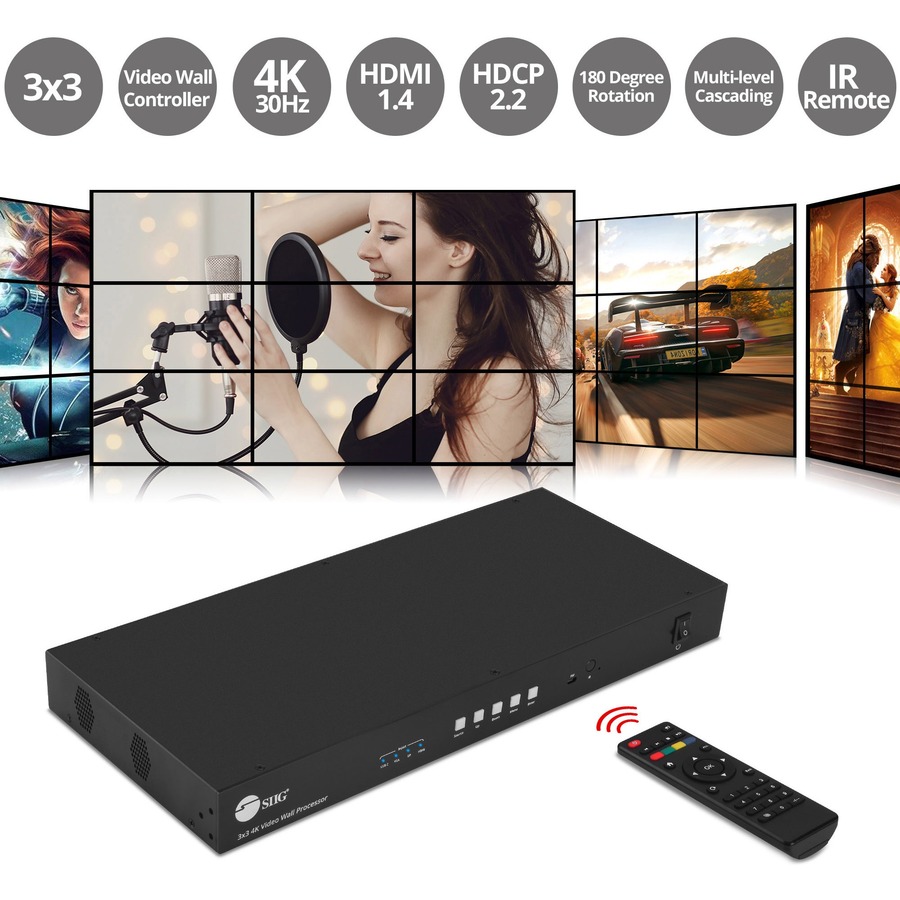

3x3 4K Video Wall Processor with USB-C / DP / VGA / HDMI Input
• Allows you to select and switch between 4 source devices (1 HDMI, 1 DisplayPort, 1 USB-C, and 1 VGA) to display on 9 HDMI displays + 1 local HDMI out
• Create a 3x3 Video Wall using any source device to 9 displays

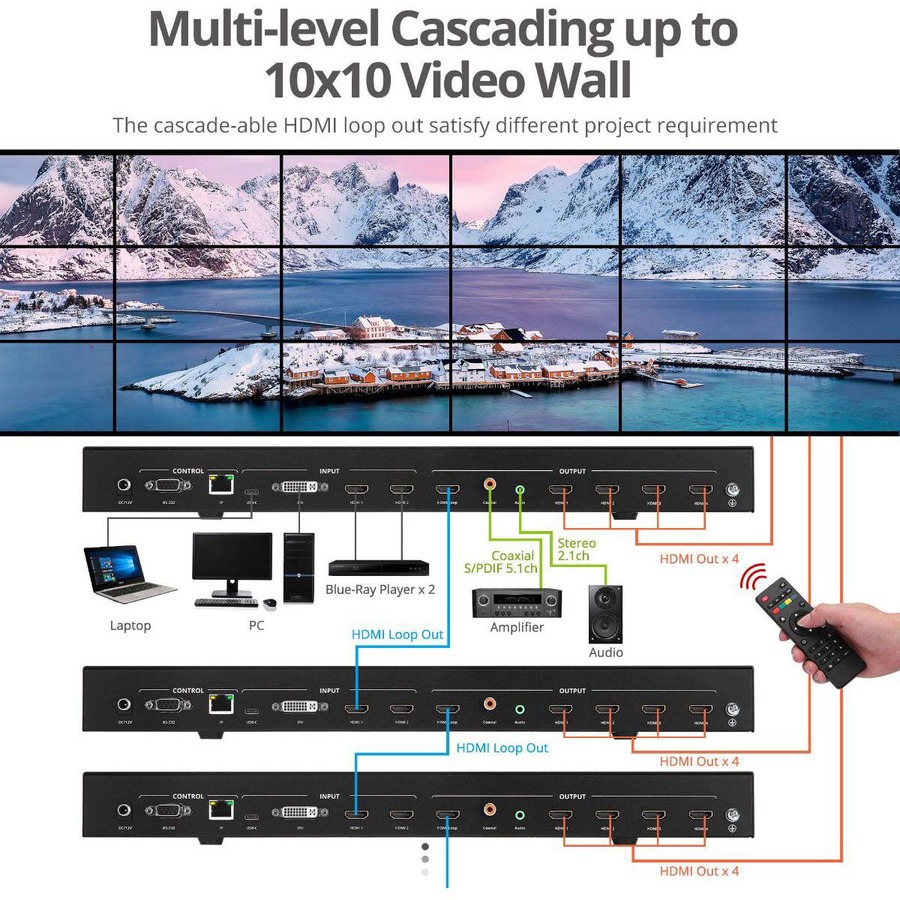

• Supports multi-level cascading to create 3x4, 4x5, 5x6, and 10x10 (max) video walls
• Compliant with HDCP 2.2/1.4 specification
• Supports 180° HDMI image rotation
• Supports EDID management: Two default EDID: 4K30Hz & 1080p
• Supports resolution up to 4K@30Hz for USB-C, DisplayPort and HDMI inputs, 1080p for the VGA input
• OSD allows more than 10 splicing modes, video wall setup by single click

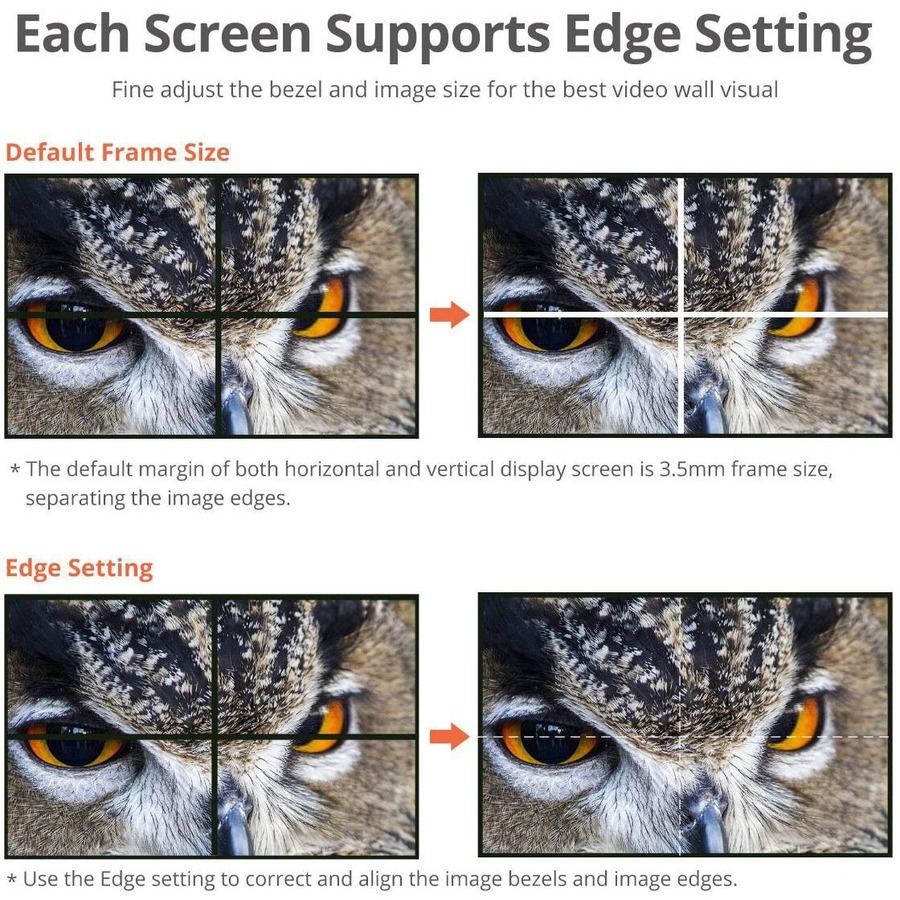

• Supports monitor edge adjustment
• Supports source device switching via front panel button, remote control, RS232 command, and TCP/IP control
• USB port allows firmware upgrades when needed
• Supports SPDIF and analog audio extraction to connect external speakers or AVRs
• Mounting brackets included for various installation options
Allows you to select and switch between 4 source devices (1 HDMI, 1 DisplayPort, 1 USB-C, and 1 VGA) to display on 9 HDMI displays + 1 local HDMI out
Create a 3x3 Video Wall using any source device to 9 displays
Supports multi-level cascading to create 3x4, 4x5, 5x6, and 10x10 (max) video walls
Compliant with HDCP 2.2/1.4 specification
Supports 180° HDMI image rotation
Supports EDID management: Two default EDID: 4K30Hz & 1080p
Supports resolution up to 4K@30Hz for USB-C, DisplayPort and HDMI inputs, 1080p for the VGA input
OSD allows more than 10 splicing modes, video wall setup by single click
Supports monitor edge adjustment
Supports source device switching via front panel button, remote control, RS232 command, and TCP/IP control
USB port allows firmware upgrades when needed
Supports SPDIF and analog audio extraction to connect external speakers or AVRs
Mounting brackets included for various installation options
Specifications
General Information
Manufacturer
SIIG, Inc
Manufacturer Part Number
CE-H26F11-S1
Brand Name
SIIG
Product Model
CE-H26F11-S1
Product Name
3x3 4K Video Wall Processor with USB-C/DP/VGA/HDMI In
Product Type
Video Wall Controller
Interfaces/Ports
USB
Yes
DVI
Yes
HDMI
Yes
Serial
Yes
Number of HDMI Inputs
1
Number of HDMI Outputs
10
Number of DisplayPorts
1
Network & Communication
Ethernet
Yes
Physical Characteristics
Color Family
Black
Product Color
Black
Height
1.7"
Width
17.2"
Depth
10.8"
Weight (Approximate)
8.16 lb
Power Description
Input Voltage
120 V AC, 230 V AC, 12 V DC
Technical Information
Video Wall Compatible
Yes
Warranty
Limited Warranty
2 Year
Miscellaneous
Package Contents
3x3 4K Video Wall Processor with USB-C/DP/VGA/HDMI In DC 24V/2A output power adapter Remote control Mount bracket kit (6x screws, 2x mounting ears) Driver CD USB cable User manual
