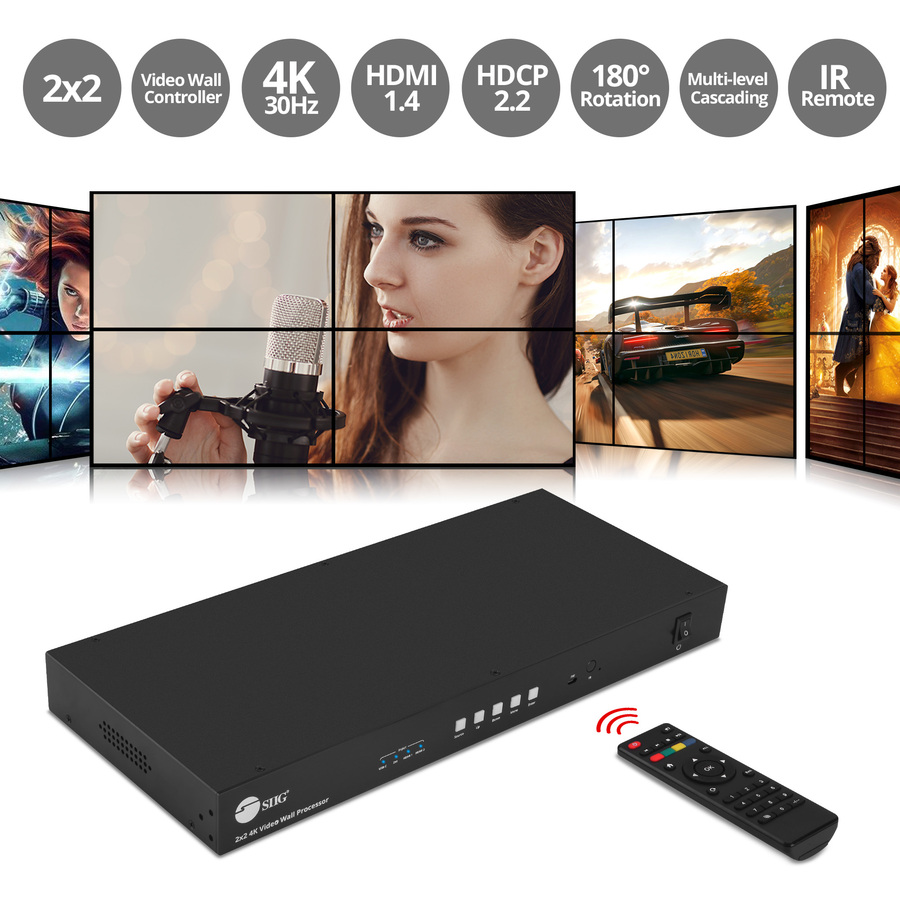

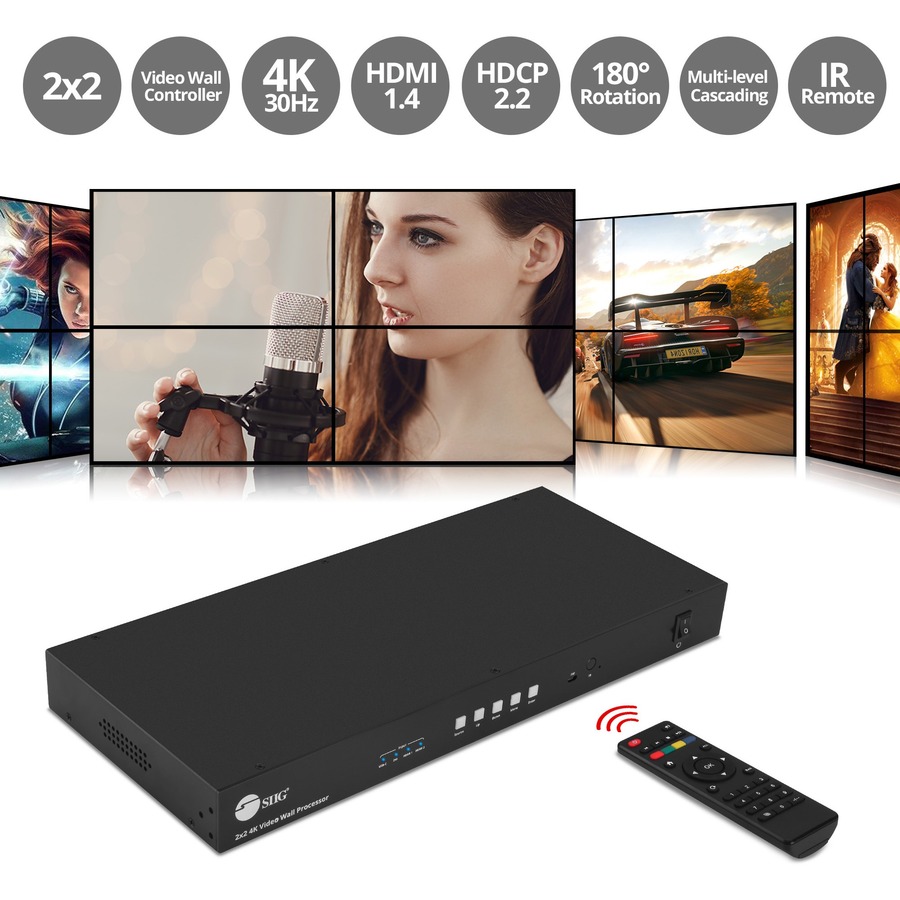

SIIG 2x2 4K Video Wall Processor with USB-C / DVI / HDMI Inputs with EDID management
Multi-level Cascading - Supports 180° HDMI image rotation
- SKU
- CE-H26E11-S1
- Category
- Digital Signage Systems
MSRP$1,299.99
$1,060.71
Save 18%Back ordered — ships when restocked.
Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- CE-H26E11-S1
- Category
- Digital Signage Systems
Overview
2x2 4K Video Wall Processor with USB-C / DVI / HDMI Input
• Allows you to select and switch between 4 source devices (2 HDMI, 1 USB-C, and 1 DVI-D) to display on 4 HDMI displays
• Create a 2x2 Video Wall using any source device to four displays

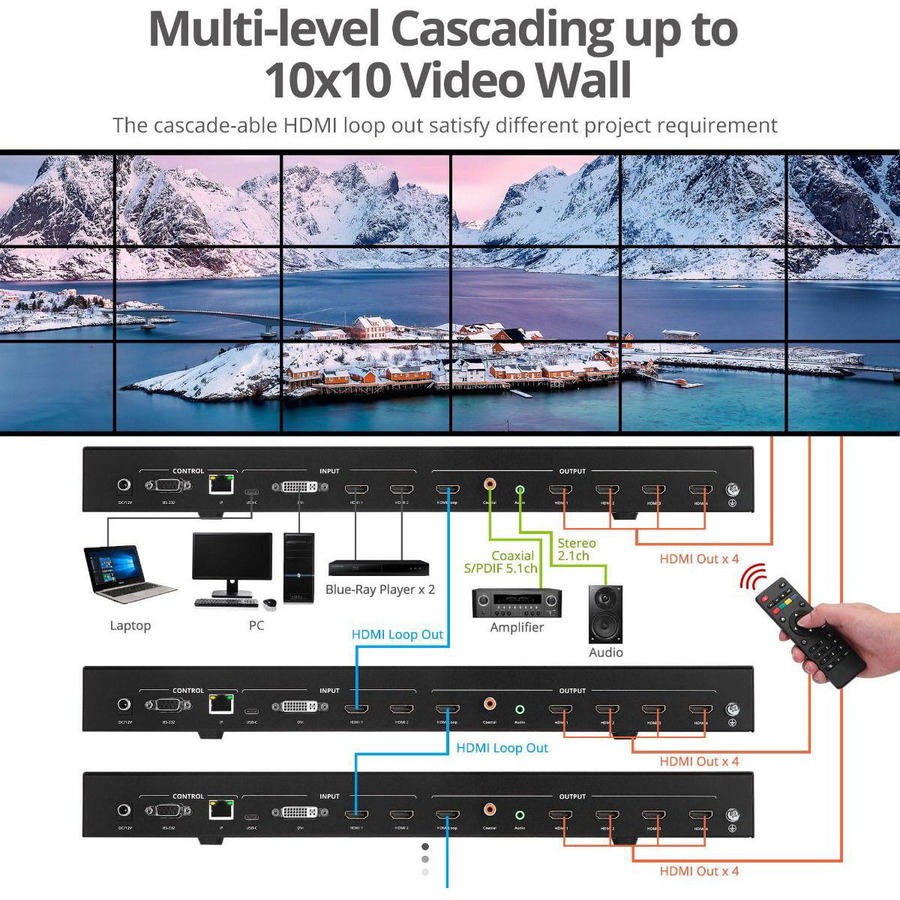

• Supports multi-level cascading to create 2x2, 1x2, 2x1, 1x3, 3x1, 1x4, 4x1, and 10x10 (max) video walls
• Supports 180° HDMI image rotation
• Supports EDID management: Two default EDID: 4K30Hz & 1080p, copy the EDID of the HDMI loop out or any output port
• Supports resolution up to 4K@30Hz for USB-C and HDMI inputs, 1920x1200 for DVI-D input
• SupportsSource device switching via front panel button, remote control, RS232 command, and TCP/IP control
• USB port allows firmware upgrades when needed
• Supports SPDIF and analog audio extraction to connect external speakers or AV equipment

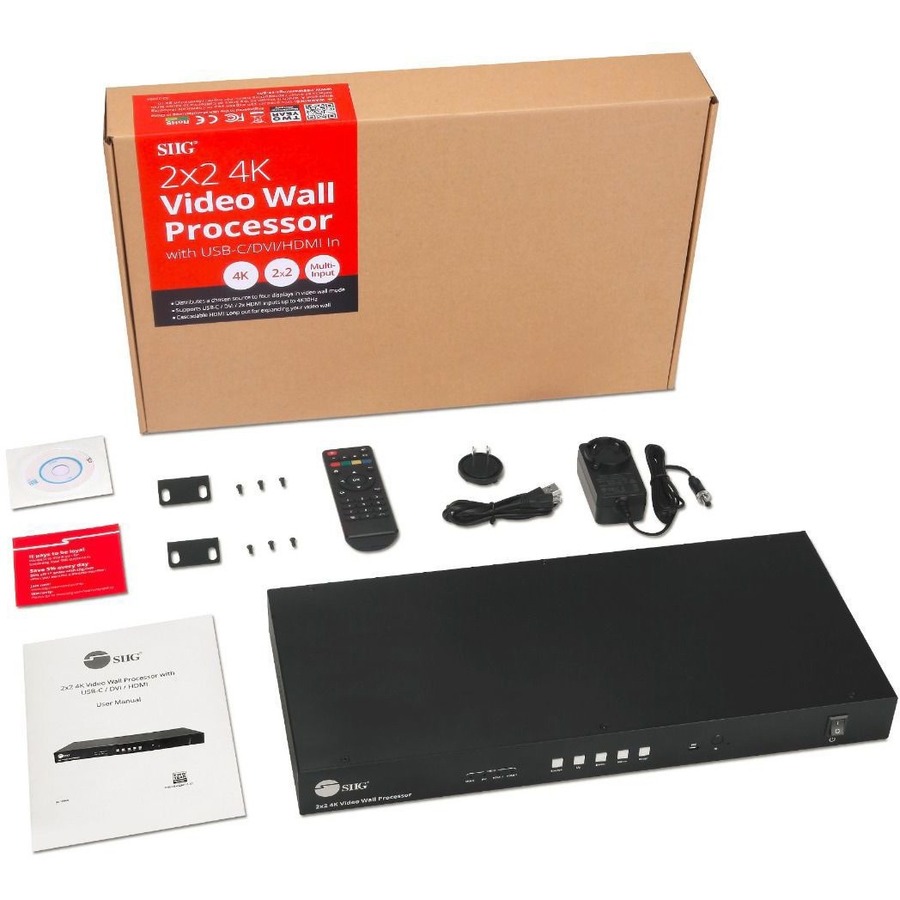

• Mounting brackets included for various installation options
Highlights
- Allows you to select and switch between 4 source devices (2 HDMI, 1 USB-C, and 1 DVI-D) to display on 4 HDMI displays
- Create a 2x2 Video Wall using any source device to four displays
- Supports multi-level cascading to create 2x2, 1x2, 2x1, 1x3, 3x1, 1x4, 4x1, and 10x10 (max) video walls
- Supports 180° HDMI image rotation
- Supports EDID management: Two default EDID: 4K30Hz & 1080p, copy the EDID of the HDMI loop out or any output port
- Supports resolution up to 4K@30Hz for USB-C and HDMI inputs, 1920x1200 for DVI-D input
- SupportsSource device switching via front panel button, remote control, RS232 command, and TCP/IP control
- USB port allows firmware upgrades when needed
- Supports SPDIF and analog audio extraction to connect external speakers or AV equipment
- Mounting brackets included for various installation options
Specifications
| Package Contents |
|
|---|---|
| Product Type | Video Wall Controller |
| Input Voltage | 120 V AC, 230 V AC, 12 V DC |
| Manufacturer Part Number | CE-H26E11-S1 |
| Limited Warranty | 2 Year |
| Weight (Approximate) | 5.51 lb |
| Manufacturer | SIIG, Inc |
| Product Model | CE-H26E11-S1 |
| Product Name | 2x2 4K Video Wall Processor with USB-C/DVI/HDMI Inputs |
| Brand Name | SIIG |
| Country of Origin | China |
| Height | 1.7" |
| Width | 17.2" |
| Depth | 7.5" |
| Environmentally Friendly | Yes |
| Ethernet | Yes |
| USB | Yes |
| HDMI | Yes |
| DVI | Yes |
| Number of HDMI Inputs | 2 |
| Number of HDMI Outputs | 5 |
| Serial | Yes |
| Number of DVI Ports | 1 |
| Video Wall Compatible | Yes |
| Product Color | Black |
| Color Family | Black |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
