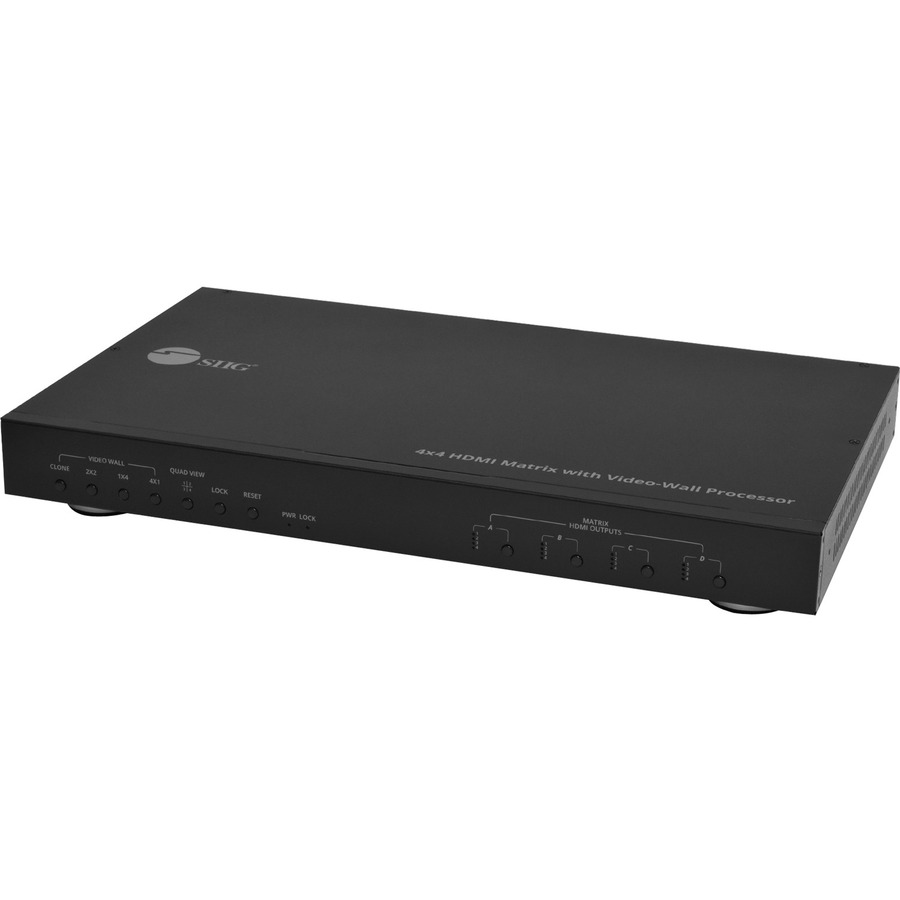

SIIG 4x4 HDMI Matrix & VideoWall Processor with RS232

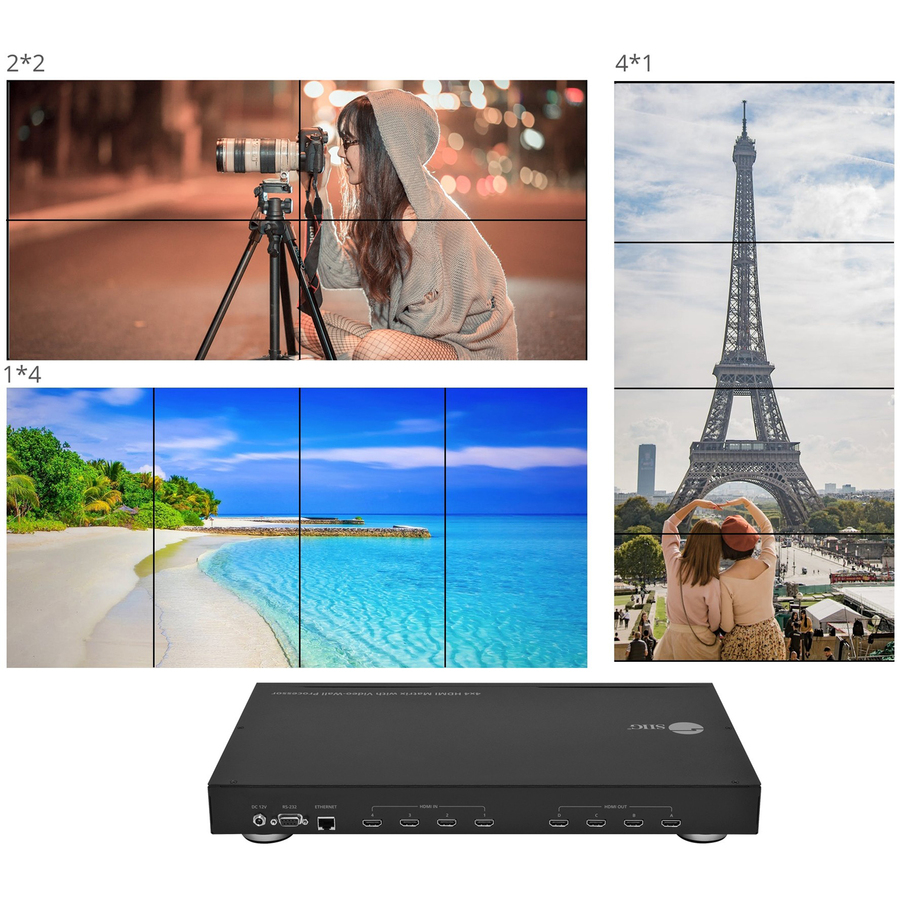

Share and switch four distinct HDMI audio/video sources between four HDMI displays and support 1x1 (Matrix) / 2x2 (Video Wall) / 1x4 (TV Wall) and 4x1 (Quad Mode) modes - 640x480 to 1920x1200 output - 7.1 Audio- Firmware upgradable - EDID Management - Push Buttons/ RS-232/ Ethernet/ Software Control - ESD Protection - Included Rack-mounting kit - 3 years warranty - TAA Compliant
- SKU
- CE-H24C11-S1
- Category
- Digital Signage Systems
MSRP$1,199.99
$1,054.10
Save 12%In stock: 2
Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- CE-H24C11-S1
- Category
- Digital Signage Systems
Overview
Allows any of the 4 HDMI sources to be displayed on any of the 4 HDMI displays and features advanced 4 display video wall processor for flexible video array windowing possibilites
• Allows any of the 4 HDMI sources to be displayed on any of the 4 HDMI displays and the advanced video wall processor offers flexible array windowing capabilities

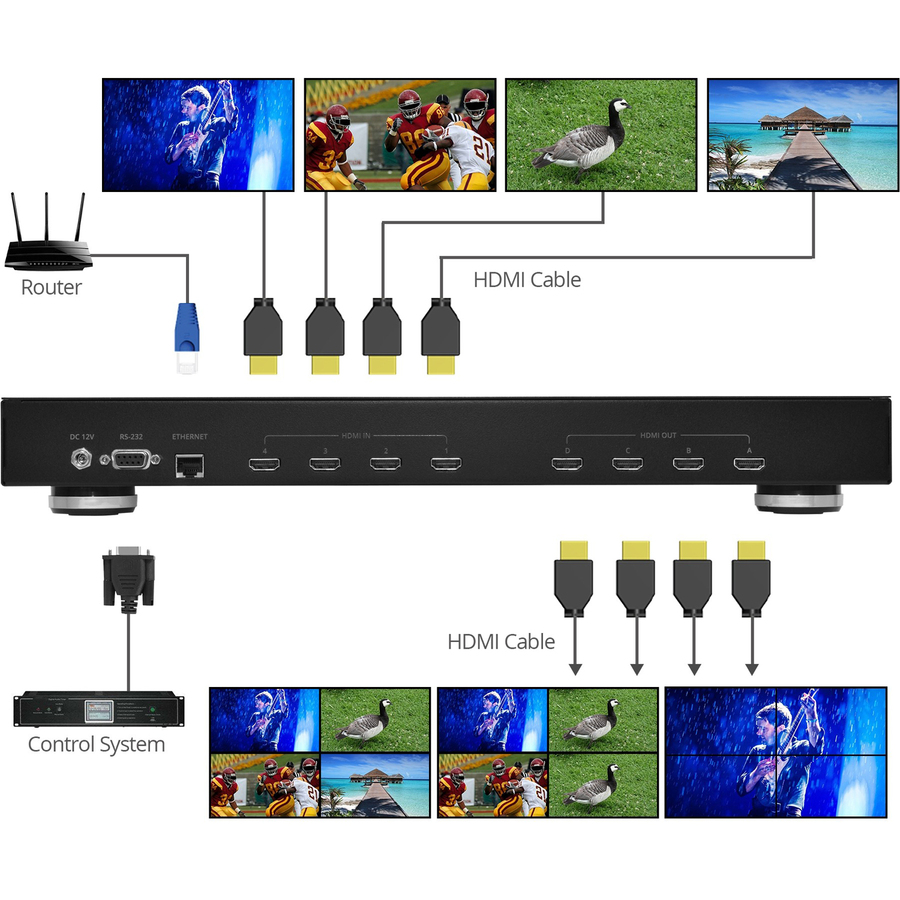

• Use as a conventional matrix switch, routing up to 4 different HDMI video sources to any monitor independently
• Work as combo matrix, showing an individual input source in full-screen on one display while the other displays are working in video wall mode with another input source

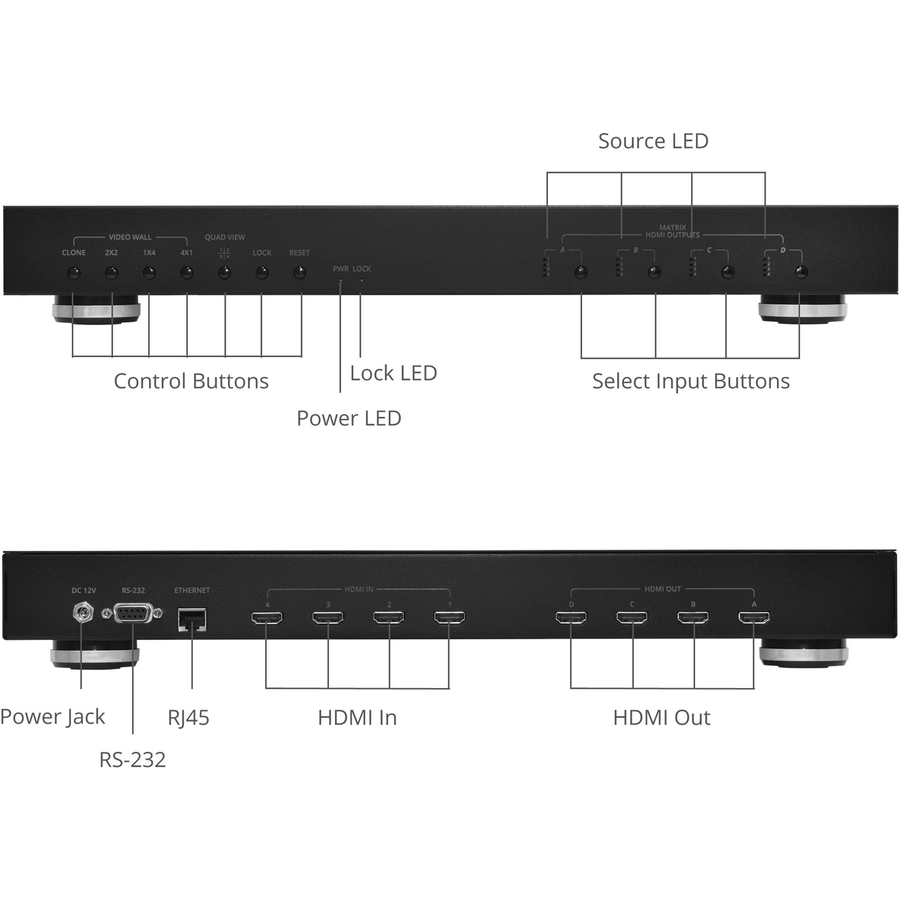

• The video wall processor can control by RS232, push button, Ethernet control
• High quality metal housing with ventilation panels provides excellent heat dissipation, keeps the unit cooler, for system stability during long hours of operation
• Premium design easily integrates into versatile application environments, mounting brackets included for various installation requirements
Highlights
- Video Wall Controller offers a dependable video signage solution with maximum productivity
- Engages your customers and makes their viewing experience breathtaking with its 1080p content
Specifications
| Package Contents |
|
|---|---|
| Product Type | Video Wall Controller |
| Input Voltage | 120 V AC, 230 V AC |
| Manufacturer Part Number | CE-H24C11-S1 |
| Limited Warranty | 3 Year |
| Weight (Approximate) | 6.20 lb |
| Manufacturer | SIIG, Inc |
| Product Model | CE-H24C11-S1 |
| Product Name | 4x4 HDMI Matrix + Video-Wall Processor |
| Brand Name | SIIG |
| Country of Origin | Taiwan |

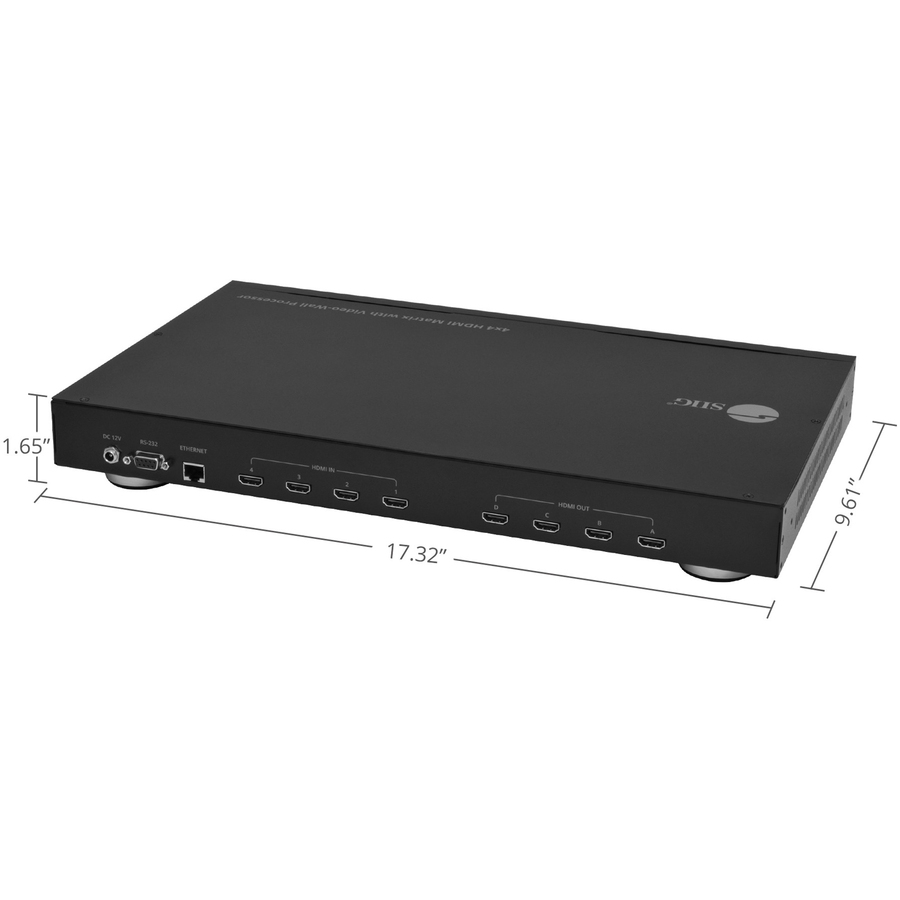

| Height | 1.7" |
| Width | 17.3" |
| Depth | 10.1" |
| Scan Format | 1080p |
| Environmentally Friendly | Yes |
| Ethernet | Yes |
| HDMI | Yes |
| Number of HDMI Inputs | 4 |
| Number of HDMI Outputs | 4 |
| Serial | Yes |
| TAA Compliant | Yes |
| Video Wall Compatible | Yes |
| Product Color | Black, Brown |
| Color Family | Dual Color |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
