Sharp LD-EC121 8x8 217in Modules(Bundle)
18.08 ft LCD - 8x8 Video Wall - 3840 x 2160 - 16:9 - Direct View LED - 660 Nit - 2160p - USB - SerialEthernet
- SKU
- LD-EC121-U
- Category
- Digital Signage Systems
MSRP$155,415.00
$125,792.99
Save 19%Back ordered — ships when restocked.
Genuine Sharp Electronics through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- LD-EC121-U
- Category
- Digital Signage Systems
Overview

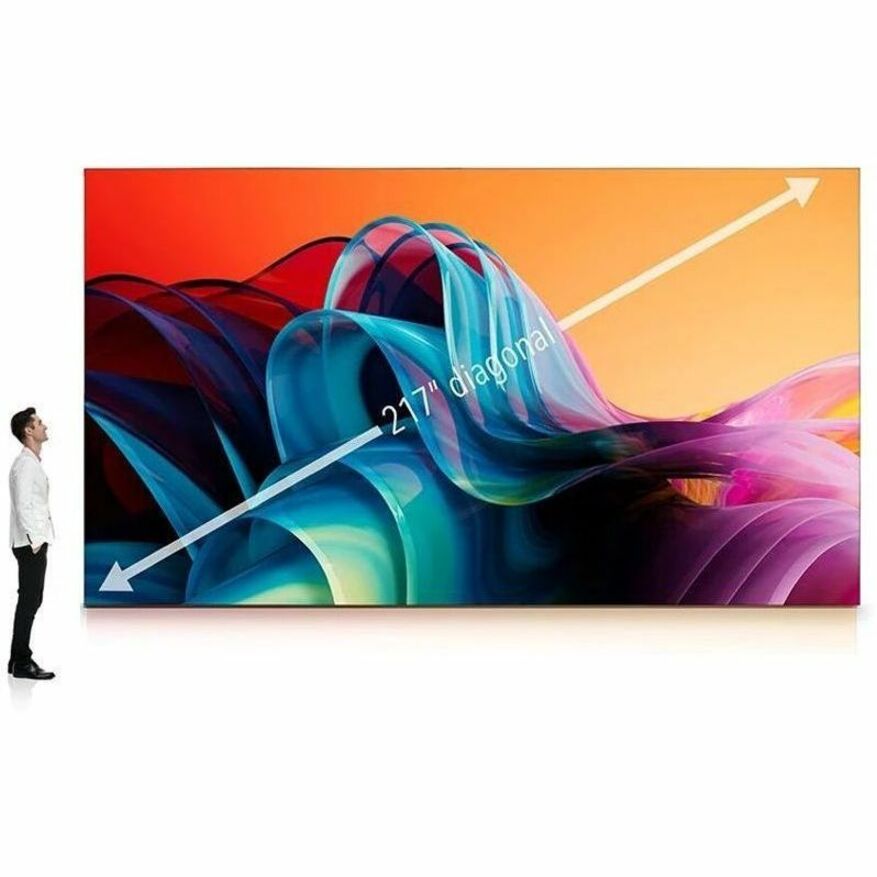

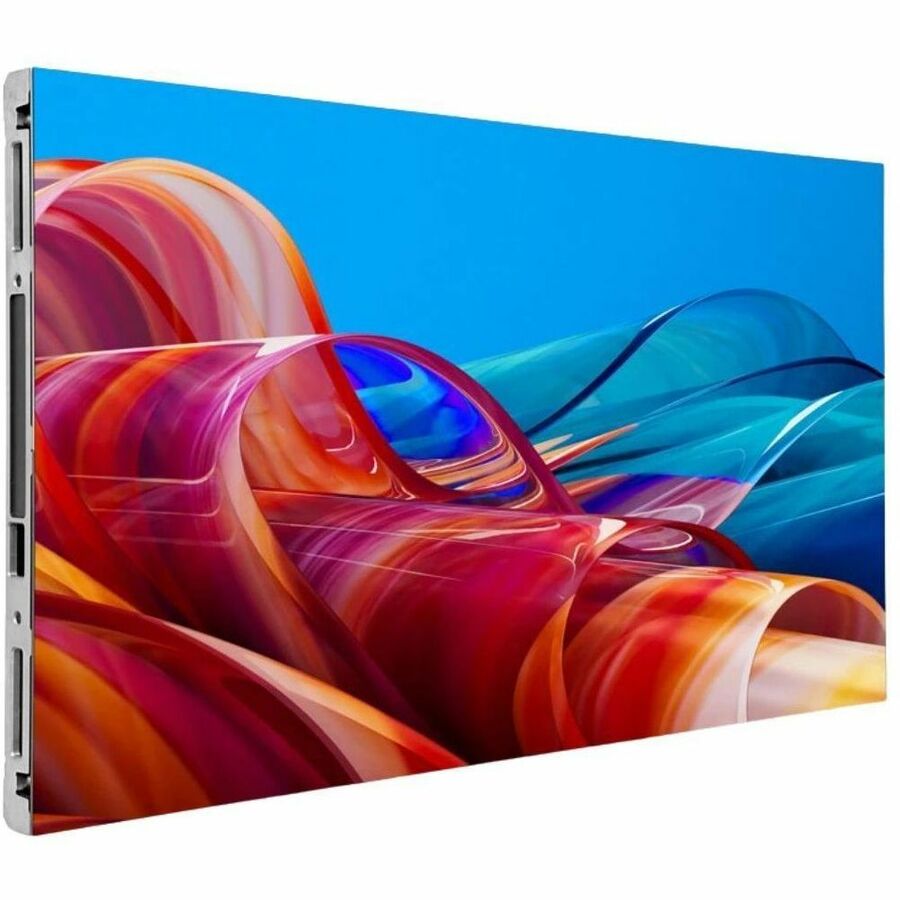

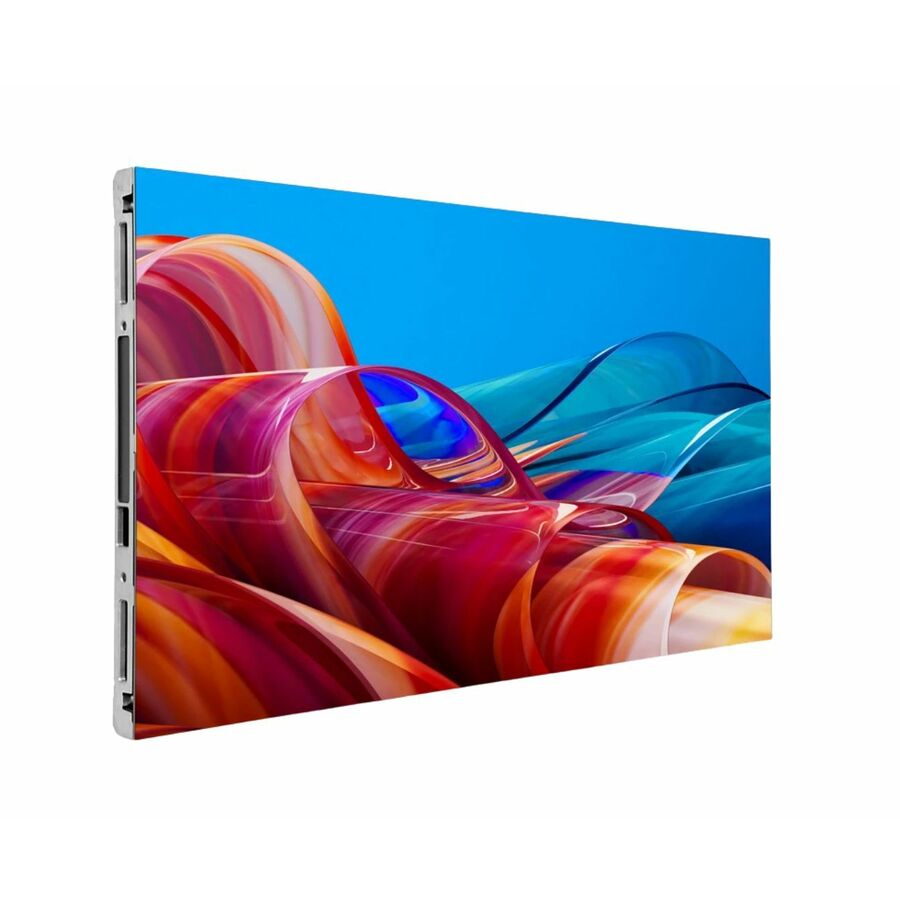

The Sharp EC Series delivers superior image quality, and outstanding durability with its innovative Chip-on-board (COB) technology in a cost-effective package. This 217" UHD kit is built with Sharp's LD-EC121 module designed for vibrant and colorful visualization and is ideal for viewing from 3 to 7 feet away. The LD-EC121 is a 1.25mm pixel pitch cabinet designed to deliver impressive and power efficient content visualization. The EC Series is perfect for retail spaces, education, corporate environments and public spaces. Engineered with the latest Flip-Chip COB technology, the EC Series delivers exceptional brightness while using less power than traditional SMD displays. The result: reduced long term energy use, lower operating costs, and an eco conscious display without sacrificing visual impact.
Sharp offers full planning and design, installation and post installation maintenance support, ensuring you get a custom-tailored solution allowing you to focus on what's most important - your business.
Features
• Up to 50% faster installation with a streamlined cabinet design that reduces complexity for integrators.
• Enhanced durability and image quality powered by advanced Chip-on-Board (COB) technology.
• Up to 60% lower power consumption compared to standard SMD displays-reducing long-term energy and operating costs.
• High visual performance with contrast ratios up to 10,000:1 and wide color gamut coverage for crisp, vivid content.

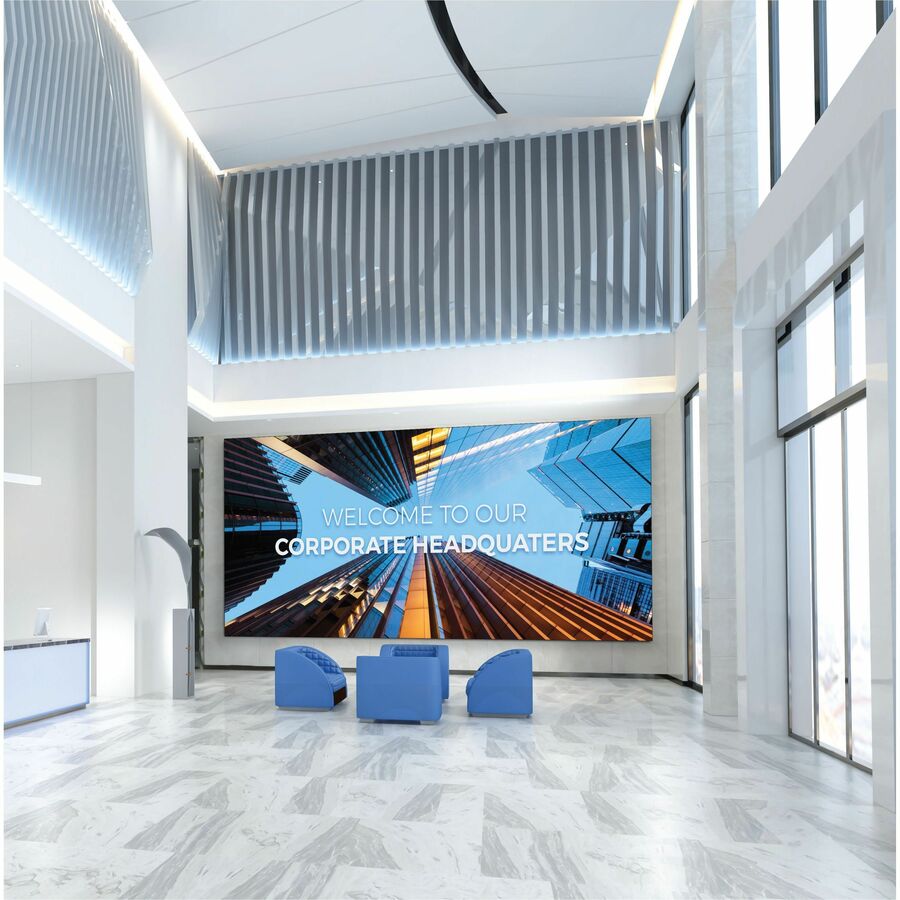

• Versatile for virtually any environment including retail, education, corporate, public spaces, and more
• Shallow depth and light weight allow for greater installation flexibility while also meeting ADA requirements.
Highlights
- Digital Signage Display - Ideal for rack, passageway, booth or display counter
- Experience luminescent visual images with LCD display
- Features a 4k Ultra HD 3840 x 2160 resolution
- Engages your customers and makes their viewing experience breathtaking with its 2160p content
- Direct View LED backlight technology provides a clear and smooth display
Specifications
| Application/Usage | Indoor, Retail, Education, Corporate, Public Space, Business |
|---|---|
| Aspect Ratio | 16:9 |
| Product Type | Digital Signage Display |
| Manufacturer Part Number | LD-EC121-U |
| Display Resolution | 3840 x 2160 |
| Limited Warranty | 2 Year |
| Weight (Approximate) | 728.85 lb |
| Brightness | 660 Nit |
| Manufacturer | Sharp Electronics |
| Product Model | LD-EC121-U |
| Product Name | LD-EC121 8x8 217in Modules(Bundle) |
| Product Series | EC |
| Viewable Screen Size | 18.08 ft |
| Brand Name | Sharp |
| Orientation | Landscape |
| Height | 106.8" |
| Width | 15.8 ft |
| Depth | 1.9" |
| Number of Screens | 64 |
| Scan Format | 2160p |
| Ethernet | Yes |
| Display Screen Type | LCD |
| USB | Yes |
| Backlight Technology | Direct View LED |
| Native Contrast Ratio | 10,000:1 |
| Minimum Operating Temperature | 14°F (-10°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Storage Temperature | -4°F (-20°C) |
| Maximum Storage Temperature | 113°F (45°C) |
| Number of Network (RJ-45) Ports | 1 |
| Serial | Yes |
| Indoor/Outdoor | Indoor |
| Video Wall Compatible | Yes |
| Screen Size Class | 18.08 ft |
| Minimum Operating Humidity | 10% |
| Maximum Operating Humidity | 80% |
| Minimum Storage Humidity | 10% |
| Maximum Storage Humidity | 85% |
| Video Wall Configuration | 8x8 |
| Module Resolution | 480 x 270 |
| Maximum LED Life | 11.4 Year |
