18.33 ft LCD - 1920 x 1080 - 16:9 - Direct View LED - 1320 Nit - 1080p - HDMI - USB - SerialEthernet
MSRP$139,919.00
$109,268.22
Save 22%Back-ordered — ships when restocked.
Special order — estimated available by September 10, 2026.
Genuine Sharp Electronics through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

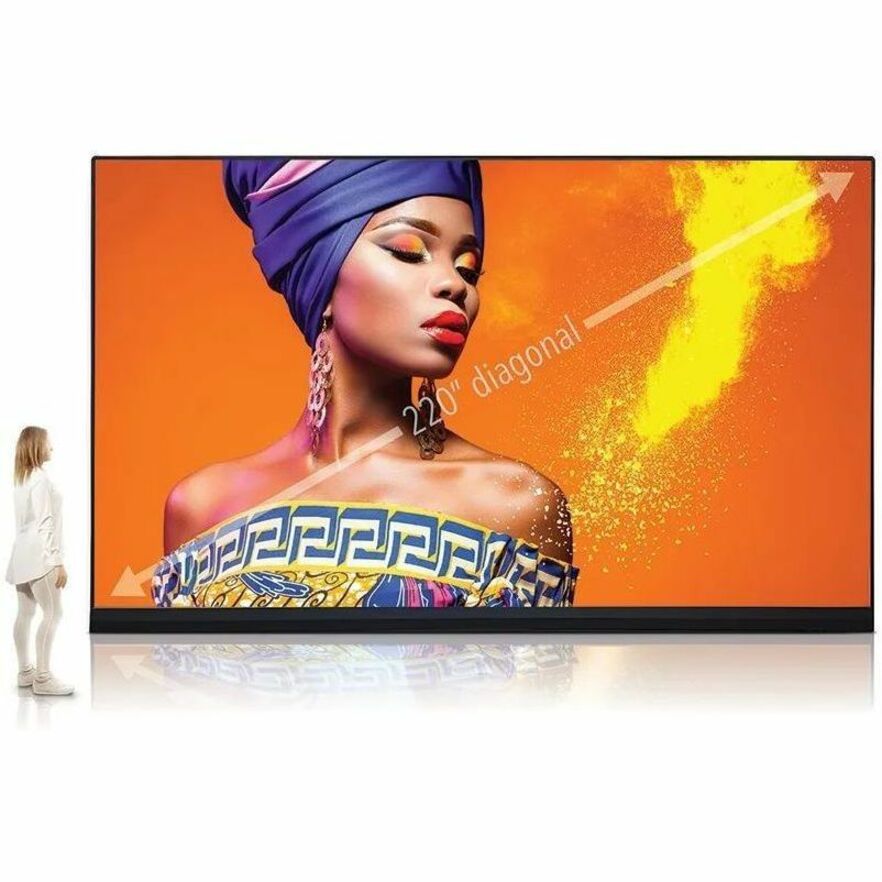

The Sharp direct view indoor LED FA Series provides crystal clear images for the ultimate visual experience and are the ideal solutions for today's most demanding applications. This 220" FHD kit is built with Sharp's 2.53mm LD-FA252 module designed for vibrant and colorful content visualization and is ideal for viewing from 8 to 15 feet away. The FA Series delivers unmatched brightness among fine-pitch dvLEDs. Control rooms, corporate signage, retail and airport signage, situational awareness, broadcast and museums are just some of the applications where the Sharp FA Series is designed to be integrated. The FA Series is engineered with high quality Multi-Color LEDs that deliver industry-leading imaging and reliability with no external cables required for installation. Built-in data and power redundancy with a front serviceable design helps to minimize downtime and deliver unmatched reliability. Sharp offers full planning and design, installation and post installation maintenance support, ensuring you get a custom tailored solution allowing you to focus on what's most important - your business.
Features
• 220" diagonal screen size
• FHD (1920x1080) resolution
• Designed with Multi-Color LEDs and a refresh rate of up to 3840 Hz delivering stunning contrast, impressive viewing angles, and superior brightness and color uniformity
• Includes everything needed for an LED installation including the LED modules, redundant controllers, mounting structure, overframe kit as well as spare parts and a service tool
• Unmatched reliability with built in data and power redundancy ensuring the display remains operational in the event of a receiving card or power supply failure
• Front serviceable cabinets allow for easy installation and maintenance
• Hot-swappable pixel cards can be replaced without turning the display off
• Shallow depth and light weight allow for greater installation flexibility while also meeting ADA requirements
• Price does not include installation. Please contact Sharp or your local AV dealer for information on pricing including installation.
| Application/Usage | Indoor, Control Room, Corporate, Retail, Airport, Situational Awareness, Broadcasting Station, Museum, Business |
|---|---|
| Aspect Ratio | 16:9 |
| Package Contents |
|
| Product Type | Digital Signage Display |
| Manufacturer Part Number | LD-FA252-F |
| Display Resolution | 1920 x 1080 |
| Limited Warranty | 3 Year |
| Weight (Approximate) | 1245.61 lb |
| Brightness | 1320 Nit |
| Manufacturer | Sharp Electronics |
| Product Model | LD-FA252-F |
| Product Name | 220" FA Series FHD LED Kit |
| Mount Type | Wall Mountable |
| Product Series | FA |
| Viewable Screen Size | 18.33 ft |
| Brand Name | Sharp |
| Orientation | Landscape |
| Height | 111.9" |
| Width | 16 ft |
| Depth | 3.2" |
| Number of Screens | 1 |
| Scan Format | 1080p |
| Ethernet | Yes |
| Display Screen Type | LCD |
| USB | Yes |
| HDMI | Yes |
| Backlight Technology | Direct View LED |
| Native Contrast Ratio | 7,000:1 |
| Minimum Operating Temperature | -4°F (-20°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Storage Temperature | -4°F (-20°C) |
| Maximum Storage Temperature | 113°F (45°C) |
| Number of Network (RJ-45) Ports | 1 |
| Number of HDMI Inputs | 1 |
| Serial | Yes |
| Number of DVI-D Ports | 1 |
| Indoor/Outdoor | Indoor |
| Screen Size Class | 18.33 ft |
| Ingress Protection (IP) Rating | IP20 |
| Minimum Operating Humidity | 10% |
| Maximum Operating Humidity | 80% |
| Minimum Storage Humidity | 10% |
| Maximum Storage Humidity | 85% |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Module Resolution | 240 x 135 |
| Maximum LED Life | 11.4 Year |
| RS-232C Input | Yes |
| Mount Surface | Wall |
