Sharp 165" LD-FE-Series HD LED Kit
13.75 ft LCD - 1920 x 1080 - 16:9 - Direct View LED - 770 Nit - 1080p - HDMIEthernet
- SKU
- LD-FE192-F
- Category
- Digital Signage Systems
MSRP$85,559.00
$69,293.97
Save 19%Back ordered — ships when restocked.
Genuine Sharp Electronics through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- LD-FE192-F
- Category
- Digital Signage Systems
Overview
The Sharp direct view indoor LED LD-FE Series provides vibrant LED imaging in a cost effective package and are the ideal solutions for today's demanding applications. This 165" Full HD kit is built with Sharp's 1.90mm LD-FE192 module designed to deliver impressive content visualization and is ideal for viewing from 4 to 10 feet away. Boardrooms, auditoriums, retail and airport signage, situational awareness, broadcast and museums are just some of the applications where the Sharp LD-FE Series is designed to be integrated. The FE Series is engineered with Multi-Color LEDs that deliver excellent imaging at a low cost and have no external cables required for installation. The front serviceable design allows easy access and quick maintenance when needed. Sharp offers full planning and design, installation and post installation maintenance support, ensuring you get a custom tailored solution allowing you to focus on what's most important - your business.
Features

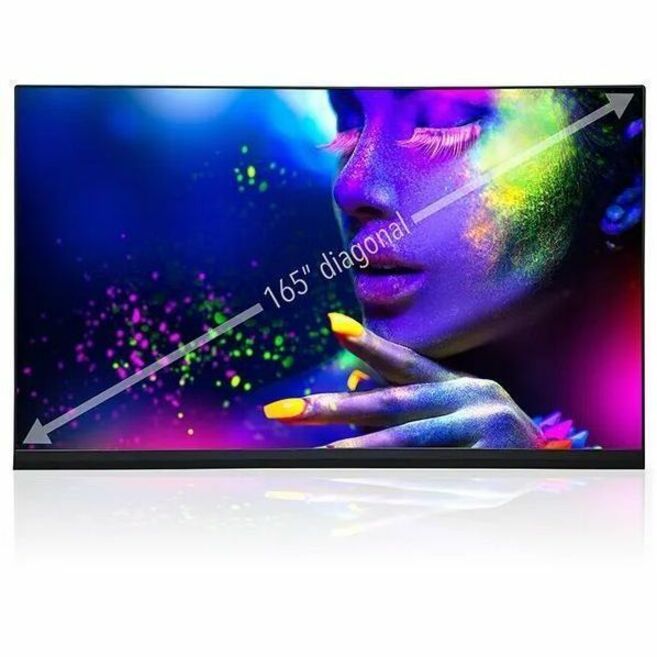

• 165" diagonal screen size
• Full HD (1920x1080) resolution with a refresh rate of >= 3840 Hz
• Kit includes everything needed for an LED installation including the LED modules, power bar, LED controller, mounting structure, overframe kit as well as spare parts and a pixel card removal tool
• Front serviceable modules allowing for installation in difficult to access areas
• Shallow depth (3.2" installed) and reduced weight allow for greater installation flexibility and also meet ADA requirements
• Pixel cards are hot-swappable and can be replaced without turning the display off
• Price does not include installation. Please contact Sharp or your local AV dealer for information on pricing including installation.
Highlights
- Digital Signage Display delivers a highly realistic sound and immersive visual experience thanks to the high pixel density that shows even the most subtle details
- Experience luminescent visual images with LCD display
- Offers exceptionally smooth and crisp viewing experience due to its 1920 x 1080 full HD resolution
- Features 1920 x 1080 resolution and 1080p scan format for producing sharp and bright images
- Direct View LED backlight technology for enhanced visual clarity
Specifications
| Application/Usage | Indoor, Boardroom, Auditorium, Retail, Airport, Situational Awareness, Broadcasting Station, Museum, Business |
|---|---|
| Aspect Ratio | 16:9 |
| Package Contents |
|
| Product Type | Digital Signage Display |
| Manufacturer Part Number | LD-FE192-F |
| Display Resolution | 1920 x 1080 |
| Limited Warranty | 3 Year |
| Weight (Approximate) | 701.07 lb |
| Brightness | 770 Nit |
| Manufacturer | Sharp Electronics |
| Product Model | LD-FE192-F |
| Product Name | 165" LD-FE-Series HD LED Kit |
| Mount Type | Wall Mountable |
| Product Series | LD-FE |
| Viewable Screen Size | 13.75 ft |
| Brand Name | Sharp |
| Orientation | Landscape |
| Height | 85.5" |
| Width | 12 ft |
| Depth | 3.2" |
| Number of Screens | 1 |
| Scan Format | 1080p |
| Ethernet | Yes |
| Display Screen Type | LCD |
| HDMI | Yes |
| Backlight Technology | Direct View LED |
| Native Contrast Ratio | 5,000:1 |
| Minimum Operating Temperature | -4°F (-20°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Storage Temperature | -4°F (-20°C) |
| Maximum Storage Temperature | 113°F (45°C) |
| Number of Network (RJ-45) Ports | 1 |
| Number of HDMI Inputs | 1 |
| Number of DVI-D Ports | 1 |
| Indoor/Outdoor | Indoor |
| Screen Size Class | 13.75 ft |
| Ingress Protection (IP) Rating | IP20 |
| Minimum Operating Humidity | 10% |
| Maximum Operating Humidity | 80% |
| Minimum Storage Humidity | 10% |
| Maximum Storage Humidity | 85% |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Module Resolution | 320 x 180 |
| Maximum LED Life | 11.4 Year |
| Mount Surface | Wall |
