2U Tower/Rack Convertible - 3 Hour Recharge - 120 V AC Input - 120 V AC Output - Single Phase - 1 x NEMA L5-30R, 3 x NEMA 5-15R, 3 x NEMA 5-20R Receptacle(s) - 7 x Battery/Surge Outlet
MSRP$4,380.00
$3,898.20
Save 11%Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 9 and Nov 13, then process your delivery right after.
Genuine Schneider Electric through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.

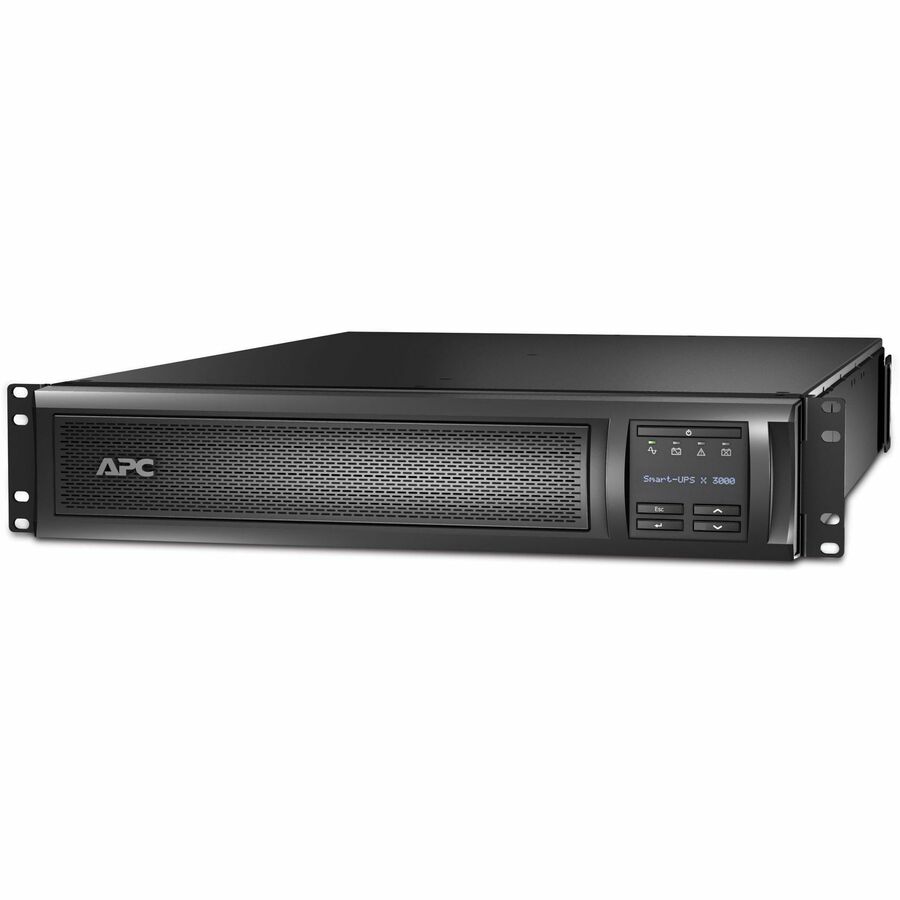

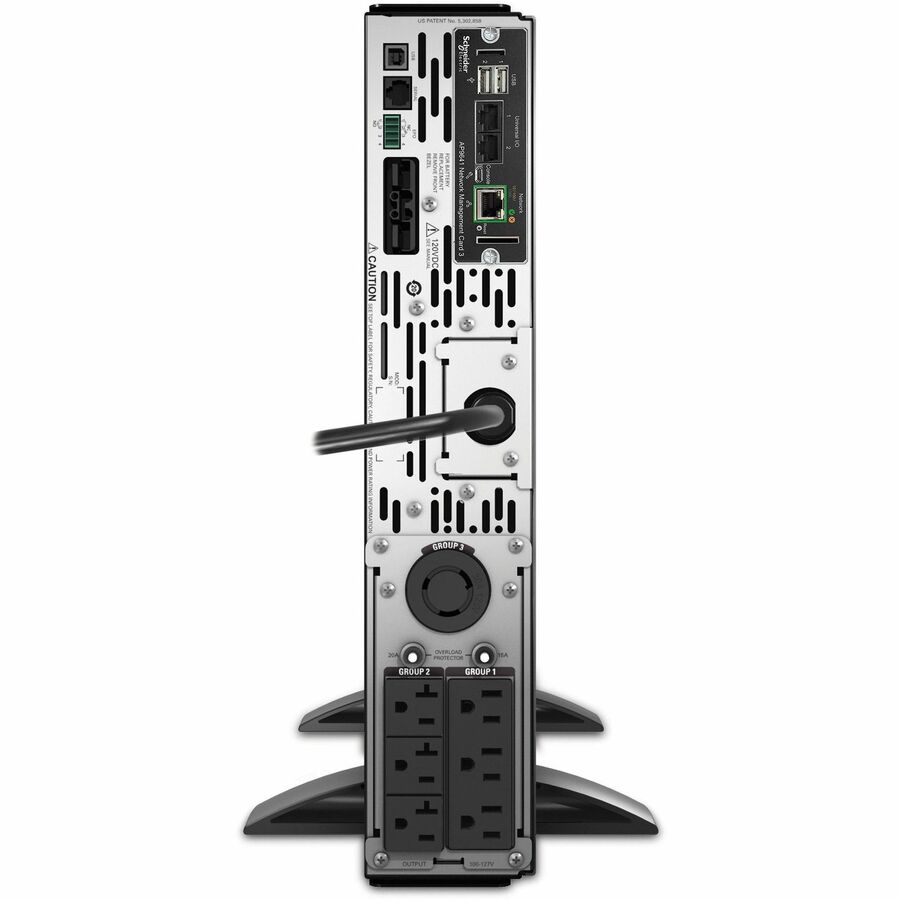

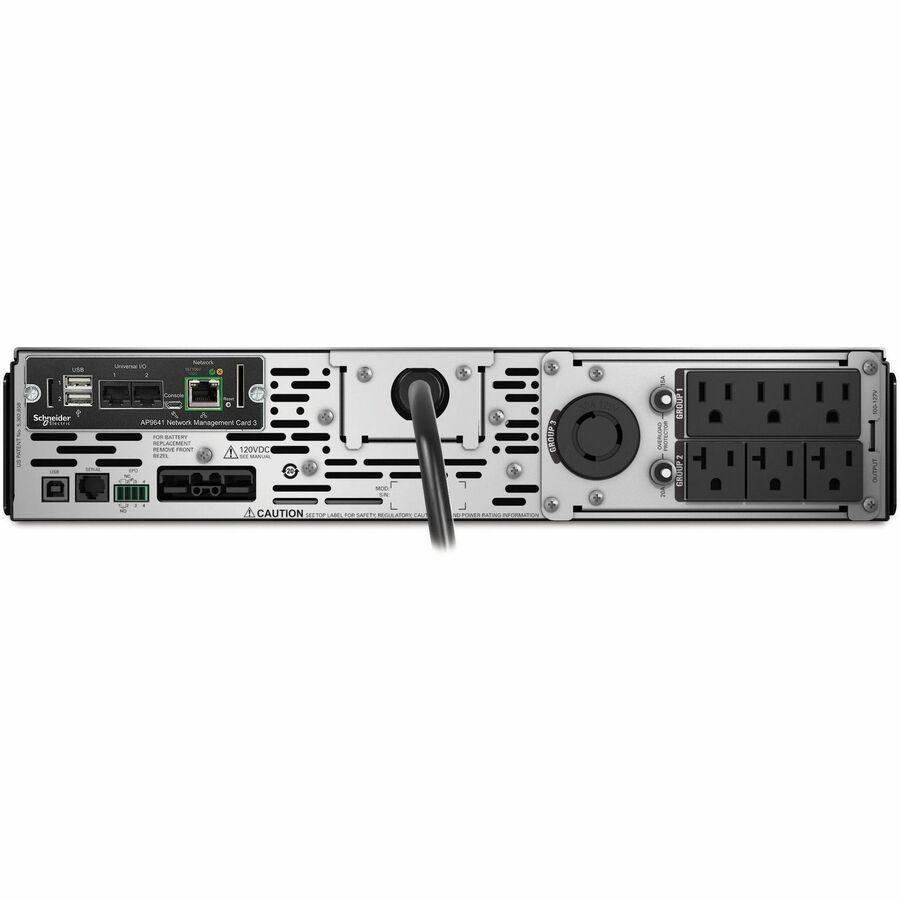

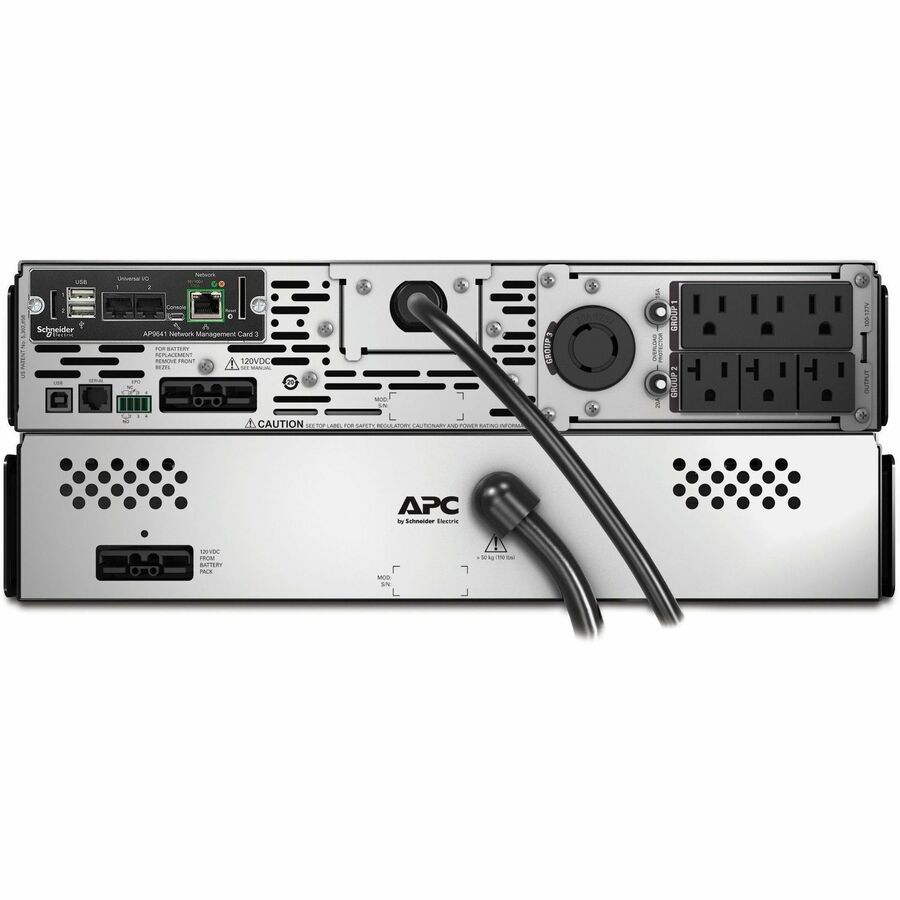

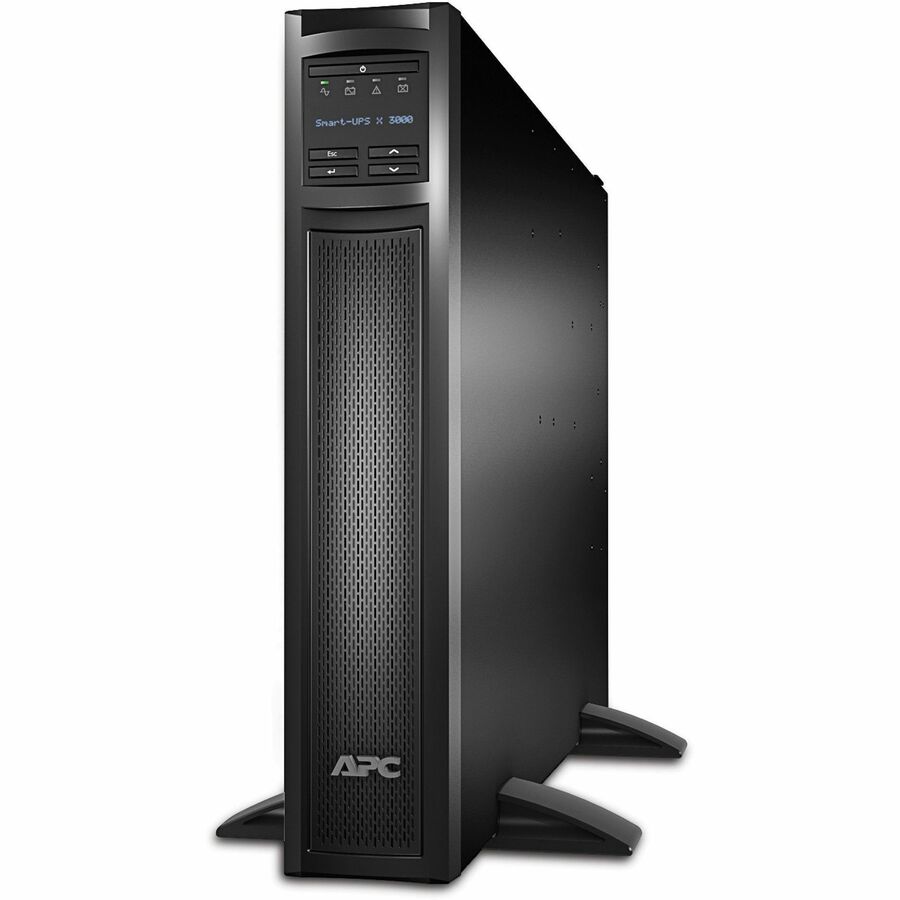

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 3kVA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA L5-30P input, 3x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-30R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
Additional Warranty Information: UPS: 36 month(s)|Battery: 24 month(s) Limited Warranty: 3 Year
| Battery Information | |
|---|---|
| Battery Chemistry | Lead Acid |
| Battery Life | 5 Year |
| Typical Battery Recharge Time | 3 Hour |
| Controls/Indicators | |
| Status Indicators | LED: On Line On Battery Replace Battery Overload Indicators |
| Environmental Conditions | |
| Maximum Operating Elevation | 10000 ft |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Storage Elevation | 50000 ft |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Storage Relative Humidity | 0% - 95% |
| Sound Emission (A-Weighted) | 55 dB(A) |
| Thermal Dissipation | 80.89 W |
| General Information | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMX3KR2UNCX145 |
| Brand Name | APC |
| Product Line | Smart-UPS X |
| Product Name | Smart-UPS X 3000VA Tower/Rack Convertible UPS |
| Packaged Quantity | 1 |
| Product Type | Line-interactive UPS |
| Interfaces/Ports | |
| EPO Port | Yes |
| USB (HID Compliant) Port | No |
| Management | |
| Alarm | On Battery, Low Battery, Configurable Delay |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.35" |
| Width | 17.01" |
| Depth | 26.26" |
| Rack Height | 2U |
| Form Factor | Tower/Rack Convertible |
| Weight (Approximate) | 84.59 lb |
| Power Description | |
| Load Capacity (VA) | 2880 VA |
| Load Capacity (Watt) | 2700 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 70 V AC - 153 V AC |
| Input Current | 15 A |
| Output Voltage | 120 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 540 J |
| Technical Information | |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA L5-30P |
| Receptacle Detail | 1 x NEMA L5-30R, 3 x NEMA 5-15R, 3 x NEMA 5-20R |
| Number of Battery & Surge Outlets | 7 |
| Cord Length | 10 ft |
| Transfer Time | 4 ms |
| Phase | Single Phase |
| Application/Usage | Server, POS, Router, Switch, Hub, Network Device |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | UPS: 36 month(s)|Battery: 24 month(s) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
| Single-use Plastic (SUP) Free Shipping Packaging | No |
