Genuine PNY Technologies through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
VCG5060T16DFXPB1
Category
Graphic Cards
Overview

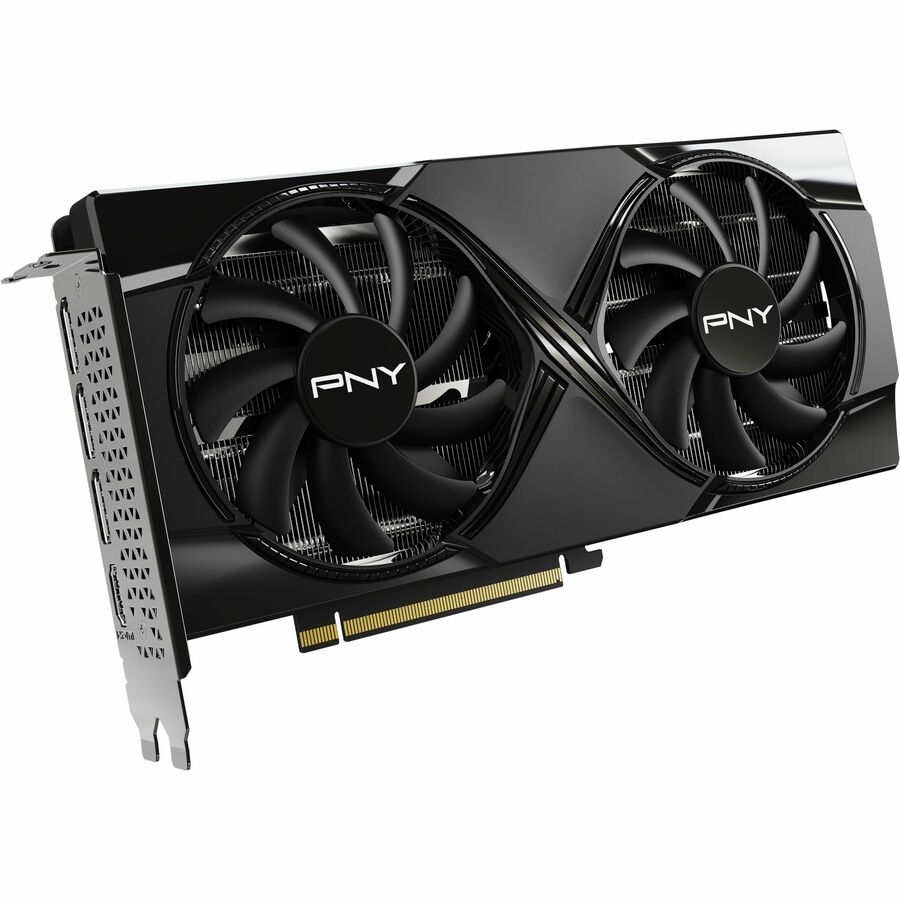

Get game-changing performance with the GeForce RTX? 5060 Ti 16GB, powered by NVIDIA® Blackwell. Game at high frame rates with DLSS 4, supercharge your creativity with NVIDIA Studio, and enable new experiences with the power of AI.
NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators
Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4
Fourth-Gen Ray Tracing Cores
Built for Mega Geometry

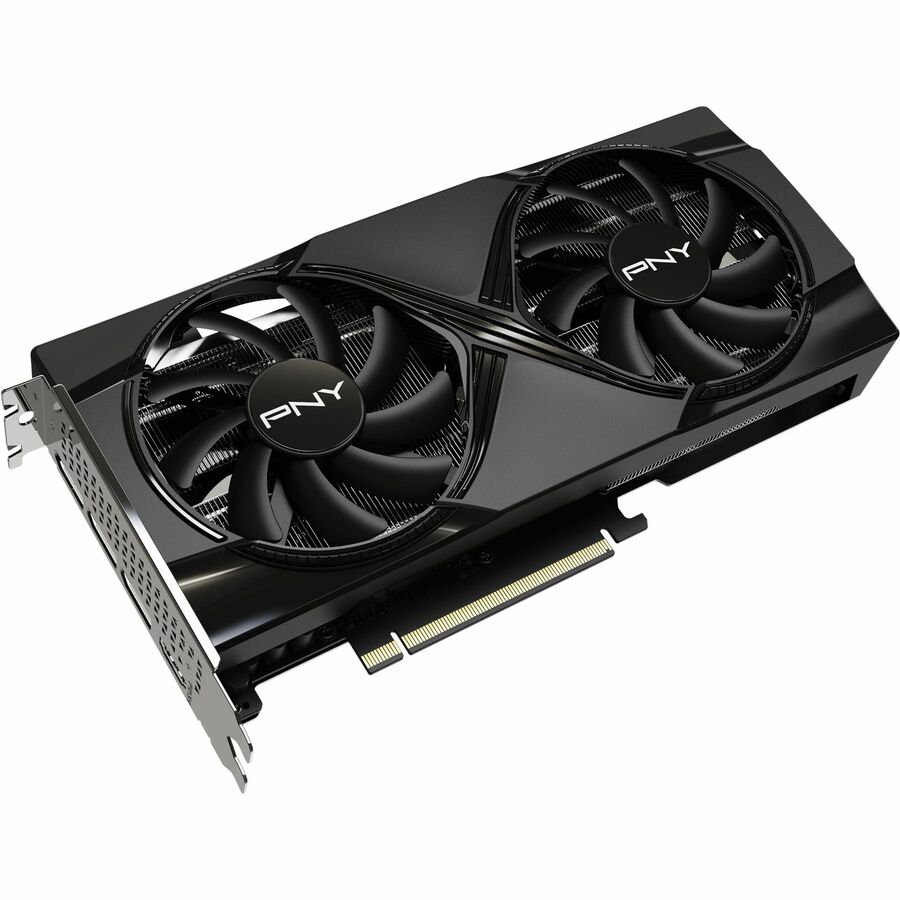

DUAL FAN COOLING
With two fans working together, heat is distributed and dissipated efficiently across a compact design.

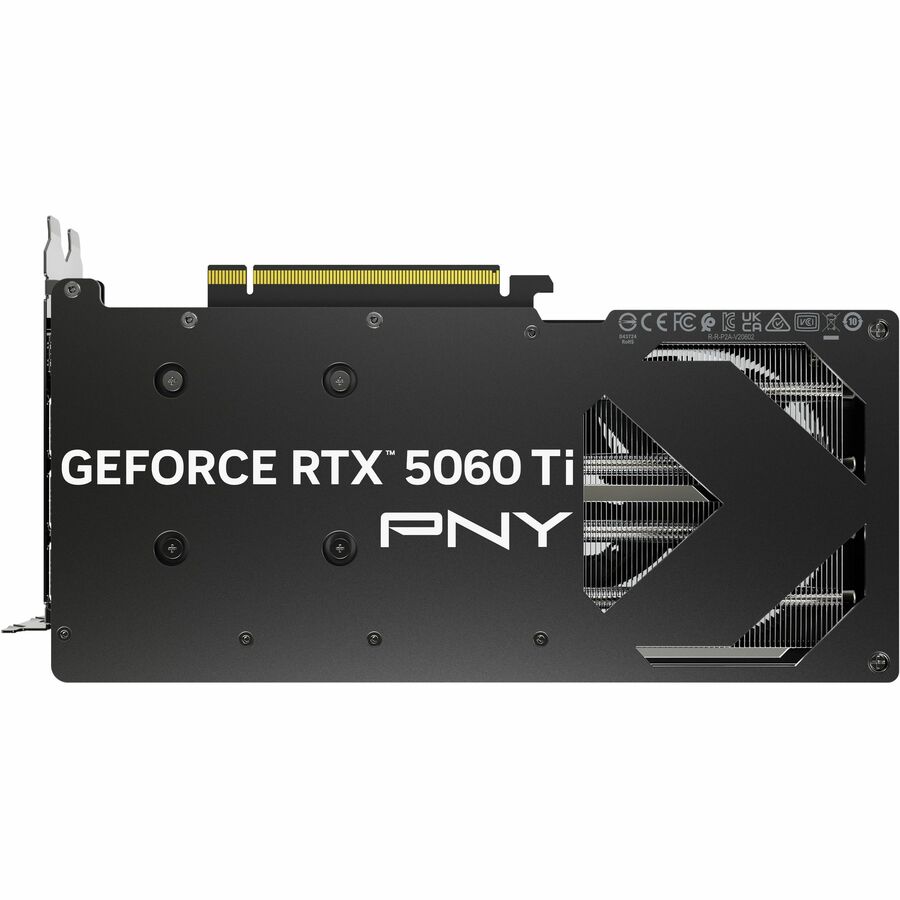

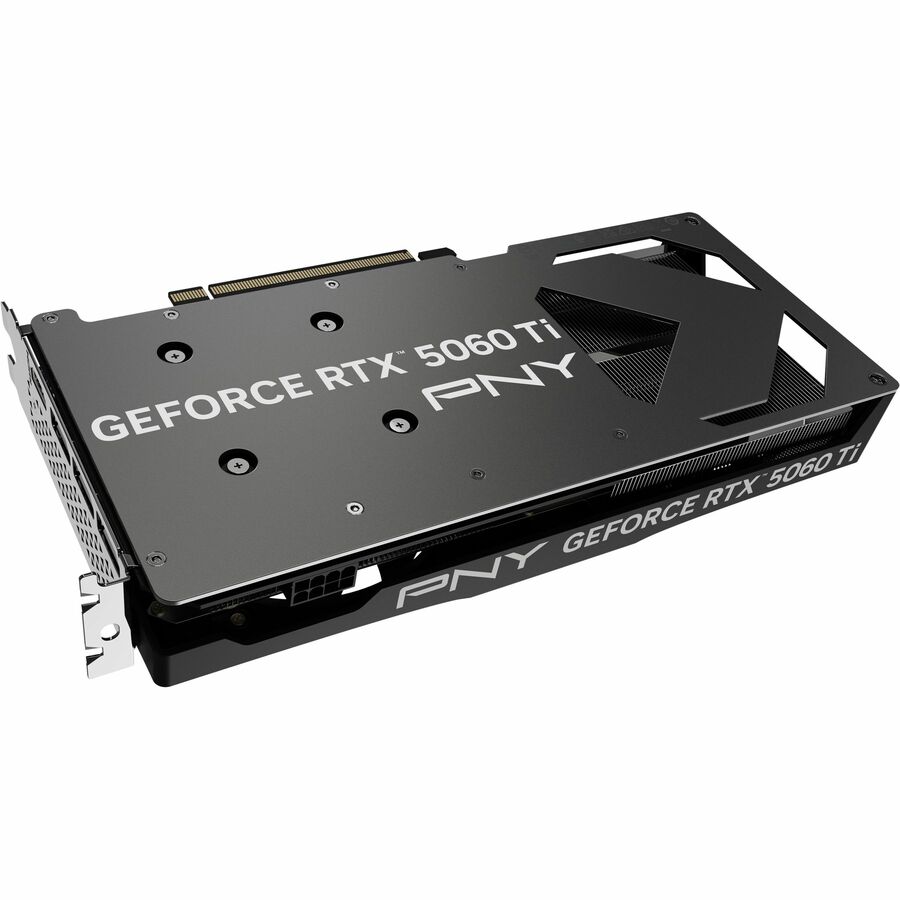

METAL BACKPLATE
Adds additional support to prevent the card from sagging and vents that enhance passive cooling
Highlights
NVIDIA DLSS 4
NVIDIA Reflex 2
GDDR7 Graphics Memory
NVIDIA® App
PCI Express® Gen 5
NVIDIA Broadcast
Specifications
Host Interface
PCI Express 5.0 x8
Product Type
Graphic Card
Manufacturer Part Number
VCG5060T16DFXPB1
Platform Supported
PC, Linux
Limited Warranty
3 Year
Standard Memory
16 GB
Features
Dual-fan Cooler
Form Factor
Plug-in Card
Length
9.6"
Manufacturer
PNY Technologies
Product Name
GeForce RTX 5060 Ti 16GB Dual Fan Graphic Card
Brand Name
PNY
Cooler Type
Passive Cooler
Memory Technology
GDDR7
Height
1.6"
Width
4.7"
Bus Width
128 bit
Number of Monitors Supported
4
Chipset Manufacturer
NVIDIA
Chipset Model
RTX 5060 Ti
Card Height
Full-height
Power Supply Wattage
600 W
HDMI
Yes
Chipset Line
GeForce
Chipset Series
RTX
DisplayPort
Yes
Slot Space Required
Dual
Number of DisplayPort Outputs
3
Number of HDMI Outputs
1
Maximum Digital Display Resolution
7680 x 4320
GPU Clock
2.41 GHz
GPU Boost Clock
2.57 GHz
CUDA Cores
4608
Power Connector
1x 8-pin
Maximum Memory Bandwidth
448 GB/s
Environmental Compliance
China Restriction of Hazardous Substances (China RoHS), Restriction of Hazardous Substances (RoHS), Taiwan Restriction of Hazardous Substances (Taiwan RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
