FlexPoint 1000Mbps Gigabit Ethernet Fiber to Fiber Media Converter SC Multimode 550m to Single-Mode 12km
1 x 1000BASE-SX;1 x 1000BASE-LX;No Power Adapter;Lifetime Warranty
- SKU
- 4433-0
- Category
- Transceivers/Media Converters
MSRP$326.18
$243.45
Save 25%Back ordered — ships when restocked.
Genuine Omnitron Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 4433-0
- Category
- Transceivers/Media Converters
Overview

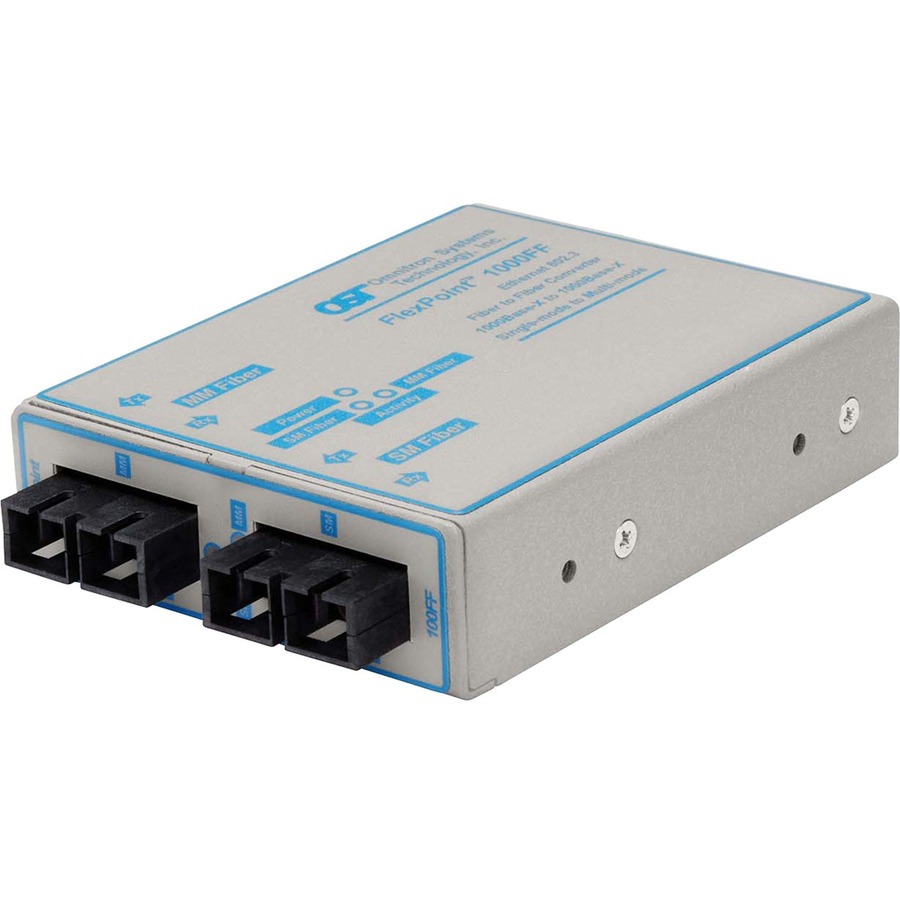

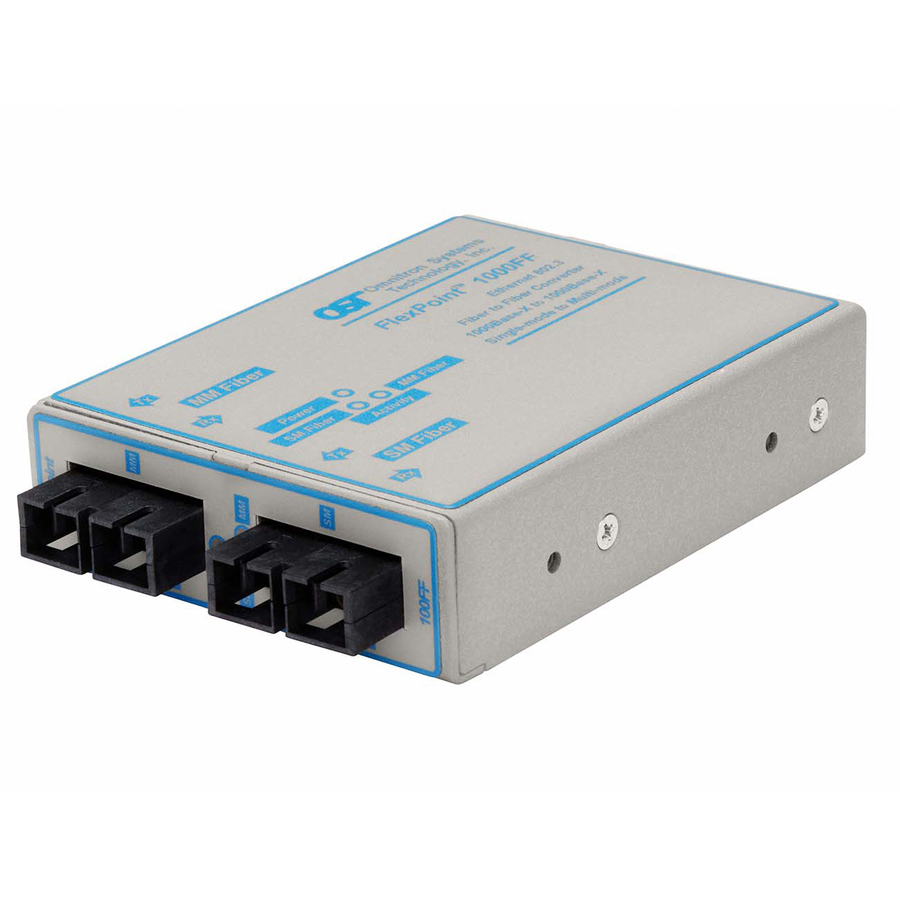

The FlexPoint 1000FF is a protocol-transparent fiber converter that provides reliable and cost-effective extension of network distances by connecting multimode fiber networks or devices over single-mode fiber cabling.
The FlexPoint 1000FF is designed to operate with a constant rate signal between 500Mbps to 1250Mbps allowing the converter to be used in Ethernet networks as well as other fiber-to-fiber protocol applications.
No manual configuration is required with the plug-and-play FlexPoint 1000FF. Connect the fiber cables to the appropriate interface and the installation is complete.
The FlexPoint 1000FF features descriptions of the LED indicators on the label for easy in-the-field installation and maintenance. The LEDs report the availability of power and the detection of devices attached to the fiber ports.
FlexPoint modules can be mounted utilizing optional wall-mounting hardware or with DIN-rail mounting brackets. They can also be rack-mounted in a 5-Module shelf or in a high-density 14-Module, power-redundant Powered Chassis.
Highlights
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
- With 1000Base-SX technology get up to 1000Mbps data transfer rate over optical fiber cable
- Rack mounting enables you to organize wires & secure cables for professional installation
Specifications
| Package Contents |
|
|---|---|
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 4433-0 |
| Maximum Distance Supported | 12.01 km |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 6 oz |
| Form Factor | Rack-mountable, Desktop, External, Wall Mountable |
| Manufacturer | Omnitron Systems |
| Product Model | 4433-x |
| Product Name | FlexPoint 1000FF SC Multimode 550m to SC Single-Mode 12km No Power Adapter |
| Network Technology | 1000Base-SX, 1000Base-LX10, 1000Base-LX |
| Package Type | Retail |
| Product Line | FlexPoint |
| Product Series | 1000FF |
| Brand Name | Omnitron Systems |
| Country of Origin | United States |
| Height | 1" |
| Width | 3" |
| Depth | 4" |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Number of SC Ports | 2 |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode, Single-mode |
| Total Number of Ports | 2 |
| SC Port Type | Duplex |
| Fiber Optic Cable Wavelength | 1310 nm, 850 nm |
