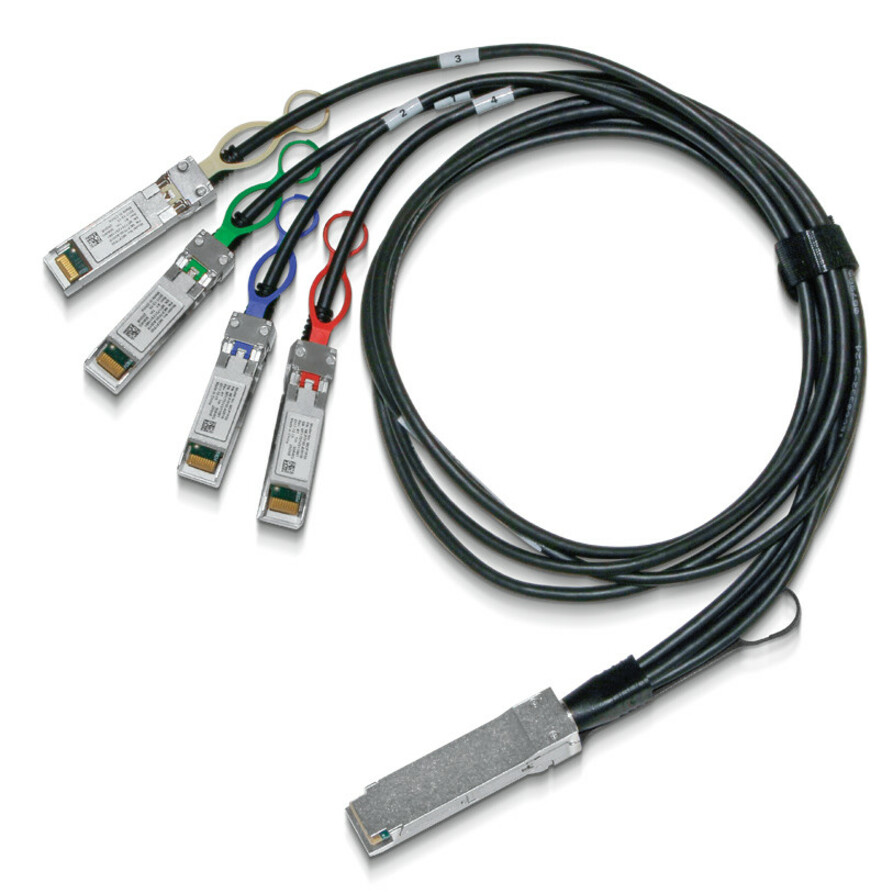

Mellanox MCP7F00-A002R30N DAC Splitter Cable Ethernet 100GbE to 4x25GbE 2m
6.56 ft QSFP28/SFP28 Network Cable for Network Device - First End: 1 x SFF-8665 QSFP28 Network - Second End: 4 x SFF-8402 SFP28 Network - 100 Gbit/s - Splitter Cable - LSZH - 30 AWG - Black
- SKU
- MCP7F00-A002R30N
- Category
- Connector Cables
MSRP$805.33
$708.86
Save 12%Back ordered — ships when restocked.
Genuine NVIDIA through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- MCP7F00-A002R30N
- Category
- Connector Cables
Overview

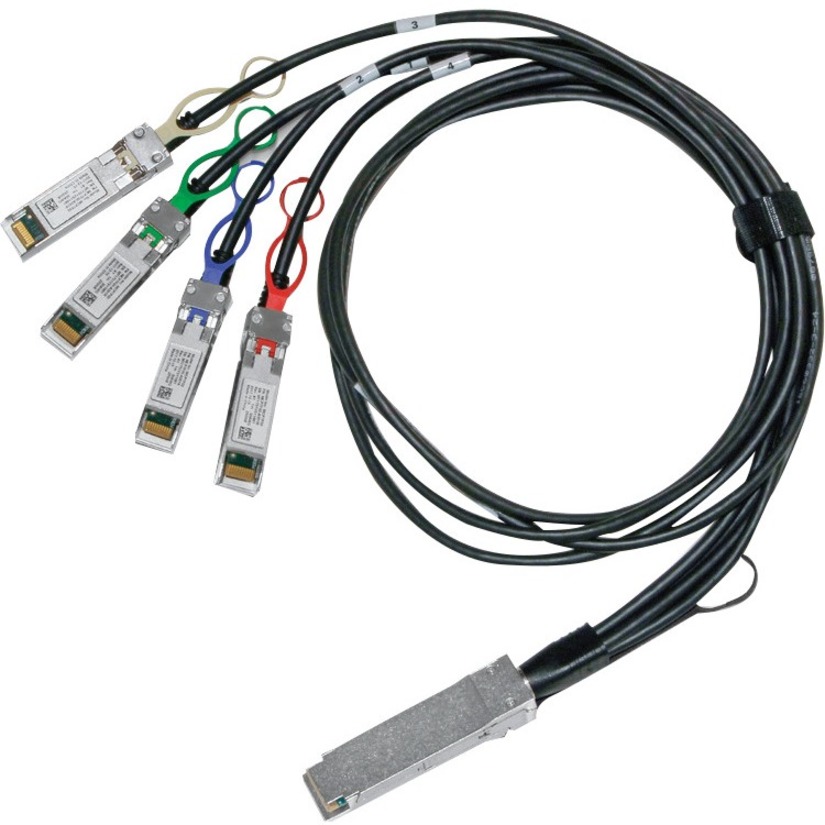

NVIDIA MCP7F00-A002R30N Direct Attach Copper Splitter Cable Ethernet 100GbE to 4x25GbE QSFP28 to 4xSFP28 2m Colored 30AWG CA-N | 100GbE to 4x25GbE QSFP28 to 4xSFP28 Direct Attach Copper Splitter Cable
NVIDIA Networking DAC splitter breakout cables are a high speed, cost-effective 100GbE to 4x25GbE Ethernet connectivity solution, designed to meet the growing needs for higher bandwidth in data centers.
MCP7F00-A0xxRyyz cables are compliant with SFF-8402 SFP28 and SFF-8665 QSFP28 standard specifications and provide connectivity between system units with a QSFP28 port on one side and up to four different SFP28 ports on the other. The cable connects data signals from each of the 4 copper pairs on the QSFP28 end to the single pair of each of the SFP28 ends. Each QSFP28/SFP28 port comprises an EEPROM providing product information, which can be read by the host system.
MCP7F00-A0xxRyyz cables up to 2m support IEEE 802.3by CA-25G-N (Cable Assembly No-FEC) with low latency. Cables from 3m to 5m support IEEE 802.by CA-25G-L (Cable Assembly Long) with RS-FEC (Reed Solomon Forward Error Correction) enabled. For 2.5m and 3m cables there are two versions supporting either CA-25G-N or CA-25G-L.
NVIDIA's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.
Highlights
• 100GbE to 4x25GbE data rate
• 40GbE to 4x10GbE data rate
• SFF-8402 SFP28 compliant
• SFF-8665 QSFP28 compliant
• Operating case temperature 0-70C
• Single 3.3V supply voltage
• Bit Error Rate (BER) better than 1E-15
• Hot pluggable
• RoHS compliant
• LSZH (Low Smoke Zero Halogen) jacket
• LF (Lead Free) HF (Halogen Free) PCB
• SFF-8636 compliant I2C management interface
Highlights
- Offers a reliable network connectivity
- Features QSFP28/SFP28 cable type to better accommodate your precise requirements with maximum productivity
- Passive feature for better usability and increased efficiency
- Fully compatible with network devices
Specifications
| Cable Length | 6.56 ft |
|---|---|
| Product Type | Network Cable |
| Data Transfer Rate | 100 Gbit/s |
| Device Supported | Network Device |
| Jacket Type | LSZH |
| Manufacturer Part Number | MCP7F00-A002R30N |
| Limited Warranty | 1 Year |
| Features | Passive, Bendable, Lead-free, Halogen Free |
| Manufacturer | NVIDIA Corporation |
| Product Name | MCP7F00-A002R30N DAC Splitter Cable Ethernet 100GbE to 4x25GbE 2m |
| Product Line | LinkX |
| Brand Name | Mellanox |
| Cable Characteristic | Splitter Cable |
| Environmentally Friendly | Yes |
| Cable Type | QSFP28/SFP28 |
| Connector Type on First End | SFF-8665 QSFP28 Network |
| Connector Type on Second End | SFF-8402 SFP28 Network |
| American Wire Gauge | 30 AWG |
| Product Color | Black |
| Color Family | Black |
| Connector on First End Details | 1 x SFF-8665 QSFP28 Network |
| Connector on Second End Details | 4 x SFF-8402 SFP28 Network |
| Product Material | Copper |
| Number of Pairs | 4 |
