Genuine NVIDIA through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
MCP1650-H002E26
Category
Connector Cables
Overview

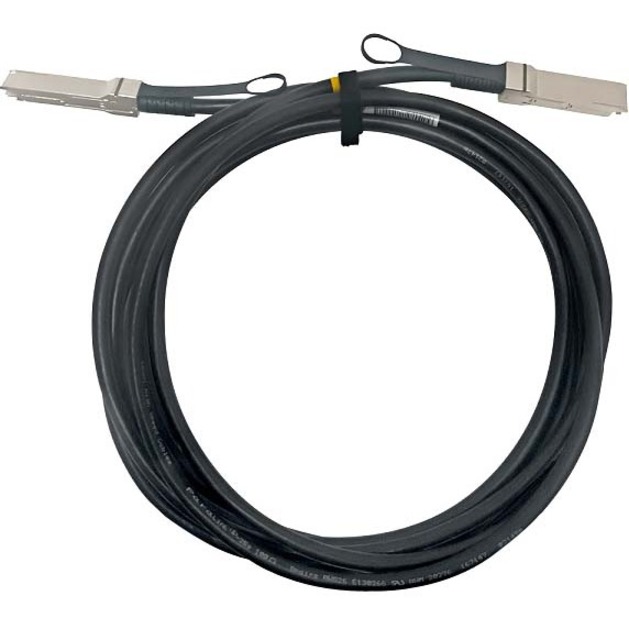

NVIDIA MCP1650-H002E26 Direct Attach Copper Cable InfiniBand HDR up to 200Gb/s QSFP56 LSZH 2m Black Pulltab 26AWGHDR 200Gb/s QSFP56 Direct Attach Copper Cable
NVIDIA DAC cables are high speed, cost-effective alternatives to fiber optics in 200Gb/s InfiniBand HDR applications.
NVIDIA Networking QSFP56 passive copper cable contains eight high-speed copper pairs, each operating at data rates of up to 50Gb/s. Each QSFP56 port comprises an EEPROM providing product information, which can be read by the host system.
NVIDIA's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. It enables higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.
Highlights
• IBTA InfiniBand HDR compliant
• Up to 200Gb/s data rate
• 4x 50Gb/s PAM4 modulation
• SFF-8665 compliant
• Operating case temperature 0-70C
• Single 3.3V supply voltage
• Bit Error Rate (BER) better than 1E-15 with InfiniBand HDR systems
• Hot pluggable
• RoHS compliant
• LSZH (Low Smoke Zero Halogen) jacket
• LF (Lead Free) HF (Halogen Free) PCB
• SFF-8636 compliant I2C management interface
Warranty
Limited Warranty: 1 Year
Highlights
Provides a simple and efficient way to connect multiple devices within your business network, ensuring smooth communication and reliable data transfer
Features QSFP56 connector configuration for high-throughput interconnects in modern data centers, ensuring efficient and low-latency data transfer across systems
Passive feature designed for convenience and ease of use, ensuring smooth operation and improved functionality across supported devices
Features SFF-8665 QSFP56 Network connector, permitting you to establish a secure link with a network device for dependable functionality
Specifications
General Information
Manufacturer
NVIDIA Corporation
Manufacturer Part Number
MCP1650-H002E26
Brand Name
Mellanox
Product Name
MCP1650-H002E26 DAC Cable IB HDR up to 200Gb/s QSFP56 2m
