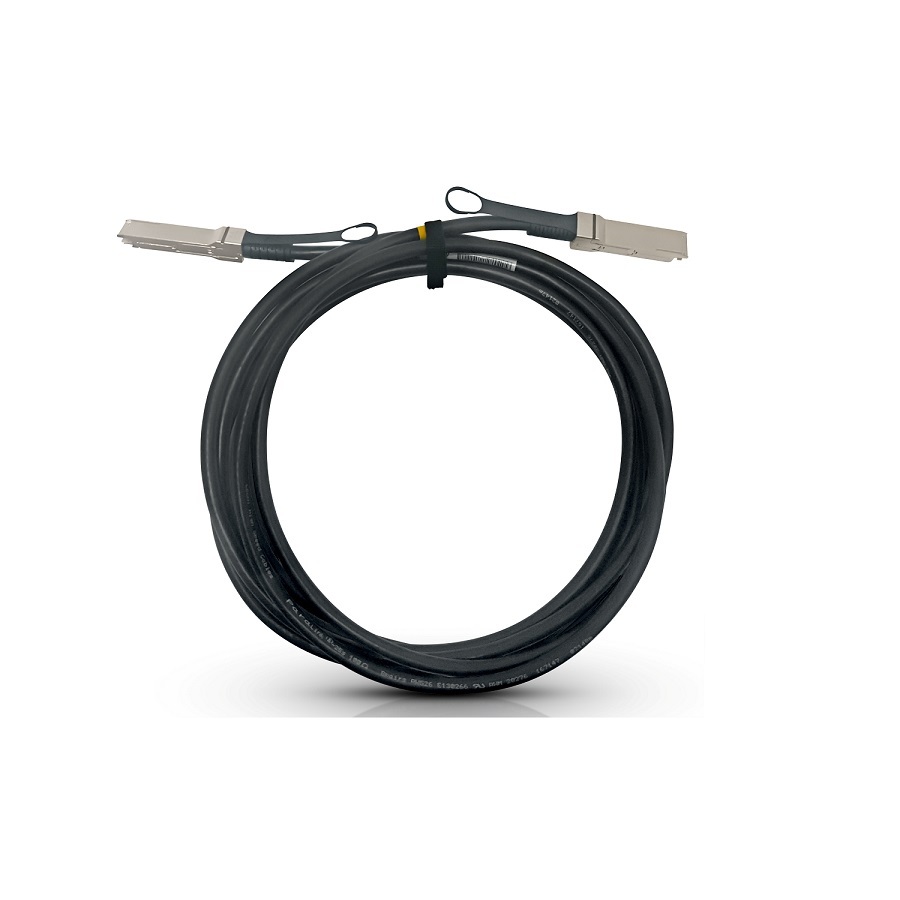

Mellanox DAC Cable IB HDR up to 200Gb/s QSFP56 1.5m
4.92 ft QSFP56 Network Cable for Network Device - First End: 1 x SFF-8665 QSFP56 Network - Second End: 1 x SFF-8665 QSFP56 Network - 200 Gbit/s - LSZH - 30 AWG - Black
- SKU
- MCP1650-H01AE30
- Category
- Connector Cables
MSRP$254.00
$219.31
Save 14%Back ordered — ships when restocked.
Genuine NVIDIA through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- MCP1650-H01AE30
- Category
- Connector Cables
Overview
NVIDIA MCP1650-H01AE30 Direct Attach Copper Cable InfiniBand HDR up to 200Gb/s QSFP56 LSZH 1.5m Black Pulltab 30AWG
HDR 200Gb/s QSFP56 Direct Attach Copper Cable
NVIDIA DAC cables are high speed, cost-effective alternatives to fiber optics in 200Gb/s InfiniBand HDR applications.
NVIDIA Networking QSFP56 passive copper cable contains eight high-speed copper pairs, each operating at data rates of up to 50Gb/s. Each QSFP56 port comprises an EEPROM providing product information, which can be read by the host system.
NVIDIA's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. It enables higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.
Highlights
• IBTA InfiniBand HDR compliant
• Up to 200Gb/s data rate
• 4x 50Gb/s PAM4 modulation
• SFF-8665 compliant
• Operating case temperature 0-70C
• Single 3.3V supply voltage
• Bit Error Rate (BER) better than 1E-15 with InfiniBand HDR systems
• Hot pluggable
• RoHS compliant
• LSZH (Low Smoke Zero Halogen) jacket
• LF (Lead Free) HF (Halogen Free) PCB
• SFF-8636 compliant I2C management interface
Highlights
- Offers dependable network connectivity for stable performance, supporting uninterrupted operations and consistent data flow across connected systems
- Features QSFP56 connector configuration for high-throughput interconnects in modern data centers, ensuring efficient and low-latency data transfer across systems
- HDR Support feature designed for convenience and ease of use, ensuring smooth operation and improved functionality across supported devices
- SFF-8665 QSFP56 Network delivers stable signal routing to network devices for uninterrupted communication and system integration
Specifications
| Cable Length | 4.92 ft |
|---|---|
| Product Type | Network Cable |
| Data Transfer Rate | 200 Gbit/s |
| Device Supported | Network Device |
| Jacket Type | LSZH |
| Manufacturer Part Number | MCP1650-H01AE30 |
| Limited Warranty | 1 Year |
| Features | HDR Support, Passive, Lead-free, Halogen Free, Bendable, Crosstalk Protection, EMI Protection |
| Manufacturer | NVIDIA Corporation |
| Product Name | DAC Cable IB HDR up to 200Gb/s QSFP56 1.5m |
| Product Line | LinkX |
| Brand Name | Mellanox |
| Environmentally Friendly | Yes |
| Cable Type | QSFP56 |
| Connector Type on First End | SFF-8665 QSFP56 Network |
| Connector Type on Second End | SFF-8665 QSFP56 Network |
| American Wire Gauge | 30 AWG |
| Product Color | Black |
| Color Family | Black |
| Connector on First End Details | 1 x SFF-8665 QSFP56 Network |
| Connector on Second End Details | 1 x SFF-8665 QSFP56 Network |
| Product Material | Copper |
| Number of Pairs | 8 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
