2.40 GHz, 5 GHz - 6 x Internal Antenna(s) - MIMO Technology - 4 x Network (RJ-45) - Gigabit Ethernet - Wall Mountable, Ceiling Mountable - 1
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Netgear through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
One powerful Mesh WiFi network in a box. No cables. Maximum WiFi coverage and 3 modes of usage.

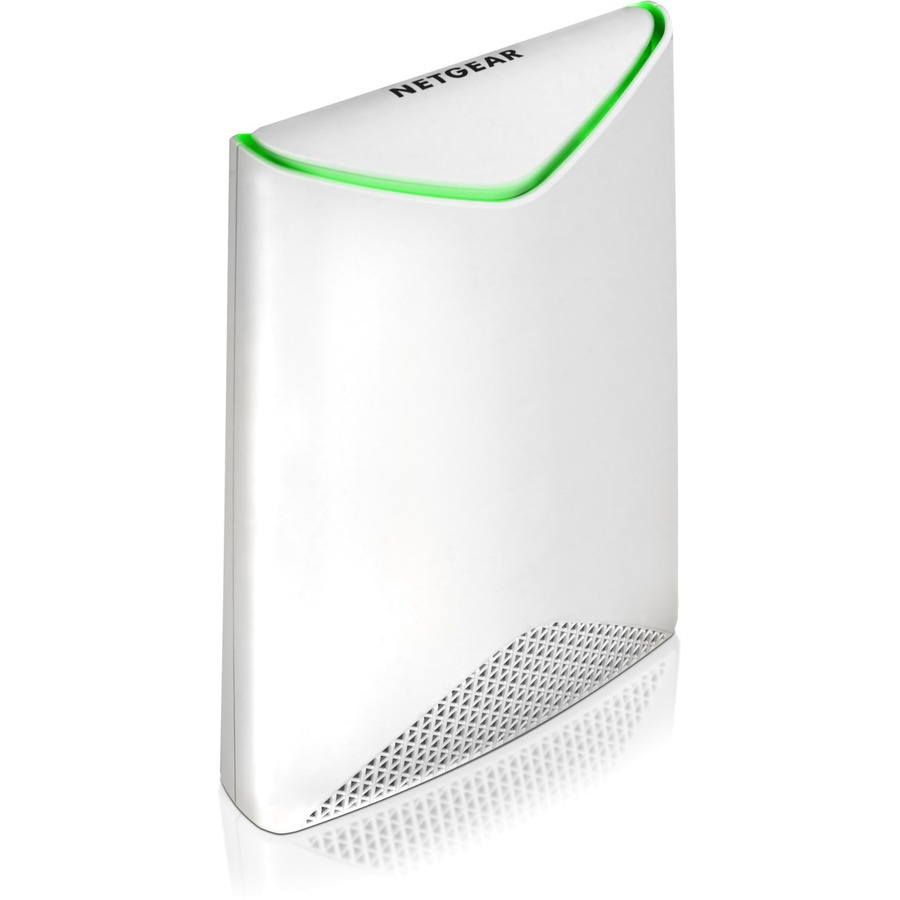

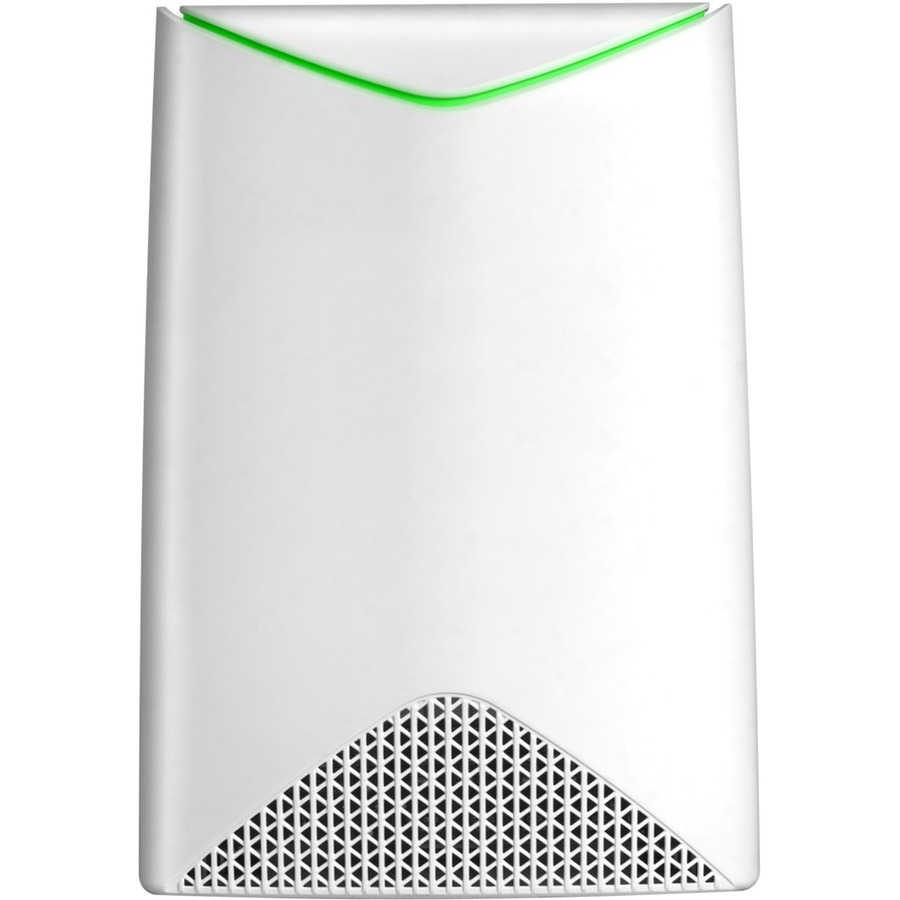

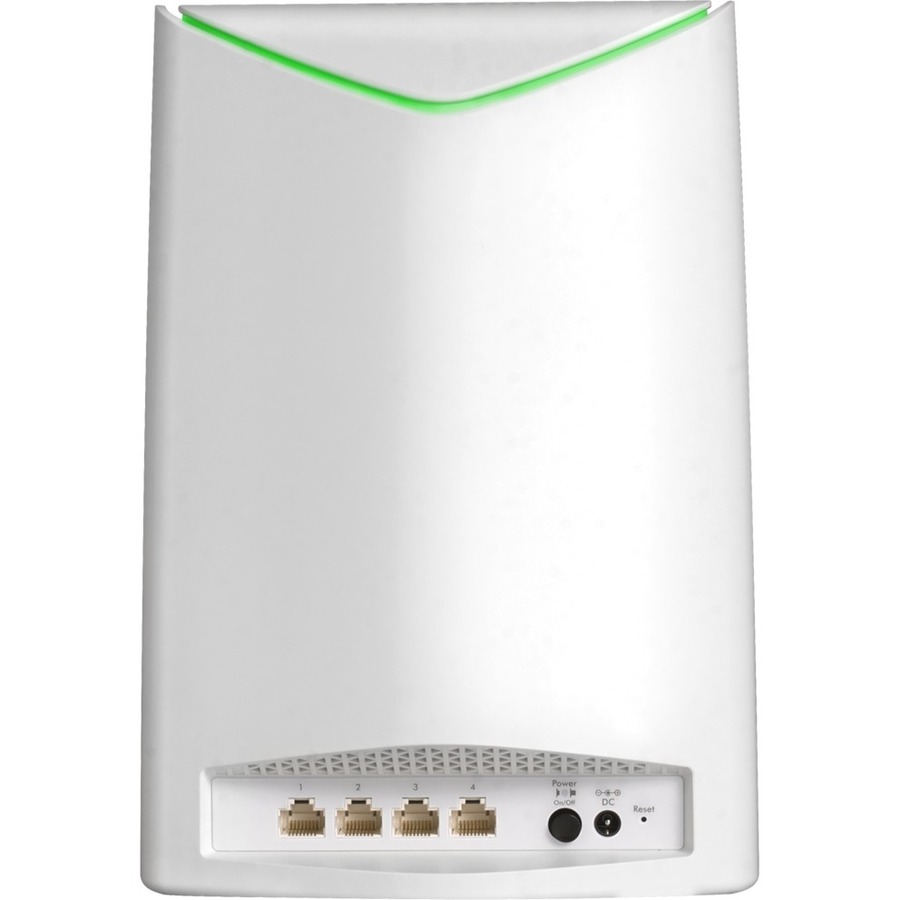

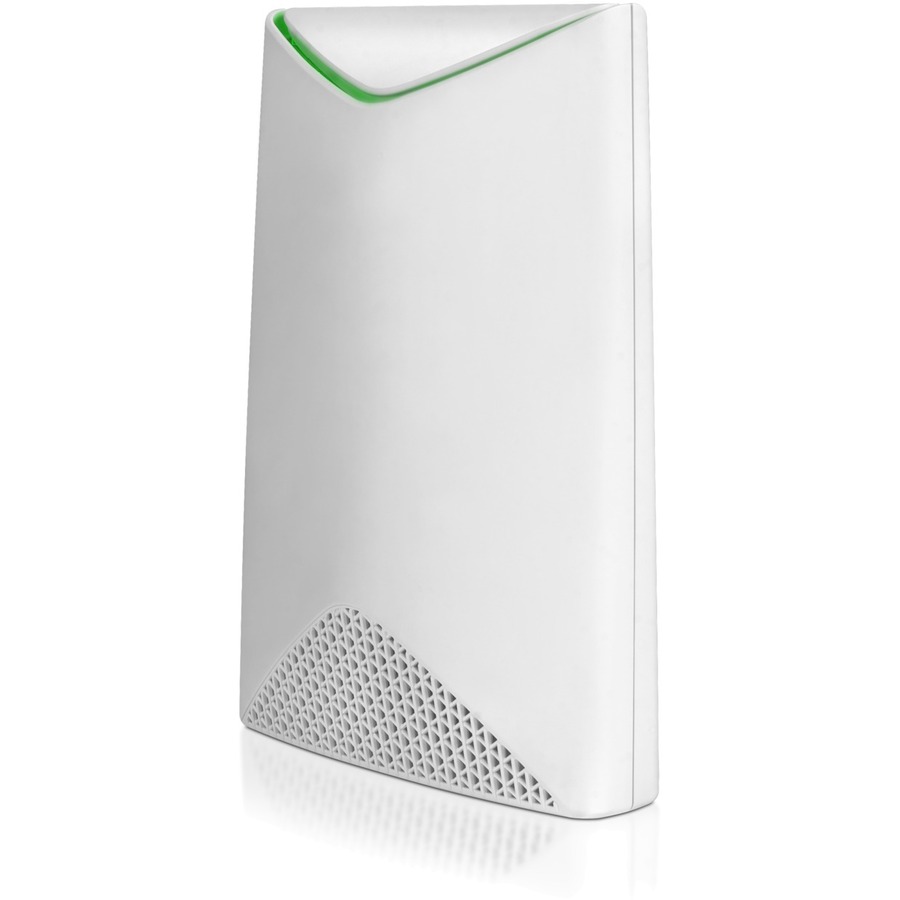

Introducing the new WAC564 Instant Mesh Multi-mode Access Point with maximum WiFi performance and coverage with an integrated four-port Ethernet switch for optional wired connectivity.
NETGEAR Business keeps on innovating with the new Multi-mode capability of the WAC564. WAC564 can be used as:
• A Mesh extender for existing WAC540 wireless networks or another WAC564
• A powerful and feature-rich 11AC Wireless Access Point with VLAN management
• A wireless 4-port switch for instant remote wired connectivity and VLAN carry-over
This new product is the best solution for any business that needs to expand their infrastructure wireless network without the use of cables. Those hard to reach areas can now have blazing fast WiFi with Instant Mesh technology. The WAC564, like the WAC540, has three robust 802.11ac radios (NETGEAR's patented FastLane3 Tri-band technology) to establish a strong wireless backhaul link to a nearby, compatible device such as WAC540.
Instant Mesh is the wireless connection between two or more devices to expand WiFi coverage without the use of cables and only works with WAC540s.
Business features for higher speed, coverage, and density Wi-Fi
• Easy installation through the NETGEAR Insight management solution
• Loadbalancing: Client load balancing based on channel utilization. Advanced features for network administrator to fine tune the load balancing for their deployments via Rx RSSI and max client threshold settings.
• Bandsteering: Adaptive client band steering to help wireless client connect to the least congested wireless network.
• Mobility: Fast roaming leveraging the OKC (Opportunistic Key Caching). Supports Assisted Roaming for clients using 802.11kv.
• Max clients: Supports approximately 40 clients when in extender mode.
• Simultaneous Tri-band Wi-Fi
• Radio 1: IEEE® 802.11b/g/n 2.4GHz 256QAM support (400Mbps)
• Radio 2: IEEE® 802.11a/n/ac 5GHz 256QAM support (866Mbps)
• Radio 3: IEEE® 802.11a/n/ac 5GHz 256QAM support (1733Mbps)
• Remote Cloud management and monitoring through the Insight app or Cloud Portal
Connect up to 80 users, together with VLAN Support, and expand coverage by adding more Instant Mesh devices across your business.
This new Tri-band 4x4 Wireless Mesh extender has state-of-the-art 802.11AC Wave-2 Wireless performance and management and includes NETGEAR Insight Cloud management capability.
Using either the NETGEAR Insight app or the Insight Cloud Portal, you can quickly confi gure your expanded network - in an instant.
NETGEAR introduces the unique Instant Mesh capability in Insight with:
• Unifi ed Network Management of LAN and wireless mesh
• Instant confi guration of the Mesh access point with consistent experience
• VLAN and QoS management, all existing VLAN confi gurations are kept when adding the WAC564 to the existing WiFi network, instantly
With WAC564 paired to a WAC540 access point, NETGEAR introduces the unique Instant Mesh technology in Insight with:
• Unifi ed Network Management of LAN and wireless MESH.
• Instant confi guration of the Mesh extender with consistent experience.
• VLAN and QoS management, all existing VLAN confi gurations are kept when adding the WAC564 to the existing Wi-Fi network, instantly.
Limited Warranty: 5 Year
About NETGEAR At NETGEAR, we turn ideas into innovative networking products that connect people, power businesses, and advance the way we live. Easy to use. Powerful. Smart. And designed just for you. For Home NETGEAR makes it easy for you to have the smartest home in the neighborhood, with the latest, fastest networking technology. Our range of easy-to-use products can help you stream movie night more often, watch almost anything on your tablet without buffering, check in on your home from your smartphone and store and protect all of your family’s memories. From the most advanced wireless internet connectivity, to superior streaming and storage solutions, your home networking system will have the speed, range and performance you need, every time you need it. At NETGEAR, we focus on all things connected, with the goal of making your online experience seamless so you can sit back, relax and do more. For Business In business, confidence is everything. When it comes to your network, it’s even more important. Whether you’re a small business with big dreams or a mid-size business ready to take the next step, you need to share access and ideas safely, connect remote locations securely and give your people the tools to perform. At NETGEAR, we provide networking, storage and security solutions without the cost and complexity of big IT. Our advanced range of reliable, affordable networking products are easy to install and maintain. We deliver solutions you can count on, so you can spend more time on what matters most – growing your business. For Service Providers Keeping your customers happy and loyal is everything. At NETGEAR we are dedicated to your success. That’s why we deliver the tools and solutions you need to keep your residential and business customers connected, productive and satisfied. Partner with NETGEAR for home connectivity, home media, security and automation, and mobile solutions. We pay attention to the details that matter to you to deliver custom, cost-effective and scalable solutions that contribute to your bottom line.
| General Information | |
|---|---|
| Manufacturer | Netgear, Inc |
| Manufacturer Part Number | WAC564-100NAS |
| Brand Name | Netgear |
| Product Model | WAC564 |
| Product Name | Insight Instant Mesh Multi-Mode Access Point (WAC564) |
| Packaged Quantity | 1 |
| Product Type | Wireless Access Point |
| Interfaces/Ports | |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 4 |
| Physical Characteristics | |
| Form Factor | Wall Mountable, Ceiling Mountable |
| Height | 9.7" |
| Width | 6.8" |
| Depth | 3.3" |
| Weight (Approximate) | 2.06 lb |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11ac |
| Frequency Band | 2.40 GHz, 5 GHz |
| Number of Internal Antennas | 6 |
| Wireless Transmission Speed | 3 Gbit/s |
| MIMO Technology | Yes |
| Beamforming Technology | Yes |
| Warranty | |
| Limited Warranty | 5 Year |
| Miscellaneous | |
| Country of Origin | China |
