RAM Mounts Form-Fit Powered Dock for Zebra TC22 & TC27 without Boot
National Products

RAM Mounts Form-Fit Powered Dock for Zebra TC22 & TC27 without Boot

Docking - Mobile Computer - Charging Capability - Pogo Pin

SKU
RAM-HOL-ZE24P-1U
Category
Cradles

MSRP$136.49

$102.42

Save 25%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine National Products through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
RAM-HOL-ZE24P-1U
Category
Cradles

Overview

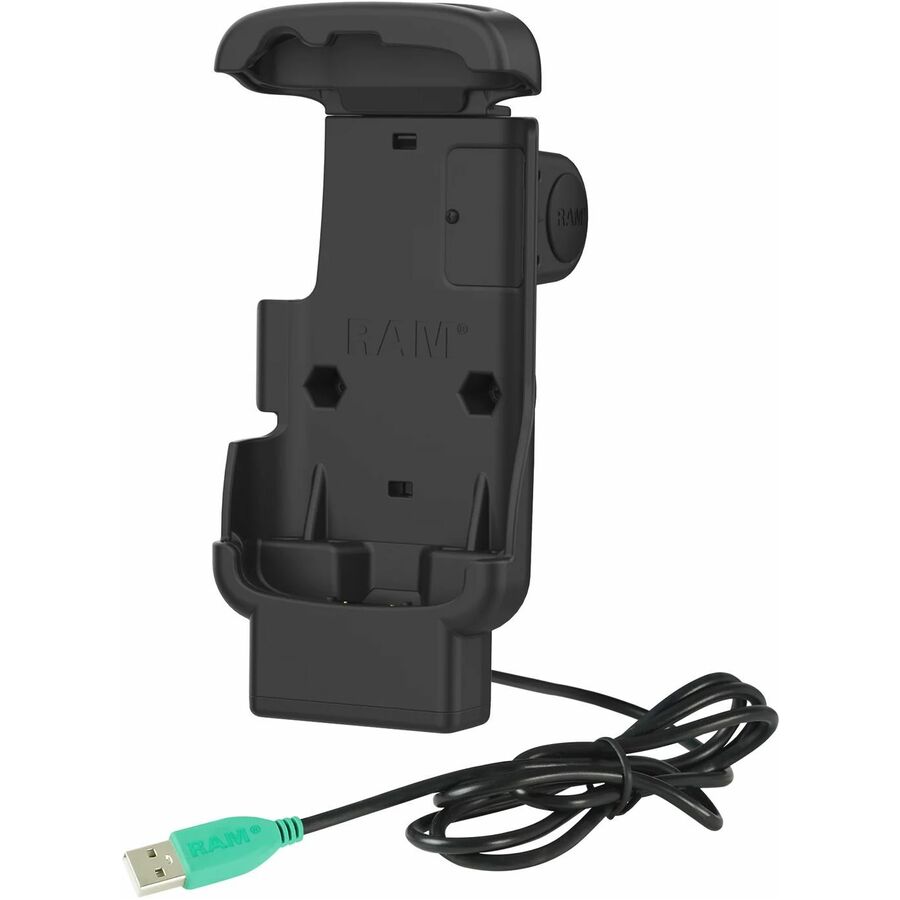

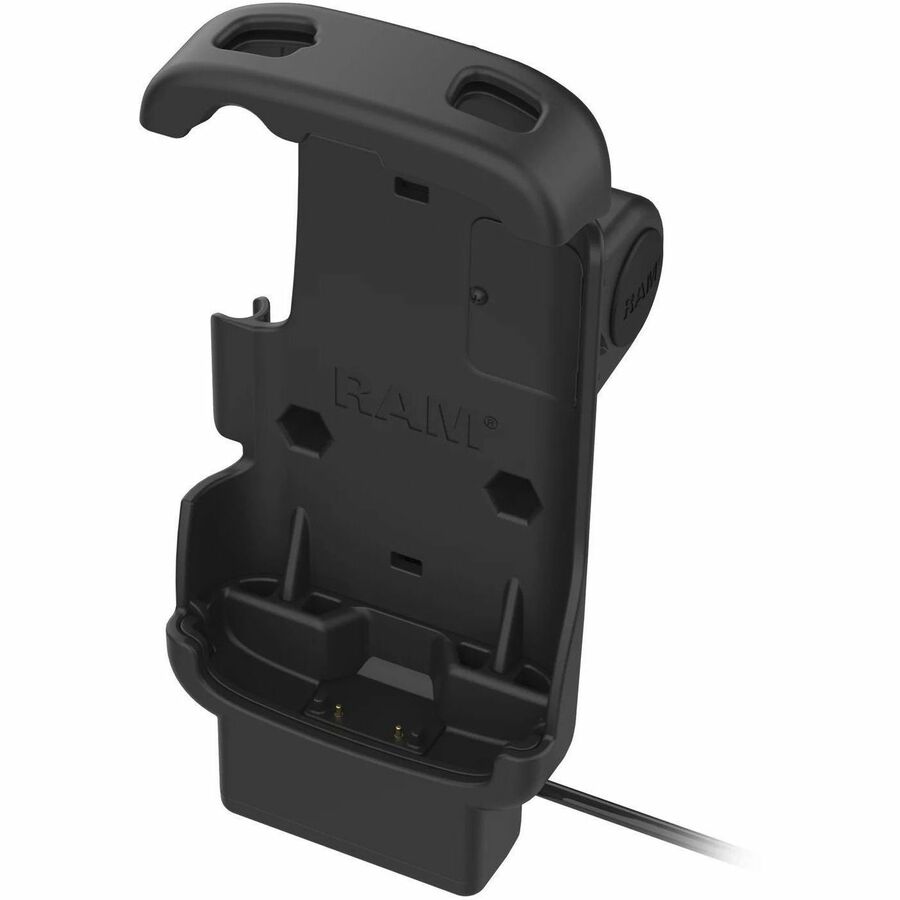

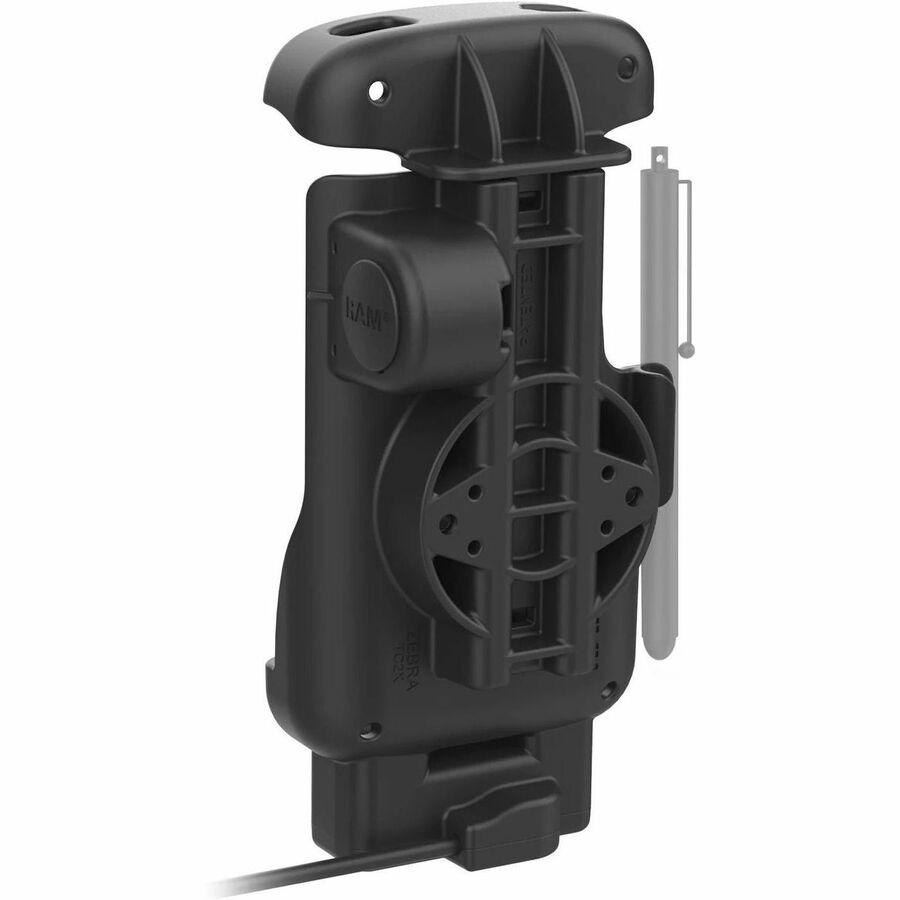

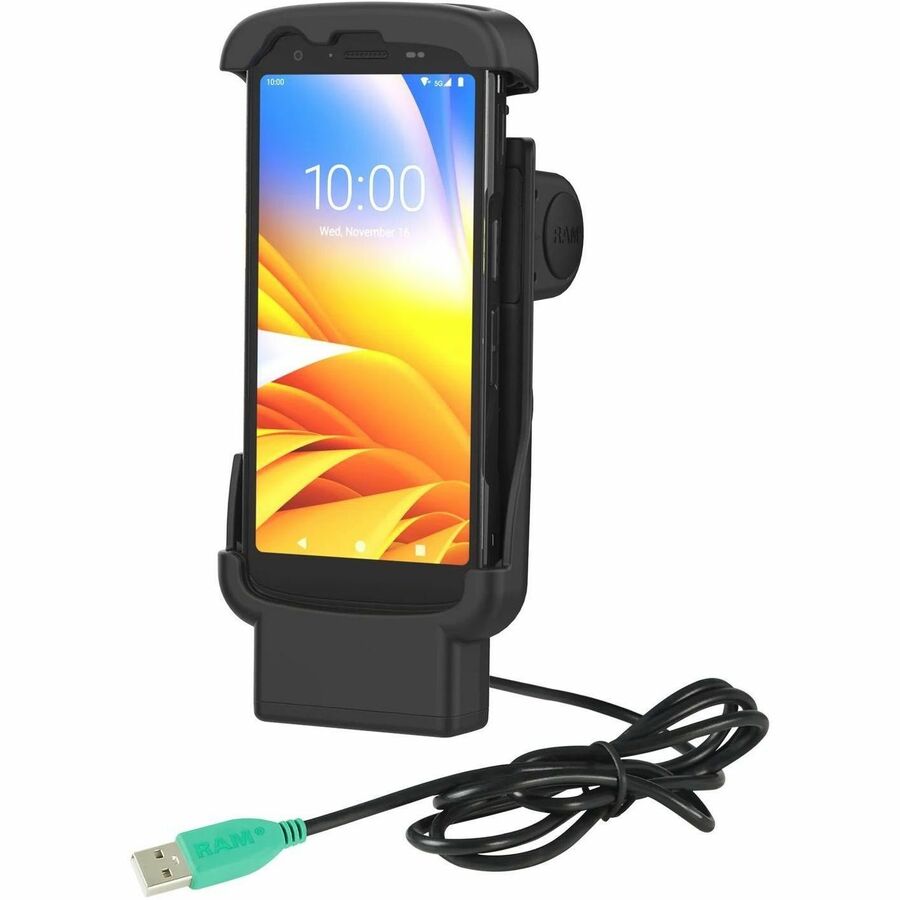

This spring-loaded, form-fit powered dock (RAM-HOL-ZE24P-1U) allows you to secure the Zebra TC22 and the TC27 handheld computer without the Rugged Boot installed. Included with this dock are top and bottom shims to allow a form-fit when docking the device without the Rugged Frame installed. Power to the device is delivered via a 1.2m long USB Type-A connector and pogo pin docking pins. This dock includes an integrated stylus holder that snaps your stylus into place while not in use, and will accommodate the Zebra hand strap. Complete your solution by adding a compatible RAM® two-hole AMPS pattern diamond bases and a B or C size ball mount, allowing for a wide variety of mounting options (hardware included).

Highlights

  • Spring-loaded form-fit powered dock perfectly secures the Zebra TC22 and TC27 handheld computer without Rugged Boot; provides power through 1.25-meter long USB Type-A connector

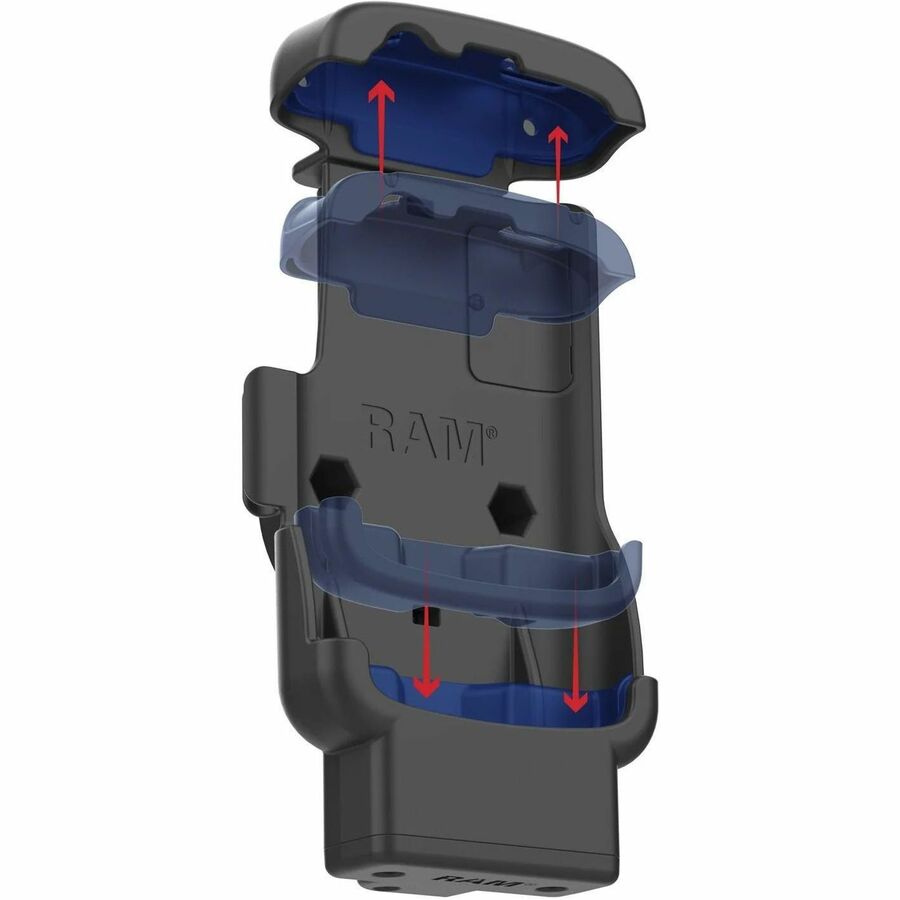

  • Includes top and bottom shim inserts for a form-fit docking experience when using the TC22/TC27 without the Rugged Boot
  • Utilizies pogo pin docking contacts to provide charging capabilities to the device
  • Compatible with B and C size RAM® 2-hole diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
  • Backed by a 3-year warranty

Specifications

Package Contents
  • Form-Fit Powered Dock for Zebra TC22 & TC27 without Boot
  • 2 x #8-32 x 5/8" Machine Screws
  • 2 x #8-32 x 3/4" Machine Screws
  • 2 x #8-32 Nylock Nuts
  • Top and Bottom Shims
Host InterfacePogo Pin
Product TypeCradle
CompatibilityZebra Mobile Computers: TC22 TC27
Device SupportedMobile Computer
Manufacturer Part NumberRAM-HOL-ZE24P-1U
Limited Warranty3 Year
Weight (Approximate)10.24 oz
Connectivity TechnologyDocking
ManufacturerNational Products, Inc
Product NameForm-Fit Powered Dock for Zebra TC22 & TC27 without Boot
Product LineForm-Fit
Brand NameRAM Mounts
Charging CapabilityYes
Height7.7"
Width3.7"
Depth2.5"
Product MaterialHigh Strength Composite
