GDS Form-Fit Holder for Zebra ET5x 8.3" & 8.4" Series
Docking - Tablet PC - Charging Capability - Synchronizing Capability
SKU
Category
Cradles
$114.91
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 3 and Nov 7, then process your delivery right after.
Genuine National Products through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Cradles
Overview

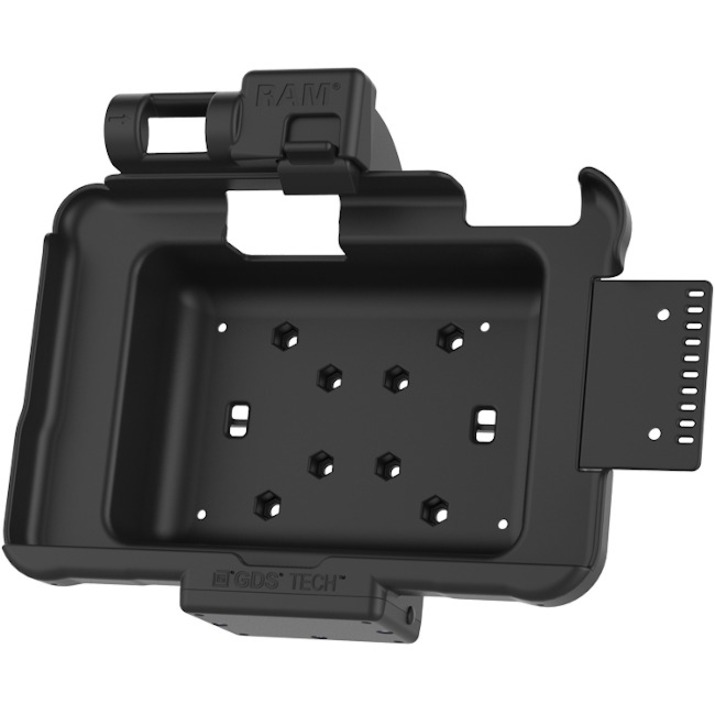

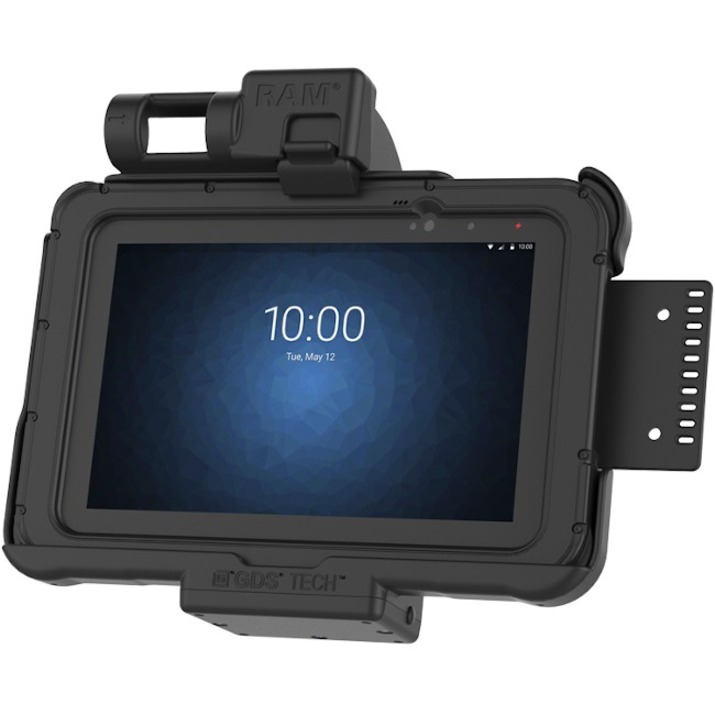

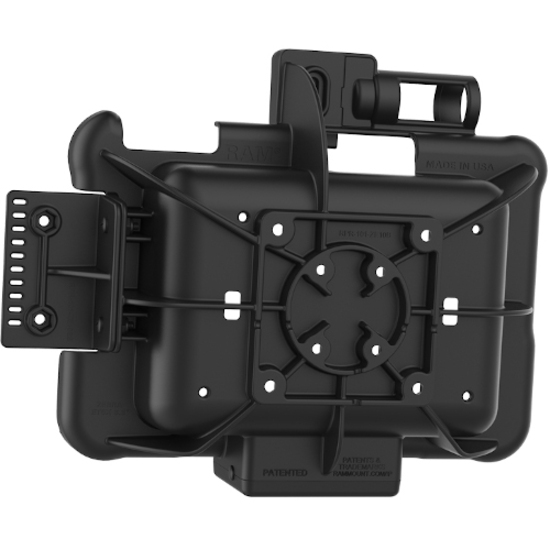

The GDS® Vehicle Dock features a form-fit design specifically for the Zebra ET5x 8.3" & 8.4" series tablets, including cutouts leaving all buttons and ports exposed. The dock also allows the tablet's scanning function to work through the cutout on the back which also accommodates tablet add-ons such as scanner, hand strap, and PowerPack battery. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone, or other handheld device. An included optional accessory bracket will allow you to connect RAM® 2-hole diamond bases for device mounting and features a cable management system.
Warranty
Limited Warranty: Lifetime
Highlights
Spring-loaded form-fit holder perfectly secures the Zebra ET5x 8.3" & 8.4" series tablets with Rugged Frame
Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
Dock accommodates tablet add-ons such as scanner, hand strap, and PowerPack battery; tablet scanning works while tablet is docked
Backed by a lifetime warranty
Specifications
General Information
Manufacturer
National Products, Inc
Manufacturer Part Number
RAM-HOL-ZE10U
Brand Name
GDS
Product Line
Form-Fit
Product Name
Form-Fit Holder for Zebra ET5x 8.3" & 8.4" Series
Product Type
Cradle
Physical Characteristics
Product Material
High Strength Composite
Weight (Approximate)
1.19 lb
Technical Information
Connectivity Technology
Docking
Charging Capability
Yes
Synchronizing Capability
Yes
Device Supported
Tablet PC
Warranty
Limited Warranty
Lifetime
Miscellaneous
Package Contents
Form-Fit Holder for Zebra ET5x 8.3" & 8.4" Series
1 x Side Bracket for Accessory Mounting and Strain Relief
4 x #8-32 x 5/8" Machine Screws
2 x #8-32 x 1/2" Machine Screws
6 x #8-32 Nylock Nuts
4 x #10-24 x 5/8" Machine Screws
4 x #10-24 Nylock Nuts
6 x Small Cable Ties
Compatibility
Zebra Products: ET50 8.3" with rugged frame ET51 8.4" with rugged frame ET55 8.3" with rugged frame ET56 8.4" with rugged frame
