Overview

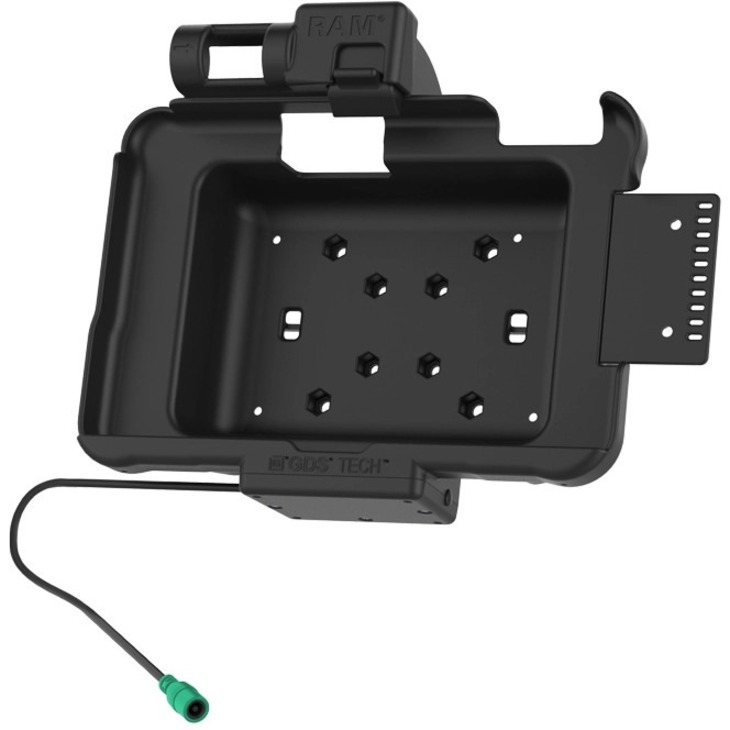

Featuring GDS® Technology for charging capabilities, the GDS® Vehicle Dock for Zebra ET5x 8.3" & 8.4" series tablets allows you to keep the device charged through the pogo pin contacts when the device is docked-power is provided by connecting to the dock's 5.5mm DC power jack. The dock also allows the tablets scanning function to work through the cutout on the back which also accommodates tablet add-ons such as scanner, hand strap, and PowerPack battery. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone, or other handheld device. An included optional accessory bracket will allow you to connect RAM® 2-hole diamond bases for device mounting and features a cable management system.
Warranty
Limited Warranty: 3 Year
Highlights

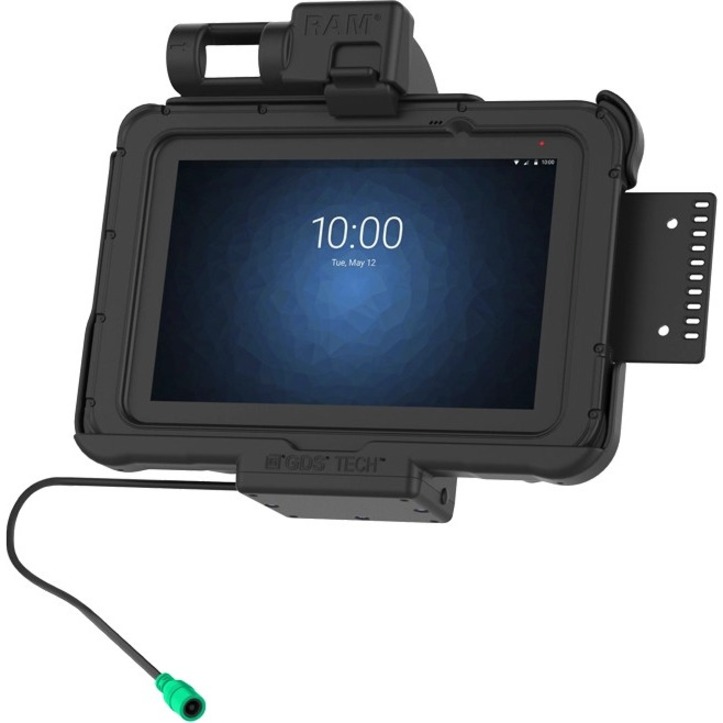

Spring-loaded powered dock provides charging capabilities for the Zebra ET5x 8.3" & 8.4" series tablets with Rugged Frame via DC 5.5mm power jack
When connected to a power source, integrated pogo pins provide power to the device while docked; Dock accommodates tablet add-ons such as scanner, hand strap, and PowerPack battery; tablet scanning works while tablet is docked

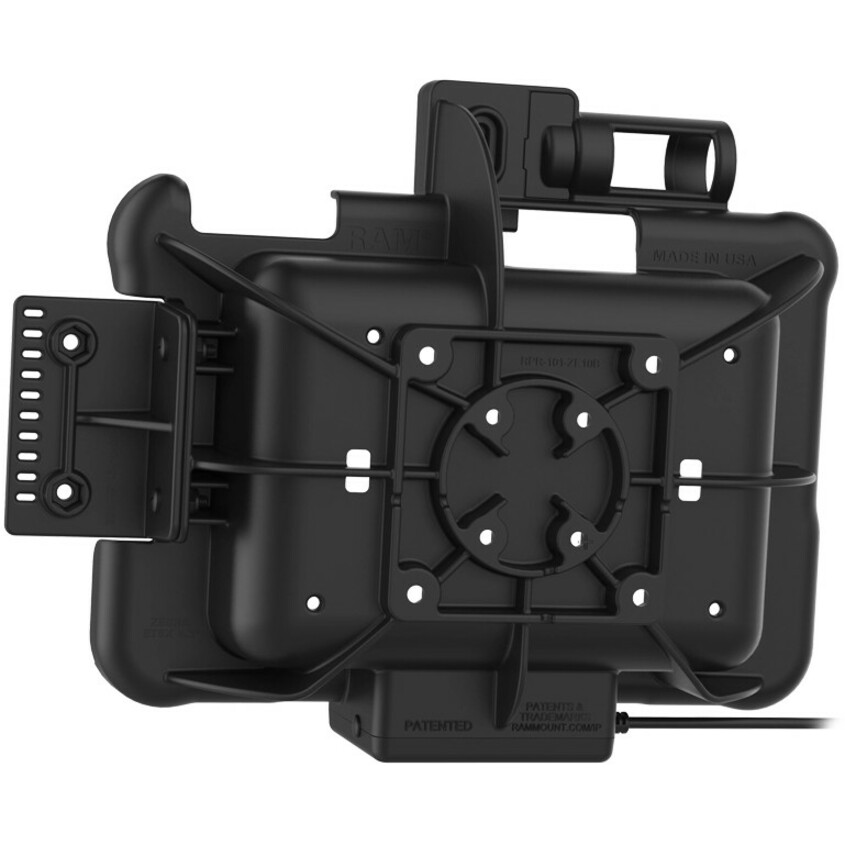

Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
Backed by a 3-year warranty
Specifications
General Information
Manufacturer
National Products, Inc
Manufacturer Part Number
RAM-HOL-ZE10PU
Brand Name
GDS
Product Name
Powered Dock for Zebra ET5x 8.3" & 8.4" Series
Product Type
Cradle
Interfaces/Ports
Host Interface
Pogo Pin
Physical Characteristics
Product Material
High Strength Composite
Weight (Approximate)
1.29 lb
Technical Information
Connectivity Technology
Docking
Charging Capability
Yes
Device Supported
Tablet PC
Warranty
Limited Warranty
3 Year
Miscellaneous
Package Contents
Powered Dock for Zebra ET5x 8.3" & 8.4" Series
1 x Side Bracket for Accessory Mounting and Strain Relief
4 x #8-32 x 5/8" Machine Screws
2 x #8-32 x 1/2" Machine Screws
6 x #8-32 Nylock Nuts
4 x #10-24 x 5/8" Machine Screws
4 x #10-24 Nylock Nuts
4 x Small Cable Ties
Compatibility
Zebra Tablet PCs: ET50 8.3" with rugged frame ET51 8.4" with rugged frame ET55 8.3" with rugged frame ET56 8.4" with rugged frame
