Genuine National Products through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
RAM-HOL-ZE11PD-DB9U
Category
Cradles
Overview

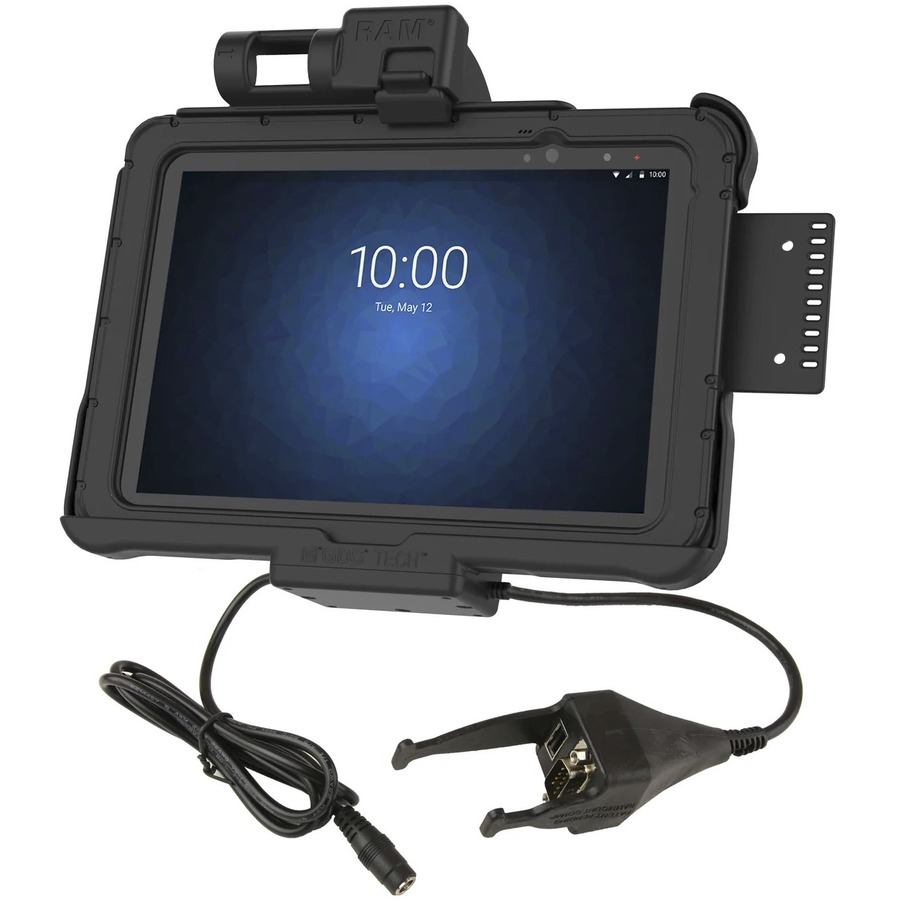

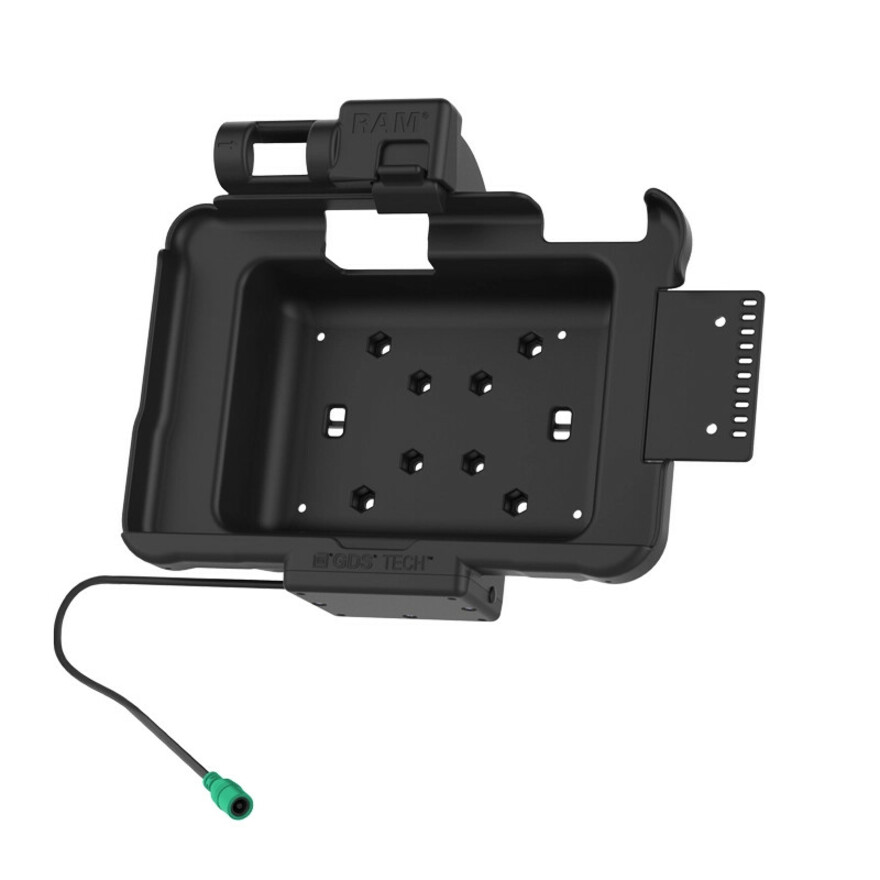

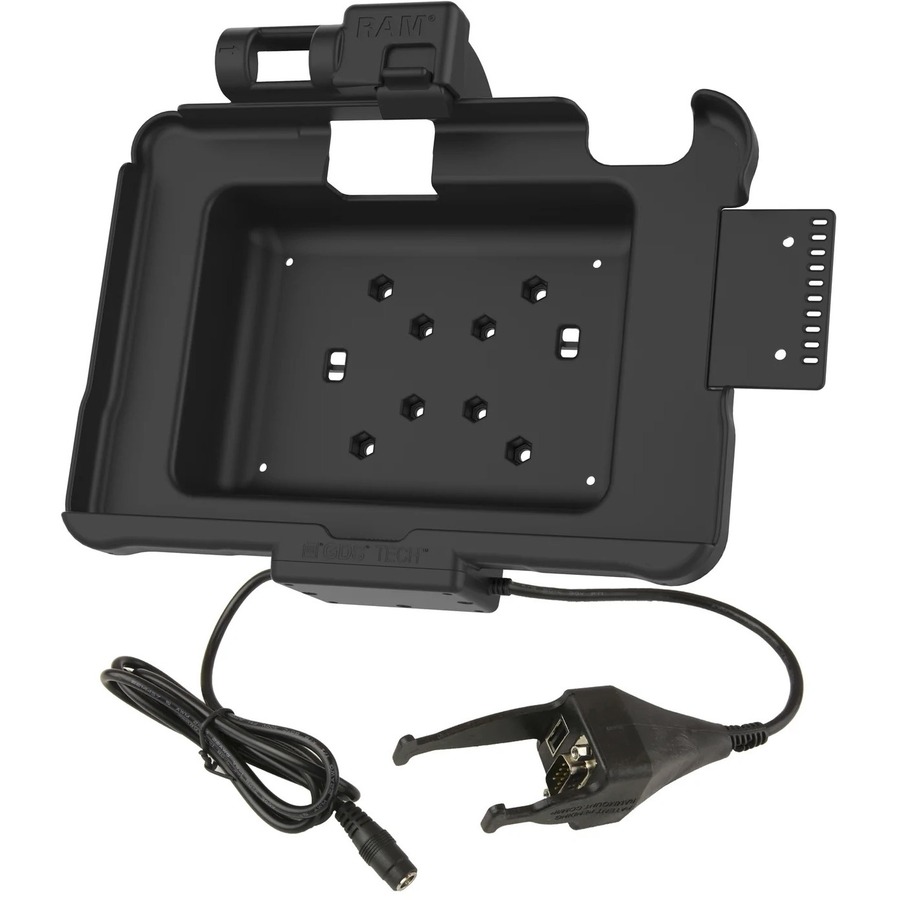

Featuring GDS® Technology? for data and charging capabilities, the GDS® Vehicle Dock for Zebra ET5x 10.1" series tablets allows you to connect a desired peripheral while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's 5.5mm DC power jack, while peripheral support is provided by the built-in USB Type A cable and DB9 male connector. The dock also allows the tablets scanning function to work through the cutout on the back which also accommodates tablet add-ons such as scanner, hand strap, keyboard, mouse, joystick and PowerPack battery. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone, or other handheld device. An included optional accessory bracket will allow you to connect RAM® 2-hole diamond bases for device mounting and features a cable management system.
Highlights

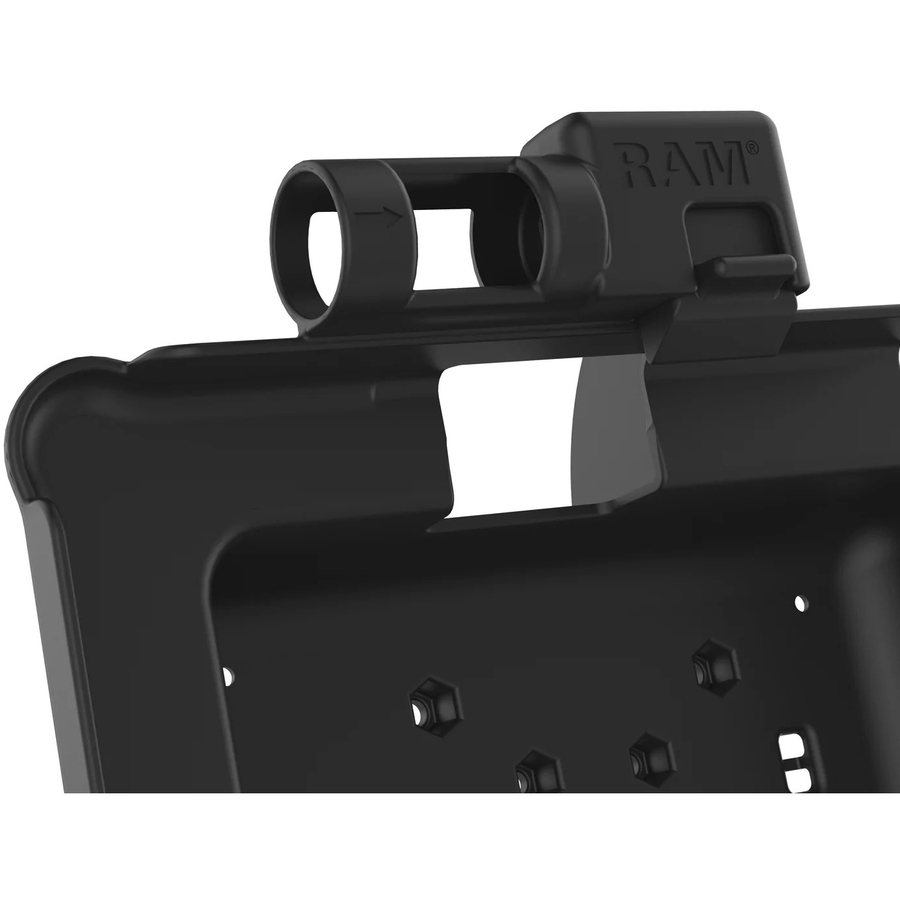

Spring-loaded powered dock featuring GDS® Technology? for data and charging capabilities for the Zebra ET5x 10.1" series tablets with Rugged Frame via DC 5.5mm power jack, USB Type A for adding a peripheral, and DB9 male connector
When connected to a power source, integrated pogo pins provide power to the device as well as peripheral connectivity while docked; Dock accommodates tablet add-ons such as scanner, hand strap, keyboards, mice, joysticks and PowerPack battery; tablet scanning works while tablet is docked

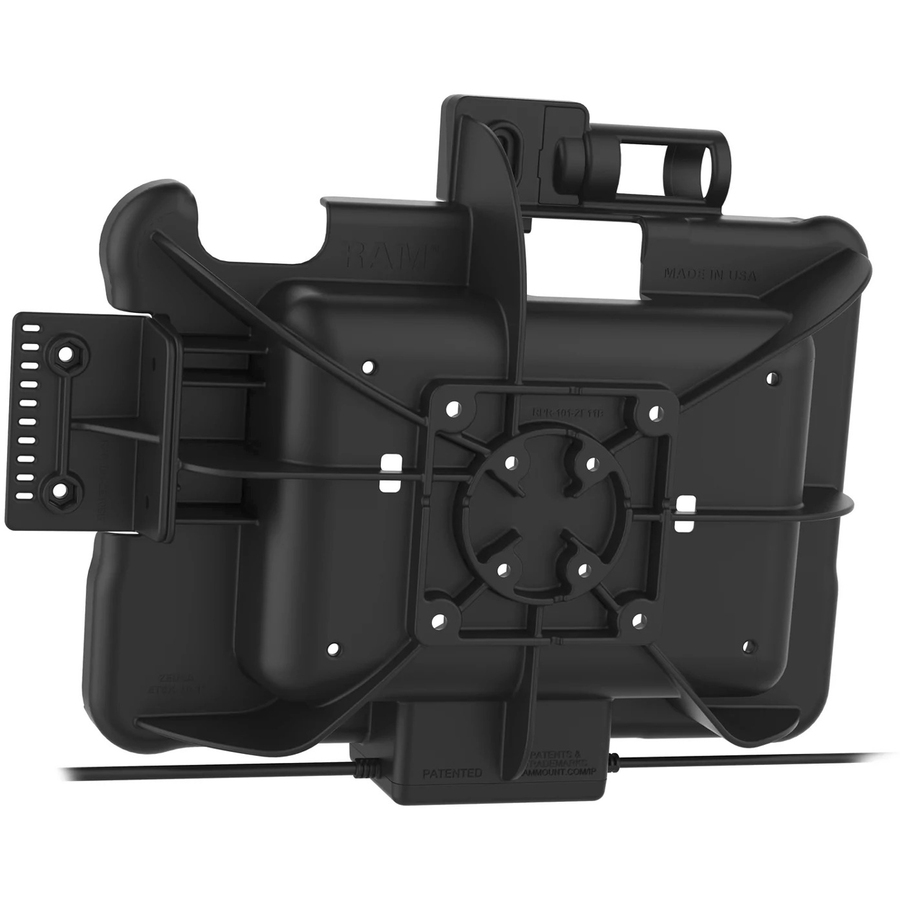

Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
Backed by a 3-year warranty
Specifications
Package Contents
Power + Data & DB9 Dock for Zebra ET5x 10.1" Series
1 x Side Bracket for Accessory Mounting and Strain Relief
4 x #8-32 x 5/8" Machine Screws
2 x #8-32 x 1/2" Machine Screws
6 x #8-32 Nylock Nuts
4 x #10-24 x 5/8" Machine Screws
4 x #10-24 Nylock Nuts
8 x Small Cable Ties
2 x Large Cable Ties
1 x USB Type A Cable Clamp Housing
Host Interface
USB 2.0 Type A
Product Type
Cradle
Compatibility
Zebra Tablet PCs: ET50 10.1" with Rugged Frame ET51 10.1" with Rugged Frame ET55 10.1" with Rugged Frame ET56 10.1" with Rugged Frame
Device Supported
Tablet PC
Manufacturer Part Number
RAM-HOL-ZE11PD-DB9U
Limited Warranty
3 Year
Weight (Approximate)
1.83 lb
Connectivity Technology
Docking
Manufacturer
National Products, Inc
Product Name
Power + Data & DB9 Dock for Zebra ET5x 10.1" Series
