Genuine National Products through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
RAM-HOL-ZE11PD2CLU
Category
Cradles
Overview

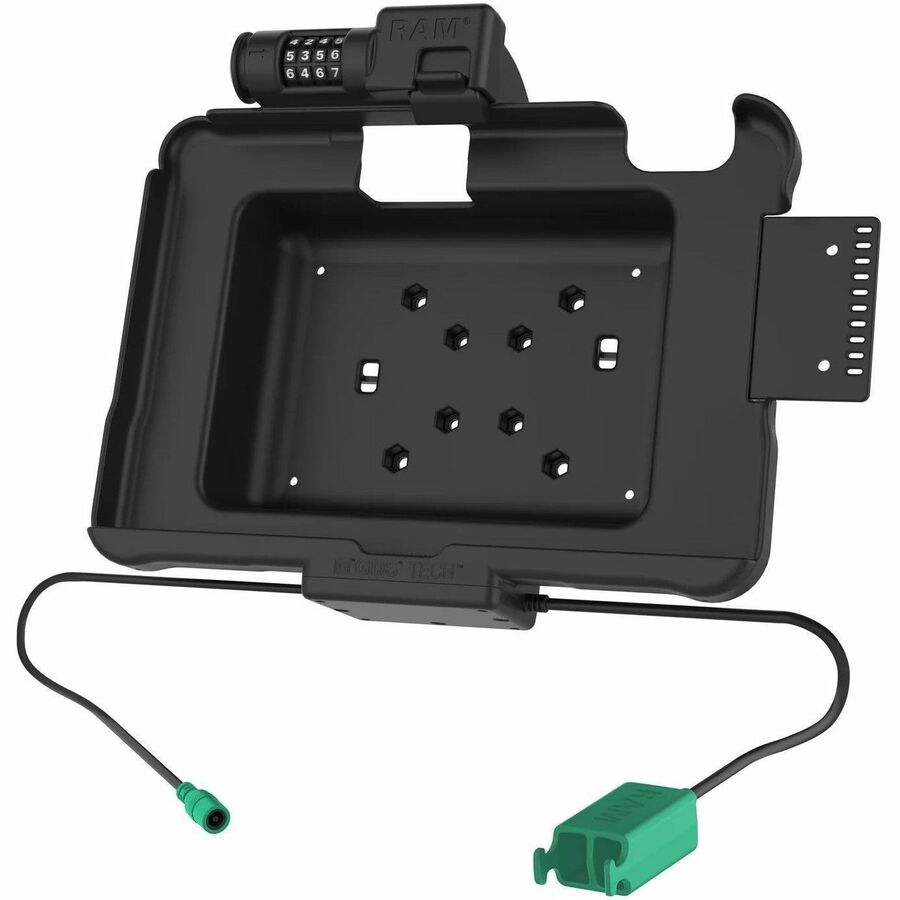

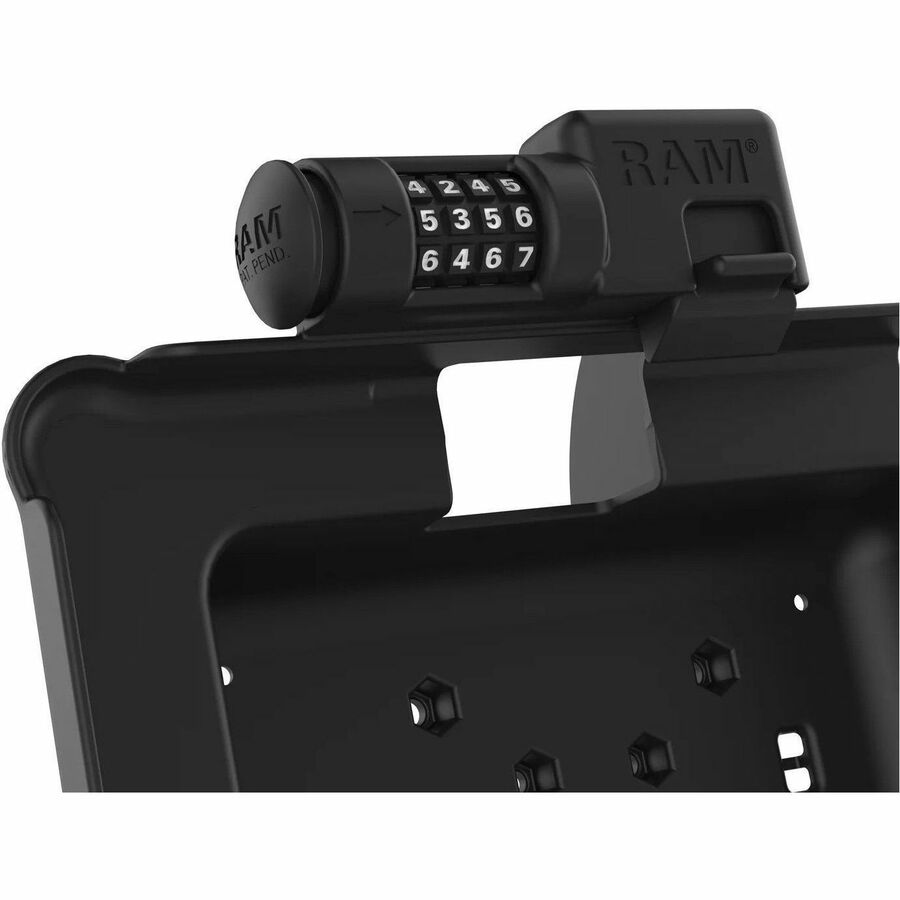

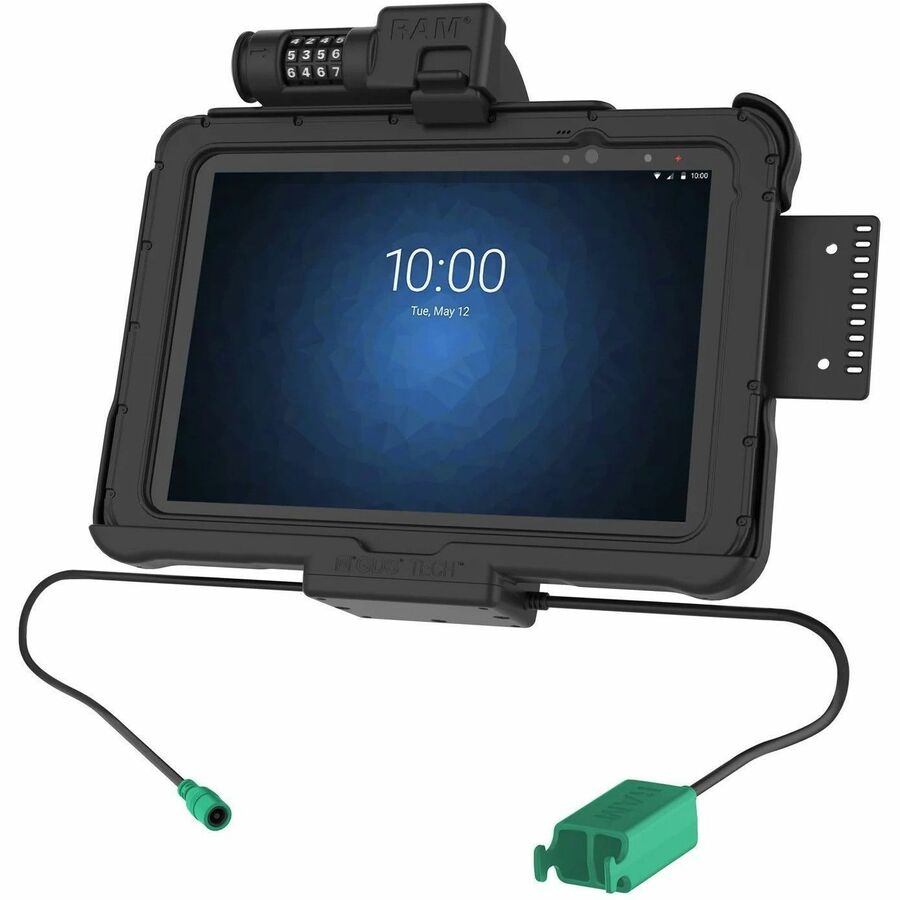

Featuring GDS® Technology for data and charging capabilities and a combination lock for theft deterrence, the GDS® Vehicle Dock for Zebra ET5x 10.1" series tablets allows you to connect up to two desired peripherals while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's 5.5mm DC power jack, while peripheral support is provided by the built-in dual USB Type-A cable. The dock also allows the tablet's scanning function to work through the cutout on the back which also accommodates tablet add-ons such as scanner, hand strap, and PowerPack battery. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone, or other handheld device. An included optional accessory bracket will allow you to connect RAM® 2-hole diamond bases for device mounting and features a cable management system.
Warranty
Limited Warranty: 3 Year
Highlights
Combination locking powered dock featuring GDS® Technology for data and charging capabilities for the Zebra ET5x 10.1" series tablets with Rugged Frame via DC 5.5mm power jack and dual USB Type A connector for adding up to 2 peripherals
When connected to a power source, integrated pogo pins provide power to the device as well as peripheral connectivity while docked; Dock accommodates tablet add-ons such as scanner, hand strap, and PowerPack battery; tablet scanning works while tablet is docked

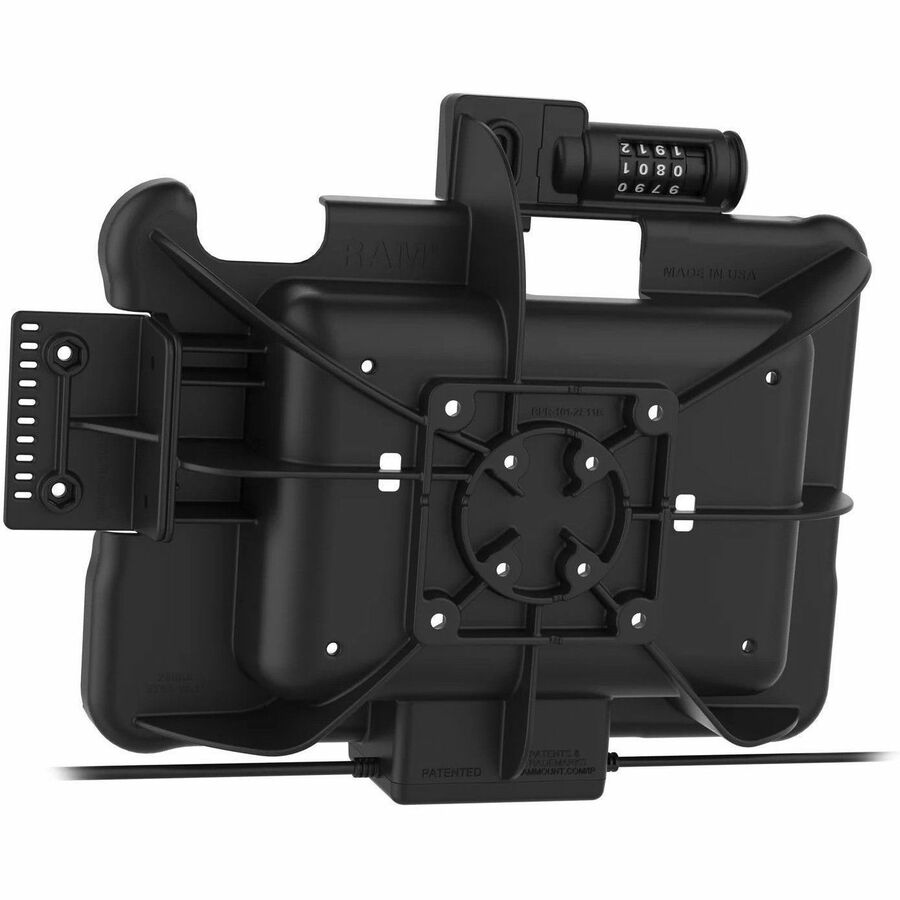

Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
Backed by a 3-year warranty
Specifications
General Information
Manufacturer
National Products, Inc
Manufacturer Part Number
RAM-HOL-ZE11PD2CLU
Brand Name
RAM Mounts
Product Series
GDS
Product Name
GDS Combo Locking Power + Dual USB Dock for Zebra ET5x 10.1" Series
Product Type
Cradle
Interfaces/Ports
Host Interface
Pogo Pin
Total Number of USB Ports
2
Physical Characteristics
Product Material
High Strength Composite
Weight (Approximate)
2 lb
Technical Information
Connectivity Technology
Docking
Charging Capability
Yes
Synchronizing Capability
Yes
Device Supported
Tablet PC
Warranty
Limited Warranty
3 Year
Miscellaneous
Package Contents
GDS Combo Locking Power + Dual USB Dock for Zebra ET5x 10.1" Series
1 x Side bracket for Accessory Mounting and Strain Relief
