Genuine Lenovo through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Docking Stations
Overview
New Generation Docking Station Power House. The robust way to maximize productivity and the workspace, the brand new ThinkPad® Thunderbolt 5 Smart Dock 7500 is the flagship in our new series of docks offering a smarter way to work. Capable of driving up to three 8K 60Hz displays and up to 120Gbps data speeds, the dock ushers in the next generation of Intel® Thunderbolt 5 connectivity for commercial users and new generation cloud-based management console powered by AWS for IT managers.
Top Features
• The ThinkPad® Thunderbolt 5 Smart Dock 7500 With the Cutting-Edge Thunderbolt technology, makes the connectivity performance reached a new Height, with up to 120 Gbps bandwidth, you can have up to 4 Ultra High Spec display setup, either it's three Ultra-High Resolution 8K 60Hz Displays and one High Resolution 4K 60Hz or two 4K 240Hz and two 4K 120Hz High Refresh Rate monitors setup, it's all up to you, fully extend your Mobile Workstation notebook to a Power Station with all different kinds of Peripheral Devices. It supports PD 3.1 and output up to 180W to give a rapid-charge to your notebook, you can drastically expand the potential of your workspace with ease.
• Universal Dock Compatibility a cross different Operating System.
• With Lenovo Accessories Fleet Manager (LAFM), the New Gen Cloud-Based Intelligent Manageability runs on Web Browser, can let IT manager to Manage, Update, Configure and Diagnostic their dock fleet in a Flexible, Efficient and Convenient way at anytime, anywhere with ease.
Warranty
Limited Warranty: 3 Year
About Lenovo
Join Lenovo Transformation is a Team Sport When you work at Lenovo, you make powerful things happen here — for you, for Lenovo, and for the world.
Highlights
Wired connectivity technology allows convenient and reliable connectivity for maximum efficiency
Charging capability provides a quicker, worry-free charging experience
Thunderbolt 5 host interface Offers a more refined structure and safer to use connectivity
Monitor device supported according to your requirements with maximum productivity
15 GB/s maximum data transfer rate for fast, dependable data transfer with added productivity
Power Delivery Pass-through feature for better reliance and usability
Lets you conveniently connect to the 2.5 gigabit ethernet Ethernet technology to offer maximum productivity
Power Adapter power source type for your docking station better reliance and maximum energy dependability
Enjoy HD quality videos on your HDTV with the HDMI port facility
5 USB ports offers a more refined structure and safer to use connectivity
Specifications
General Information
Manufacturer
Lenovo Group Limited
Manufacturer Part Number
40BA0265US
Brand Name
Lenovo
Product Line
ThinkPad
Product Name

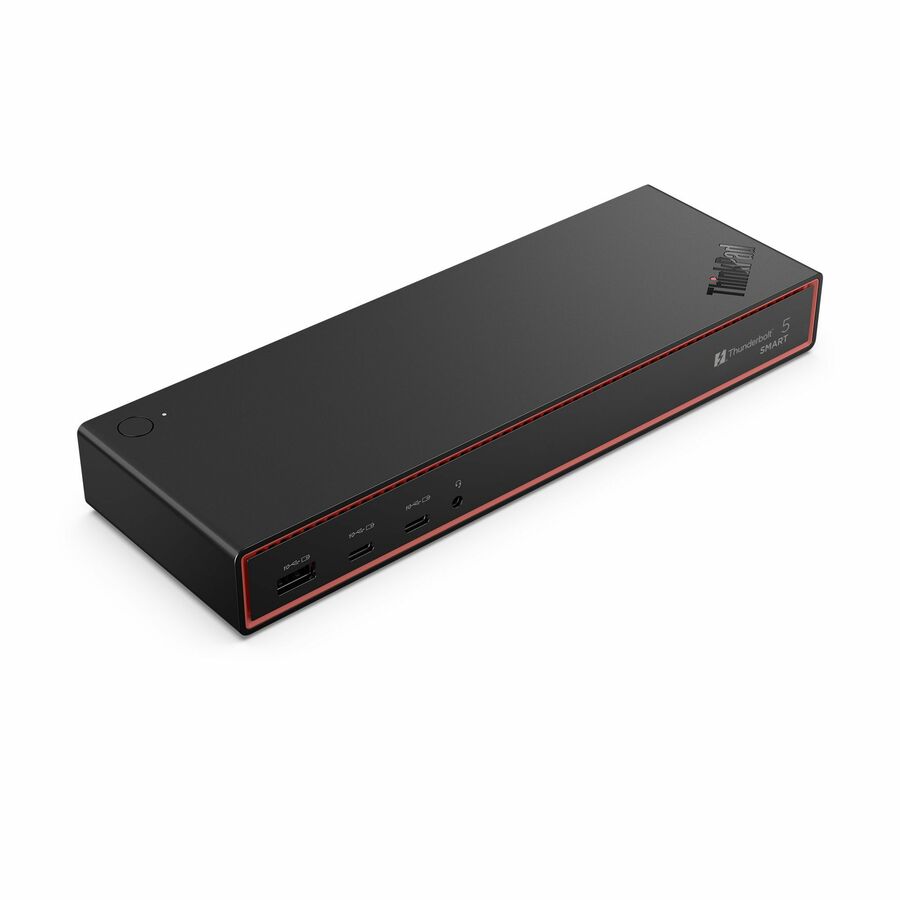

ThinkPad Thunderbolt 5 Smart Dock 7500 - US
Packaged Quantity
1
Product Type
Docking Station
Interfaces/Ports
Host Interface
Thunderbolt 5
Total Number of USB Ports
5
Number of USB 3.2 Gen 2 Type-A Ports
3
Number of USB 3.2 Gen 2 Type-C Ports
2
Number of USB Type-C Ports
2
USB Type-A
Yes
USB Type-C
Yes
USB Type-C Detail
2 x USB-C data port (10Gbps data, AOU 15W)
Number of USB Type-A Ports
3
Network (RJ-45)
Yes
Number of DisplayPorts
2
DisplayPort
Yes
DisplayPort Version
2.1
Headphone/Microphone Combo Port
Yes
Number of HDMI Ports
1
HDMI
Yes
Thunderbolt
Yes
Thunderbolt Ports Quantity
2
USB Power Delivery
180W
Network & Communication
Ethernet Technology
2.5 Gigabit Ethernet
Physical Characteristics
Product Color
Eclipse Black
Height
1.18"
Width
3.15"
Weight (Approximate)
1.29 lb
Power Description
Maximum Power Supply Wattage
265 W
Software
Operating System Supported
Windows, macOS, Linux
Technical Information
Connectivity Technology
Wired
Charging Capability
Yes
Number of Displays Supported
4
Device Supported
Monitor, Mobile Workstation, Notebook
Supported Resolutions
7680 x 4320, 3840 x 2160
Screen Mode Supported
8K @ 60Hz, 4K @ 60Hz, 4K @ 240Hz, 4K @ 120Hz
Warranty
Limited Warranty
3 Year
Miscellaneous
Package Contents
ThinkPad Thunderbolt 5 Smart Dock 7500 - US
1 x 265W AC Adapter
1 x Power Cord
1 x Warranty Poster
1 x Set up Poster
1 x LAFM Card
Kensington Security Slot
Yes
Compatibility
Lenovo Notebooks: ThinkPad P1 Gen 8 ThinkPad P16 Gen 3 ThinkPad P16v Gen 3 (Intel) ThinkPad T1g Gen 8
