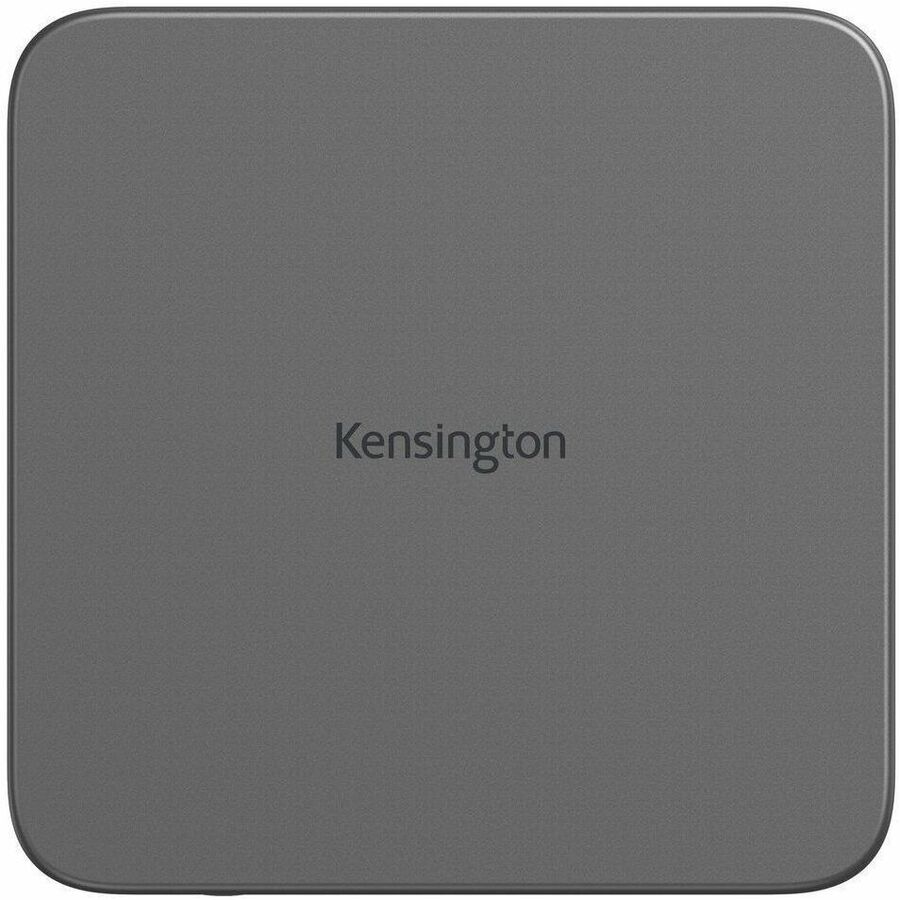

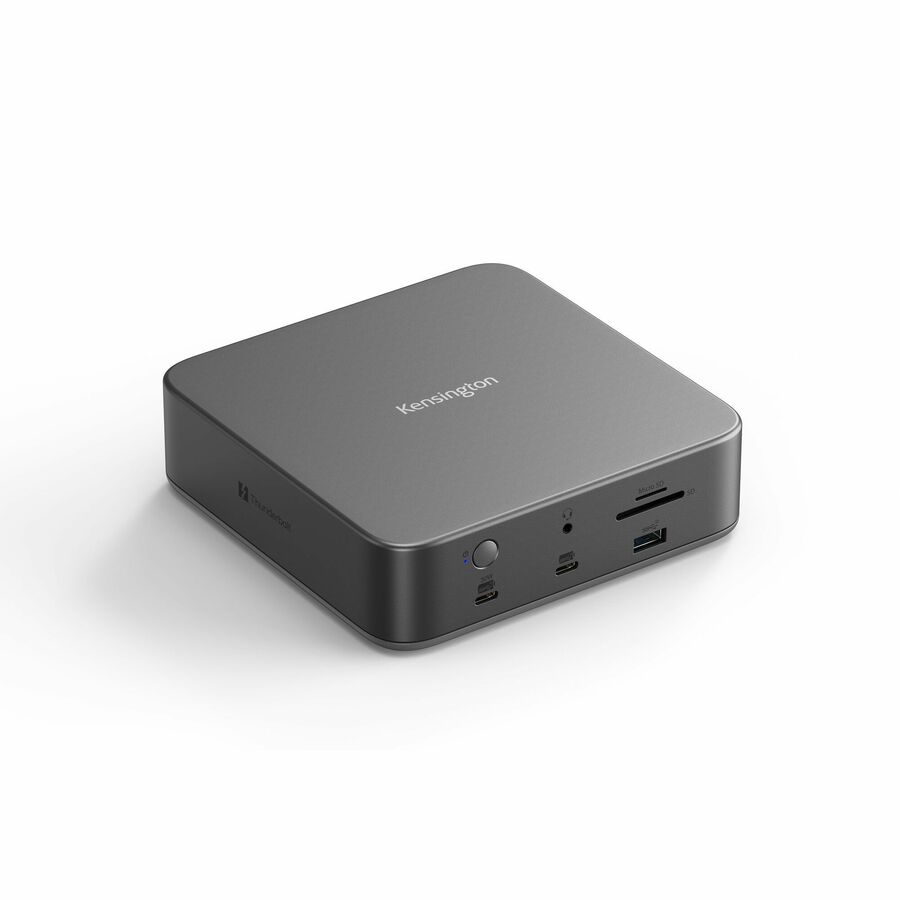

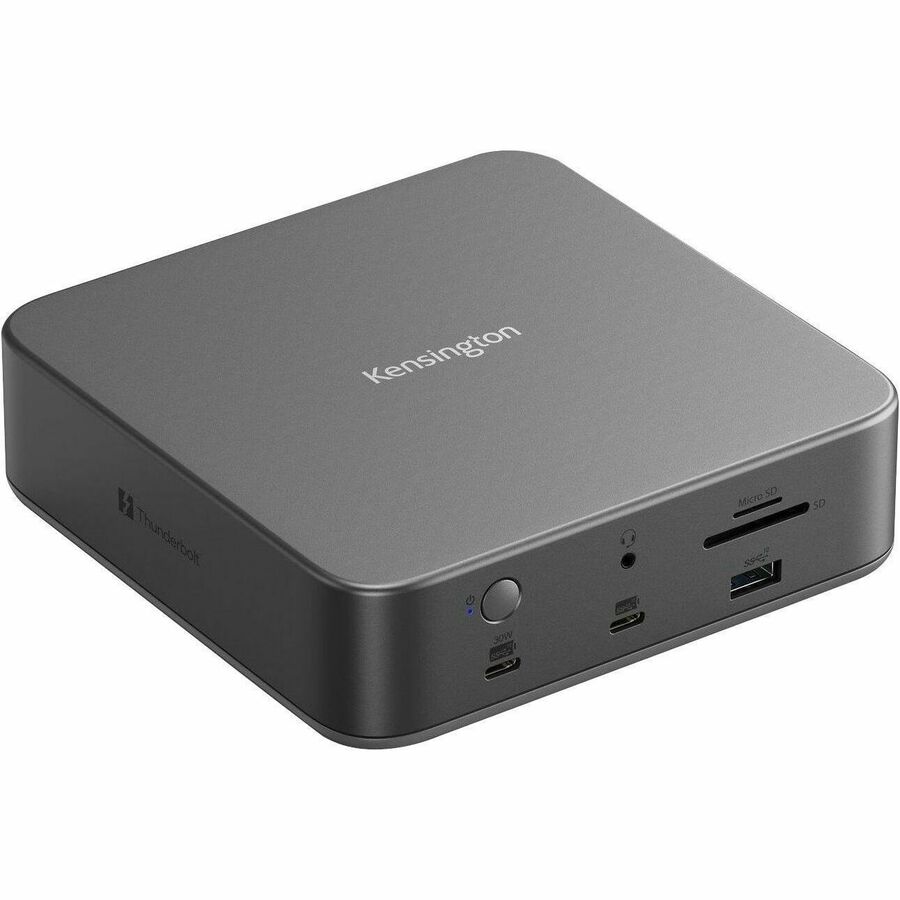

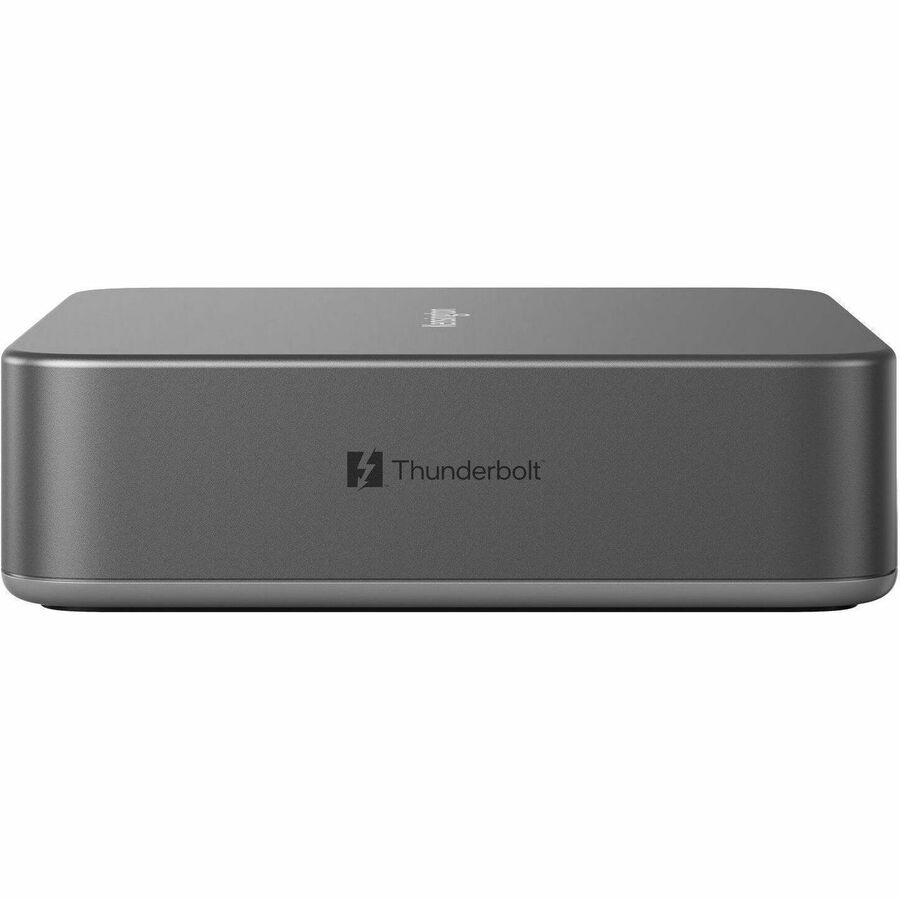

Kensington SD5010T5 EQ Thunderbolt 5 Triple 4K Docking Station (2 x HDMI) - Windows/macOS
for Notebook, Monitor, Workstation, MacBook, Display, Headphone, Microphone - Charging Capability - Memory Card Reader - SD, microSD - 180 W - 13 Port(s) - Thunderbolt 5 - 3 Displays Supported - 4K @ 144Hz, 4K @ 60Hz, 6K @ 60Hz, 4K @ 240Hz, 4K @30Hz, FHD @ 120Hz, 8K @ 60Hz, 4K, 8K, 6K - 3840 x 2160, 6144 x 3456, 1920 x 1080, 7680 x 4320 - 5 x USB Ports - 3 x USB Type-A Ports - USB Type-A - 2 x USB Type-C Ports - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - HDMI - Space Gray - 2
- SKU
- K35231NA
- Category
- Docking Stations
MSRP$299.99
$286.23
Save 5%In stock: 12
Genuine Kensington Computer Products through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- K35231NA
- Category
- Docking Stations
Overview
Boost Your Productivity with Thunderbolt? 5
SD5010T5 offers lightning-fast data transfers, achieving speeds up to 80Gbps and Bandwidth Boost providing up to 120Gbps for video-intensive usage.
Triple 4K or Dual 8K for Windows and Dual 6K+4K for macOS
Supports up to 3 x 4K monitors @ 144Hz or 2 x 8K @ 60Hz/30Hz monitors for Windows laptops via two HDMI® ports and one Thunderbolt? 5 port. For MacBook models with M4/M5 base chips* and M-Series Pro and Max chipsets, it supports 2 x 4K @ 60Hz via two HDMI® ports, or you can switch one of the displays to up to 6K through the Thunderbolt? 5 port. *M1/M2 base chips support a single external display only. M3 base supports two external displays with the lid closed.
Up to 140W Dynamic Power Delivery + KonstantCharge?
Perfect for demanding workstations, this single-cable Thunderbolt? 5 dock supports USB-C® PD 3.1, ensuring seamless power and connectivity with up to 140W dynamic power delivery. Includes KonstantCharge?, enabling connected devices to charge even when your laptop is undocked.
13-in-1 Design

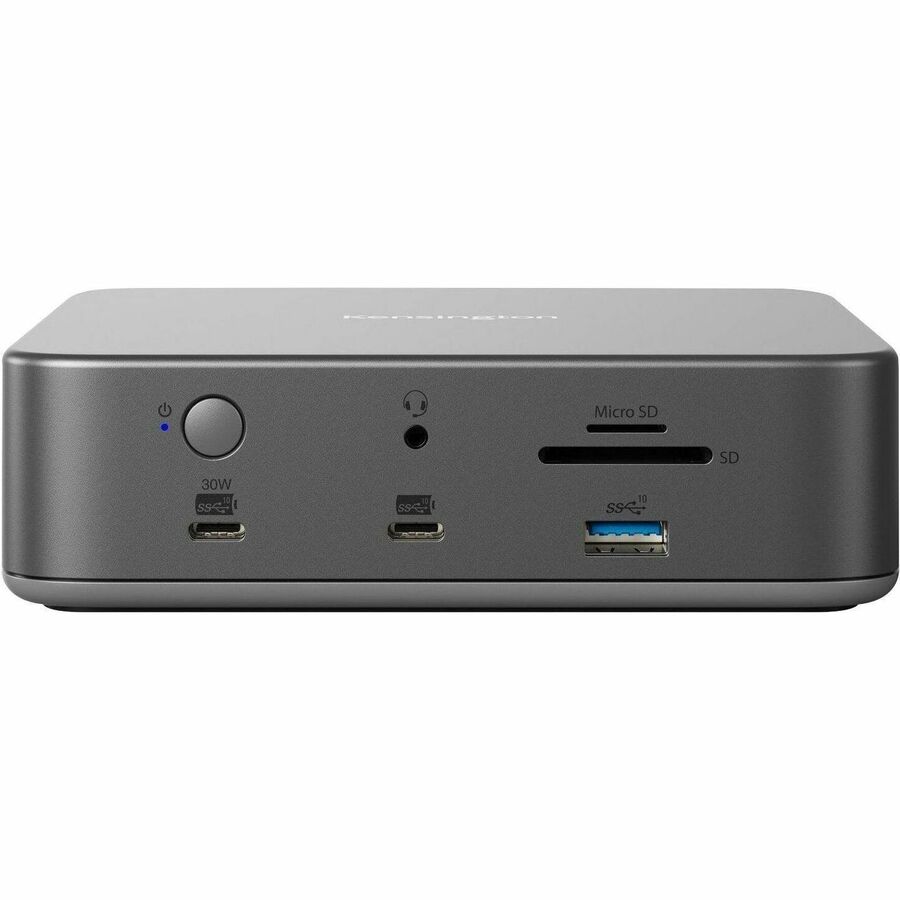

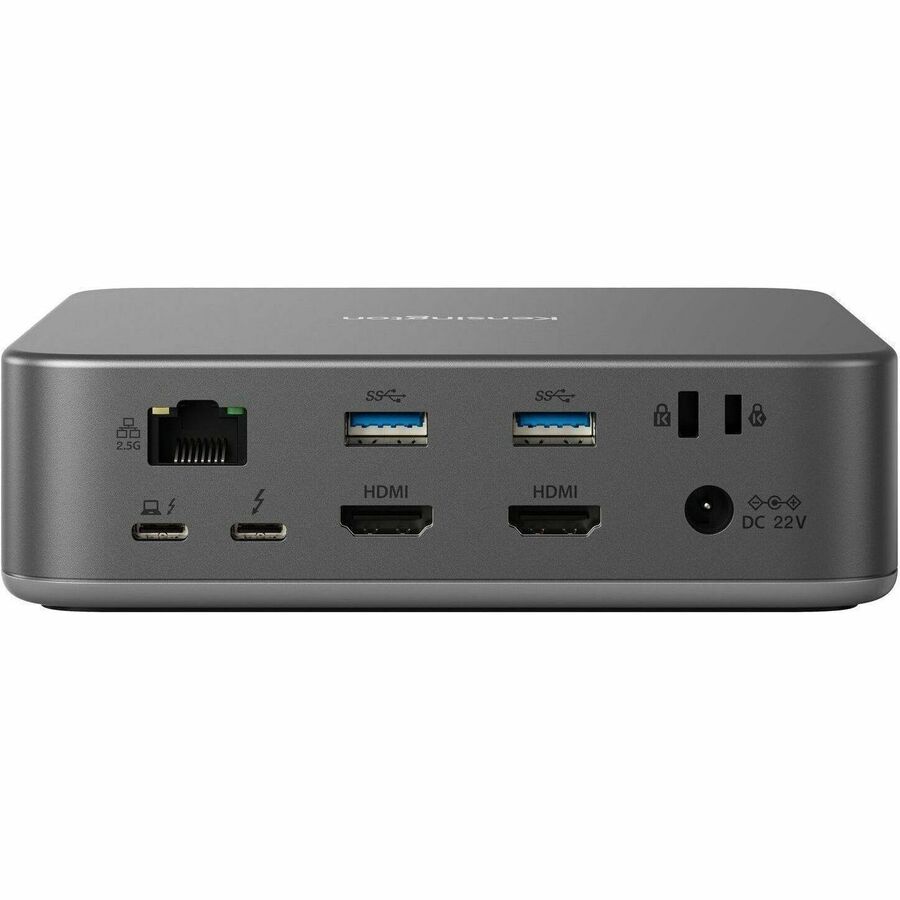

A single Thunderbolt? 5 cable expands your connectivity: 2 x Thunderbolt? 5 (host + 15W downstream), 2 x HDMI®, 1 x USB-A 3.2 Gen2 10Gbps, 2 x USB-A 3.2 Gen1 5Gbps, 2 x USB-C® Gen2 10Gbps (1 x 30W), an audio combo jack, 2 x SD/Micro SD 4.0 slots, and 2.5Gbps Ethernet.
Built-in SD and Micro SD Card Readers
Perfect for graphic designers, video editors, and animators requiring fast and efficient data transfer speeds, the SD5010T5 transfers files at ultra-fast speeds via built-in SD and Micro SD 4.0 card readers.
Universal Compatibility
Offers a quick and powerful plug-and-play solution for Thunderbolt? 5, Thunderbolt? 4, USB4®, and USB-C® devices running Windows 11 (23H2 or later) or macOS (14.5 or later).
Zero-Footprint Mounting Option and Security Cable Lock Slots
Maximize desktop space by mounting your docking station out of the way. Mounting bracket sold separately (K34050WW). Protect your investment with a Kensington cable lock (K65020WW or K65021WW), sold separately.
Free Kensington DockWorks? Software and 3-Year Limited Warranty
Free DockWorks? software for Windows users delivers the best connection, performance, and security from your Kensington dock. Backed by Kensington with a 3-year limited warranty.
Sustainability Attributes
The outer case of this docking station contains 100% post-consumer recycled (PCR) aluminum - and it is delivered in Forest Stewardship Council (FSC®) certified packaging.
Highlights
- Data transfer speeds up to 80Gbps.
- Bandwidth Boost offers up to 120Gbps for video-intensive usage.
- Up to Triple 4K or Dual 8K for Windows and Dual 6K+4K for macOS.
- Up to 140W dynamic Power Delivery for laptop and connected devices.
- 13-in-1 design supports seamless connectivity for a variety of setups.
- Bulit-in SD and Micro SD card readers provide ultra-fast file transfers.
- Plug-and-play for Thunderbolt? 5, Thunderbolt? 4, USB4®, and USB-C® devices.
- Windows 11 (23H2 or later) or macOS (14.5 or later).
- Zero-footprint mounting option for tidier workspace .
- Security cable lock slots compatible with Kensington laptop locks.
Specifications
| Package Contents |
|
|---|---|
| Host Interface | Thunderbolt 5 |
| Product Type | Docking Station |
| Compatibility | Apple MacBook Neo |
| Device Supported | Notebook, Monitor, Workstation, MacBook, Display, Headphone, Microphone |
| Manufacturer Part Number | K35231NA |
| Packaged Quantity | 1 Box |
| Limited Warranty | 3 Year |
| Weight (Approximate) | 1.95 lb |
| Connectivity Technology | Wired |
| Form Factor | Desktop |
| Manufacturer | Kensington Computer Products Group |
| Product Model | SD5010T5 |
| Product Name | SD5010T5 EQ Thunderbolt 5 Triple 4K Docking Station (2 x HDMI) - Windows/macOS |
| Package Type | Retail |
| Brand Name | Kensington |
| Charging Capability | Yes |
| Operating System Supported | Windows 11, macOS Sonoma 14.5 |
| Memory Card Supported | SD, microSD |
| Country of Origin | Vietnam |
| Height | 5.51" |
| Width | 5.51" |
| Depth | 1.57" |
| Memory Card Reader | Yes |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| HDMI | Yes |
| Network (RJ-45) | Yes |
| Maximum Power Supply Wattage | 180 W |
| Number of HDMI Outputs | 2 |
| Total Number of USB Ports | 5 |
| Total Number of Ports | 13 |
| Number of Displays Supported | 3 |
| Headphone/Microphone Combo Port | Yes |
| Number of RJ-45 Ports | 1 |
| Kensington Security Slot | Yes |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB-C® 3.2 Gen2 10Gbps (up to 15V/2A), 1 x USB-C® 3.2 Gen2 10Gbps (up to 5V/1.5A) |
| Number of USB Type-C Ports | 2 |
| Number of USB Type-A Ports | 3 |
| Product Color | Space Gray |
| Thunderbolt Ports Quantity | 2 |
| USB Power Delivery | 140W |
| Supported Resolutions | 3840 x 2160, 6144 x 3456, 1920 x 1080, 7680 x 4320 |
| Number of USB 3.2 Gen 2 Type-C Ports | 2 |
| Number of USB 3.2 Gen 1 Type-A Ports | 2 |
| Number of USB 3.2 Gen 2 Type-A Ports | 1 |
| USB Type-A | Yes |
| Screen Mode Supported | 4K @ 144Hz, 4K @ 60Hz, 6K @ 60Hz, 4K @ 240Hz, 4K @30Hz, FHD @ 120Hz, 8K @ 60Hz, 4K, 8K, 6K |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Number of Thunderbolt 5 Ports | 2 |
| Thunderbolt 5 | Yes |
