C2G 8RU Vertical Wall-Mount Cabinet with Split Door - 42in Height TAA
For Router, LAN Switch, Patch Panel - 8U Rack Height35.60" Rack Depth - Wall Mountable - Black - Steel - 150 lb Static/Stationary Weight Capacity - 5 Year Warranty - TAA Compliant
- SKU
- VWMSD-8RU-42-B
- Category
- Rack Equipment
MSRP$1,662.96
$980.27
Save 41%In stock: 24
Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- VWMSD-8RU-42-B
- Category
- Rack Equipment
Overview

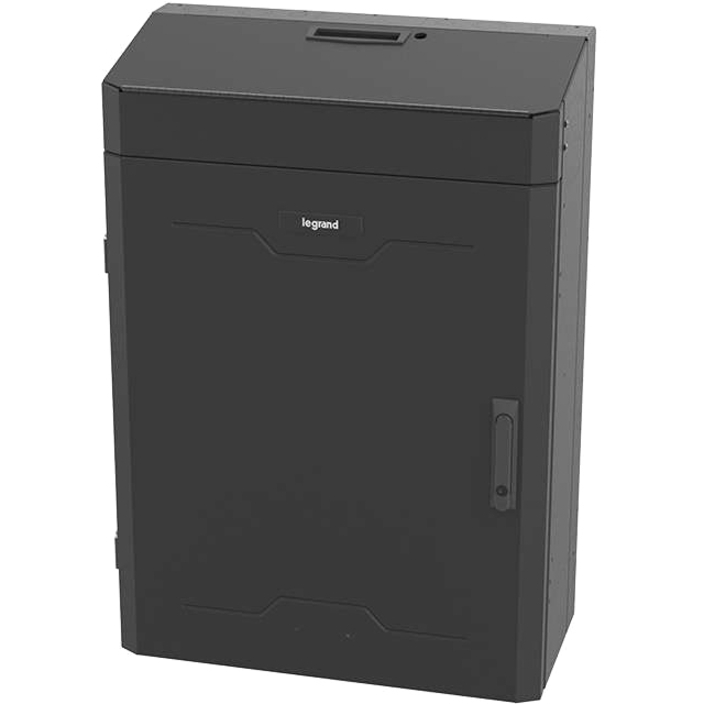

The Legrand VWM Series wall mount cabinets provide a ultra low profile and easy to use solution, perfect for secure networks, small data closets, retail, educational, edge computing, and all areas where floor space is limited.

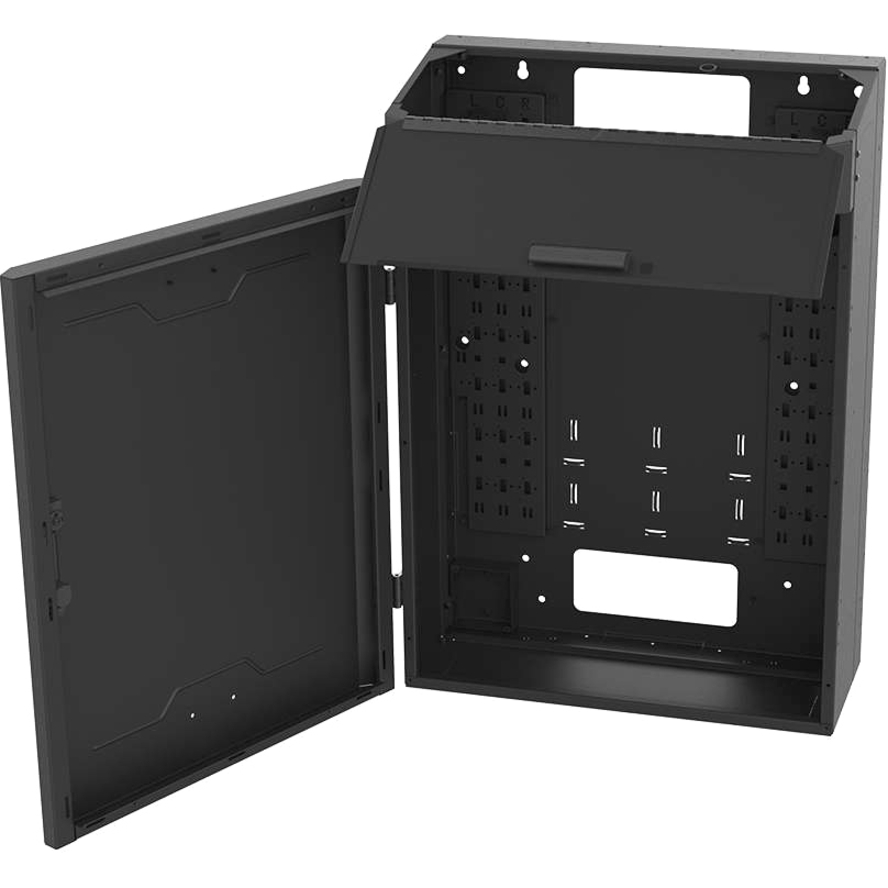

The split door design allows for user access at the top, while protecting critical equipment behind the front door. Mounting small routers, hubs, and computers that are non-rack mountable is also simplified with the optional patented Lever Lock equipment panels. When customized with many of the optional accessories, the vertical wall-mount cabinets can accommodate many complete computing combinations.
The VWM cabinets are made of rugged welded steel and have a UL 2416 certified load rating of 150 lbs. The small form factor cabinets are PCI compliant, have a 35.6" equipment mounting depth and feature solid locking doors that provides security for the installed equipment.
• Certified load rating of 150 lbs per UL2416
• Full swing handle
• Reversible hinged front locking door
• Split door design
• Patented Lever Lock System
• Versatile rail mounting locations
• Cable and fan knockouts
More from the Manufacturer
Highlights
- Low-Profile: 18" depth minimizes protrusion from the wall while still maintaining 8RU worth of equipment space
- Split Door Design: The split door design allows for separate access points, both locakable
- Deep Equipment Mounting: The vertical design accepts up to 36" deep equipment, accepting most switches and server designs in the market
- Versatile Rail Mounting Locations: 3 ways to mount the rack rails (left, center, right) allows for easy access to cable routing on the sides of mounted equipment
- Certified to UL2416: Load rating of up to 150 lbs (30 lbs on front door) and grounding and bonding support
- Pivoting Patching RU Rails: Dedicated pivoting rails for patching applications (2RU and 4RU) allowing for easier terminations at rear of panel
- Patented Lever Lock System: Supports Lever Lock panels on the rear pan and front door for mounting smaller equipment
- Reversible Door: Door can be field-reversed and pivot from either the left or right side of the cabinet
- Cable and Fan Knockouts: Contains knockout points for installation of fans or cable/conduit passthrough
Specifications
| Application/Usage | Router, LAN Switch, Patch Panel |
|---|---|
| Product Type | Rack Cabinet |
| Manufacturer Part Number | VWMSD-8RU-42-B |
| Limited Warranty | 5 Year |
| Weight (Approximate) | 95 lb |
| Form Factor | Wall Mountable |
| Manufacturer | Legrand Group |
| Product Name | 8RU Vertical Wall-Mount Cabinet with Split Door - 42in Height TAA |
| Product Series | VWM |
| Rack Height | 8U |
| Brand Name | C2G |
| Country of Origin | United States |
| Height | 42" |
| Width | 26" |
| Depth | 18" |
| Environmentally Friendly | Yes |
| Static/Stationary Weight Capacity | 150 lb |
| Rack Depth | 35.60" |
| TAA Compliant | Yes |
| Product Color | Black |
| Color Family | Black |
| Product Material | Steel |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
