Eaton Tripp Lite Series SmartRack 8U/12U/22U Expandable Ultra Low-Profile Patch-Depth Wall-Mount 2-Post Open Frame Rack

The SRWO8U22SD SmartRack 8U/12U/22U Expandable Ultra Low-Profile Patch-Depth Wall-Mount 2-Post Open Frame Rack is ideal for installing patch panels and other shallow networking equipment in secure IT areas with limited floor space. Mounted to the wall or resting on the floor, this rack offers fast, easy access to network components and cabling. It's compatible with EIA-standard 19-inch rack equipment that supports two-post mounting and a maximum mounting depth of 5.75 inches.

Constructed from heavy-duty steel in a durable black powder-coated finish, the open-frame rack has a maximum load capacity of 150 pounds. The expandable design allows you to assemble the rack in an 8U, 12U or 22U configuration to meet your current needs, while leaving rack space in reserve for future expansion. It saves precious space and allows IT managers easy access for organizing, installing and servicing equipment and cabling.

The rack is easy to assemble using the included hardware. The vertical mounting rails have threaded 12-24 holes for securing equipment to the steel frame.

More from the Manufacturer

Expandable to Fit Future Rackmount Equipment Needs

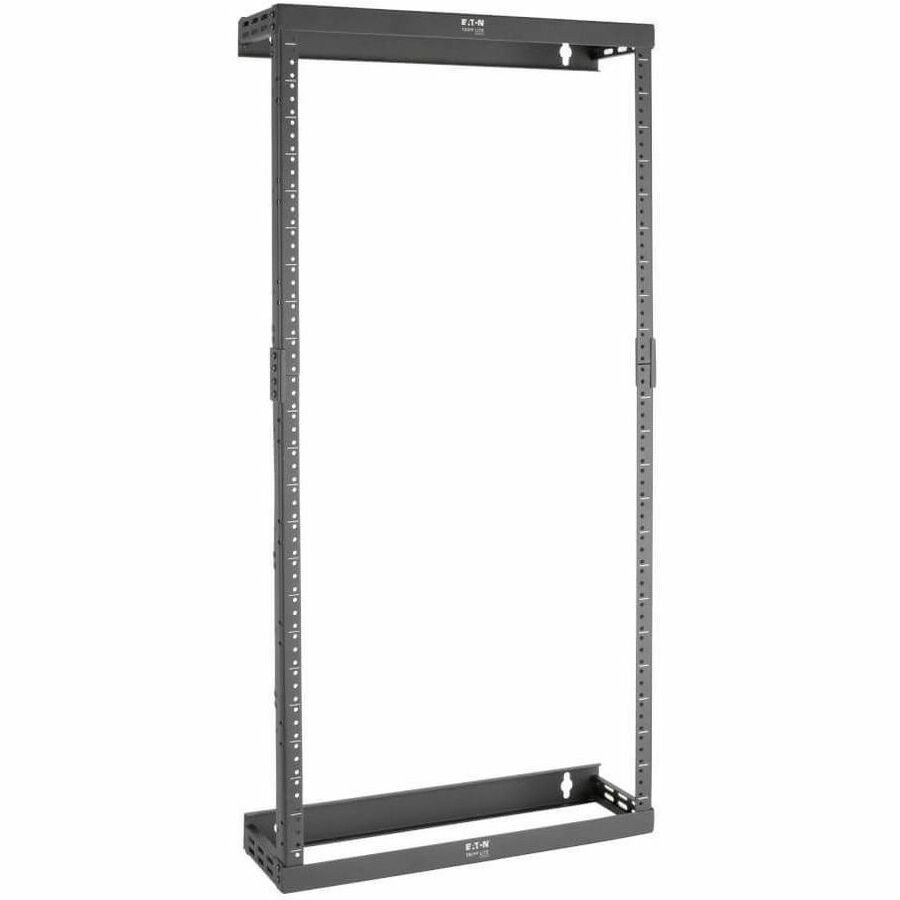

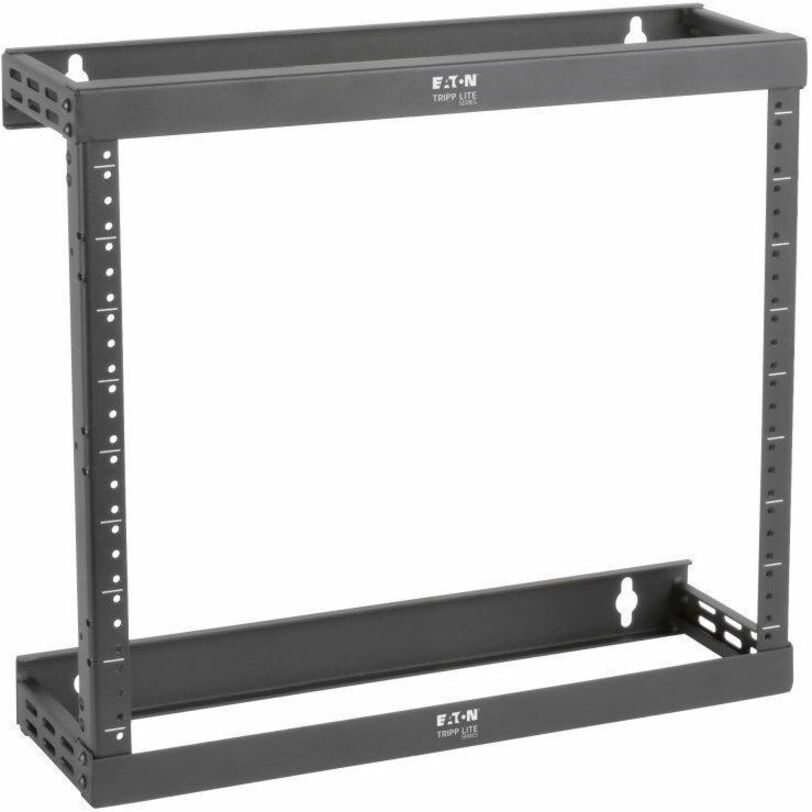

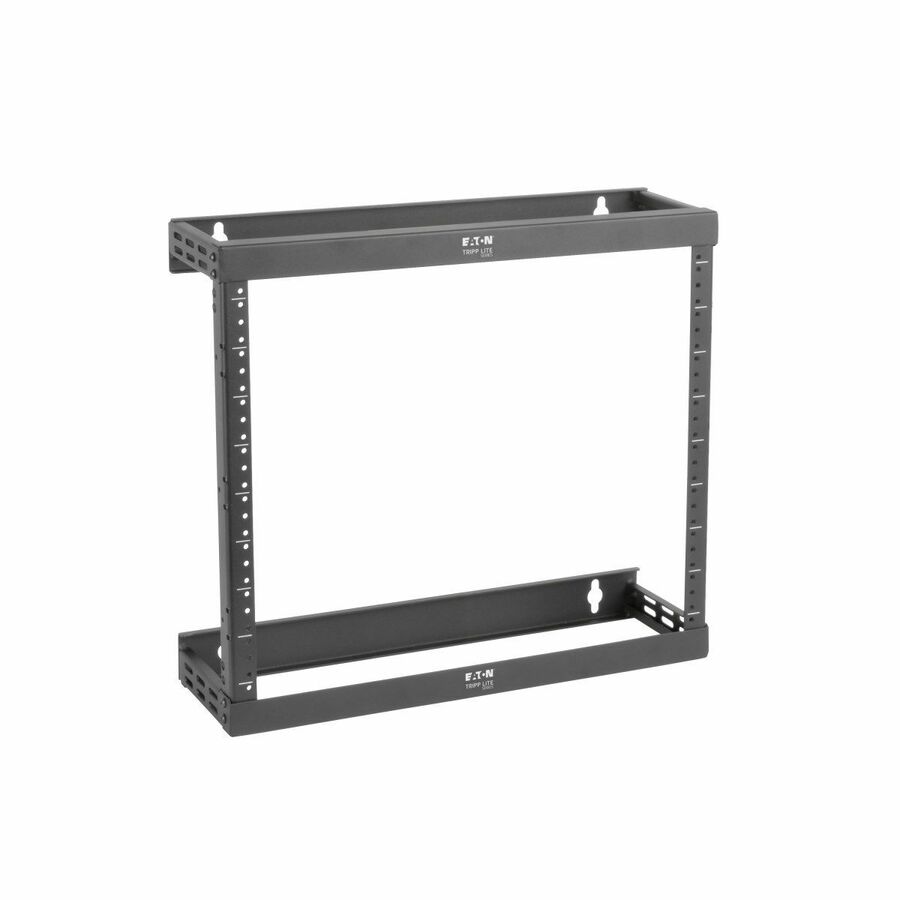

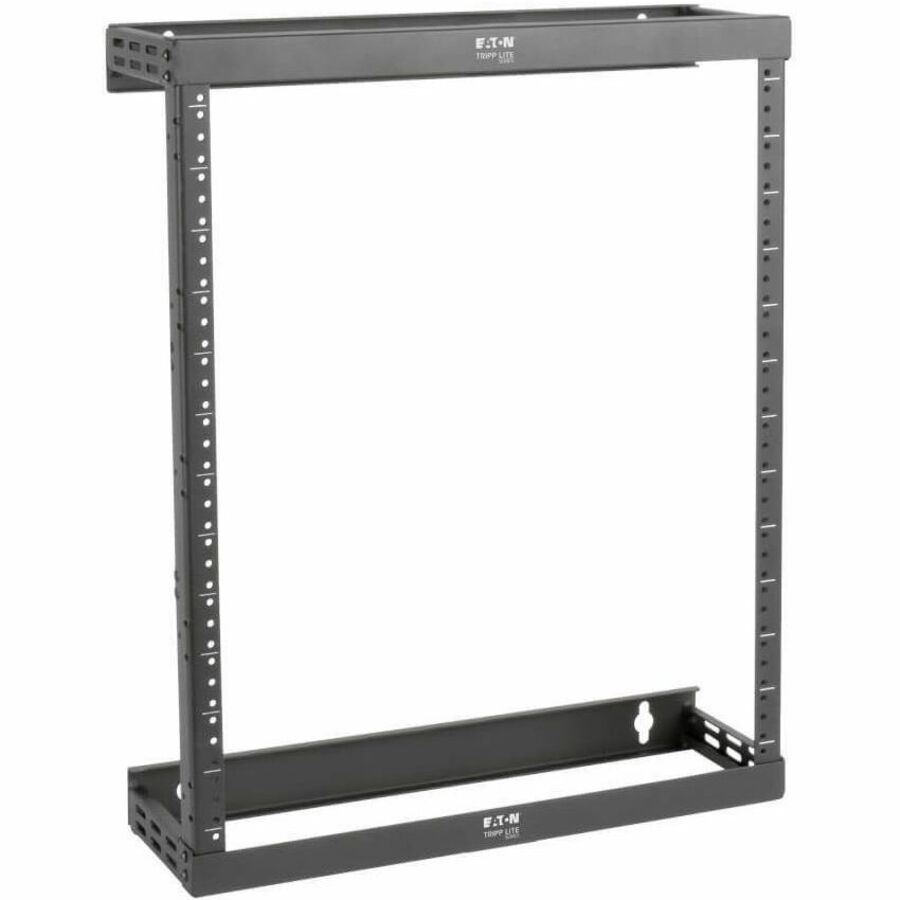

The expandable design allows you to assemble the SRWO8U22SD in an 8U, 12U or 22U configuration. It saves precious space and allows IT managers easy access for organizing, installing and servicing equipment and cabling. Mounted to the wall or resting on the floor, it offers fast, easy access to network components and cabling.

Easy Equipment Installation and 5-Year Warranty

The SRWO8U22SD is compatible with EIA-standard 19 inches rack equipment that supports post mounting and a maximum mounting depth of 5.75 inches. The vertical mounting rails have threaded 12-24 holes. Equipment mounting screws are included. Wall-mounting holes are spaced 16 inches apart to accommodate standard wall stud placement.

The SRWO8U22SD comes with a 5-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
