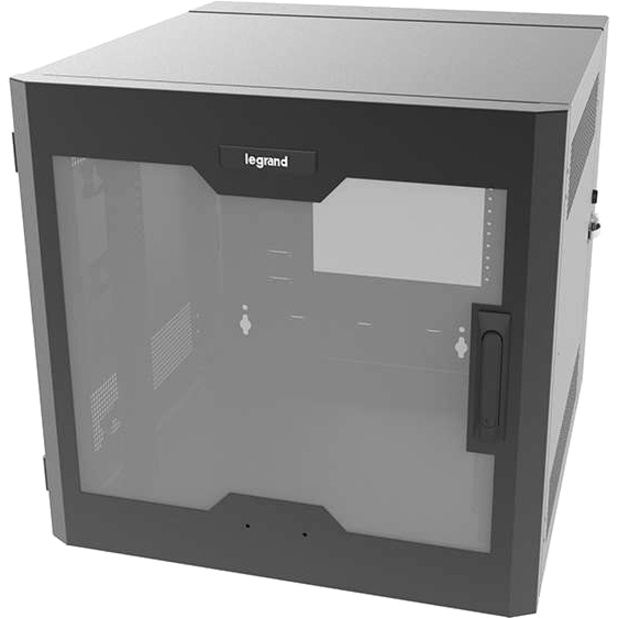

C2G 26RU Swing-Out Wall-Mount Cabinet with Plexiglass Door-Black-TAA
Legrand

C2G 26RU Swing-Out Wall-Mount Cabinet with Plexiglass Door-Black-TAA

26U Rack Height - Wall Mountable - Black - Steel, Plexiglas - 300 lb Static/Stationary Weight Capacity - 5 Year Warranty - TAA Compliant

SKU
SWM26RUPL-26-26
Category
Rack Equipment

MSRP$2,027.82

$1,434.42

Save 29%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
SWM26RUPL-26-26
Category
Rack Equipment

Overview

The Legrand SWM Series wall mount cabinets provide a convenient and easy to use solution, perfect for secure networks, small data closets, retail, educational, edge computing, and all areas where floor space is limited.

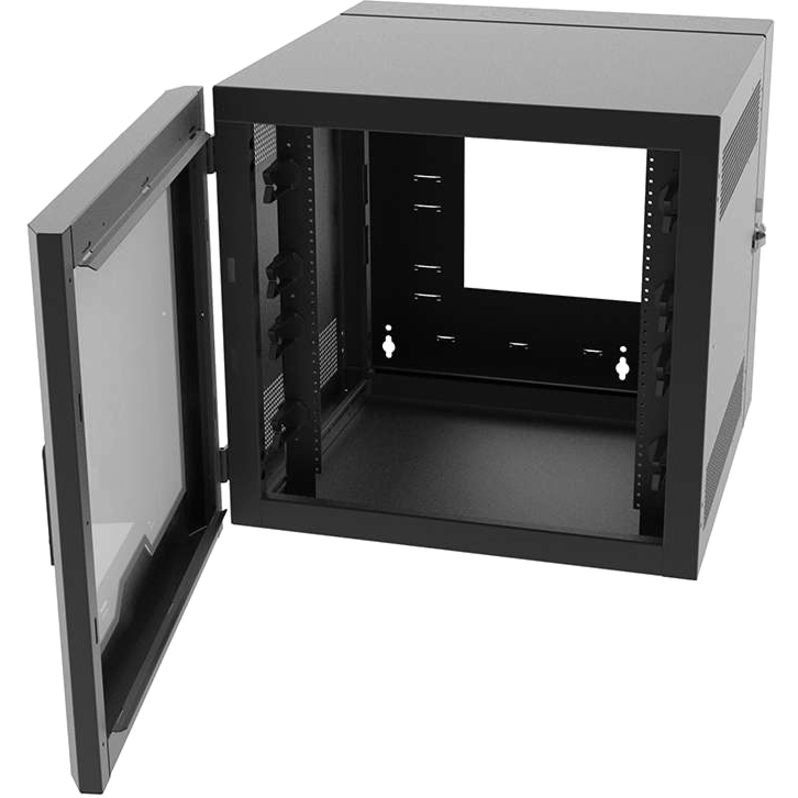

The SWM Series wall mount cabinets ship completely assembled which speeds installation time. The hinged, swing out middle section provides easy accessibility to the front and the rear of the equipment while mounted to the wall.

The SWM cabinets are made of rugged welded steel and have a UL 2416 certified load rating of 300 lbs. The small form factor cabinets are PCI compliant, have a 23.5" equipment mounting depth and feature a solid locking door that provides security for the installed equipment.

• Certified load rating of 300 lbs per UL2416

• Full swing handle

• Reversible hinged solid front locking door

• Vented sides with mounting locations for optional cooling fans

• 12-24 threaded mounting holes

• Universal mounting pattern for industry standard PDUs

• Cable knockouts at top and bottom of fixed rear pan

• Large cutout in rear pan for access to wall

Highlights

  • Wall-Mounted: Perfect for applications and areas where floor space is at a premium
  • Secure: Features a locking plexiglass front, reversible hinged door
  • Rugged Construction: Welded steel construction with 300lb load rating per UL2416
  • Adjustable Rack Space: Inside 26 RU EIA rack rails are adjustable
  • Bonding and Grounding: UL2416 bonding and grounding
  • Deep Footprint: Mount up to 23.5" deep equipment in the cabinet
  • Rear Cable Entry:Large cable cut-out at rear of cabinet for large cable bundles through the wall and several smaller cable egress knockouts on rear panel
  • Included Cable Rings: Includes front cable management rings

Specifications

Package Contents
  • 26RU Swing-Out Wall-Mount Cabinet with Plexiglass Door-Black-TAA
  • 2 x Front Mounting Rails
  • 2 x Front Door Lock Keys
  • 8 x Cable Management Rings
  • Owner's Manual
Product TypeRack Cabinet
Manufacturer Part NumberSWM26RUPL-26-26
Limited Warranty5 Year
Weight (Approximate)139 lb
Form FactorWall Mountable
ManufacturerLegrand Group
Product Name26RU Swing-Out Wall-Mount Cabinet with Plexiglass Door-Black-TAA
Product SeriesSWM
Rack Height26U
Brand NameC2G
Country of OriginUnited States
Assembly RequiredNo
Height49.4"
Width26"
Depth28"
Environmentally FriendlyYes
Static/Stationary Weight Capacity300 lb
TAA CompliantYes
Product ColorBlack
Color FamilyBlack
Product MaterialSteel, Plexiglas
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
