SKU
SWM26RUPD-26-26
Category
Rack Equipment
Overview
The Legrand SWM Series wall mount cabinets provide a convenient and easy to use solution, perfect for secure networks, small data closets, retail, educational, edge computing, and all areas where floor space is limited.

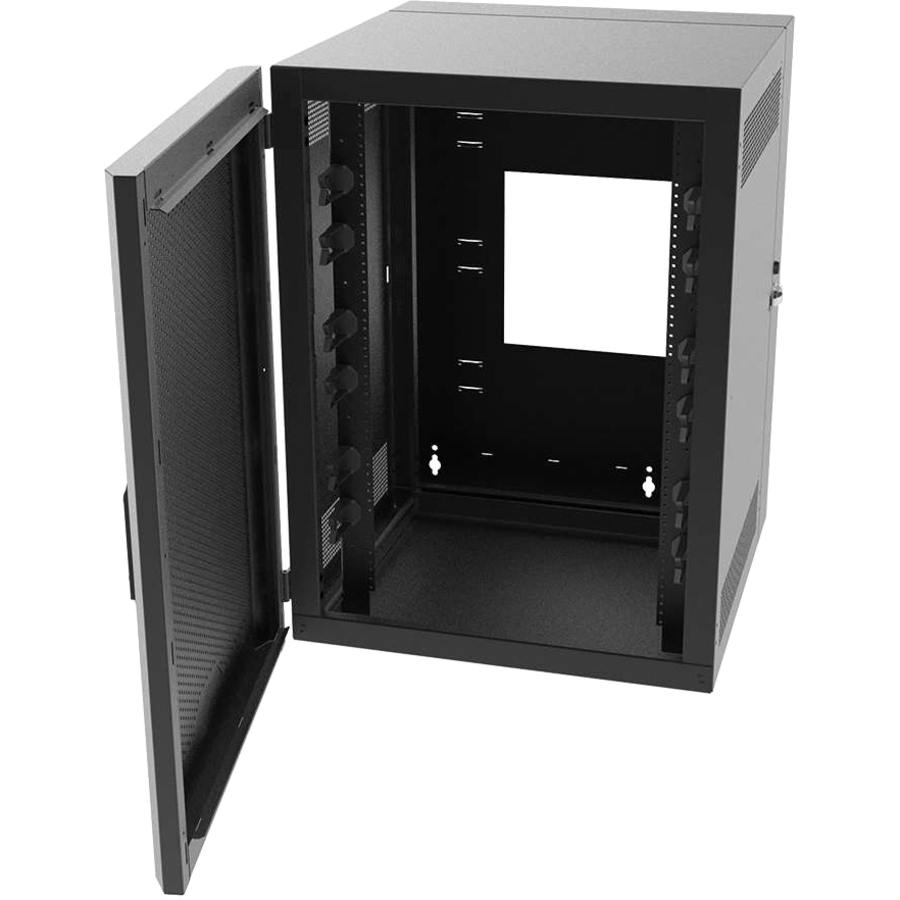

The SWM Series wall mount cabinets ship completely assembled which speeds installation time. The hinged, swing out middle section provides easy accessibility to the front and the rear of the equipment while mounted to the wall.
The SWM cabinets are made of rugged welded steel and have a UL 2416 certified load rating of 300 lbs. The small form factor cabinets are PCI compliant, have a 23.5" equipment mounting depth and feature a solid locking door that provides security for the installed equipment.
• Certified load rating of 300 lbs per UL2416
• Full swing handle
• Reversible hinged plexiglass front locking door
• Vented sides with mounting locations for optional cooling fans
• 12-24 threaded mounting holes
• Universal mounting pattern for industry standard PDUs
• Cable knockouts at top and bottom of fixed rear pan
• Large cutout in rear pan for access to wall
Highlights
Wall-Mounted: Perfect for applications and areas where floor space is at a premium
Secure: Features a locking perforated front, reversible hinged door
Rugged Construction: Welded steel construction with 300lb load rating per UL2416
Bonding and Grounding: UL2416 bonding and grounding
Deep Footprint: Mount up to 23.5" deep equipment in the cabinet
Rear Cable Entry:Large cable cut-out at rear of cabinet for large cable bundles through the wall and several smaller cable egress knockouts on rear panel
Included Cable Rings: Includes front cable management rings
Specifications
Package Contents
26RU Swing-Out Wall-Mount Cabinet with Perforated Door-Black-TAA
2 x Front Mounting Rails
2 x Front Door Lock Keys
8 x Cable Management Rings
Owner's Manual
Product Type
Rack Cabinet
Manufacturer Part Number
SWM26RUPD-26-26
Limited Warranty
5 Year
Weight (Approximate)
139 lb
Form Factor
Wall Mountable
Manufacturer
Legrand Group
Product Name
26RU Swing-Out Wall-Mount Cabinet with Perforated Door-Black-TAA
