Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
999-9950-200
Category
WebCams
Overview

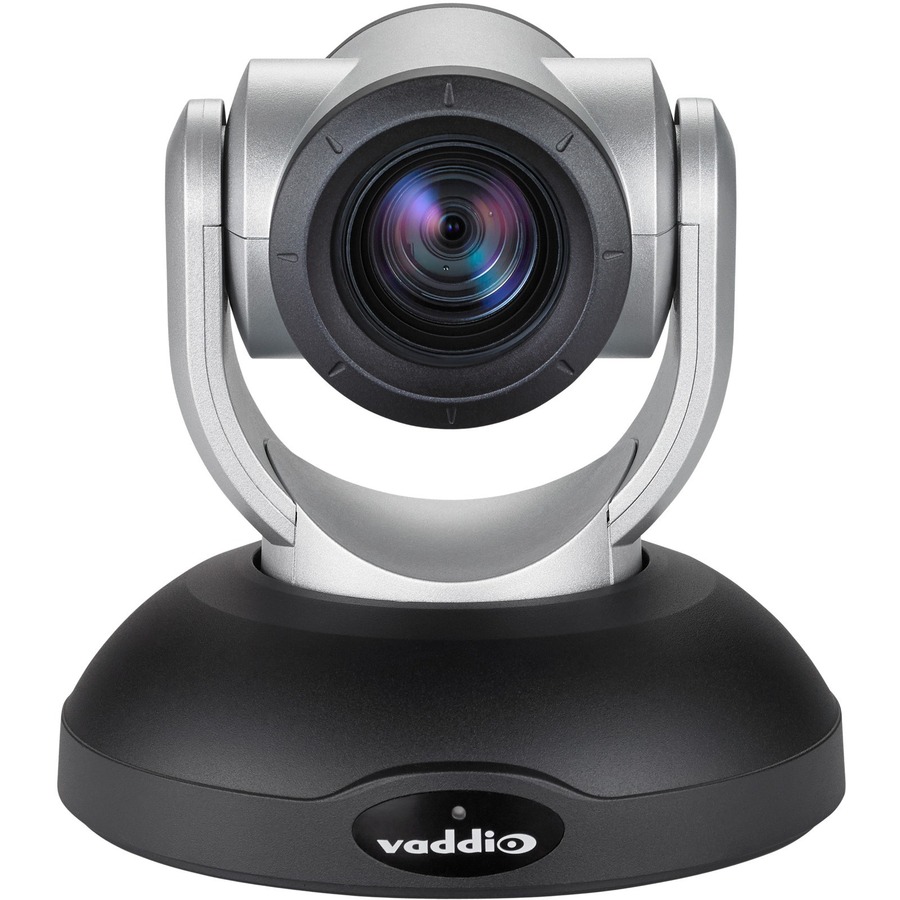

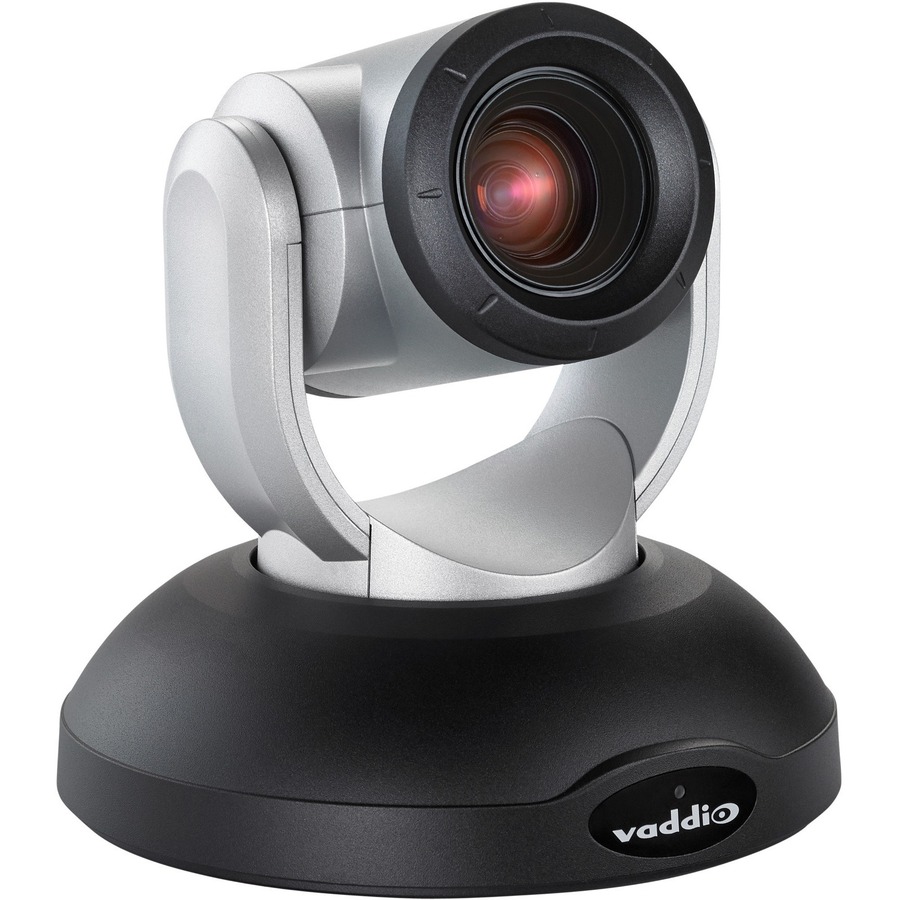

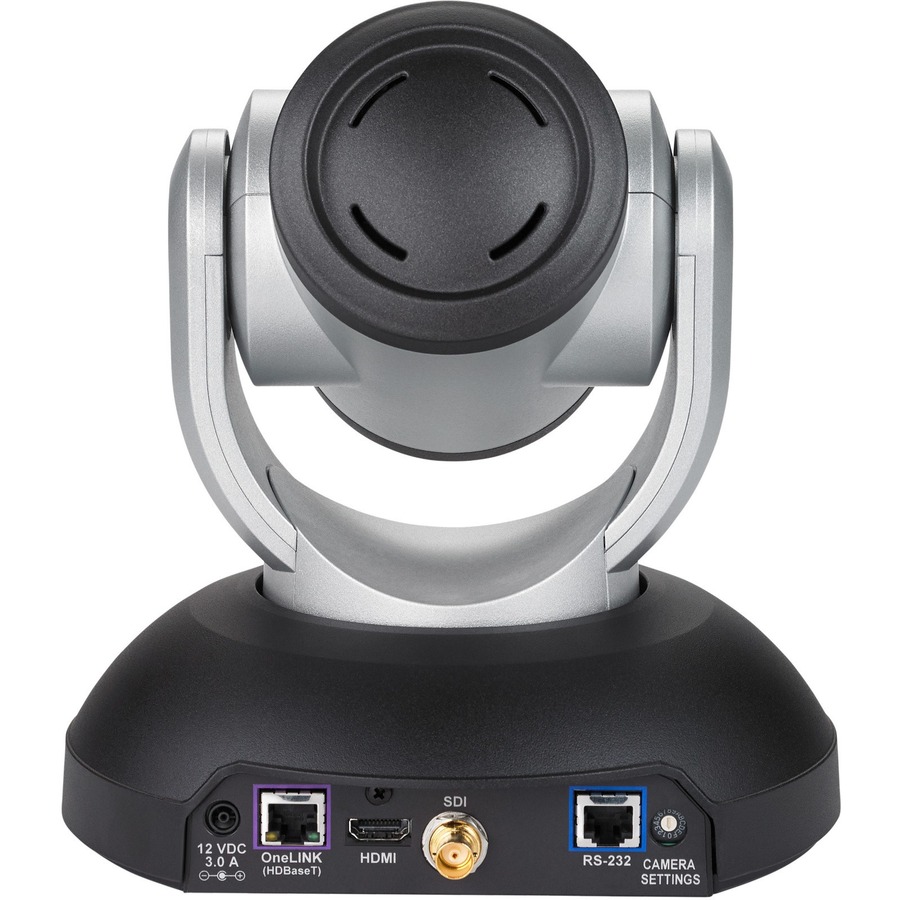

Ultra HD (4K) PTZ camera with pristine image quality and outstanding low-light performance. Enterprise-class features include administrative control and remote operation via web interface and IP streaming. Designed for use in medium to large spaces for applications such as higher education, corporate broadcast and houses of worship.
Total zoom range of 20x: 12x optical zoom lens with seamless transition to 1.67x digital zoom. 1/2.3-type, high-speed, low noise, back-illuminated CMOS sensor with 9.03 total megapixels yields native UHD 2160p/30 (3840 x 2160) video images without scaling.
With a 74-degree wide horizontal field of view and built in CCU with browser configuration, the RoboSHOT 20 UHD provides great flexibility in a variety of applications including video production, live events, lecture capture, and conferencing
Warranty
Limited Warranty: 2 Year
About Legrand
Vaddio designs, develops, and manufactures professional audio and video equipment for the audiovisual, collaboration and production markets. Vaddio solutions combine enterprise class performance with system-configured design and are easy to install and easy to use. Backed by industry-leading support, Vaddio products enhance any collaboration experience by elevating the science of communication with the Art of Easy.
Highlights
Simple, clutter-free camera extension with HDBaseT technology
Power, video and control over a single Cat-5e cable up to 230 ft. (70m), or over a Cat-6 cable up to 328 ft. (100m)
Bridges audio and video for easy soft-client conferencing

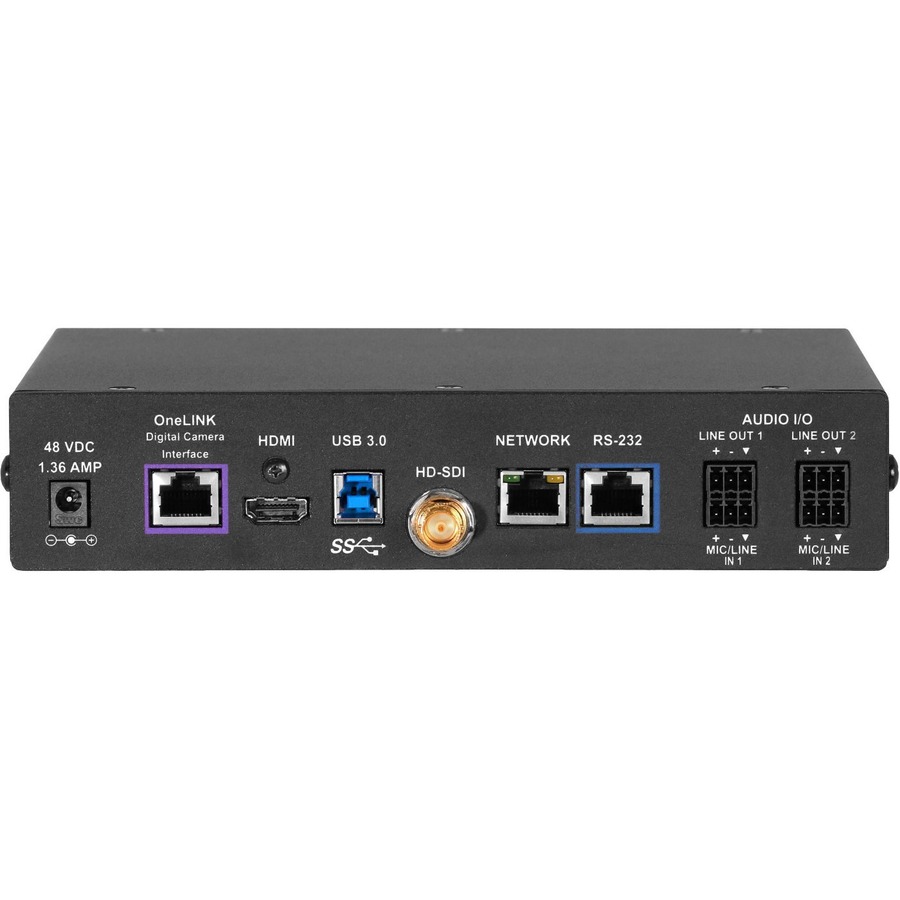

Simultaneous HDMI, USB 3.0, IP Streaming, and HD-SDI outputs
Configurable audio matrix with AEC
Up to 1080p/60 resolution available over uncompressed USB
Videos
Vaddio RoboSHOT 20 UHD OneLINK Bridge System
Specifications
Display & Graphics
Effective Resolution
8.9 Megapixel
Interpolated Resolution
9 Megapixel
Maximum Video Resolution
3840 x 2160
Maximum Frame Rate
30 fps
Image Sensor Type
Exmor R CMOS
General Information
Manufacturer
Legrand Group
Manufacturer Part Number
999-9950-200
Brand Name
Vaddio
Product Line
RoboSHOT
Product Name
RoboSHOT 20 UHD OneLINK Bridge System
Product Type
Video Conferencing Camera
Interfaces/Ports
Network (RJ-45)
Yes
HDMI Out
Yes
Lens
Focus Modes
Auto/Manual
Digital Zoom
1.7x
Physical Characteristics
Product Color
Silver, Black
Height
7.9"
Width
8"
Depth
7.7"
Weight (Approximate)
6 lb
Warranty
Limited Warranty
2 Year
Miscellaneous
Package Contents
RoboSHOT 20 UHD OneLINK Bridge System
Thin Profile Wall Mount with Mounting Hardware and Installation Manual
