Overview
New! Vaddio Deployment Tool
Simplify installations by viewing all your Vaddio products across a deployment on one screen with the simple click of a button. The Vaddio Deployment Tool enables you to select devices from the network, choose an action like rebooting the device, unmute the audio, or updating firmware and voilà! - remote troubleshooting success. You can even conduct mass firmware updates on hundreds of devices all at once, which saves you a lot of time.

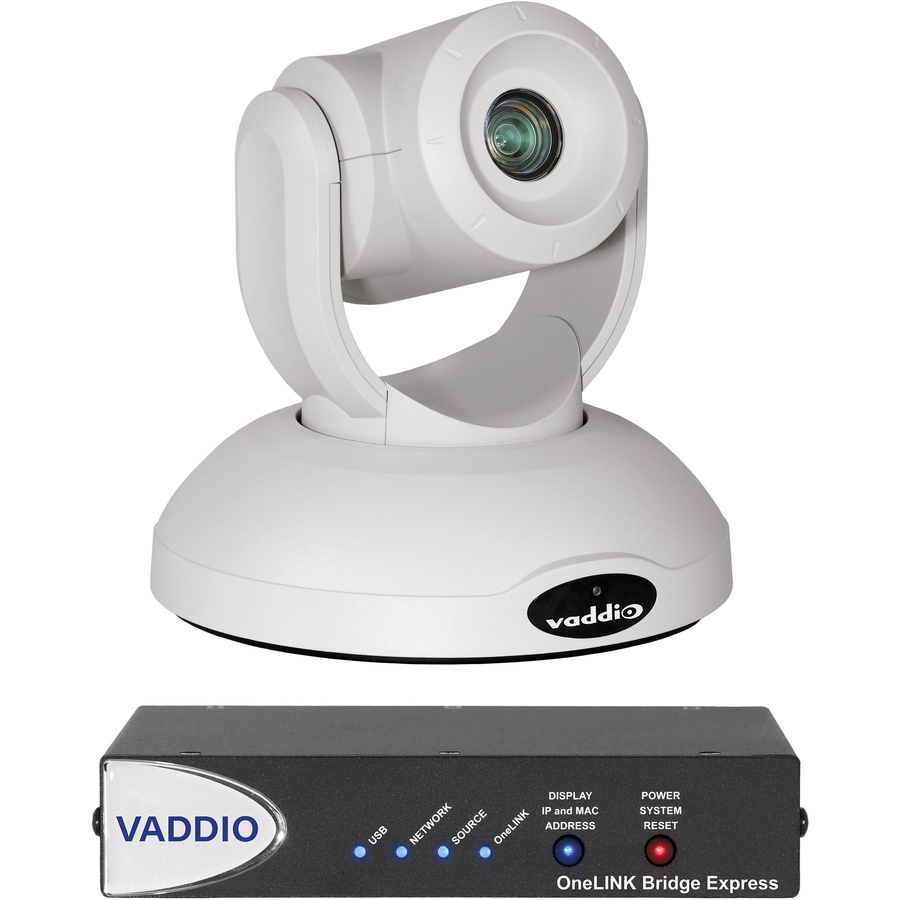

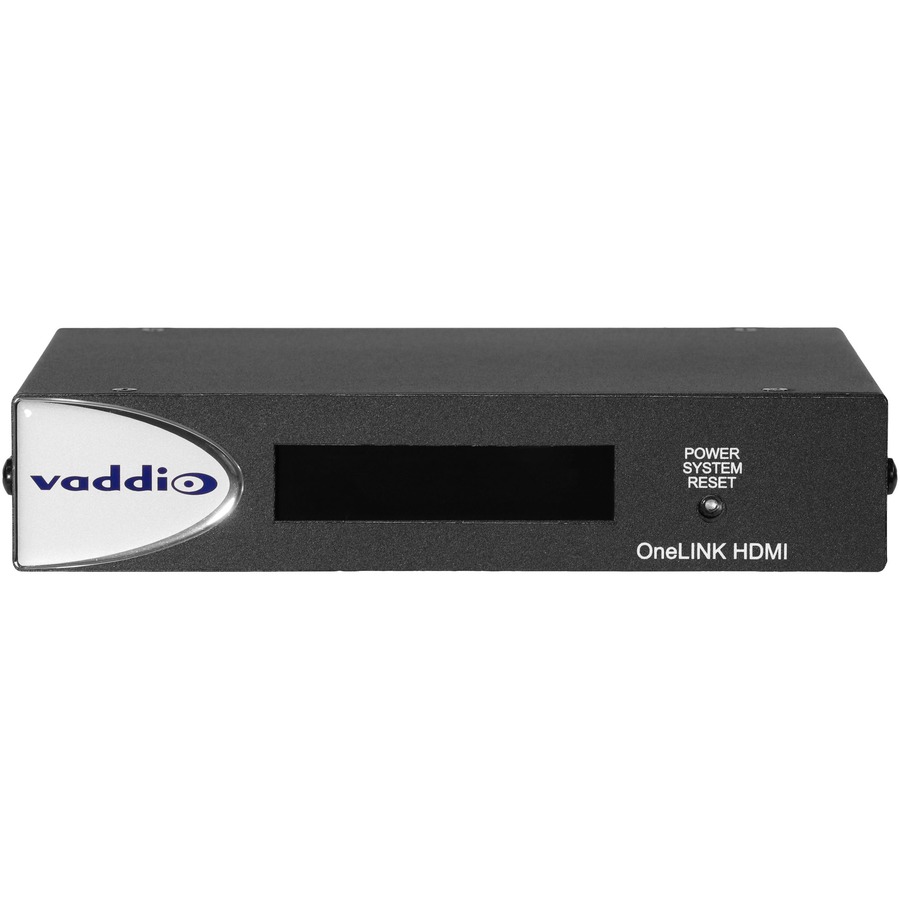

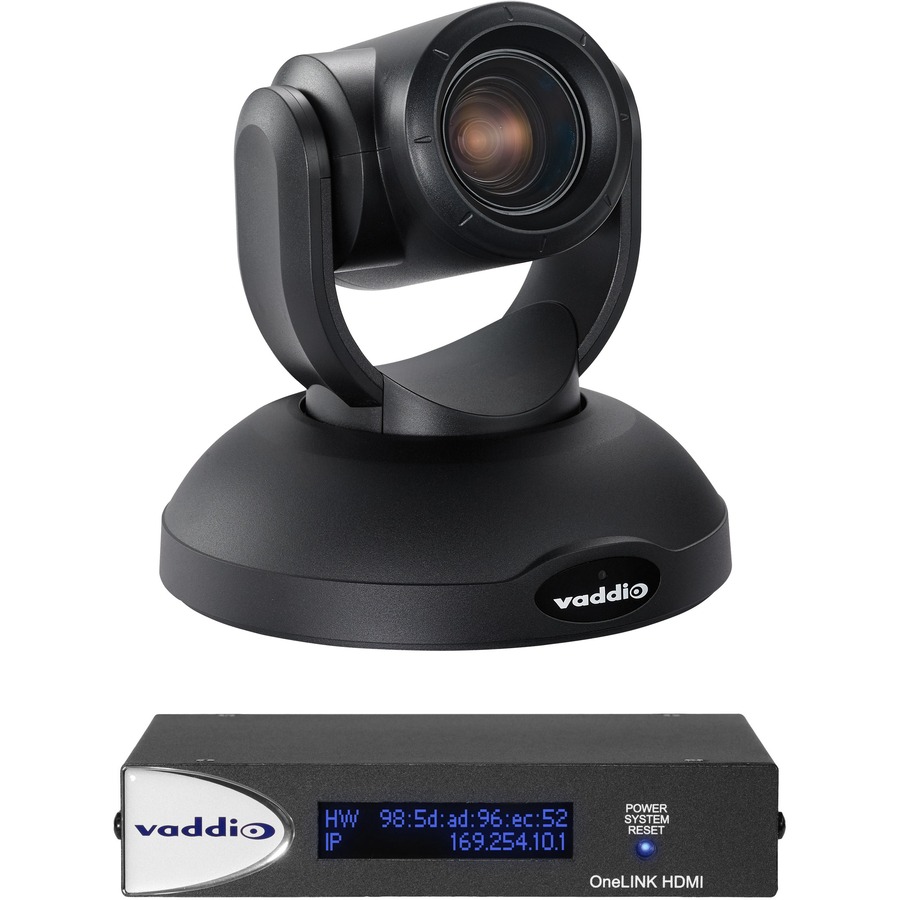

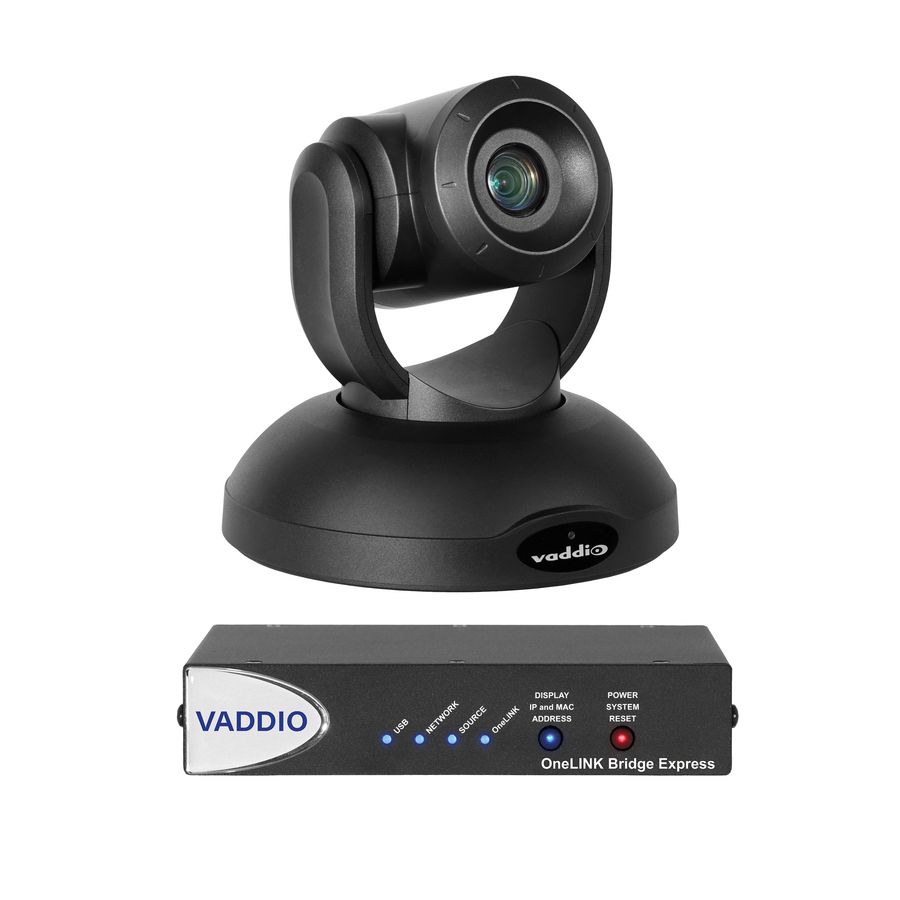

RoboSHOT 20 UHD OneLINK HDMI PTZ Camera System combines a powerful Ultra HD PTZ camera with Vaddio's robust OneLINK HDMI for clean camera extension.

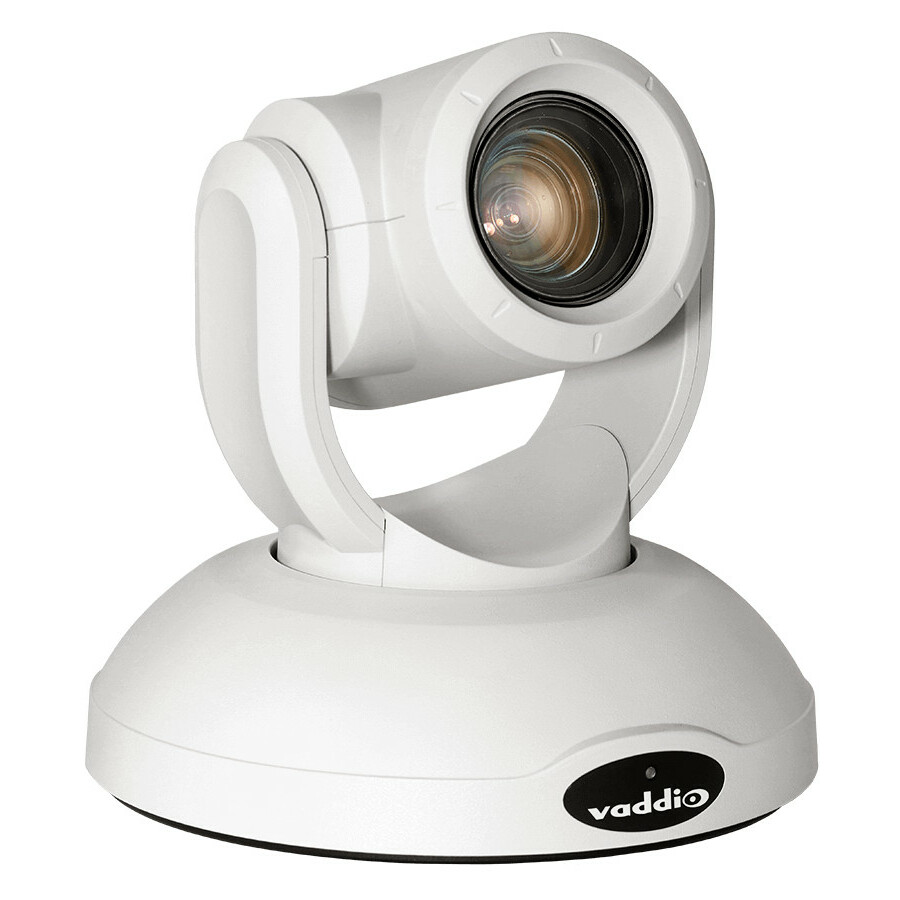

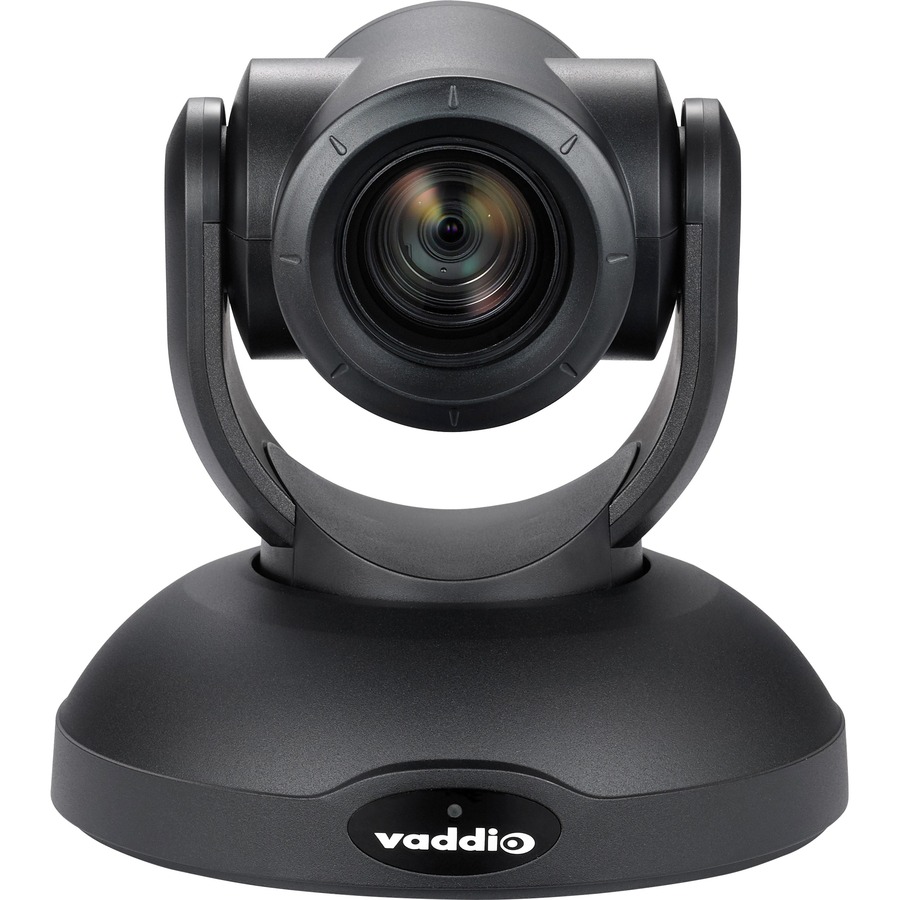

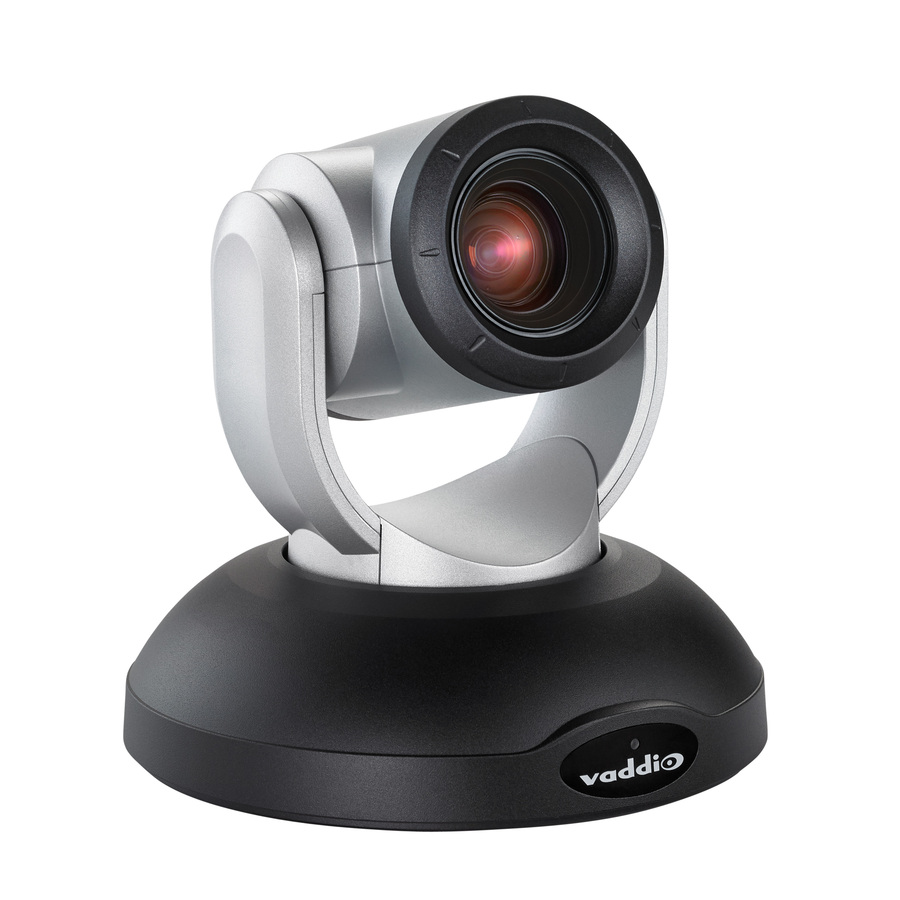

The RoboSHOT 20 Ultra HD has pristine image quality and outstanding low-light performance. Enterprise-class features include administrative control and remote operation via web interface and IP streaming. Designed for use in medium to large spaces for applications such as higher education, corporate broadcast and houses of worship.
Total zoom range of 20x: 12x optical zoom lens with seamless transition to 1.67x digital zoom. 1/2.3-type, high-speed, low noise, back-illuminated CMOS sensor with 9.03 total megapixels yields native UHD 2160p/30 (3840 x 2160) video images without scaling.
With a 74-degree wide horizontal field of view and built in CCU with browser configuration, the RoboSHOT 20 UHD provides great flexibility in a variety of applications including video production, live events, lecture capture, and conferencing.
Warranty
Limited Warranty: 3 Year
About Legrand
Vaddio designs, develops, and manufactures professional audio and video equipment for the audiovisual, collaboration and production markets. Vaddio solutions combine enterprise class performance with system-configured design and are easy to install and easy to use. Backed by industry-leading support, Vaddio products enhance any collaboration experience by elevating the science of communication with the Art of Easy.
Highlights
Back-illuminated 9.03 Megapixel, ultra high definition 1/2.3-type sensor delivers native 2160p/30 (3840 x 2160) video
Horizontal field of view 74° (wide) to 4.8° (tele) at 20x

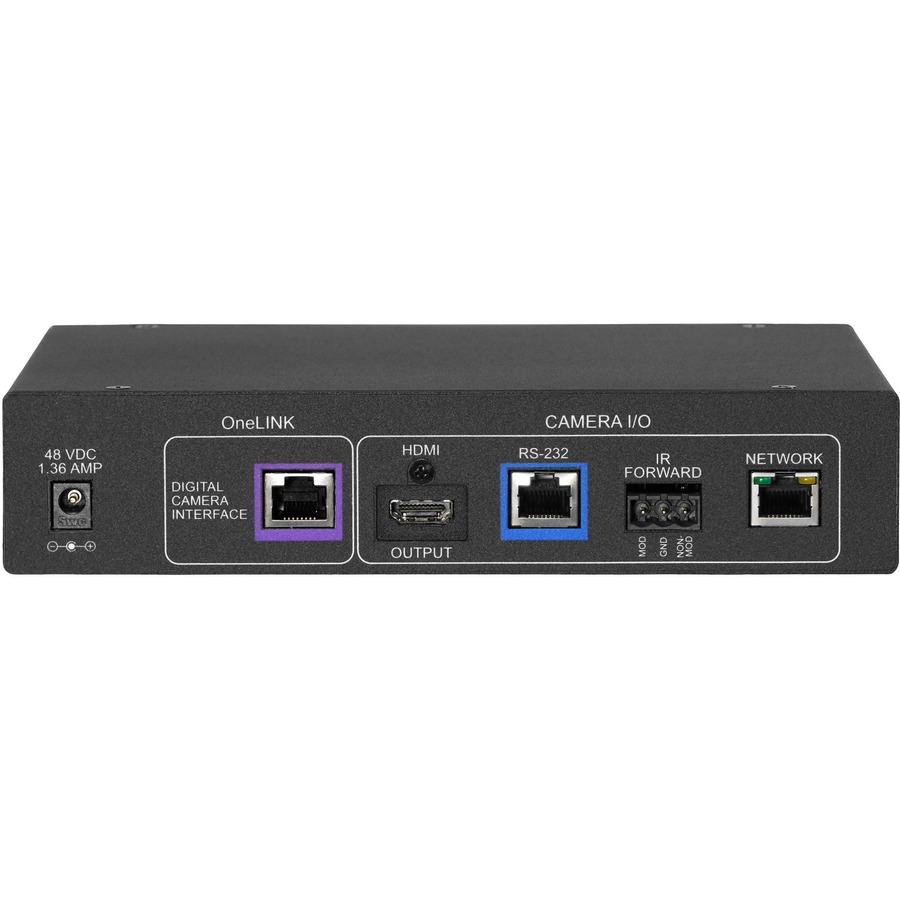

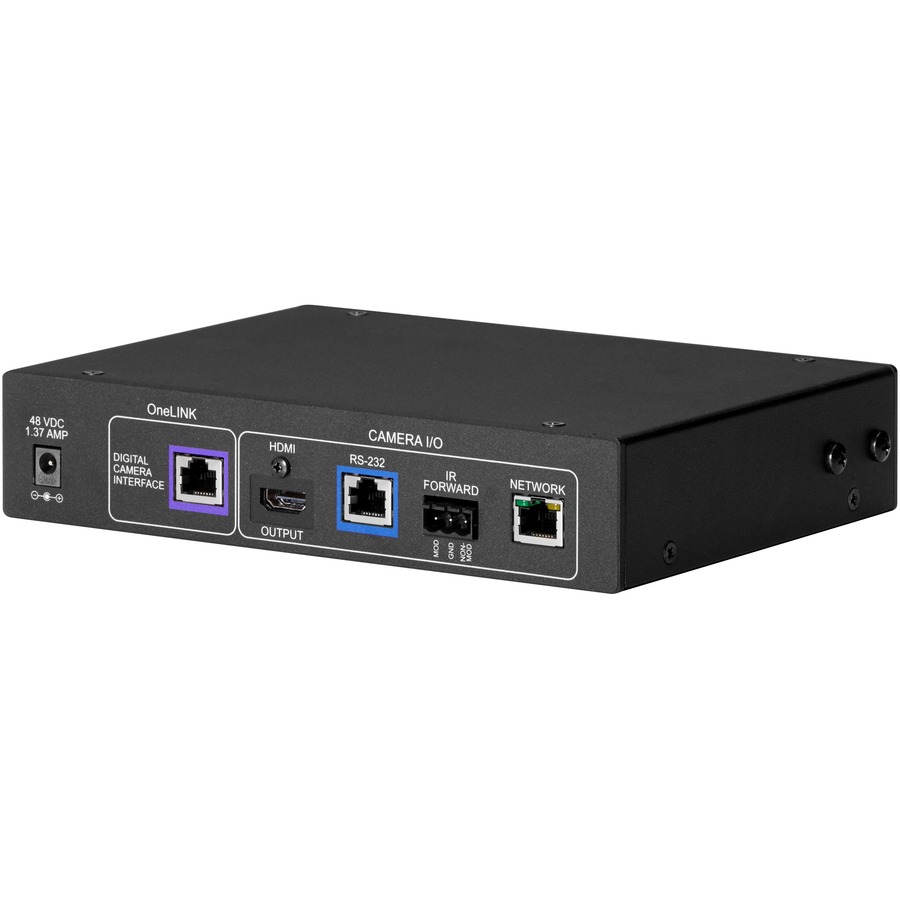

Simple, clutter-free camera extension with HDBaseT technology
Power, video and control over a single Cat-5e cable up to 230 ft. (70m), or over a Cat-6 cable up to 328 ft. (100m)
Simultaneous HDMI and IP Streaming outputs
Specifications
Display & Graphics
Effective Resolution
8.9 Megapixel
Interpolated Resolution
9 Megapixel
Maximum Video Resolution
3840 x 2160
Image Sensor Type
Exmor R CMOS
Field Of View (FOV) Angle
74°
General Information
Manufacturer
Legrand Group
Manufacturer Part Number
999-9950-100B
Brand Name
Vaddio
Product Line
RoboSHOT
Product Name
RoboSHOT 20 UHD OneLINK HDMI PTZ Camera System
Product Type
Video Conferencing Camera
Interfaces/Ports
HDMI Out
Yes
Lens
Focus Modes
Auto/Manual
Digital Zoom
1.7x
Physical Characteristics
Product Color
Black
Mounting Type
Wall
Height
7.9"
Width
8"
Depth
7.7"
Weight (Approximate)
6 lb
Warranty
Limited Warranty
3 Year
Miscellaneous
Package Contents
RoboSHOT 20 UHD OneLINK HDMI PTZ Camera System
Thin Profile Wall Mount with Mounting Hardware and Installation Manual
