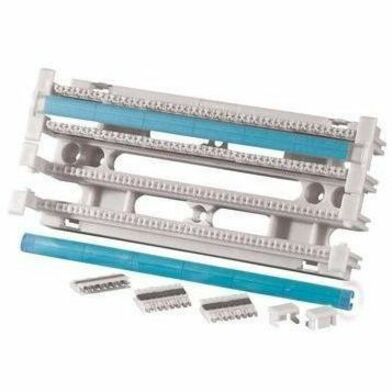

Ortronics 110 BLOCK,CAT6 96PR
Category 6, Category 5e - White - Wall Mountable, Rack-mountable
- SKU
- 110DBC6100
- Category
- Patch Panels
MSRP$149.50
$105.75
Save 29%Back ordered — ships when restocked.
Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 110DBC6100
- Category
- Patch Panels
Overview
The Clarity® family of 110 blocks combines Category 6 and 5e performance with the ease and reliability of 110 termination and installer friendly features all within the traditional 110 block footprint. Clarity blocks are available in 50, 100 and 300-pair sizes, providing designation areas and rear cable entry. Clarity 6 blocks use a signal feedback technique internal to the C6110C4 connector to control crosstalk without compromising impedance. Clarity 6 and Clarity 5E block kits include base wiring block, 110C connecting blocks and label holders for designation.
Highlights
- ETL third party tested and verified Category 6 performance.
- Openings between wiring rows allow horizontal cables to be routed from the rear of the block.
- Color-coded 110 connecting blocks.
- Supports consolidation point applications.
- Wall or rack mountable.
- Backwards compatibility.
- C6110C4 connector has printed circuit board to improve performance.
Specifications
| Package Contents |
|
|---|---|
| Product Type | Network Patch Panel |
| Manufacturer Part Number | 110DBC6100 |
| Limited Warranty | 5 Year |
| Form Factor | Wall Mountable, Rack-mountable |
| Manufacturer | Legrand Group |
| Product Name | 110 BLOCK,CAT6 96PR |
| Product Line | Clarity |
| Brand Name | Ortronics |
| Country of Origin | United States |
| Height | 3.6" |
| Width | 8.1" |
| Depth | 1.6" |
| Twisted Pair Cable Standard | Category 6, Category 5e |
| Product Color | White |
| Color Family | White |
