Lantronix

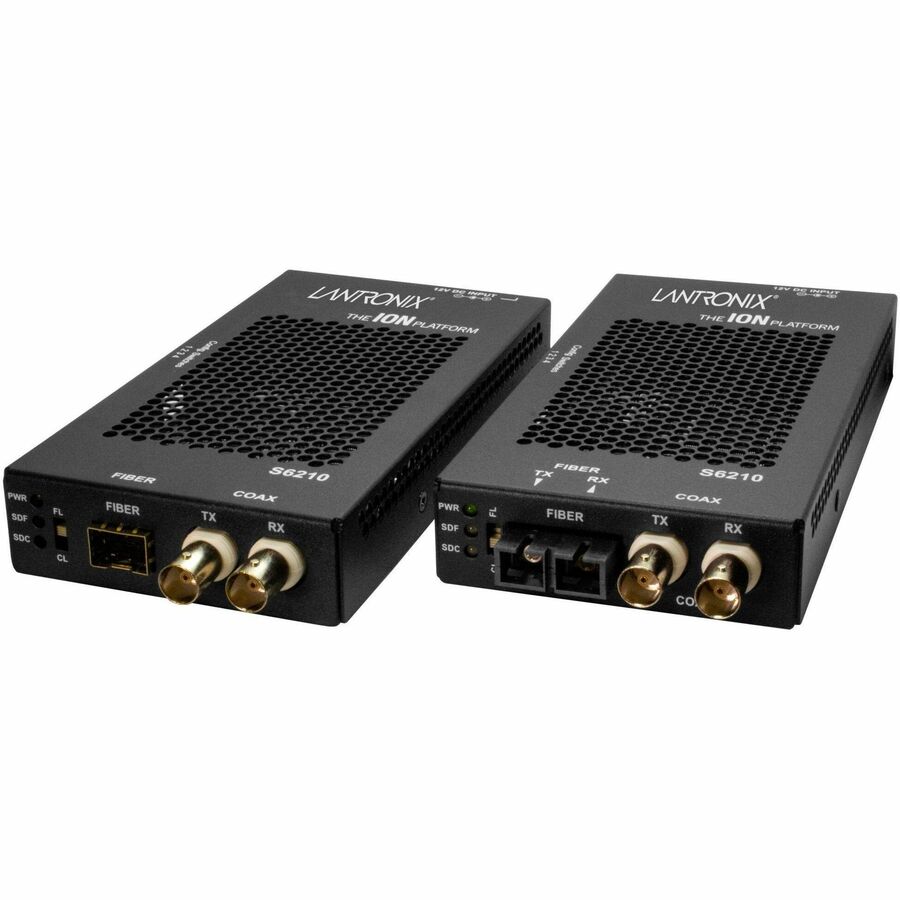

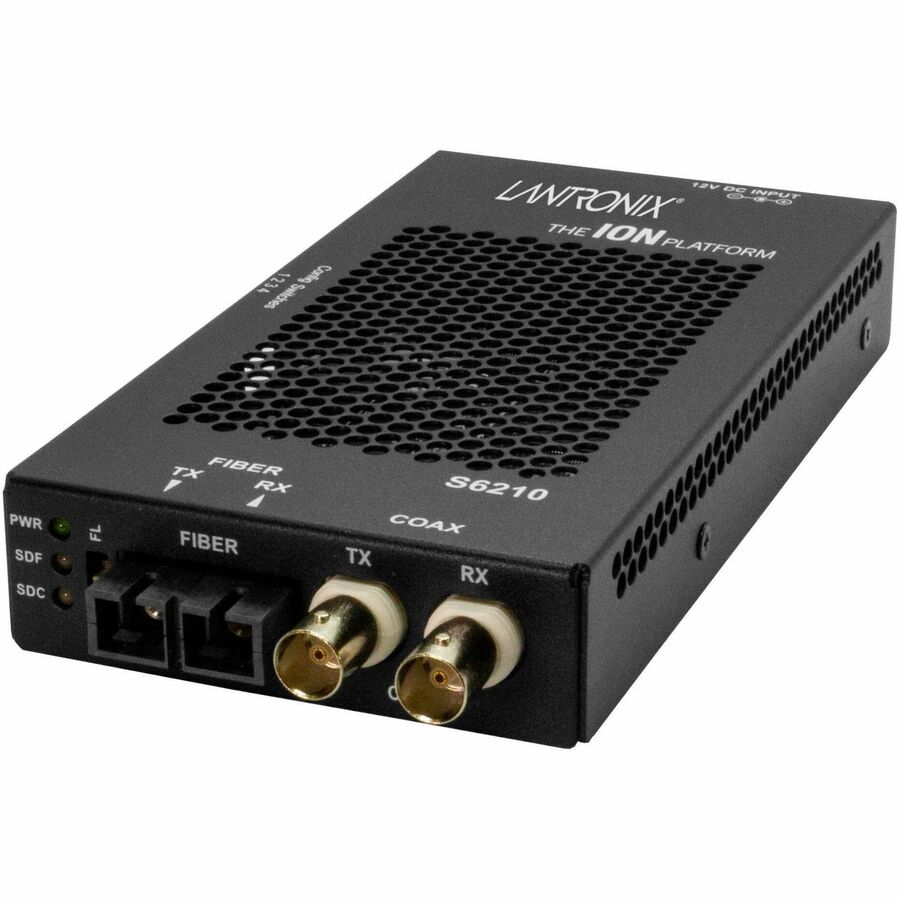

Stand-alone DS3-T3/E3 Network Interface Device DS3 - T3/E3 Coax over Fiber
DS3-T3/ES COAX TO FIBER, MM SC, 2KM W/LA
- SKU
- S6210-3013-LA
- Category
- Transceivers/Media Converters
MSRP$823.00
$597.49
Save 27%Back ordered
Back ordered — ships when restocked.
Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- S6210-3013-LA
- Category
- Transceivers/Media Converters
Overview
A managed stand-alone media converter that provides a solution for those users that need to extend DS3-T3/E3 connections over fiber. NDAA Compliant, TAA Compliant
Highlights
- AIS Alarm Indication Signal
- Coax Line Build Out
- Switch selectable for DS3/T3 or E3
- Remote firmware upgrade
- Loopback - Coax and Fiber
- LEDs for immediate visual status
- Supports dual or single fiber
- Supports multimode and single mode fiber at a variety of distances
- Supports CWDM SFPs
- SNMP management when used with ION chassis and management module
- Remote stand-alone can be managed by local chassis card
- Must be used in pairs
Specifications
| Package Contents |
|
|---|---|
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | S6210-3013-LA |
| Maximum Distance Supported | 1.93 km |
| Power Source | Power Supply |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 2 lb |
| Form Factor | Desktop |
| Manufacturer | Lantronix, Inc |
| Product Name | S6210 Media Converter |
| Network Technology | 100Base-X, DS-3, T3/E3 |
| Power Consumption | 2.40 W |
| Product Series | S6210 |
| Brand Name | Lantronix |
| Height | 1" |
| Width | 3.5" |
| Depth | 6.5" |
| Number of SC Ports | 1 |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Total Number of Ports | 3 |
| TAA Compliant | Yes |
| Fiber Optic Cable Wavelength | 1300 nm |
