Lantronix S6010-1013 Transceiver/Media Converter
Lantronix

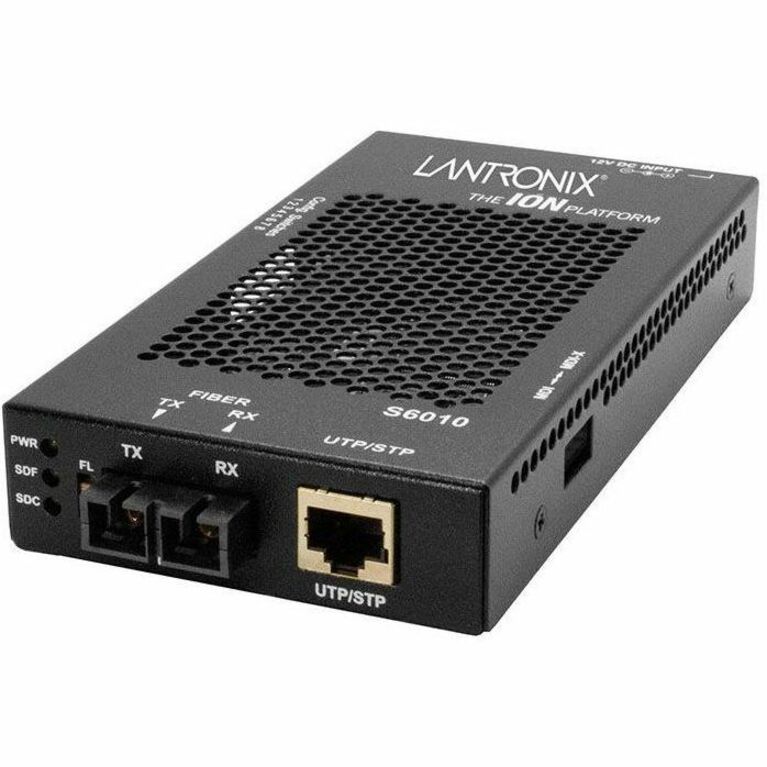

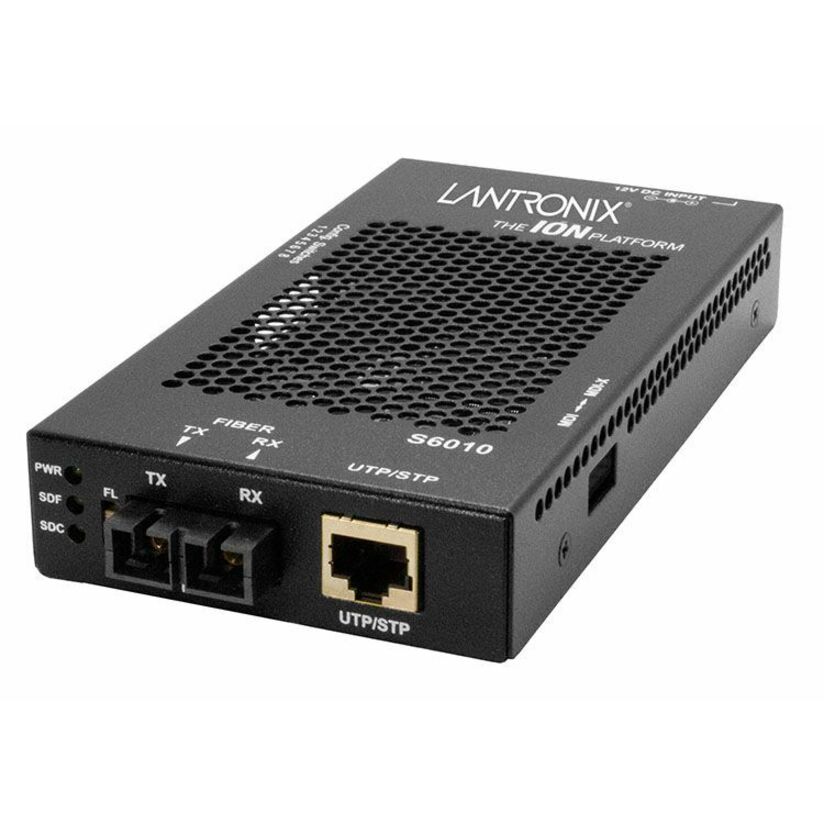

Lantronix S6010-1013 Transceiver/Media Converter

1 x SC Ports - Multi-mode - 1300 nm Fiber - T1/E1 - 2 km - AC Adapter - Wall Mountable, DIN Rail Mountable, Rack-mountable, Standalone, Shelf Mount - TAA Compliant

SKU
S6010-1013-NA
Category
Transceivers/Media Converters

MSRP$823.00

$597.84

Save 27%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
S6010-1013-NA
Category
Transceivers/Media Converters

Overview

Stand-alone DS1 - T1/E1 Remotely Managed NID

DS1 - T1/E1 over Fiber

The ION S6010 is a stand-alone managed media converter that offers a solution for extending DS1 - T1/E1 or PRI connections over fiber optic cabling. It provides fiber extension though a twisted pair RJ-48 port and a fiber port. These DS1 - T1/E1 converters must be used in pairs, one on each end of the fiber link. Management of the stand-alone converter is supported, in-band, over the fiber, when the remote S6010 is linked to a C6010 card installed in a managed ION Chassis. These DS1 - T1/E1 converters are available with fixed fiber connectors or an open SFP slot, with support for various fiber types, distances, and wavelengths to provide maximum flexibility for any network topology. CWDM SFPs can also be used to further increase the bandwidth capacity of the fiber infrastructure.

Highlights

  • Remote in-band management
  • Local or Remote Loopbacks - Copper or Fiber
  • Switch selectable for T1 or E1
  • Remote firmware upgrade
  • LEDs for immediate visual status
  • Supports dual or single fiber
  • Supports multimode and single mode fiber at a variety of distances
  • Supports CWDM SFPs
  • SNMP management when used with ION chassis and management module
  • Remote stand-alone can be managed by local peer

Specifications

Package Contents
  • S6010-1013 Transceiver/Media Converter
  • Power Supply - North America
Product TypeTransceiver/Media Converter
Manufacturer Part NumberS6010-1013-NA
Maximum Distance Supported2 km
Power SourceAC Adapter
Limited WarrantyLifetime
Weight (Approximate)2 lb
Form FactorWall Mountable, DIN Rail Mountable, Rack-mountable, Standalone, Shelf Mount
ManufacturerLantronix, Inc
Product ModelS6010-1013
Product NameS6010-1013 Transceiver/Media Converter
Network TechnologyT1/E1
Power Consumption2.60 W
Product SeriesS6010
Brand NameLantronix
Height1"
Width3.3"
Depth6.5"
Environmentally FriendlyYes
Number of SC Ports1
Media Type SupportedTwisted Pair, Optical Fiber
Fiber Mode SupportedMulti-mode
Total Number of Ports2
TAA CompliantYes
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
Fiber Optic Cable Wavelength1300 nm
