Transition Networks ION DS3 - T3/E3 Network Interface Device Module
1 x SC Ports - Multi-mode - 1300 nm Fiber - Fast Ethernet - T3/E3, 100Base-X/OC-3 - 2 km - 1 x Expansion Slots - SFP - 1 x SFP Slots - Plug-in Module
SKU
Category
Transceivers/Media Converters
MSRP$801.00
$634.01
Save 21%
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 11 and Nov 15, then process your delivery right after.
Genuine Lantronix through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Transceivers/Media Converters
Overview

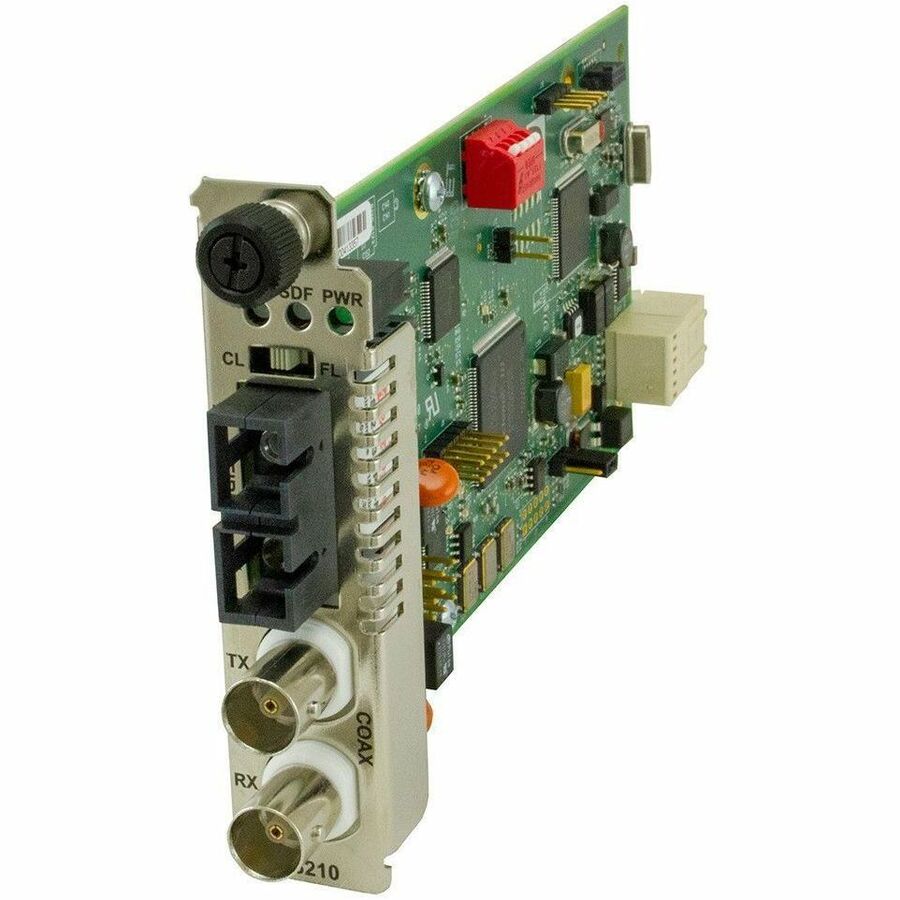

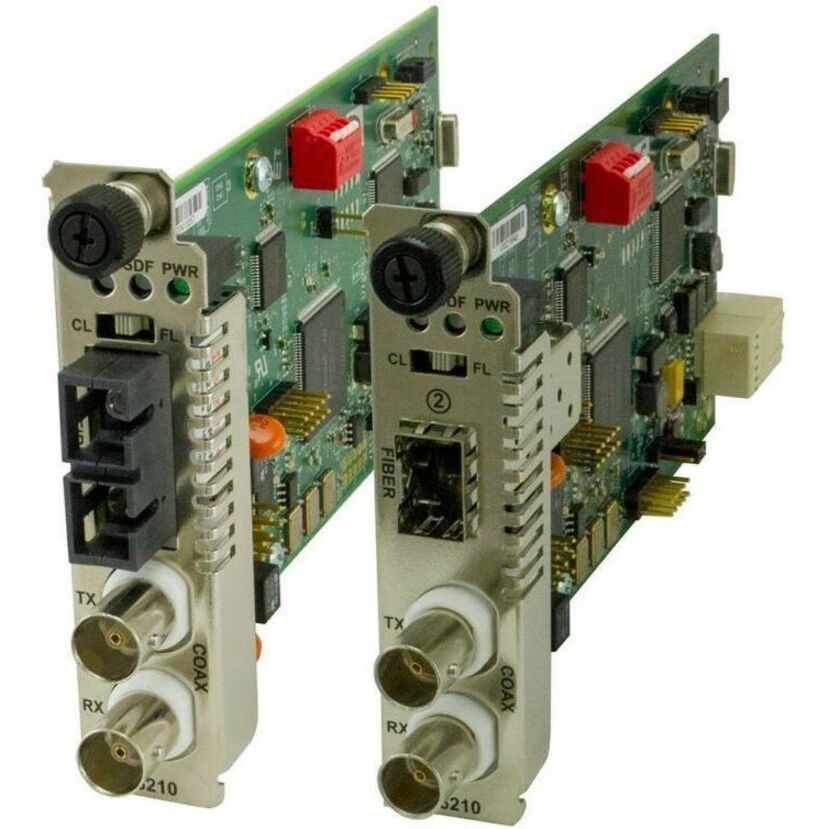

The ION C6210 is a managed media converter module that provides a solution for those users that need to extend DS3-T3/E3 connections over fiber. The C6210 is available in versions that support fixed fiber connectors as well as SFP fiber modules offering support for a variety of fiber types, distances, and wavelengths to provide maximum flexibility across a variety of network topologies. CWDM SFPs can also be utilized to further increase the bandwidth capacity of the fiber infrastructure.
The C6210 DS3-T3/E3 converters must be used in pairs. A typical installation will include a modular card installed in a managed ION chassis linked over fiber to a stand-alone S6210 in a remote location.
Warranty
Limited Warranty: Lifetime
Highlights
AIS (Alarm Indication Signal)
Coax Line Build Out
Switch selectable for DS3/T3 or E3
Remote firmware upgrade
Loopback - Coax and Fiber
LEDs for immediate visual status
Supports dual or single fiber
Supports multimode and single mode fiber at a variety of distances
Supports CWDM SFPs
SNMP management when used with ION chassis and management module
Specifications
General Information
Manufacturer
Lantronix, Inc
Manufacturer Part Number
C6210-3013
Brand Name
Transition Networks
Product Line
ION
Product Series
C6210
Product Model
C6210-3013
Product Name
ION DS3 - T3/E3 Network Interface Device Module
Product Type
Transceiver/Media Converter
I/O Expansions
Total Number of Expansion Slots
1
Expansion Slot Type
SFP
Number of SFP Slots
1
Interfaces/Ports
Total Number of Ports
3
Number of SC Ports
1
Media & Performance
Media Type Supported
Coaxial, Optical Fiber
Fiber Mode Supported
Multi-mode
Fiber Optic Cable Wavelength
1300 nm
Maximum Distance Supported
2 km
Network & Communication
Ethernet Technology
Fast Ethernet
Network Technology
T3/E3, 100Base-X/OC-3
Physical Characteristics
Form Factor
Plug-in Module
Height
3.4"
Width
0.9"
Depth
6.5"
Weight (Approximate)
1 lb
Power Description
Power Consumption
2.50 W
Warranty
Limited Warranty
Lifetime
Miscellaneous
Environmentally Friendly
Yes
Environmental Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
