IOGEAR GCS1808KIT Combo KVM Switch
IOGEAR

IOGEAR GCS1808KIT Combo KVM Switch

8 x 1 - 8 x SPDB-15 Keyboard/Mouse/Video - 1U - Rack-mountable

SKU
GCS1808KIT
Category
KVM Switchboxes

MSRP$424.95

$330.05

Save 22%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine IOGEAR through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
GCS1808KIT
Category
KVM Switchboxes

Overview

The GCS1808KIT KVM is a combo VGA switch that includes 8 KVM cables, set of 4 USB and 4 PS/2 KVM cables. Access and control of up to 64 computers from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded bringing the total number of connected computers to 64 computers that can be controlled from a single keyboard-monitor-mouse console. A custom ASIC (patent pending) provides an auto sensing function that recognizes the position of each station on the installation, eliminating the need to manually set the position with DIP switches. Additionally, the GCS1808KIT features high density SPHD 15-pin instead of the usual 25-pin connectors thus allowing for a compact design and installation in a 1U system rack.

More from the Manufacturer

Highlights

  • Multi-platform OS support - Windows®, Mac, Oracle® Solaris and Linux®
  • Supports both USB and PS/2, VGA computers
  • Auto Scan Mode to monitor connected computers
  • Broadcast Mode to send commands to all connected computers
  • Easy to operate - computer selection via front panel LED's, intuitive OSD (on screen display) and hotkeys
  • Cascade up to 2 levels* - control up to 128 computers from a single console
  • Security - 2 level password protection for OSD
  • Maximum video resolution: up to 2048 x 1536
  • Front USB Port - for system upgrades and shared peripherals (fully compliant with USB 1.1)
  • Rack mountable in a 19" (1U) system rack

Specifications

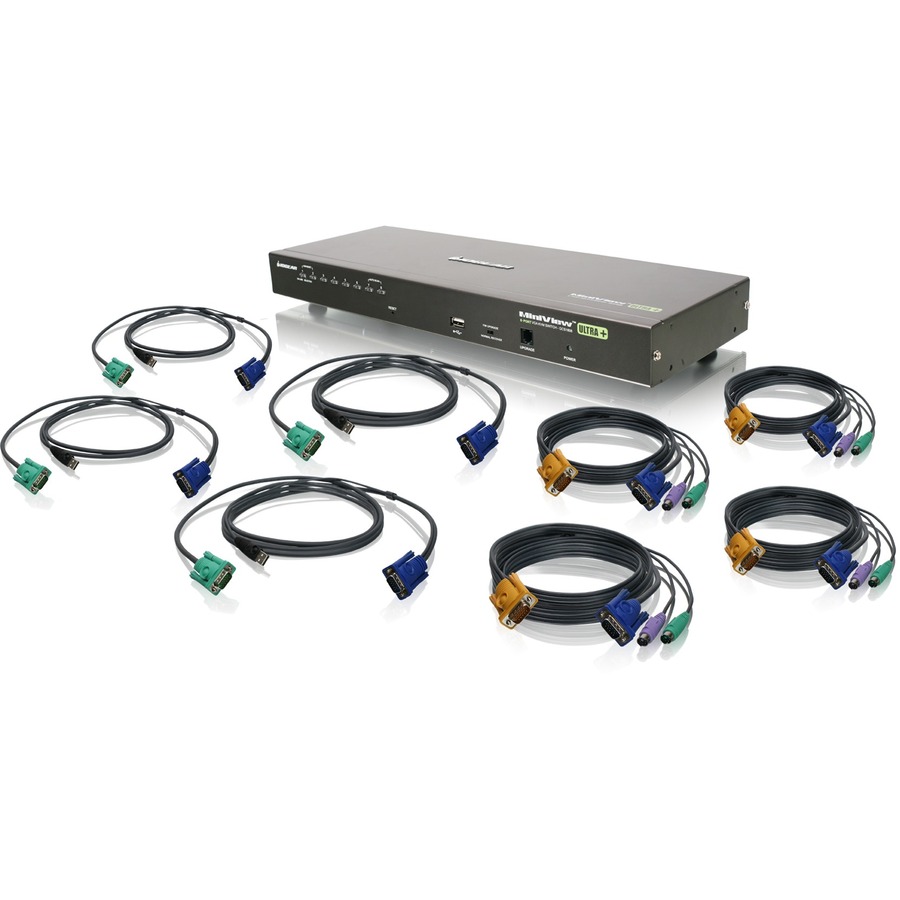

Package Contents
  • GCS1808KIT Combo KVM Switch
  • 2 x PS/2 KVM Cables (6ft - G2L5202P)
  • 2 x PS/2 KVM Cables (10ft - G2L5203P)
  • 2 x USB KVM Cables (6ft - G2L5202U)
  • 2 x USB KVM Cables (10ft - G2L5203U)
  • 1 x Console Cable
  • 1 x Cascade Cable
  • 1 x Firmware Upgrade Cable
  • 1 x Grounding Wire
  • 1 x Foot Pad Set (4 Pads)
  • 1 x Power Adapter
  • 1 x Standard Rack Mounting Kit
  • 1 x Installation Guide
  • 1 x Warranty Card
Product TypeKVM Switchbox
Manufacturer Part NumberGCS1808KIT
Limited Warranty3 Year
Weight (Approximate)5.58 lb
Form FactorRack-mountable
ManufacturerIOGEAR, Inc
Product NameGCS1808KIT Combo KVM Switch
Rack Height1U
Brand NameIOGEAR
Country of OriginChina
Height1.8"
Width17"
Depth6.3"
Environmentally FriendlyYes
Maximum Video Resolution2048 x 1536
Graphic ModeQXGA
USBYes
Number of USB Ports1
Number of Computers Supported8
